Cat 7 S-FTP Ethernet Cable
Dual-shielded Category 7 LAN cable with bare solid copper conductors, HDPE insulation, multiple foil shielding layers and an overall braided shield, with supplier electrical data listed through 1000 MHz.
Key Features
High-performance shielding, copper construction and configurable jacket options for demanding structured cabling projects.
Dual-Shielded S-FTP Construction
Multiple foil shielding layers combined with an overall braided shield provide enhanced protection against electromagnetic interference.
Data Listed Through 1000 MHz
Supplier electrical characteristics are listed at frequencies up to 1000 MHz for technical evaluation and project specification review.
Bare Solid Copper Conductor
Bare solid copper conductors are used in the supplied Cat 7 construction for reliable electrical and transmission performance.
HDPE Insulation
Individual conductors use HDPE insulation before pair twisting, helping maintain controlled geometry within the cable construction.
PVC / PE / LSOH Jacket Options
Multiple outer jacket materials are available to match indoor, infrastructure and project-specific installation requirements.
OEM & ODM Project Supply

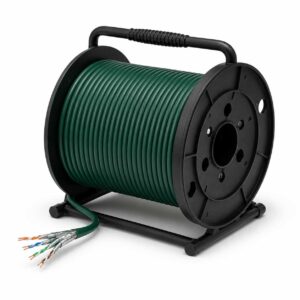

Jacket color, cable marking, labeling, packaging and selected construction requirements can be customized for project orders.
OEM & ODM Capabilities
Flexible manufacturing support for cable construction, jacket materials, identification and project-specific packaging requirements.
Production to Specification
Cat 7 cable can be manufactured according to approved customer specifications and project-specific production requirements.
Configuration Development
Cable configurations can be developed around shielding, installation environment and target-market requirements.
Jacket Material Options
PVC, PE and LSOH jacket options can be selected according to the required product configuration and application.
Custom Cable Colors
Outer jacket colors can be customized for project identification, private branding or product differentiation.
Printing & Marking
Cable marking can include approved model information, specifications, identification and customer branding.
Private Label & Packaging
Reels, labels, cartons and shipment packaging can be configured according to order quantity and customer requirements.
Technical Specifications
Supplier-listed construction, temperature, standards and transmission data for the Cat 7 S-FTP cable configuration.
General Specifications
CAT 7 / S-FTP| Category / Construction | Cat 7 S-FTP shielded LAN cable |
|---|---|
| Conductor | Bare solid copper conductor |
| Conductor Insulation | HDPE insulation |
| Pair Construction | Four color-coded twisted pairs |
| Shielding | Individual / layered aluminum foil shielding with overall braided shield |
| Additional Components | Polyester layer, drain wire and ripcord are identified in the supplied construction |
| Jacket Options | PVC, PE or LSOH |
| Rated Temperature | 60°C / 75°C / 90°C options |
| Installation Temperature | -30°C to +50°C |
| Reference Standards | UL 444, UL 1581, TIA/EIA-568B and ISO/IEC 11801 |
| Listed Applications | 100BASE-TX, 2.5GBASE-TX, 5GBASE-TX, 10GBASE-TX, 100VG-AnyLAN and 1000BASE-TX |
| Supplier Frequency Data | Electrical characteristics listed through 1000 MHz |
Electrical Characteristics
4–1000 MHz| Frequency MHz |
RL ≥ dB |
Attenuation ≤ dB/100m |
NEXT ≥ dB/100m |
ELFEXT ≥ dB/100m |
PS NEXT ≥ dB/100m |
PS ELFEXT ≥ dB/100m |
|---|---|---|---|---|---|---|
| 4 | 23.0 | 3.5 | 79.3 | 78.5 | 75.8 | 75.5 |
| 8 | 24.5 | 5.0 | 79.3 | 77.7 | 75.8 | 74.7 |
| 16 | 26.5 | 7.2 | 79.3 | 71.7 | 75.8 | 68.7 |
| 20 | 26.5 | 8.1 | 79.3 | 69.8 | 75.8 | 66.8 |
| 31.25 | 25.1 | 10.2 | 79.3 | 65.9 | 75.8 | 62.9 |
| 62.5 | 23.0 | 14.7 | 79.3 | 59.9 | 73.3 | 56.9 |
| 100 | 22.5 | 18.8 | 76.8 | 55.8 | 70.2 | 52.8 |
| 250 | 21.7 | 30.8 | 73.7 | 47.8 | 64.2 | 44.8 |
| 300 | 20.5 | 32.7 | — | — | — | — |
| 400 | 19.5 | 38.0 | — | — | — | — |
| 500 | 18.4 | 45.1 | 63.2 | 41.8 | 59.7 | 38.8 |
| 600 | 17.6 | 49.9 | 62.0 | 40.2 | 58.5 | 37.2 |
| 1000 | 15.1 | 61.9 | 60.4 | 35.3 | 57.4 | 32.3 |
Construction & Configuration

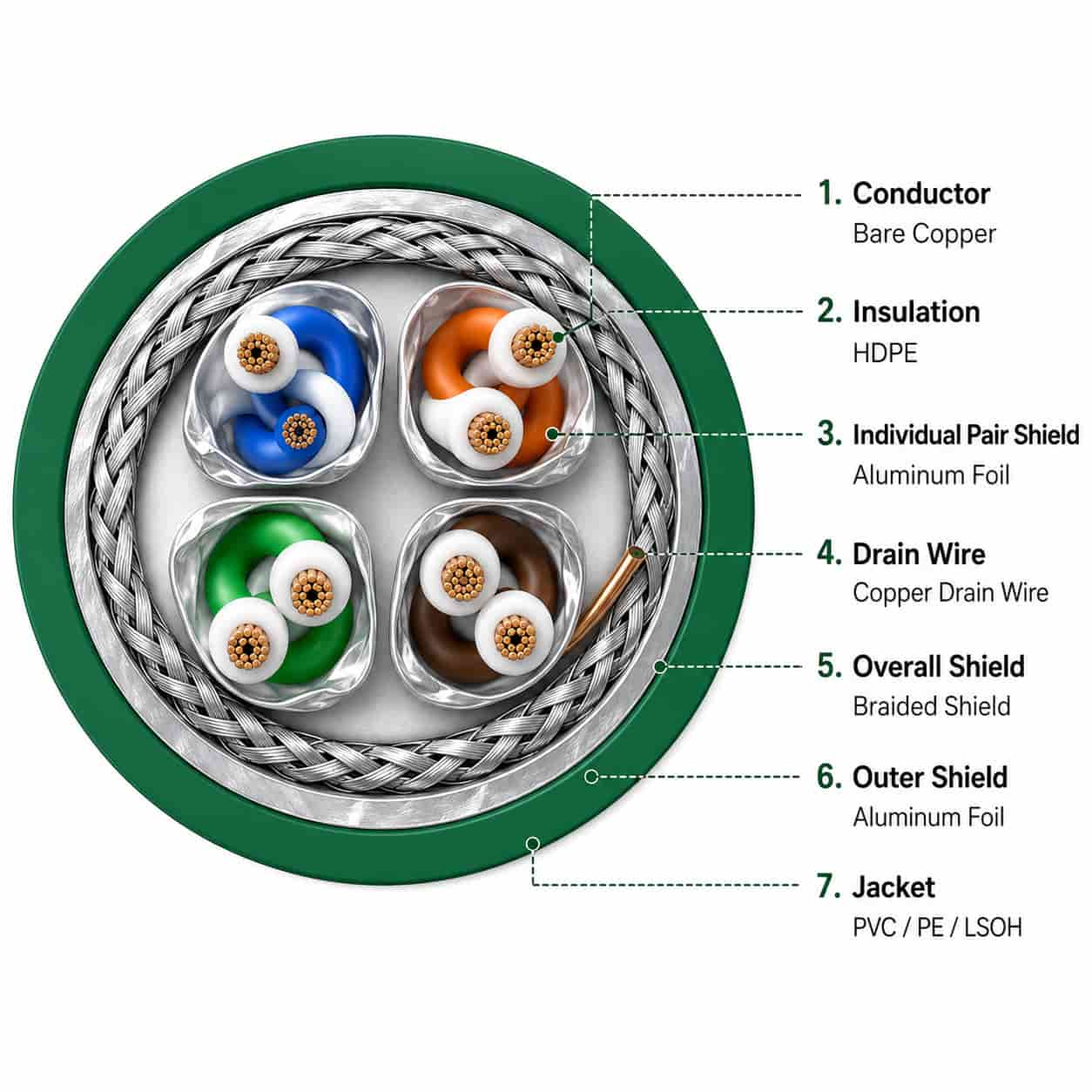

A multi-layer S-FTP construction combining bare copper conductors, HDPE insulation, foil shielding and an overall braided shield.
Bare Solid Copper Conductor
Bare solid copper conductors form the transmission path within each twisted pair.
HDPE Insulation
Individual copper conductors are insulated with HDPE before pair twisting.
Four Twisted Pairs
Four color-coded twisted pairs form the main Cat 7 transmission core.
Aluminum Foil Shielding
Metallic foil shielding helps isolate signal pairs and reduce interference.
Drain Wire
A drain wire is incorporated into the shielding construction as shown in the supplier design.
Overall Braided Shield
An overall metallic braid provides an additional shielding layer around the cable core.
Ripcord
An internal ripcord supports controlled removal of the outer cable jacket during installation.
Outer Jacket
PVC, PE and LSOH jacket options are available according to the selected cable configuration.
Standards & Test Documentation
Reference standards and supplier-listed technical documentation for specification review and project approval.
UL Cable References
UL 444 and UL 1581 are listed in the supplied Cat 7 product information.
International Cabling References
TIA/EIA-568B and ISO/IEC 11801 are referenced in the supplier's Cat 7 cable data.
RoHS-Listed Jacket Options
The supplied product description identifies RoHS-complied PVC, PE and LSOH jacket configurations.
Supplier Performance Data
Electrical characteristics including return loss, attenuation and crosstalk parameters are listed through 1000 MHz in the supplied Cat 7 catalog.
