SIHF Silicone Rubber High-Temperature Control Cable
SIHF is a silicone rubber insulated and sheathed control cable engineered for environments where high-temperature swings cause conventional PVC-insulated cable to soften or turn brittle. It resists a wide range of animal and vegetable fats, oils and dilute acids, and does not break down when exposed to alcohols or alkaline solutions — its silicone insulation blocks oxygen and ozone ingress, and if the cable does burn, the resulting silica ash layer still clings to the conductor, helping to prevent short circuits. Built with a tinned copper conductor, color-coded silicone-insulated cores and a halogen-free, flame-retardant silicone sheath, SIHF is dual certified to CE and UL standards, with OEM/ODM support and standard lead times as fast as 7 days.
Key Features
SIHF combines high-temperature silicone construction with halogen-free, flame-retardant safety performance for demanding control applications.
High-Temperature Rated to 180°C
Stable performance across -50°C to +180°C, with adequate ventilation for fixed installation.
Halogen-Free
Complies with IEC 60754-1, reducing toxic and corrosive gas emission risk.
Flame Retardant & Self-Extinguishing
Meets IEC 60332-1-2 non-propagation of flame test requirements.
Chemical & Alcohol Resistant
Resists oils, dilute acids, alcohols and alkaline solutions without breaking down.
CE & UL Dual Certified
Certified for both European and North American markets.
Fast 7-Day Lead Time
Standard production turnaround as fast as 7 days, with custom configurations available.
OEM & ODM Capabilities
KXY works with distributors and project buyers to deliver SIHF cable configured to exact technical and branding requirements.
Custom Core Configuration
Core count and cross-section configurable per project requirements.
Custom Length & Reeling
Custom-cut lengths, drum or reel packaging to match your logistics needs.
Custom Branding & Labeling
Private-label printing, reel tags and packaging branded to your specification.
Quality Control & Testing
Electrical and dimensional testing performed prior to shipment.
Bulk & Project Order Support
Volume pricing and scheduled deliveries for distributor and project buyers.
Distributor Authorization
Authorized reseller programs available for qualified regional distributors.
Technical Specifications
Core electrical and mechanical parameters for SIHF, per the manufacturer’s technical data sheet.
| Product Code | SIHF |
|---|---|
| Conductor | Tinned copper stranded wire, IEC 60228 Class 5 |
| Insulation | EI2 cross-linked silicone elastomer compound |
| Core Identification | Color-coded per DIN VDE 0293-308 |
| Cabling | Layer stranding |
| Sheath | EM9 cross-linked silicone elastomer compound, black (optional) |
| Rated Voltage | 300/500V |
| Test Voltage | 2kV |
| Parameter | Value | Notes |
|---|---|---|
| Conductor Resistance | Per IEC 60228 Class 5 | At +20°C |
| Insulation Resistance | ≥ 2.0 GΩ × km | Minimum |
| Bending Radius (Fixed) | 4 × D | Minimum |
| Bending Radius (Mobile) | 15 × D | Minimum |
| Layer | Material | Standard | Function | Notes |
|---|---|---|---|---|
| Conductor | Tinned copper stranded wire | IEC 60228 Class 5 | Carries current, provides flexibility | — |
| Insulation | EI2 cross-linked silicone elastomer | — | Electrical insulation, heat and flame resistance | Color-coded per DIN VDE 0293-308 |
| Cabling | Layer stranding | — | Cores assembled in layers for stable geometry | — |
| Sheath | EM9 cross-linked silicone elastomer | — | Outer protection, halogen-free, flame retardant | Black standard; other colors optional |
| Certification | — | CE / UL | Dual certification for EU and North American markets | — |

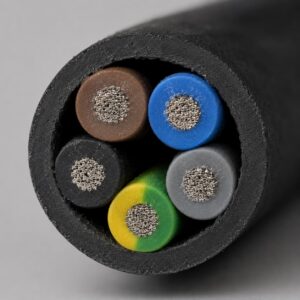

Construction & Configuration

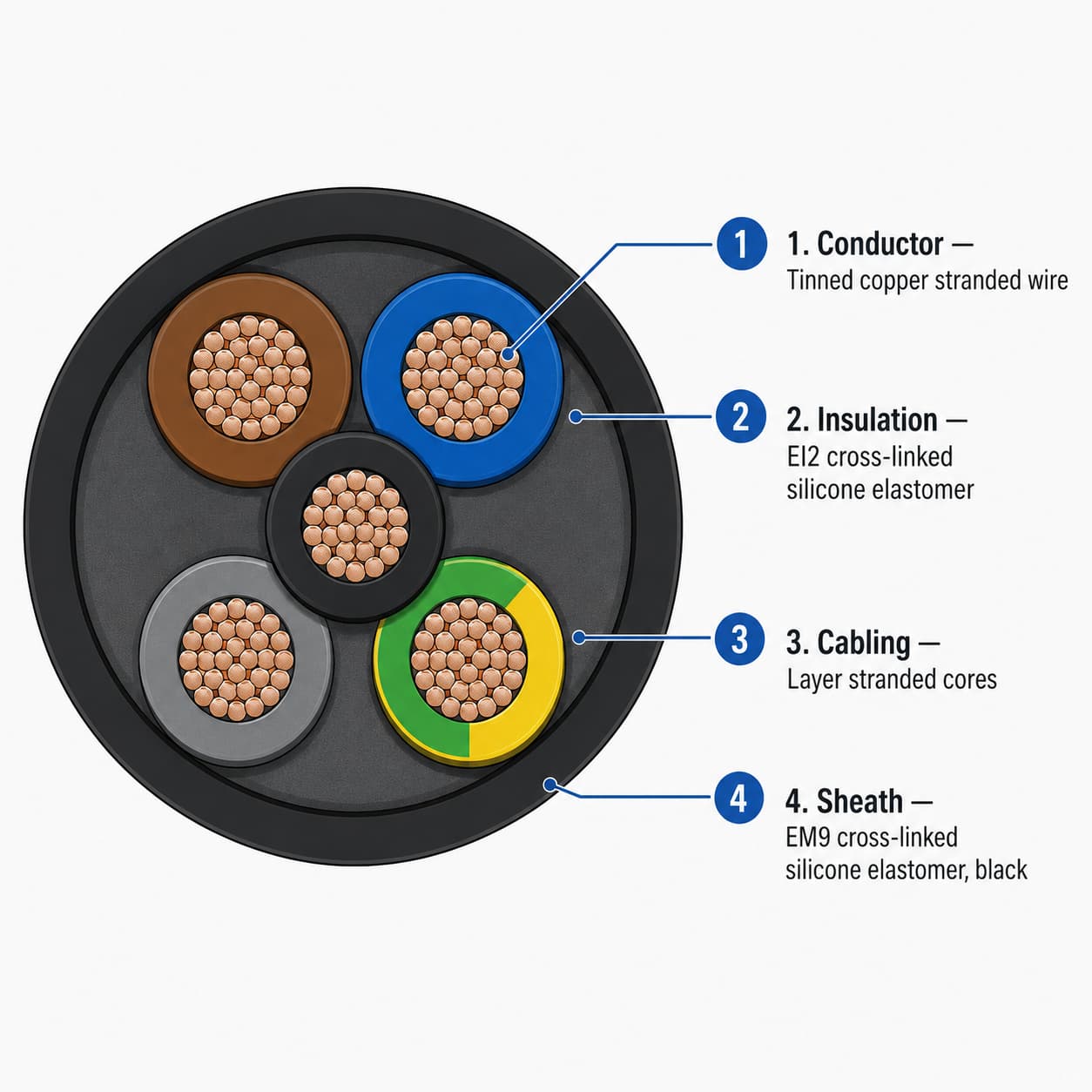

Multi-layer silicone construction with color-coded cores and a halogen-free, flame-retardant sheath. See the structure diagram below.
Conductor
Tinned copper stranded wire, per IEC 60228 Class 5.
Insulation
EI2 cross-linked silicone elastomer, color-coded per DIN VDE 0293-308.
Cabling
Insulated cores assembled using layer stranding for consistent geometry.
Sheath
EM9 cross-linked silicone elastomer, black (optional), halogen-free and flame retardant.

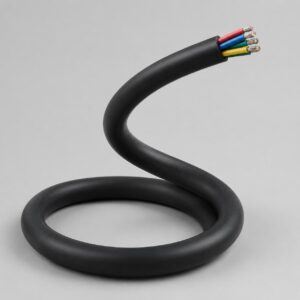

Bending Radius
Minimum 4 × D for fixed installation; minimum 15 × D for mobile installation.
Fire Safety Performance
Halogen-free per IEC 60754-1/2; self-extinguishing and flame retardant per IEC 60332-1-2.
Standards & Test Documentation
SIHF is manufactured, tested and dual-certified against recognized international conductor and fire-safety standards.
IEC 60228 Class 5
Tinned copper stranded conductor manufactured to Class 5 flexible stranding requirements.
IEC 60754-1/2, IEC 60332-1-2
Tested for halogen-free composition, low corrosivity, and self-extinguishing flame-retardant performance.

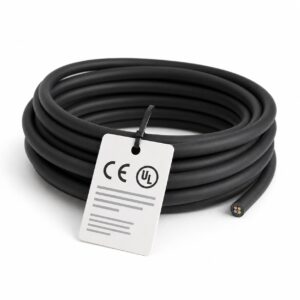

CE & UL Dual Certified
Certified to both European CE marking and North American UL requirements.
