Atlas AC Home Charger (7/11kW AC EV Charger)
The Atlas AC Home Charger is a smart 7/11kW AC EV charger built for residential and light-commercial use. Available in socket and tethered-cable configurations, it combines an IP65-rated weatherproof enclosure, OCPP 1.6J-to-2.0J compatibility, and 9-fold safety protection for dependable everyday charging.
Key Features
Built for continuous residential use, the Atlas AC Home Charger pairs strict safety engineering with smart, connected charging.
Current-Limiting Protection
Safeguards home electrical circuits and prevents nuisance tripping during simultaneous high-load use.
9-Fold Safety Protection
Nine independent protection layers guard the charger, the vehicle, and the household electrical system.
Third-Party Certified
Independently tested and certified to CE and EN IEC 61851 series standards for verified safety and performance.
IP65 Weatherproof Design
Rated for continuous outdoor or indoor use across a -40°C to +60°C operating temperature range.
WiFi, Bluetooth & Ethernet Connectivity
Always-connected design supports remote support and firmware upgrades over WiFi, Bluetooth, or optional Ethernet/4G.
OCPP-Compliant Smart Charging
OCPP 1.6J support with a path to OCPP 2.0J enables dynamic load management and scheduled, lower-rate charging.
OEM & ODM Capabilities
The Atlas AC Home Charger can be configured to match regional grid standards, installation preferences, and private-label programs.
Custom Enclosure Color & Finish
Housing color and surface finish can be customized to match site branding or product line requirements.
Socket or Tethered Cable Configuration
Choose a socket outlet or a tethered charging cable (standard 3.5 m, optional 5 m) to match installation preferences.
Regional Voltage & Standard Compliance
Input and output parameters can be configured for different regional grid standards on request.
Flexible Communication Modules
Optional 4G connectivity can be added alongside standard WiFi, Bluetooth, and Ethernet.
Wall or Pole Mounting Options
Available in wall-mounted and pole-mounted configurations to fit residential and light-commercial sites.
Private Labeling & Packaging
Custom nameplates, user manuals, and retail packaging are available for OEM/ODM programs.
Technical Specifications
Full electrical, physical, and safety specifications for the socket and tethered-cable versions of the Atlas AC Home Charger.
| Rated Power | 7 kW / 11 kW |
|---|---|
| Input Voltage | 230 VAC ±20% / 400 VAC ±20% |
| Input Current | 1-phase 32 A / 3-phase 16 A |
| Input Frequency | 50/60 Hz |
| Cable Length | Standard 3.5 m; Optional 5 m |
| Standby Power Consumption | < 4 W |
| Communication | WiFi, Bluetooth, Ethernet (Optional 4G) |
| Backend Protocol | OCPP 1.6J, support update to OCPP 2.0J |
| Version | Weight | IP Rating |
|---|---|---|
| Socket Version | Net 5 kg / Gross 7 kg | IP55, IK10 |
| Cable Version | Net 7 kg / Gross 9 kg | IP65 |
| Dimensions | 190 × 110 × 320 mm | — |
| Operating Range | -40°C to +60°C | ≤ 95% Humidity |
| Category | Item | Socket Version | Cable Version |
|---|---|---|---|
| Input | Voltage | 230 VAC ±20% / 400 VAC ±20% | 230 VAC ±20% / 400 VAC ±20% |
| Input | Current | 1-phase 32 A / 3-phase 16 A | 1-phase 32 A / 3-phase 16 A |
| Input | Frequency | 50/60 Hz | 50/60 Hz |
| Input | Network Type | TN/TT (LN Voltage 240 V) | TN/TT (LN Voltage 240 V) |
| Output | Voltage | 230 VAC ±20% / 400 VAC ±20% | 230 VAC ±20% / 400 VAC ±20% |
| Output | Current | 1-phase 32 A / 3-phase 16 A | 1-phase 32 A / 3-phase 16 A |
| Output | Power | 7 kW / 11 kW | 7 kW / 11 kW |
| Features & Functions | Material | PC+ASA | PC+ASA |
| Features & Functions | Indicator | LED | LED |
| Features & Functions | Cable Length | Standard 3.5 m; Optional 5 m | Standard 3.5 m; Optional 5 m |
| Features & Functions | Standby Power Consumption | < 4 W | < 4 W |
| Communication | Communication | Standard WiFi, Bluetooth, Ethernet; Optional 4G | Standard WiFi, Bluetooth, Ethernet; Optional 4G |
| Communication | User Authentication | Plug & Charge, RFID, APP | Plug & Charge, RFID, APP |
| Communication | Backend Protocol | OCPP 1.6J, support update to OCPP 2.0J | OCPP 1.6J, support update to OCPP 2.0J |
| Safety | Residual Current Protection | 30 mA AC + 6 mA DC | 30 mA AC + 6 mA DC |
| Safety | Safety Protection | Overcurrent, overvoltage, undervoltage, over-temperature, sticking relay, ground continuity monitoring, household power use protection, residual current protection, integrated surge protection | Overcurrent, overvoltage, undervoltage, over-temperature, sticking relay, ground continuity monitoring, household power use protection, residual current protection, integrated surge protection |
| Certification & Standards | Certifications | CE, RoHS | CE, RoHS |
| Certification & Standards | Standards | EN IEC 61851-1, EN IEC 61851-21-2 | EN IEC 61851-1, EN IEC 61851-21-2 |
| General Design | Dimensions (W×D×H) | 190 × 110 × 320 mm | 190 × 110 × 320 mm |
| General Design | Package Dimensions (W×D×H) | 280 × 250 × 390 mm | 335 × 280 × 470 mm |
| General Design | Net Weight | 5 kg | 7 kg |
| General Design | Gross Weight | 7 kg | 9 kg |
| General Design | IP & IK Rating | IP55, IK10 | IP65 |
| General Design | Installation | Wall-mounting / Pole-mounting | Wall-mounting / Pole-mounting |
| General Design | Operating Temperature | -40°C to +60°C | -40°C to +60°C |
| General Design | Operating Humidity | 5% to 95% | 5% to 95% |
| General Design | Operating Altitude | ≤ 2000 m | ≤ 2000 m |

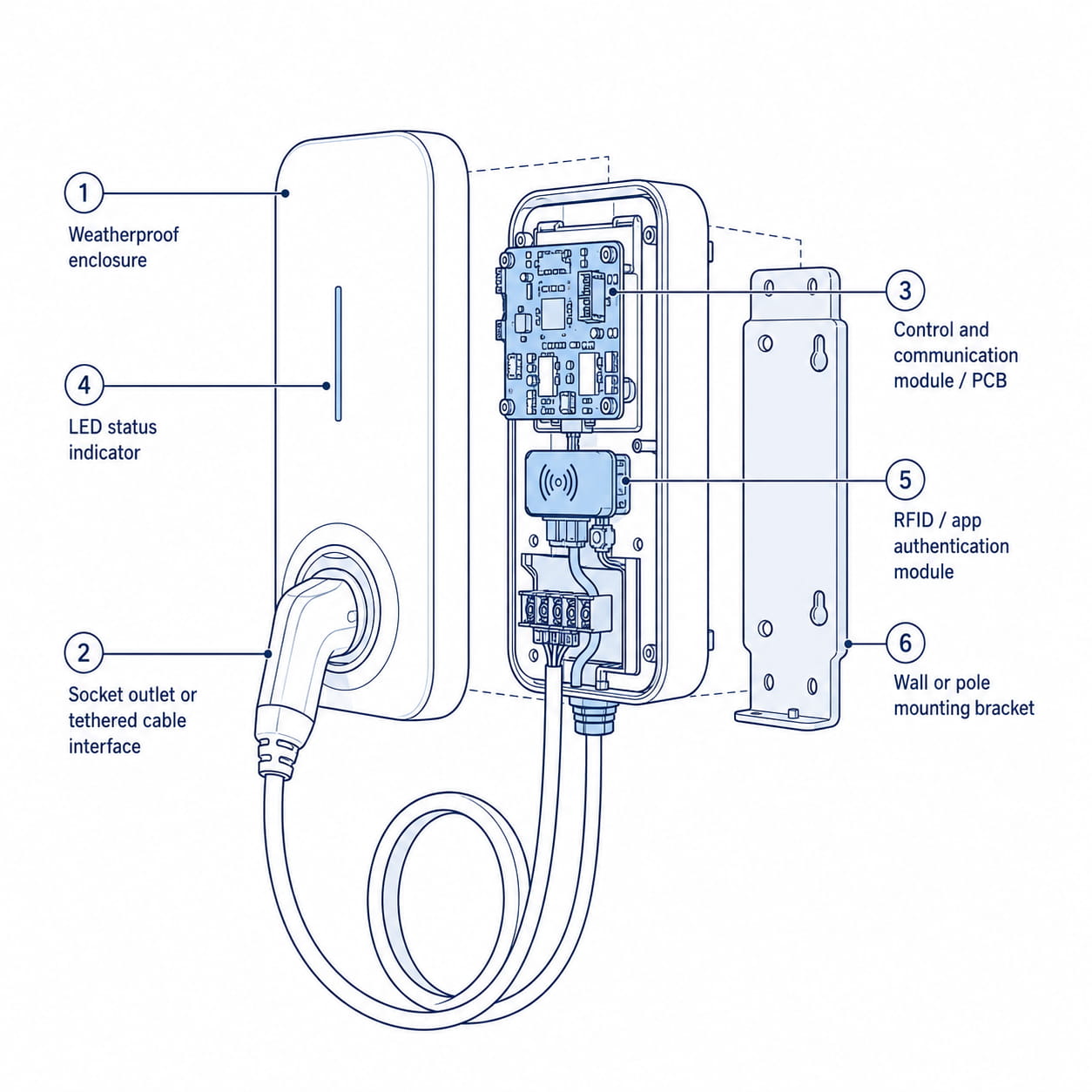

Construction & Configuration
The Atlas AC Home Charger integrates charging, control, and communication components into a single compact enclosure, available with a socket outlet or a tethered cable.
Weatherproof Enclosure
A PC+ASA housing rated IP55 (socket version) or IP65 (cable version) protects internal components indoors or outdoors.
Socket Outlet or Tethered Cable
Available as a Type 2 socket outlet or a tethered 3.5 m (optional 5 m) charging cable, depending on installation needs.
Control & Communication Module
Manages power delivery, the 9-fold protection system, and OCPP-based backend communication.
LED Status Indicator
A dedicated LED indicator shows connection, charging, and fault status at a glance.
Authentication Module
Supports plug-and-charge, RFID card, and app-based authentication for flexible session control.
Wall or Pole Mounting Bracket
Wall-mounting and pole-mounting bracket options support flexible residential and light-commercial installation.
Standards & Test Documentation
The Atlas AC Home Charger is independently tested and certified to meet residential and light-commercial EV charging standards.
EN IEC 61851 Compliance
Certified to EN IEC 61851-1 and EN IEC 61851-21-2, the core European standards for EV conductive charging systems.
CE & RoHS Certified
Independently certified to CE and RoHS requirements for safety, EMC, and restricted-substance compliance.
OCPP 1.6J / 2.0J Ready
Supports OCPP 1.6J out of the box, with a firmware update path to OCPP 2.0J for future-proof backend integration.
Ready to Deploy Atlas AC Home Chargers?
Tell us about your region, installation type, and communication requirements — our team will follow up with pricing, lead times, and OEM/ODM options.
