EVDC Fast Charger (60-240kW DC EV Charger)
The EVDC Fast Charger scales from 60kW to 240kW across a single power platform, with a wide 200-1000V output range and configurable single or dual CCS2/GB-T outlets. Over 54 protection functions, auto dynamic load management, and air-cooled efficiency make it a flexible fit for growing commercial and public charging sites.
Key Features
Built to scale, the EVDC Fast Charger delivers high-power charging with the flexibility and efficiency operators need as demand grows.
54+ Multi-Dimensional Safety Protection
Over fifty-four protection functions cover electrical faults, grounding, insulation, and thermal conditions.
Intelligent O&M & OTA Upgrade
Remote operations and maintenance tools, plus online firmware upgrades, minimize on-site service visits.
Wide 200V–1000V Voltage Range
A broad output voltage range delivers universal application flexibility across today's and tomorrow's EV platforms.
High Conversion Efficiency
High conversion efficiency and low standby power reduce energy losses and operating costs over the charger's lifetime.
Dynamic Power Allocation
Power granularity is dynamically allocated across connected vehicles for efficient, balanced multi-outlet charging.
Auto Dynamic Load Management
Pre-installed, easy-to-transport modules and automatic load management support fast deployment and high ROI.
OEM & ODM Capabilities
The EVDC Fast Charger can be configured by power tier, outlet layout, and branding to match growing site demand.
Selectable Power Rating
Offered at 60, 80, 120, 160, 180, or 240 kW output power on a shared platform, scaling to site demand.
Single or Dual Outlet Configuration
Choose a single CCS2 outlet, or dual outlets in CCS2+CCS2, CCS2+GB/T, or GB/T+GB/T combinations.
Custom Cable Length
Standard 5 m charging cable can be customized to a different length to suit installation layouts.
Flexible Communication Modules
Standard Ethernet, 4G, WiFi, and Bluetooth connectivity can be tailored to backend integration needs.
Custom Enclosure Color & Finish
Cabinet color and surface finish can be customized to match site branding requirements.
Private Labeling & Documentation
Custom nameplates, user manuals, and technical documentation are available for OEM/ODM programs.
Technical Specifications
Full electrical, physical, and safety specifications across the EVDC 60/80/120/160/180/240kW-10YHW platform.
| Power Options | 60 / 80 / 120 / 160 / 180 / 240 kW |
|---|---|
| Input Voltage | 400 V ±10% |
| Output Voltage Range | 200 V to 1000 V (Constant Power 300 V to 1000 V) |
| Max Output Current | 200 A / 250 A |
| Display | 7" High-Brightness Full-Color Touchscreen |
| Communication | Ethernet, 4G, WiFi, Bluetooth |
| Backend Protocol | OCPP 1.6J, OCPP 2.0J Ready |
| Cooling Method | Air Cooling |
| Power | Input Current | Dimensions (W×D×H) |
|---|---|---|
| 60 kW | 120 A | 750×400×1500 mm |
| 120 kW | 241 A | 800×520×1600 mm |
| 180 kW | 362 A | 800×600×1800 mm |
| 240 kW | 483 A | 800×730×1950 mm |
| Category | Item | EVDC 60/80/120/160/180/240kW-10YHW |
|---|---|---|
| Input | Voltage | 400 V ±10% |
| Input | Current | 120 A / 161 A / 241 A / 332 A / 362 A / 483 A |
| Input | Frequency | 50/60 Hz |
| Input | Power Factor | ≥ 0.99 |
| Input | THDi | < 5% |
| Output | Power | 60 kW / 80 kW / 120 kW / 160 kW / 180 kW / 240 kW |
| Output | Voltage | 200 V to 1000 V |
| Output | Constant Power Voltage Range | 300 V to 1000 V |
| Output | Max Current | 200 A / 250 A |
| Output | Outlet | Single outlet: CCS2; Two outlets: CCS2+CCS2; CCS2+GB/T; GB/T+GB/T |
| Screen & Communication | Screen | 7" High brightness full-color touchscreen display |
| Screen & Communication | Network | Ethernet, 4G, WiFi, Bluetooth |
| Screen & Communication | Protocol | OCPP 1.6J, OCPP 2.0J ready |
| Protection | Electrical Protection | Overcurrent, overvoltage, undervoltage, over-temperature, sticking relay, ground continuity monitoring, household power use protection, residual current protection, integrated surge protection |
| Protection | Hardware | Emergency stop button |
| Protection | Rating | IP54 |
| Standards | Standards | GB/T 2023.1&4; GB/T 18487.1 |
| Authentication | Online | APP, RFID, POS (Visa/Mastercard, Debit Card, Apple Pay, Google Pay), VIN |
| Authentication | Offline | White listed RFID card, Password |
| General Design | Dimensions (W×D×H) | 750×400×1500 mm / 800×520×1600 mm / 800×600×1800 mm / 800×730×1950 mm |
| General Design | Cable | 5 m, or customized |
| General Design | Cooling Method | Air cooling |
| General Design | Standby Power | < 20 W |
| General Design | Storage Temperature | -40°C to 70°C |
| General Design | Operating Temperature | -25°C to 50°C |
| General Design | Humidity | ≤ 95% |
| General Design | Altitude | ≤ 2000 m |
| General Design | Noise | ≤ 65 dB |
| General Design | Material | Galvanized steel |

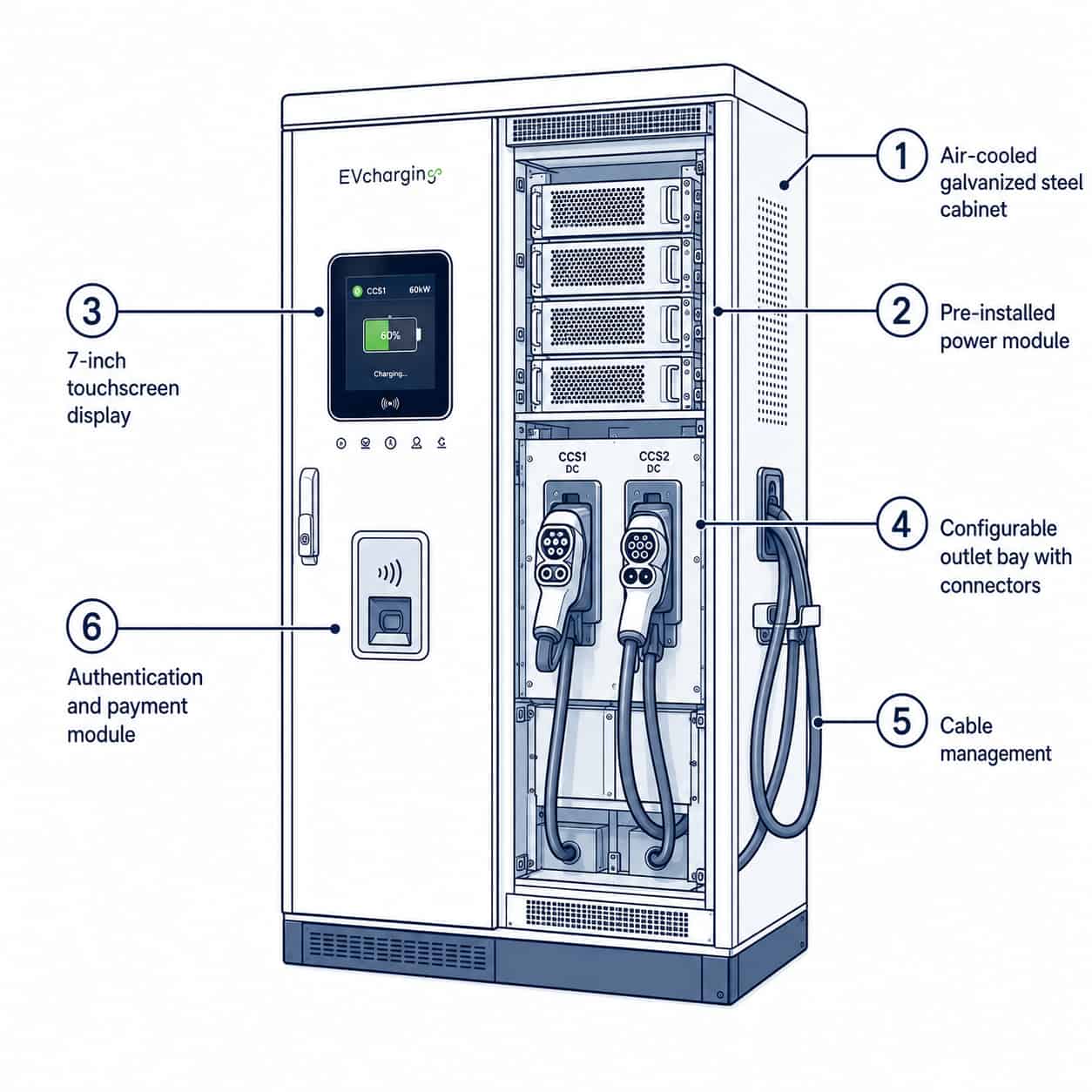

Construction & Configuration
An air-cooled galvanized steel cabinet houses scalable power modules, giving the EVDC Fast Charger a shared platform across six power tiers.
Air-Cooled Galvanized Steel Cabinet
An IP54-rated, air-cooled galvanized steel enclosure scales in size across the 60-240 kW power range.
Pre-Installed Power Module
Pre-installed, modular power electronics speed up manufacturing, transport, and on-site commissioning.
7" Touchscreen Display
A high-brightness, full-color touchscreen guides drivers through connector selection, payment, and status.
Configurable Outlet Bay
Single or dual outlets, in CCS2, GB/T, or mixed combinations, adapt to single- or dual-vehicle charging bays.
Cable Management
A standard 5 m (or customized) cable per outlet keeps charging bays organized between sessions.
Authentication & Payment Module
Supports APP, RFID, VIN recognition, and POS card/mobile wallet payment for online and offline sessions.
Standards & Test Documentation
The EVDC Fast Charger is tested to GB/T standards and supports modern smart-charging protocols for high-throughput commercial sites.
GB/T Charging Compliance
Certified to GB/T 2023.1&4 and GB/T 18487.1, ensuring compatibility with GB/T-equipped electric vehicles.
Multi-Channel Authentication
Supports APP, RFID, VIN recognition, and POS card/mobile wallet payment for both online and offline operation.
OCPP 1.6J / 2.0J Ready
Supports OCPP 1.6J with a firmware update path to OCPP 2.0J for future-proof backend integration.
