Modular Data Centers
MC8000 Containerized Data Center
The MC8000 is a fully factory-prefabricated containerized data center that integrates IT cabinets, cooling, power distribution, fire suppression, security and monitoring inside a 20ft or 40ft steel enclosure. Every subsystem is assembled and tested at the factory before shipment, so once the container reaches site and is connected to utilities and network, it is ready to power up — with a 25-year design life, IP55 protection and support for stacked, multi-unit expansion.
Factory-Built Reliability for the Harshest Environments
MC8000 moves data center construction from a building-first process to a factory-first process, delivering a fully tested system that only needs utility connection on site.
25-Year Design Life, IP55 Enclosure
Steel container body engineered for a 25-year service life with IP55 water and dust protection for outdoor and remote deployment.
Factory-Tested Quality Process
Every subsystem is assembled and commissioned in the factory, cutting on-site construction work and removing uncontrollable site-condition risks.
High-Density Integrated Power & Cooling
Efficient integrated power distribution with sealed cold/hot aisle containment delivers industry-leading power density and efficiency.
Stackable, Multi-Unit Expansion
Supports single-unit or multi-container splicing, with stacking options to improve land utilization on constrained sites.

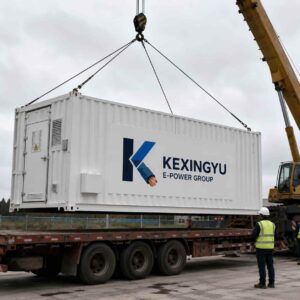

Rapid On-Site Deployment
Factory-prefabricated units are transported to site and can be brought into service quickly once water, power and network are connected.
Unattended Intelligent Monitoring
A built-in unattended operations platform with a 21-inch industrial touchscreen lets operators read out power, cooling, environment and UPS parameters remotely.
OEM & ODM Capabilities
MC8000 container size, power system, cooling type and cabinet density are configured to project requirements and delivered under the customer’s own brand.
Custom Container Size
20ft (L6058 x W2438 x H2896/3000/3200mm) or 40ft (L12192 x W2438 x H2896/3000/3200mm), with multi-container splicing available on request.
Custom Power System
Integrated UPS or high-voltage DC power system, rated 50-200kVA, efficiency ≥96%.
Custom Cooling Type
Air-cooled in-row, chilled-water in-row, or indirect evaporative cooling units, selected to site climate and dust conditions.
Custom Cabinet Density
5-6 cabinet bays in a 20ft unit or 9-13 cabinet bays in a 40ft unit, configured to IT load requirements.
Custom Fire Suppression
Rack-mount fire suppression module (13U, standard 19-inch rack compatible), with optional very-early smoke detection.
Custom Access Control
Standard access control with optional fingerprint, password or card-based multi-mode entry, integrated with IP video surveillance.
Technical Specifications
MC8000 configuration and parameters covering container dimensions, power system, cooling and environmental rating.
| Container Dimensions | 40ft: L12192 x W2438 x H2896/3000/3200mm (multi-container arrangement customizable); 20ft: L6058 x W2438 x H2896/3000/3200mm |
|---|---|
| Cabinet Bays | 20ft unit: 5-6 bays; 40ft unit: 9-13 bays |
| Power System | Integrated UPS or high-voltage DC, 380/400/415Vac, 50/60Hz, 3Ph+N+PE |
| Battery Backup | Built-in battery cabinet, 5-20 minute backup time |
| Protection Rating | IP55 |
| Operating Environment | Temperature -40°C ~ +52°C; Humidity 10%-100%; derate above 1000m altitude |
| Fire Suppression | Automatic fire detection and suppression system; rack-mount module (13U, fits standard 19-inch rack); very-early smoke detection optional |
| Security | Standard access control system with optional fingerprint, password or card entry; IP HD video surveillance integrated with the monitoring system |
| Parameter | Value | Notes |
|---|---|---|
| UPS / HVDC Rating | 50-200kVA | Efficiency ≥96% |
| In-Row AC Cooling | 12/25/40kW per unit | Air-cooled or chilled-water |
| Indirect Evaporative Cooling | 65kW / 120kW per unit | For low-dust, low-humidity regions |
| Battery Backup | 5-20 min | Built-in battery cabinet |
| Subsystem | Dimensions | Input Power | Capacity | Rating | Refrigerant / Protection | Remarks |
|---|---|---|---|---|---|---|
| Integrated UPS / HVDC | — | 380/400/415Vac, 50/60Hz, 3Ph+N+PE | 50-200kVA | Efficiency ≥96%, PF full load >0.99 / half load >0.98 | Surge protection Class B, C | — |
| Air-Cooled In-Row AC | Indoor unit 300/600 x 1000/1100/1200 x 2000/2200mm | 380/400/415Vac, 50/60Hz, 3Ph+N+PE | 12/25/40kW | — | Refrigerant R410A, optional pump | — |
| Chilled-Water In-Row AC | — | 380/400/415Vac, 50/60Hz, 3Ph+N+PE | 12/25/40kW | — | Coolant: water / ethylene glycol solution | — |
| Indirect Evaporative Cooling Unit | L2400 x W3000 x H3200mm; L4100 x W3000 x H3200mm | 380/400/415Vac, 50/60Hz, 3Ph+N+PE | 65kW / 120kW per unit | — | Refrigerant R410A | For low-dust, low-humidity regions |
| Cabinet System | — | — | 20ft: 5-6 bays; 40ft: 9-13 bays | — | — | — |
| Fire Suppression Module | Rack-mount 13U | — | — | Fits standard 19-inch rack | — | Very-early smoke detection optional |

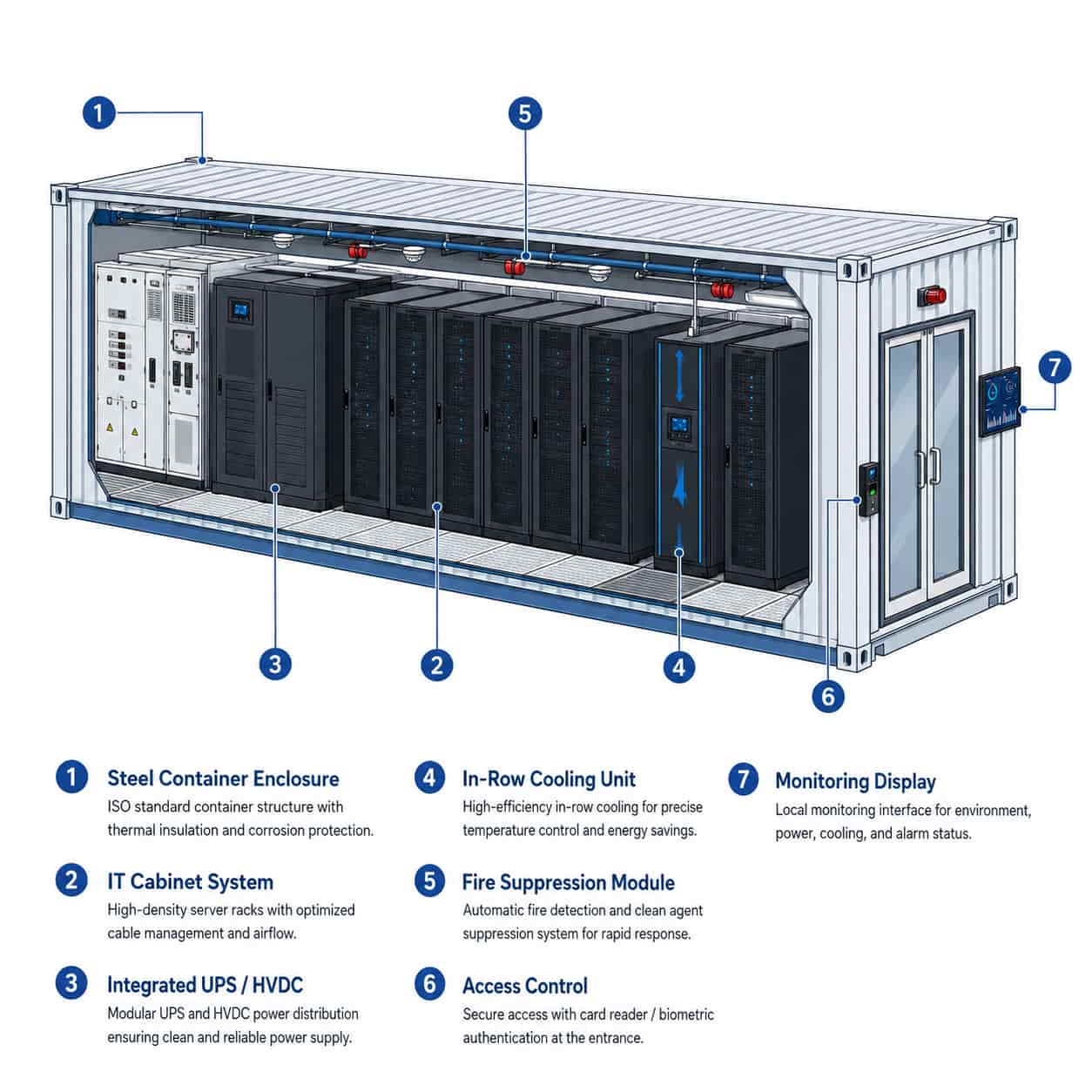

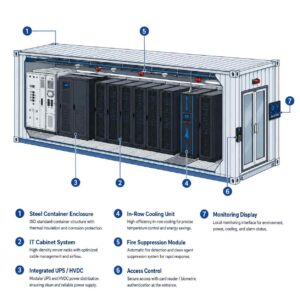

Construction & Configuration
MC8000 integrates six core subsystems inside a factory-prefabricated steel container, tested as a complete system before it ever leaves the factory.
Steel Container Enclosure
20ft or 40ft steel container body, IP55 rated, 25-year design life, suitable for outdoor and remote deployment.

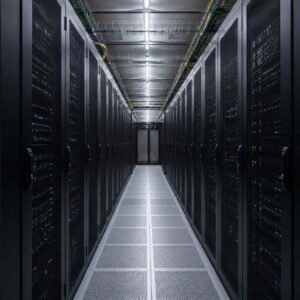

IT Cabinet System
5-6 cabinet bays in a 20ft unit or 9-13 bays in a 40ft unit, factory pre-installed.

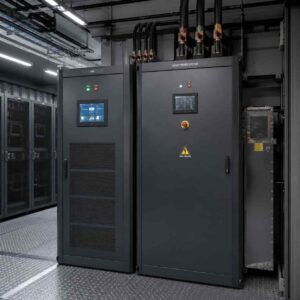

Integrated Power System
Integrated UPS or high-voltage DC power system, rated 50-200kVA with built-in battery backup.
Cooling System
Air-cooled, chilled-water, or indirect evaporative cooling units, sized 12-120kW per unit.
Fire Suppression & Security
Rack-mount automatic fire suppression module plus standard access control and IP video surveillance.
Unattended Monitoring Platform
21-inch industrial touchscreen with a built-in unattended operations platform for full remote monitoring and multi-site management.
Standards & Test Documentation
MC8000 is engineered for a 25-year design life and factory-tested to a full product quality process, with complete technical documentation available for project design.
25-Year Design Life & Factory Testing
Container body engineered for a 25-year service life, with every subsystem assembled and tested through a full factory quality process before shipment.
Enclosure & Surge Protection
IP55-rated enclosure for water and dust protection, with Class B and C surge protection on the integrated power system.
Technical Documentation
Container layout drawings, power single-line diagrams and monitoring system documentation provided to support project design and site commissioning.
Get a Custom MC8000 Data Center Quote
Tell us your target IT load, container size and site environment — our engineering team will configure an MC8000 system and respond with a proposal.
