EVDC Fast Charger (320-480kW Ultra-Fast DC EV Charger)

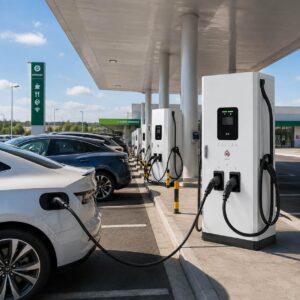

The EVDC Fast Charger scales up to 480kW for high-throughput commercial and highway charging sites. Dual connectors with dynamic power sharing, a 7-inch HD touch display, and up to 96% peak conversion efficiency give operators the capacity to serve more vehicles, faster, on a single unit.
Key Features
Engineered for ultra-fast, high-throughput charging, the EVDC Fast Charger combines wide voltage flexibility with intelligent power sharing across two connectors.
Up to 96% Peak Efficiency
High peak conversion efficiency reduces energy losses across every charging session at this power scale.
Wide 200V–1000V Voltage Range
A broad output voltage range with a 300V-1000V constant power window supports a wide range of EV platforms.
Dynamic Power Sharing
Two connectors share available power dynamically, balancing throughput across simultaneous charging sessions.
7-Inch HD Touch Display
A 7-inch HD touchscreen guides drivers through connector selection, authentication, and session status.
QR, RFID & VIN Activation
Sessions can be started via QR code scan, RFID card, or VIN authentication for flexible driver access.
Low Noise, Forced Air Cooling
A forced air cooling system keeps noise at or below 65 dB while managing heat at high power output.
OEM & ODM Capabilities
The EVDC Fast Charger can be configured by power tier, cable length, and auxiliary power to match high-throughput site requirements.
Selectable Power Rating
Offered at 320, 360, 400, or 480 kW output power on a shared platform, scaling to site throughput needs.
Custom Cable Length
Standard 7 m charging cable can be customized to a different length to suit installation layouts.
Selectable BMS Auxiliary Power
Standard 12V BMS auxiliary power with an optional 24V configuration to match vehicle platform requirements.
Flexible Communication Modules
Standard RJ45 Ethernet and 4G LTE connectivity can be tailored to backend integration needs.
Custom Enclosure Color & Finish
Cabinet color and surface finish can be customized to match site branding requirements.
Private Labeling & Documentation
Custom nameplates, user manuals, and technical documentation are available for OEM/ODM programs.
Technical Specifications
Full electrical, physical, and charging configuration specifications across the EVDC-320/360/400/480kW-10YHW platform.
| Power Options | 320 / 360 / 400 / 480 kW |
|---|---|
| Input Voltage | 400 V ±10% |
| Output Voltage Range | 200 V to 1000 V (Constant Power 300 V to 1000 V) |
| Peak Efficiency | ≥ 96% |
| Number of Connectors | 2 |
| Cable Length | 7 m standard (custom lengths available) |
| Communication | RJ45 Ethernet, 4G LTE |
| User Interface | 7-inch HD Touch Display |
| Power | Input Current | Max Output Current |
|---|---|---|
| 320 kW | 644 A | 250 A |
| 360 kW | 724 A | 250 A / 300 A |
| 400 kW | 805 A | 300 A / 400 A |
| 480 kW | 966 A | 400 A |
| Category | Item | EVDC-320/360/400/480kW-10YHW |
|---|---|---|
| Input | Voltage | 400 V ±10% |
| Input | Current | 644 A / 724 A / 805 A / 966 A |
| Input | Frequency | 50/60 Hz |
| Input | Power Factor | ≥ 0.99 |
| Input | THDi | < 5% |
| Output | Power | 320 kW / 360 kW / 400 kW / 480 kW |
| Output | Voltage | 200 V to 1000 V |
| Output | Constant Power Voltage Range | 300 V to 1000 V |
| Output | Max Current | 250 A / 250 A–300 A / 300 A–400 A / 400 A |
| Output | Outlet | GB/T; CSS2 |
| Output | Peak Efficiency | ≥ 96% |
| Output | Voltage Regulation Accuracy | ≤ ±0.5% |
| Output | Current Regulation Accuracy | ≤ ±1% |
| Output | Peak Ripple Coefficient | ≤ 0.5% |
| Output | Noise Level | < 65 dB |
| Charging Configuration | Number of Connectors | 2 |
| Charging Configuration | Cable Length | 7 m standard (custom lengths available) |
| Charging Configuration | Activation Methods | QR Code Scan, RFID Card, VIN Authentication |
| Charging Configuration | Power Allocation | Dynamic Power Sharing |
| Charging Configuration | User Interface | 7-inch HD Touch Display |
| Charging Configuration | BMS Auxiliary Power | Standard 12 V (12 V / 24 V optional) |
| Charging Configuration | Communication | RJ45 Ethernet, 4G LTE |
| Environmental Specifications | Operating Temperature | -25°C to +55°C |
| Environmental Specifications | Storage Temperature | -40°C to +80°C |
| Environmental Specifications | Relative Humidity | ≤ 95% (non-condensing) |
| Environmental Specifications | Maximum Altitude | ≤ 4000 m (Derating required above 2000 m) |
| Physical Specifications | Main Unit Dimensions (W×D×H) | 800 × 730 × 1950 mm |
| Physical Specifications | Cooling System | Forced Air Cooling |
| Physical Specifications | Safety Protection | IP54 |

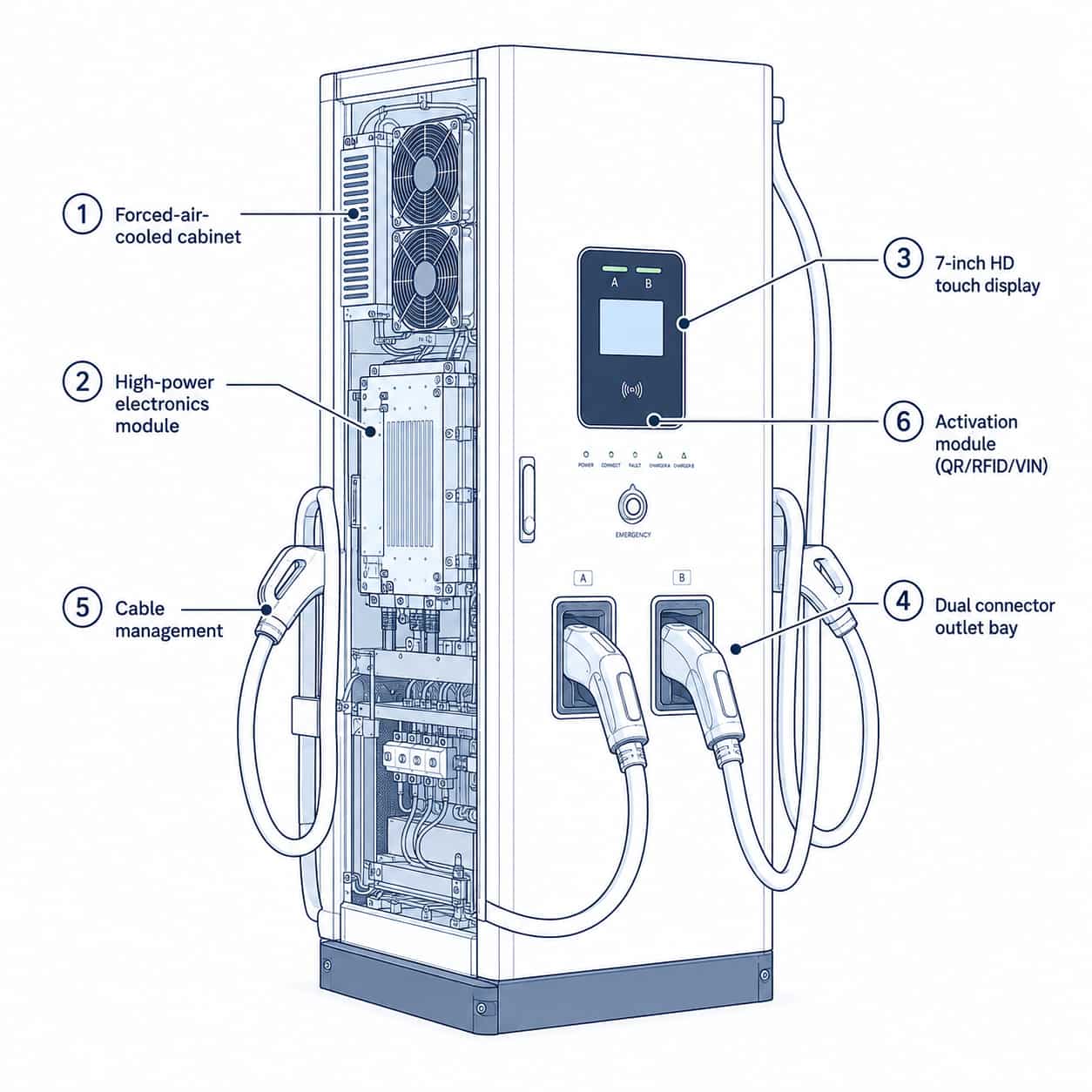

Construction & Configuration
A forced-air-cooled cabinet houses high-power electronics and dual connector hardware, purpose-built for continuous ultra-fast charging duty.
Forced-Air-Cooled Cabinet
An IP54-rated cabinet with a forced air cooling system manages heat dissipation at up to 480 kW output.
High-Power Electronics Module
Power conversion electronics deliver up to 96% peak efficiency across a wide 200V-1000V output range.
7" HD Touch Display
A 7-inch HD touchscreen guides drivers through connector selection, authentication, and session status.
Dual Connector Outlet Bay
Two connectors (GB/T, CCS2) share power dynamically, supporting two simultaneous charging sessions.
Cable Management
A standard 7 m (or customized) cable per connector keeps high-power charging bays organized between sessions.
Activation Module
Supports QR code scan, RFID card, and VIN authentication for flexible, fast session start.
Standards & Test Documentation
Built for continuous ultra-fast charging duty, the EVDC Fast Charger combines a robust protection rating with flexible driver authentication.
IP54 Protection Rating
An IP54-rated cabinet with forced air cooling supports reliable operation across a -25°C to +55°C range.
Dynamic Power Sharing
Two connectors dynamically share available power, maximizing throughput across simultaneous sessions.
QR, RFID & VIN Activation
Multiple activation methods — QR code, RFID card, and VIN authentication — support flexible driver access.
