600/1000V Advanced Flexible Control Cable
Primarily used as a power and signal transmission wiring cable, this control cable is designed for indoor, outdoor, and even damp environments. It can be securely installed in free air, ducts, masonry structures, metal structures or suspended structures — locations where, in the event of fire, people may be exposed to high concentrations of smoke, toxic gases and corrosive gases.
The cable supports emergency exits, alarm signaling, smoke indication and escalator circuits, and can also be laid directly or indirectly underground.
Key Features
Circuit Integrity Under Fire
Continues supporting emergency exits, alarm signaling and smoke indication circuits during fire, per IEC 60331-21 and BS 6387 CWZ.
Mica Tape + XLPE Insulation
Mica tape laminated onto XLPE compound insulation withstands up to 350°C short-circuit temperature.
Versatile Installation
Suitable for indoor, outdoor and damp environments — free air, ducts, masonry, metal structures, suspended runs, or direct/indirect underground laying.
Low Smoke Zero Halogen
LSZH sheath per BS 7652 §6.1 / BS 7655 §2.6 LTS3 class, with low halogen and corrosive gas emission for occupied buildings.
600/1000V Rated
Rated for 600/1000V power and signal wiring, with a 2500V r.m.s. × 5min dielectric test rating.
Dual CE & UL Certification
Certified to both European CE and North American UL standards for global fire alarm and control wiring compliance.
OEM & ODM Capabilities
Custom Core Count
Core count and conductor arrangement can be tailored to your power and signal wiring circuit requirements.
Custom Conductor Size
Conductor cross-section configurable to match your specific control and power circuit loading needs.
Custom Sheath Color
Standard black LSZH sheath; alternative colors available on request for circuit identification.
Multi-Standard Compliance Support
Engineering support to align cable selection with country-specific fire, smoke and toxicity standards for your project.
Custom Length & Reel Packaging
Supplied in custom cut lengths and reel/drum packaging configurations to suit project logistics needs.
Private Labeling & Branding
OEM/ODM packaging, reel labeling and documentation support available for distributors and fire system contractors.
Technical Specifications
| Conductor | Plain annealed copper wire, stranded, per IEC(EN) 60228 class 2 |
|---|---|
| Insulation | Mica tape laminated onto XLPE (cross-linked polyethylene) compound |
| Cabling | Cores assembled with suitable non-hygroscopic filler in the same concentric layer |
| Overall Screen | None |
| Armour | None |
| Circuit Protective Conductor | None |
| Outer Sheath | Thermoplastic per BS 7652 §6.1 / BS 7655 §2.6, LSZH compound LTS3 class (SW2-SW4 type), black |
| Working Voltage | 600/1000V |
| Dielectric Test | 2500V r.m.s. × 5 min (core-to-core) |
| Insulation Resistance | ≥300MΩ×km at 20°C |
| Short-Circuit Temperature | 350°C |
| Operating Temperature | -30°C ~ +90°C |
| Installation Temperature | -20°C ~ +50°C |
| Min. Bending Radius | 7.5 × OD (minimum) |
| Certification | Dual certified: EU CE, North America UL |
| Working Voltage | 600/1000V |
|---|---|
| Short-Circuit Temp. | 350°C |
| Insulation Resistance | ≥300MΩ×km |
| Certification | CE + UL |

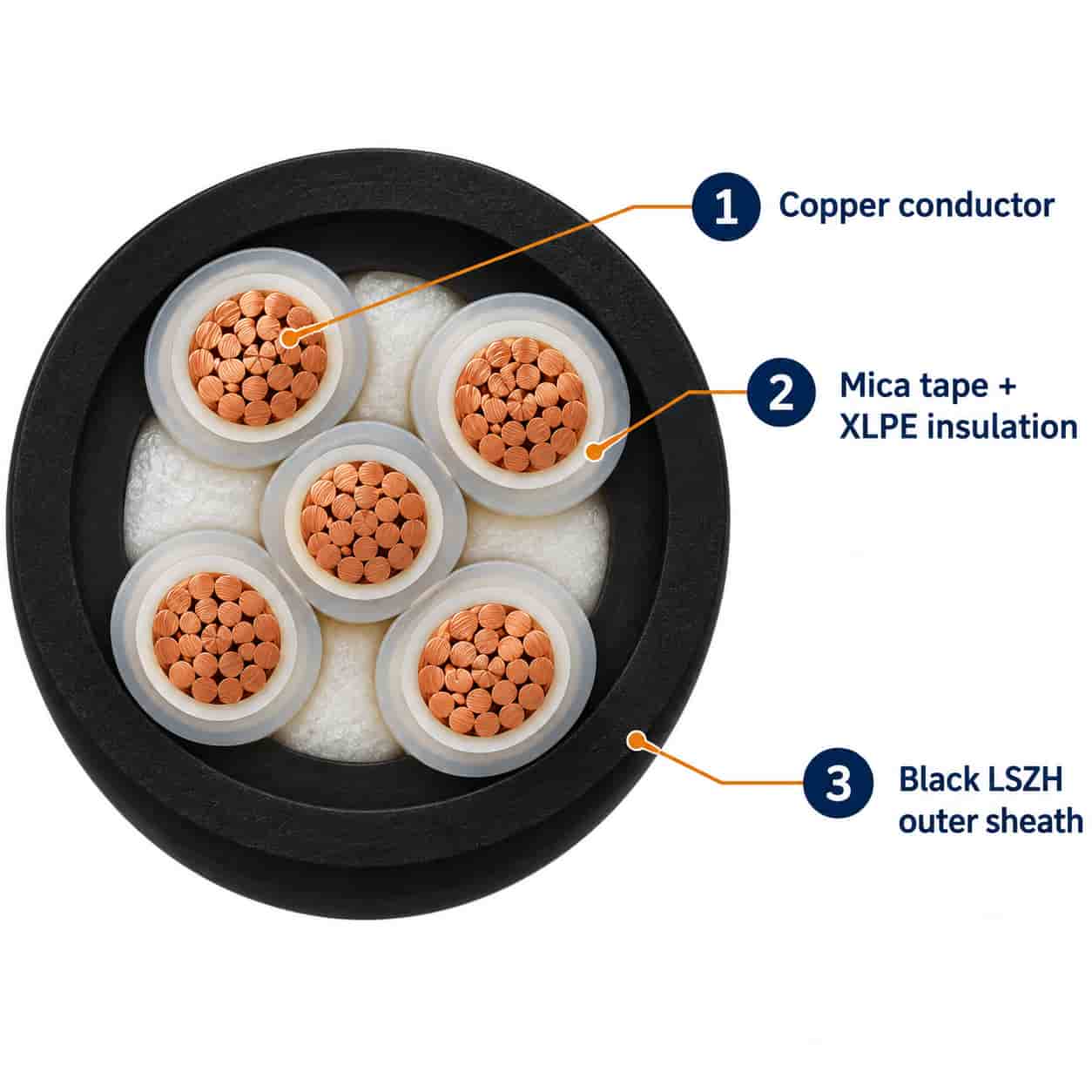

Construction & Configuration
Conductor
Plain annealed copper wire, stranded, complying with IEC(EN) 60228 class 2.
Insulation
Mica tape laminated onto XLPE compound, providing 350°C short-circuit temperature performance.
Cabling
Cores assembled with a suitable non-hygroscopic filler within the same concentric layer.
Screen, Armour & Protective Conductor
No overall screen, armour or circuit protective conductor — this is an unshielded, unarmoured flexible control cable construction.
Outer Sheath
Black LSZH thermoplastic sheath per BS 7652 §6.1 / BS 7655 §2.6, suitable for indoor, outdoor and damp installations.
Voltage & Thermal Rating
Rated 600/1000V with a 2500V r.m.s. dielectric test rating and short-circuit temperature of 350°C.
Standards & Test Documentation
Fire Circuit Integrity Standards
IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814 (FE180); BS 8434-2 (120mins); BS 5839-1 Clause 26.2e; CEI 20-36/2-1; SS 229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3 (CR1). Mechanical shock integrity: EN 50200 (PH120), CEI 20-36/4-0. Mechanical shock + water spray integrity: EN 50200 Annex E. System circuit integrity per installation system: DIN 4102-12, E30.
Flame Retardancy & Reduced Flame Spread
Single vertical cable flame test: EN/IEC/BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1 (C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*. Bunched vertical cable flame spread reduction: EN/IEC/BS EN 60332-3-24 (cat. C); VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2 (C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4.
Halogen-Free, Low Smoke & Non-Toxic
Zero halogen: IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*. Non-corrosive gas emission: IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2*. Minimum smoke emission: IEC/EN 61034-1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*. Non-toxic gas: NES 02-713; NF C 20-454.
Dual CE & UL Certified
Certified to both European CE and North American UL standards, in addition to the full fire, smoke and toxicity performance suite listed above.
Emergency & Life-Safety Circuits
Supports emergency exit lighting, alarm signaling, smoke indication and escalator circuits, suitable for direct or indirect underground laying.
LSZH per BS 7652 §6.1 / BS 7655 §2.6
Outer sheath complies with BS 7652 §6.1 and BS 7655 §2.6 thermoplastic requirements, LSZH compound LTS3 class (SW2-SW4 type).
