Mica Tape + XLPE/Silicone Insulated, Individual & Overall Screened Multi-Pair Instrumentation Cable (300/500V)
Designed, produced and tested as an emergency data transmission cable, this instrumentation cable ensures high-frequency signal transmission under fire conditions, commonly used for data and voice transmission during fire events.
Available with either mica tape + XLPE insulation or silicone rubber insulation, and in non-armoured or galvanized steel wire armoured (SWA) constructions, the cable features both individual pair screening and an overall screen for superior noise immunity in demanding instrumentation environments.
Key Features
Emergency Fire Data Transmission
Designed, produced and tested for high-frequency signal transmission during fire events, per IEC 60331-21 and BS 6387 CWZ.
Two Insulation Options
Choose mica tape + XLPE insulation (250°C short-circuit rating) or silicone rubber insulation (350°C short-circuit rating).
Individual + Overall Screen
Aluminum/polyester tape with tinned copper drain wire on both individual pairs and the overall cable for superior noise immunity.
Optional Steel Wire Armour
Non-armoured or SWA (steel wire armoured) construction available, with an additional LSZH layer on armoured versions.
Low Smoke Zero Halogen
LSZH sheath per BS 7652 §6.1 / BS 7655 §2.6 LTS3 class, with low halogen and corrosive gas emission for occupied buildings.
Dual CE & UL Certification
Certified to both European CE and North American UL standards for global fire alarm and instrumentation project compliance.
OEM & ODM Capabilities
Choice of Insulation Material
Select mica tape + XLPE (RE-2X series) or silicone rubber (RE-2G series) insulation based on your temperature and fire performance needs.

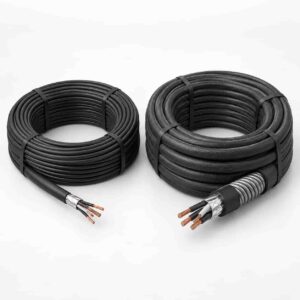

Armoured or Non-Armoured
Choose non-armoured construction or SWA (steel wire armoured) version with additional LSZH layer for mechanical protection.
Custom Pair Count & Size
Available in 2/5/10/20-pair configurations with 1.0/1.5/2.5mm² conductor cross-sections.
Multi-Standard Compliance Support
Engineering support to align cable selection with country-specific fire, smoke and toxicity standards for your project.
Custom Length & Drum Packaging
Supplied in custom cut lengths and reel/drum packaging configurations to suit project logistics needs.
Private Labeling & Branding
OEM/ODM packaging, reel labeling and documentation support available for distributors and fire system contractors.
Technical Specifications
| Conductor | Plain annealed copper wire, stranded, per IEC(EN) 60228 class 2 |
|---|---|
| Insulation Option 1 | Mica tape + XLPE (RE-2X series) |
| Insulation Option 2 | Silicone rubber (RE-2G series) |
| Pair Twisting | Different lay lengths per pair to minimize interference; 4 cores per twisted-pair group |
| Cabling | Pairs assembled together; groups of 8+ pairs bundled, then multiple bundles assembled together |
| Individual Pair Screen | Aluminum/polyester tape with 0.5mm² tinned copper drain wire |
| Overall Screen | Aluminum/polyester tape with 0.5mm² tinned copper drain wire |
| Inner Sheath (Armoured Version) | Thermoplastic LSZH compound LTS3 class, per BS 7655 §6.1 |
| Armour (SWA Version) | Galvanized steel wire armour |
| Outer Sheath | Thermoplastic per BS 7652 §6.1 / BS 7655 §2.6, LSZH compound LTS3 class (SW2-SW4 type) |
| Working Voltage | 300/500V |
| Dielectric Test | 2000V r.m.s. × 5 min (core-to-core) |
| Insulation Resistance | ≥1000MΩ×km at 20°C |
| Short-Circuit Temperature | XLPE: 250°C; Silicone Rubber: 350°C |
| Operating Temperature (Fixed) | -30°C ~ +90°C |
| Installation Temperature | -20°C ~ +50°C |
| Min. Bending Radius | 6 × OD (silicone rubber, non-armoured); 8 × OD (XLPE, non-armoured); 10 × OD (armoured) |
| Certification | Dual certified: EU CE, North America UL |
| Working Voltage | 300/500V |
|---|---|
| Short-Circuit Temp. | 250–350°C |
| Fire Rating | FE180 (PH30) |
| Certification | CE + UL |
| Nominal Cross-Section (mm²) | No. of Pairs × Size | Strands/Diameter (No./mm) | Nominal Insulation Thickness (mm) | Cable OD (mm) | Nominal Weight (kg/km) |
|---|---|---|---|---|---|
| 1.0 | 2 pairs | 7/0.43 | 0.6 | 15.2 | 166 |
| 1.5 | 2 pairs | 7/0.53 | 0.7 | 17.0 | 205 |
| 2.5 | 2 pairs | 7/0.67 | 0.8 | 19.2 | 350 |
| 1.0 | 5 pairs | 7/0.43 | 0.6 | 17.5 | 335 |
| 1.5 | 5 pairs | 7/0.53 | 0.7 | 21.5 | 433 |
| 2.5 | 5 pairs | 7/0.67 | 0.8 | 24.0 | 592 |
| 1.0 | 10 pairs | 7/0.43 | 0.6 | 22.5 | 626 |
| 1.5 | 10 pairs | 7/0.53 | 0.7 | 28.0 | 811 |
| 2.5 | 10 pairs | 7/0.67 | 0.8 | 31.5 | 1132 |
| 1.0 | 20 pairs | 7/0.43 | 0.6 | 30.5 | 1143 |
| 1.5 | 20 pairs | 7/0.53 | 0.7 | 38.0 | 1509 |
| 2.5 | 20 pairs | 7/0.67 | 0.8 | 42.5 | 2112 |
| Nominal Cross-Section (mm²) | No. of Pairs × Size | Strands/Diameter (No./mm) | Nominal Insulation Thickness (mm) | Diameter Under Armour (mm) | Armour Wire Diameter (mm) | Cable OD (mm) |
|---|---|---|---|---|---|---|
| 1.0 | 2 pairs | 7/0.43 | 0.6 | 15.2 | 0.90 | 20.0 |
| 1.5 | 2 pairs | 7/0.53 | 0.7 | 17.0 | 1.25 | 22.7 |
| 2.5 | 2 pairs | 7/0.67 | 0.8 | 19.2 | 1.25 | 24.9 |
| 1.0 | 5 pairs | 7/0.43 | 0.6 | 17.5 | 1.25 | 23.2 |
| 1.5 | 5 pairs | 7/0.53 | 0.7 | 21.5 | 1.60 | 28.1 |
| 2.5 | 5 pairs | 7/0.67 | 0.8 | 24.0 | 1.60 | 30.8 |
| 1.0 | 10 pairs | 7/0.43 | 0.6 | 22.5 | 1.60 | 29.3 |
| 1.5 | 10 pairs | 7/0.53 | 0.7 | 28.0 | 1.60 | 35.0 |
| 2.5 | 10 pairs | 7/0.67 | 0.8 | 31.5 | 2.00 | 39.5 |
| 1.0 | 20 pairs | 7/0.43 | 0.6 | 30.5 | 2.00 | 38.5 |
| 1.5 | 20 pairs | 7/0.53 | 0.7 | 38.0 | 2.00 | 46.2 |
| 2.5 | 20 pairs | 7/0.67 | 0.8 | 42.5 | 2.50 | 51.9 |

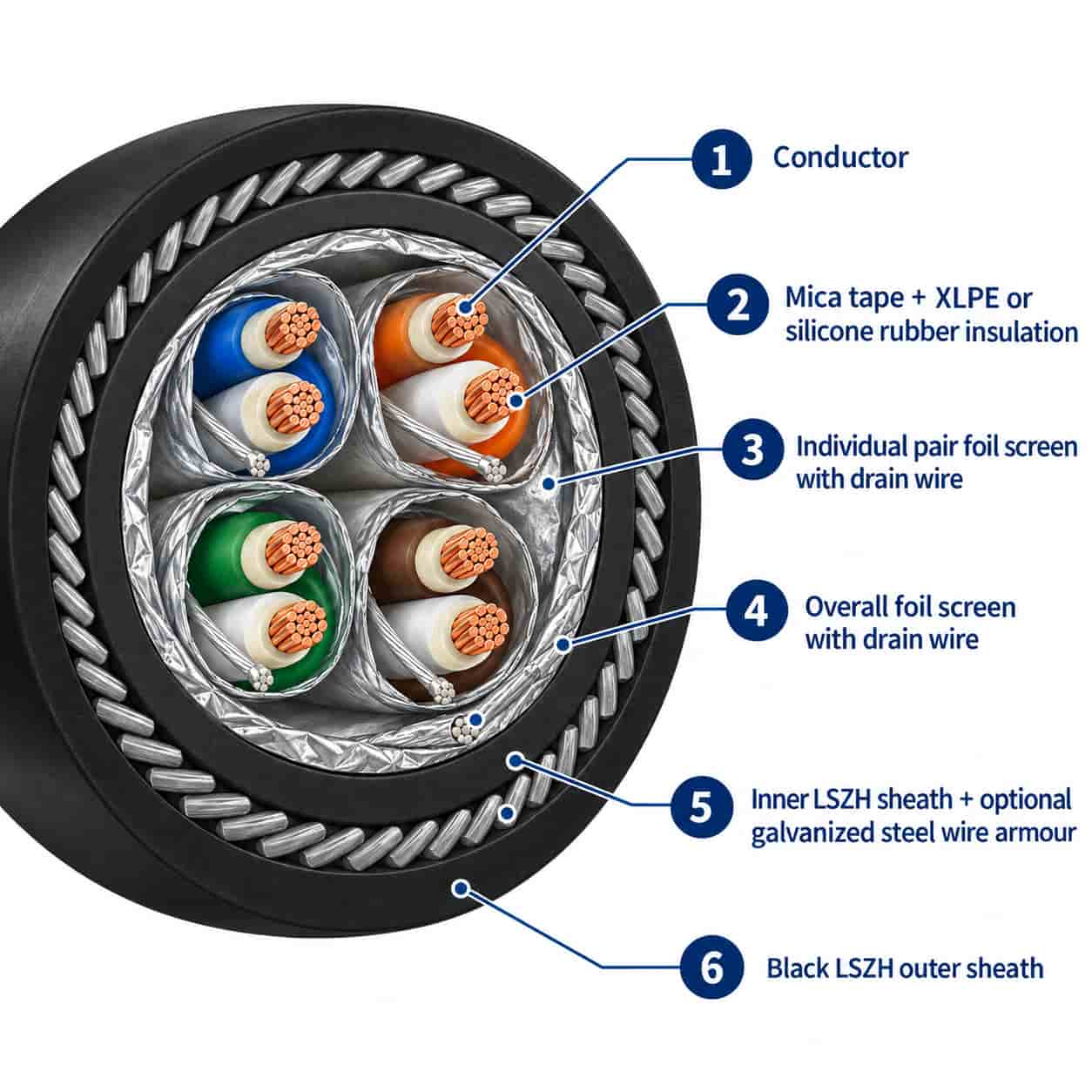

Construction & Configuration
Conductor
Plain annealed copper wire, stranded, complying with IEC(EN) 60228 class 2.
Insulation (2 Options)
Mica tape + XLPE (RE-2X series, 250°C short-circuit rating) or silicone rubber (RE-2G series, 350°C short-circuit rating).

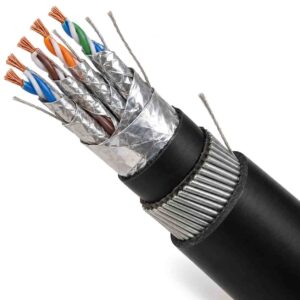

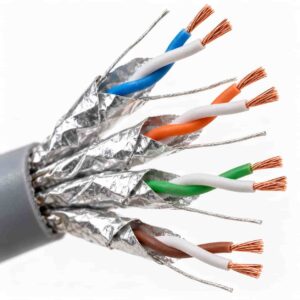

Individual + Overall Screen (PiMF)
Each pair individually screened with aluminum/polyester tape and a 0.5mm² tinned copper drain wire, plus an overall screen of the same construction.
Optional Armour (SWA)
Armoured versions add an inner LSZH sheath, galvanized steel wire armour, and an additional outer LSZH sheath layer.
Outer Sheath
LSZH thermoplastic sheath per BS 7652 §6.1 / BS 7655 §2.6 on all versions.
Pair & Size Configuration
Available in 2/5/10/20-pair configurations with 1.0/1.5/2.5mm² conductor cross-sections, per the dimensional data tables above.
Standards & Test Documentation
Fire Circuit Integrity Standards (FE180)
IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814 (FE180); BS 8434-2 (120mins); BS 5839-1 Clause 26.2e; CEI 20-36/2-1; SS 229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3 (CR1). Mechanical shock integrity: EN 50200 (PH120), CEI 20-36/4-0. Mechanical shock + water spray integrity: EN 50200 Annex E. System circuit integrity per installation system: DIN 4102-12, E30.
Flame Retardancy & Reduced Flame Spread
Single vertical cable flame test: EN/IEC/BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1 (C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*. Bunched vertical cable flame spread reduction: EN/IEC/BS EN 60332-3-24 (cat. C); VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2 (C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4.
Halogen-Free, Low Smoke & Non-Toxic
Zero halogen: IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*. Non-corrosive gas emission: IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2*. Minimum smoke emission: IEC/EN 61034-1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*. Non-toxic gas: NES 02-713; NF C 20-454.
Dual CE & UL Certified
Certified to both European CE and North American UL standards, in addition to the full fire, smoke and toxicity performance suite listed above.
XLPE (250°C) or Silicone Rubber (350°C)
Choose the insulation type that matches your short-circuit temperature requirements — mica tape + XLPE or silicone rubber construction.
LSZH per BS 7652 §6.1 / BS 7655 §2.6
Outer sheath complies with BS 7652 §6.1 and BS 7655 §2.6 thermoplastic requirements, LSZH compound LTS3 class (SW2-SW4 type).
