Zero Buoyancy Floating Cable (ANLFPF 101)
Engineered for subsea operations at depths from hundreds to thousands of meters, the ANLFPF 101 zero buoyancy floating cable transmits power and control signals reliably alongside underwater hardware and instrumentation. Its Kevlar-reinforced core and foamed polyurethane jacket deliver long-term durability against seawater corrosion, mechanical stress, and repeated flexing.
Key Features
Built for Demanding Subsea Deployment
The ANLFPF 101 combines a zero buoyancy design with a reinforced, water-blocked construction, making it suitable for long-distance underwater deployment where reliability and mechanical resilience are critical.
Zero Buoyancy Design
Engineered for neutral buoyancy so the cable holds its position in the water column during deep-sea deployment.
Water-Blocked Construction
Optional radial or longitudinal water-blocking gel filling keeps water ingress from spreading along the cable core.
High Tensile Strength
Central Kevlar aramid fiber reinforcement withstands the heavy mechanical loads of deployment and retrieval.
Wide Operating Range
Remains flexible and reliable from -40°C to +100°C, retaining flexibility even in cold, deep water.
Abrasion & Corrosion Resistant
Foamed polyurethane elastomer jacket resists seawater corrosion, abrasion, and repeated flexing.
Custom Depth & Load Rating
Tensile strength and submersion depth can be engineered to match each project's operating requirements.
OEM & ODM Capabilities
Custom-Engineered Floating Cable Solutions
Every ANLFPF 101 cable can be tailored to project-specific voltage, water-blocking, depth, and grounding requirements, supporting both small-batch prototypes and volume orders for subsea projects.
Custom Voltage & Conductor Configuration
Conductor cross-section and voltage rating adjusted to match project power and signal requirements.
Water-Blocking Direction Option
Radial or longitudinal water-blocking gel filling available depending on deployment environment.
Custom Depth & Tensile Rating
Tensile strength and submersion depth engineered to the actual operating depth of the project.
Ground Wire Configuration
Available with (G) or without (X) a yellow/green dual-color ground protection core.
Custom Operating Temperature
Operating temperature range can be adjusted beyond the standard -40°C to +100°C as required.
Project-Specific Engineering Support
Small-batch prototyping and volume production supported for subsea and floating cable projects.
Technical Specifications
Electrical & Mechanical Specifications
Core electrical ratings are fixed by conductor size, while tensile strength, submersion depth, and water-blocking direction are engineered per project.
| Product Type | Zero Buoyancy Floating Cable |
|---|---|
| Model | ANLFPF 101 |
| Rated Voltage | <0.5mm²: 300/300V; ≥0.5mm²: 300/500V |
| Test Voltage | 2500V |
| Dynamic Bending Radius | 5–7.5×D |
| Operating Temperature (dynamic) | -40°C to +100°C (customizable) |
| Tensile Strength / Submersion Depth | Configurable per project |
| Ground Wire Configuration | G = with yellow/green ground core; X = without |
| Attribute | Rating | Notes |
|---|---|---|
| Jacket Material | Foamed TPU elastomer | Seawater & abrasion resistant |
| Reinforcement | Kevlar aramid core | High tensile strength |
| Water Blocking | Gel-filled | Radial or longitudinal, customizable |
| Flexibility | 5–7.5×D bend radius | Cold-flexible to -40°C |

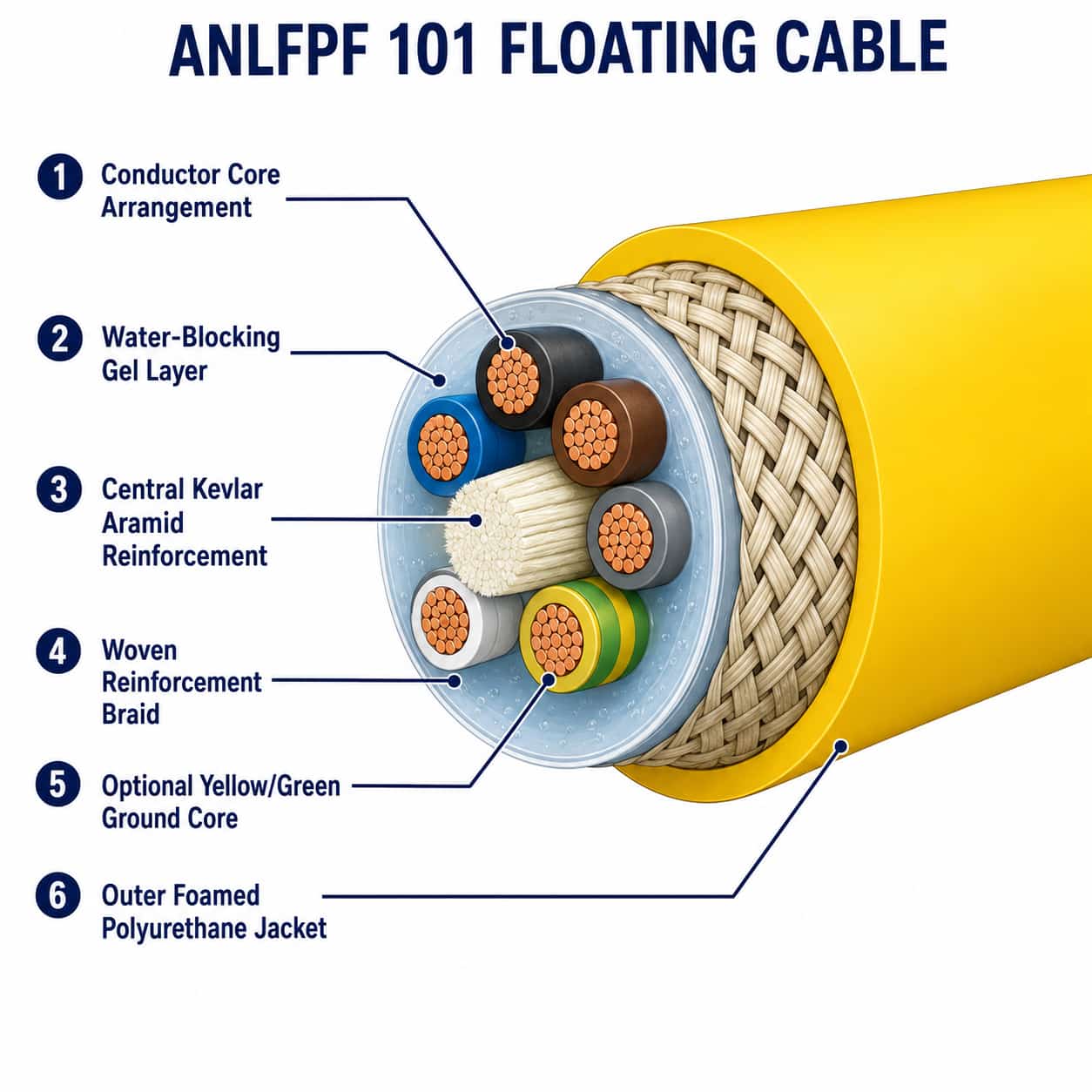

| Layer | Material | Standard | Function | Notes |
|---|---|---|---|---|
| Conductor Core Arrangement | Anti-twist stranded / grouped gap-filled cores | Custom engineering spec | Prevents cable twist during dynamic deployment | Stranding configurable per project |
| Water-Blocking Layer | Water-blocking gel | Custom engineering spec | Blocks water ingress along the cable core | Radial or longitudinal, on request |
| Central Reinforcement | Kevlar aramid fiber | Custom engineering spec | Central strength member + interstitial fill | Enhances tensile load capacity |
| Reinforcement Braid | Woven fiber braid | Custom engineering spec | Reinforces cable body for subsea/floating use | Adds mechanical protection |
| Ground Core (optional) | Yellow/green dual-color conductor | Custom engineering spec | Grounding protection | G = included, X = excluded |
| Outer Jacket | Foamed thermoplastic polyurethane (TPU) | Custom engineering spec | Buoyancy control, flexibility, seawater/abrasion resistance | Yellow, per production imagery |
Construction & Configuration
Construction details including conductor, twisted pairs, insulation, separator, jacket and model-specific dimensions.
Anti-Twist / Grouped Structure
Cores are stranded in an anti-twist layout or grouped with gap filling to keep the cable stable during dynamic underwater deployment.
Water-Blocking Gel Fill
Water-blocking gel can be applied radially or longitudinally depending on the water-tightness requirements of the project.

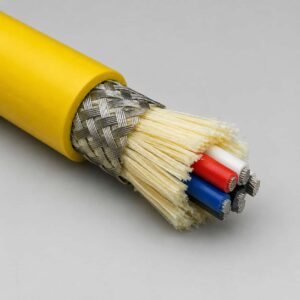

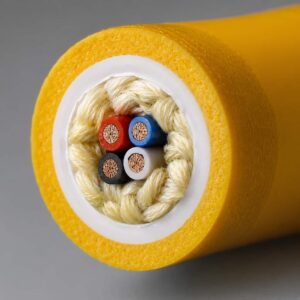

Kevlar Reinforced Core
A central Kevlar aramid fiber member, together with interstitial filling, forms the reinforced core of the cable.
Braided Reinforcement Layer
A woven braid wraps the cable body, adding further mechanical reinforcement for floating and subsea use.
Optional Ground Core (G/X)
A yellow/green dual-color grounding core can be included (G) or omitted (X) depending on system requirements.

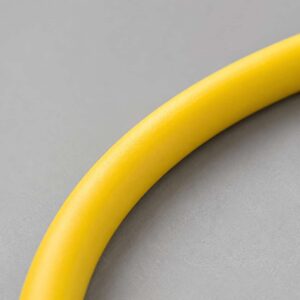

Foamed TPU Outer Jacket
A foamed thermoplastic polyurethane jacket provides buoyancy control, flexibility, and resistance to seawater and abrasion.
Standards & Test Documentation
Engineering & Quality Assurance
The ANLFPF 101 uses a layered, anti-twist construction built around a central Kevlar reinforcement, with an optional water-blocking fill and a durable foamed polyurethane outer jacket.
Project-Specific Documentation
Manufactured to customer-defined technical specifications for subsea and floating cable applications, with technical drawings available on request.
Factory Testing & QA
Each production batch undergoes electrical and mechanical testing, including a 2500V dielectric withstand test, before shipment.
Application-Based Certification Support
Certification to specific national or international standards can be arranged for qualifying projects upon request.
