JZ-500 Cold-Resistant PE Jacket Cable
The JZ-500 is a shielded measurement and control cable designed for flexible, load-free movement in dry, damp, and wet indoor or outdoor environments. Built with a flexible bare copper conductor, PVC insulation, a tinned copper braid shield, and a cold-resistant PVC outer jacket, it suits machine tools, conveyor belts, and transport equipment across production lines, factory construction, HVAC installations, and cold storage warehouses. Rated for fixed installation from -40°C to +80°C and mobile use from -25°C to +80°C, with a custom range down to -55°C available. CE certified per Low Voltage Directive 2014/35/EU. Free of cadmium and silicone.
Key Features
A flexible, oil-resistant shielded cable built for load-free movement in demanding industrial and cold-storage environments.
Cold-Resistant PVC Jacket
Enhanced cold resistance for fixed installation down to -40°C, with custom builds available to -55°C.
Load-Free Flexible Movement
Suited for load-free, non-forced flexible movement applications without tensile loading.
Tinned Copper Braid Shield
Tinned copper wire braid shielding supports reliable measurement and control signal transmission.
Broad Oil & Chemical Resistance
Extensively oil-resistant and chemically resistant for demanding industrial environments.
Cadmium & Silicone Free
Free of cadmium, silicone, and other hazardous substances, with good moisture-wetting paint properties.
Machine Tool & Conveyor Wiring

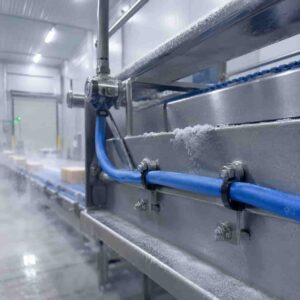

Ideal for machine tools, conveyor belts, transport equipment, and cold storage warehouse installations.
OEM & ODM Capabilities
Configurable core coding, grounding options, and temperature range to match your measurement and control application.
Four Core-Coding Variants
JZ (black cores, white numbering, grounding wire), JB (colored cores, grounding wire), OZ (black cores, white numbering, no grounding wire), OB (colored cores, no grounding wire).
Extended Temperature Range
Standard mobile range -25°C to +80°C, with custom builds available down to -55°C to +105°C.
Custom Core Count
Flexible bare copper conductors per VDE-0295 / IEC 60228, built to your control circuit layout.
Shielding Configuration
Tinned copper braid shield standard, with configuration options for your EMI environment.

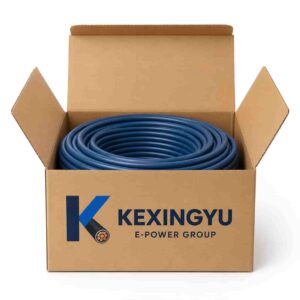

Custom Length & Packaging

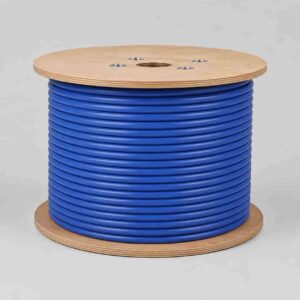

Cut lengths and reel/coil packaging tailored to your project and shipping requirements.
Small-Batch & Volume Production
From prototype runs to bulk orders, with quick-turn production available for standard configurations.
Technical Specifications
Core count and dimensional configurations are confirmed per project. Contact us with your requirements for a detailed technical proposal.
| Conductor | Flexible bare copper, per VDE-0295 cl.5/6, IEC 60228/HD383 cl.5/6 |
|---|---|
| Insulation | PVC insulation, type T12, per VDE-0281 part 1 |
| Core Color Coding | Per VDE-0293-308; yellow-green ground wire for 3-core and above |
| Shield | Tinned copper braid shield |
| Outer Jacket | PVC, enhanced cold resistance |
| Rated Voltage | 300/500 V |
| Test Voltage | 2000 V |
| Fixed Installation Temp. | -40°C to +80°C |
| Mobile Installation Temp. | -25°C to +80°C (custom -55°C to +105°C available) |
| Bend Radius (Fixed) | 4 × D (cable OD) |
| Bend Radius (Mobile) | 7 × D (cable OD) |
| Short-Circuit Temp. | Up to +160°C |
| Flame Resistance | IEC 60332-1 or -2 |
| Insulation Resistance | 20 MΩ × km |
| Mutual Capacitance | Approx. 120 nF/km |
| Inductance | Approx. 0.65 mH/km |
| Certification | CE certified per Low Voltage Directive 2014/35/EU |
| Fixed Install Temp. | -40°C to +80°C |
|---|---|
| Mobile Install Temp. | -25°C to +80°C |
| Custom Temp. Range | -55°C to +105°C |
| Certification | CE |
| Layer | Material | Standard | Function | Notes |
|---|---|---|---|---|
| Conductor | Flexible bare copper | VDE-0295 cl.5/6, IEC 60228/HD383 | Current-carrying conductor | Multiple core-count options |
| Insulation | PVC, type T12 | VDE-0281 part 1 | Dielectric separation | Color coded per VDE-0293-308 |
| Shield | Tinned copper braid | — | EMI shielding for signal integrity | Standard on all variants |
| Outer Jacket | PVC (cold-resistant grade) | — | Mechanical & environmental protection | Enhanced low-temperature flexibility |
| Certification | — | Low Voltage Directive 2014/35/EU | Regulatory compliance | CE marked |

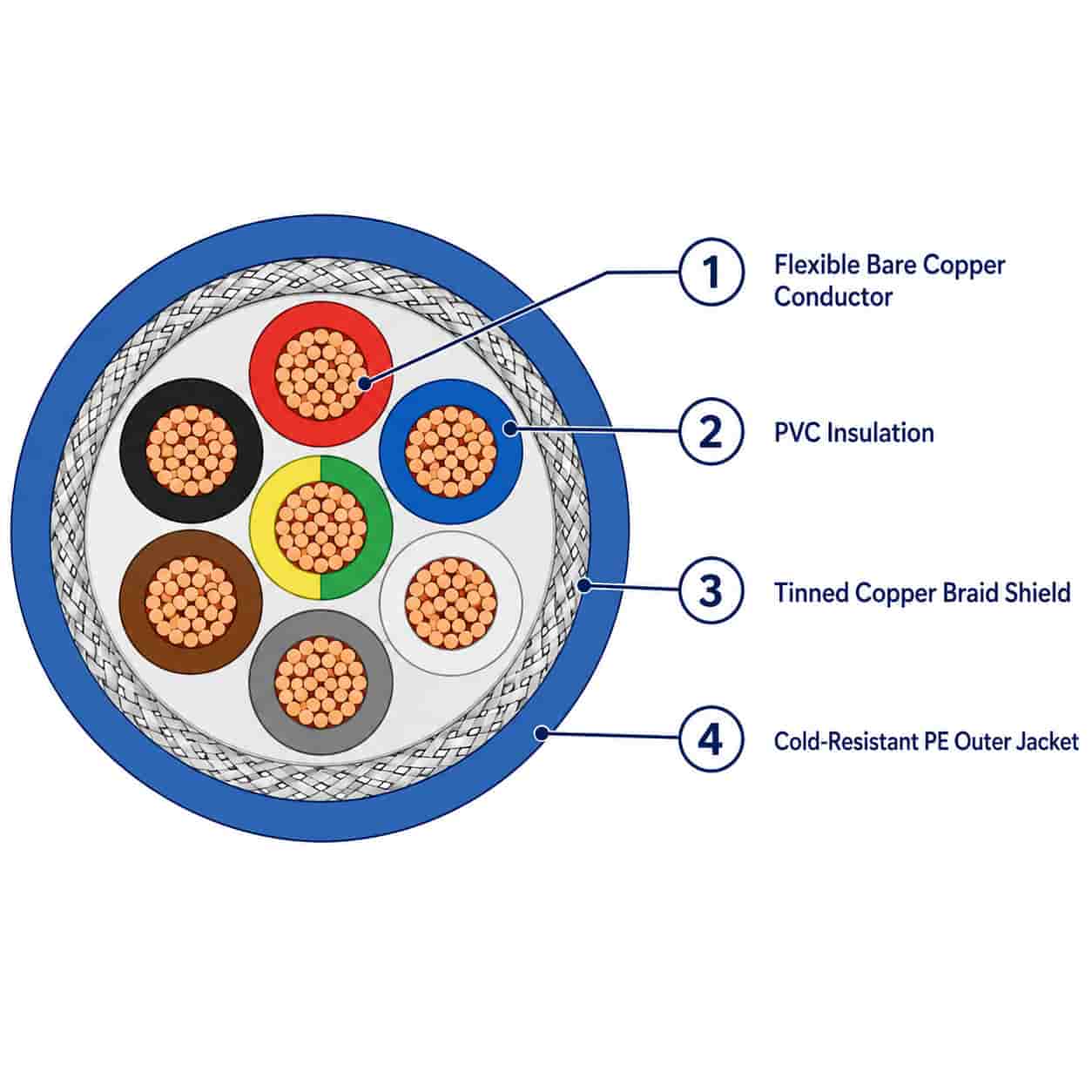

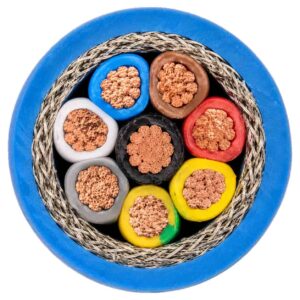

Construction & Configuration
A shielded, cold-resistant PVC construction available in four core-coding and grounding configurations.
Conductor
Flexible bare copper conductor per VDE-0295 cl.5/6, IEC 60228/HD383 cl.5/6.
Insulation
PVC insulation, type T12, per VDE-0281 part 1, color coded per VDE-0293-308.

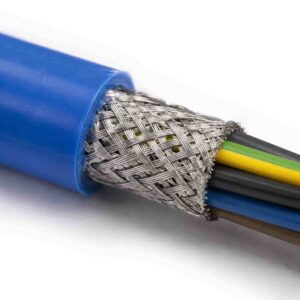

Shield
Tinned copper wire braid shield for reliable measurement and control signal transmission.
Outer Jacket
Cold-resistant PVC jacket with enhanced low-temperature flexibility.
Variant Options
Available as JZ, JB, OZ, or OB, differing in core color coding and grounding wire inclusion.
Standards & Test Documentation
Manufactured and tested to recognized international electrical and flame-resistance standards.
VDE / IEC Compliance
Conductor per VDE-0295 / IEC 60228/HD383; PVC insulation per VDE-0281 part 1.
IEC 60332-1 / -2 Compliance
Flame resistance tested and manufactured to comply with IEC 60332-1 or -2.
CE Certified
Certified per EU Low Voltage Directive 2014/35/EU, supporting European project deployment.
Need JZ-500 Cold-Resistant Control Cable for Your Project?
Share your core count, variant (JZ/JB/OZ/OB), and temperature range requirements — our team will provide technical specifications and pricing within 24 hours.
