SiHF-C-Si Multi-Core Double-Sheath Shielded Silicone Rubber Cable
The SiHF-C-Si is a specialized multi-core silicone rubber cable rated below 180°C, engineered for high-temperature and low-temperature regions where cable insulation must tolerate significant temperature swings. Built with a tinned copper conductor, silicone rubber insulation, an inner silicone sheath, and a tinned copper wire braid shield (approximately 85% coverage) beneath a silicone outer jacket, it delivers reliable EMI shielding alongside excellent chemical and thermal resistance. Halogen-free and low-smoke, it is widely used in the steel production, aviation, shipbuilding, cement, glass, ceramics, and power generation industries, with dual CE and UL certification. For fixed installation only — not suitable for outdoor use.
Key Features
A shielded, double-sheathed silicone rubber cable engineered for clean signal transmission in extreme-temperature industrial environments.
Wide -60°C to +180°C Range
Rated for continuous use from -60°C to +180°C, with short-term capability up to +220°C.
Tinned Copper Braid Shield
Tinned copper wire braid shield at approximately 85% coverage delivers reliable EMI protection.
Double-Sheath Construction
Inner silicone sheath plus outer silicone jacket provide added mechanical and thermal protection.
Chemical & Oil Resistant Silicone
Silicone jacket resists heat, chemical corrosion, oil, and acid exposure in harsh industrial settings.
Halogen-Free, Low-Smoke
Halogen-free construction per DIN VDE / EN / IEC standards, especially suited for power plant use.

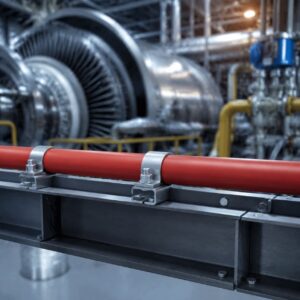

Heavy Industry Applications
Used in steel production, aviation, shipbuilding, cement, glass, ceramics, and power generation plants.
OEM & ODM Capabilities
Configurable core counts, conductor gauges, and colors to match your shielded signal transmission requirements.
Wide Core Count Range
Available from 2-core to 25-core configurations, across AWG20 to AWG4 conductor sizes.
Standard Color Coding
Conductor color coding per DIN VDE 0293-308, or black conductors with continuous white numbering.
Grounding Conductor Option
3-core and above configurations include a yellow-green grounding conductor as standard.
Shield Coverage Options
Standard ~85% tinned copper braid coverage, with alternative coverage levels available on request.
Jacket Color Options
Red or brown silicone jacket options, with double-sheath construction.
Small-Batch & Volume Production
From prototype runs to bulk orders, with quick-turn production available for standard configurations.
Technical Specifications
Available across a wide range of core counts and conductor sizes. Full dimensional table below.
| Conductor | Tinned copper, per DIN VDE 0295 cl.5, BS 6360 cl.5, IEC 60228 cl.5 |
|---|---|
| Insulation | Silicone rubber insulation |
| Conductor Color Coding | Per DIN VDE 0293-308, or black conductor with continuous white numbering |
| 2-Core | Brown / Blue |
| 3-Core and Above | Includes yellow-green grounding conductor |
| Inner Sheath | Silicone inner sheath |
| Wrap | Present |
| Shield / Braid | Tinned copper wire braid, approx. 85% coverage |
| Outer Jacket | Silicone |
| Jacket Color | Red / Brown |
| Rated Voltage | 300/500 V |
| Test Voltage | 2000 V |
| Dynamic Bend Radius | 7.5 × cable diameter (φ) |
| Fixed Installation Radius | 4 × cable diameter (φ) |
| Operating Temperature Range | -60°C to +180°C |
| Short-Term Peak Temperature | +220°C |
| Flame Resistance | IEC 60332.1 |
| Insulation Resistance | 20 MΩ × km |
| Radiation Resistance | 20 × 10⁶ cJ |
| Certification | Dual certified — CE (EU) and UL (North America) |
| Temp. Range | -60°C to +180°C |
|---|---|
| Peak Temp. | +220°C short-term |
| Rated Voltage | 300/500V |
| Certifications | CE + UL |
| AWG | Core Count | Conductor Cross-Section (mm²) | Nominal OD (mm) | Copper Weight (kg/km) |
|---|---|---|---|---|
| 20 | 2 | 0.25 | 8.7 | 55.5 |
| 20 | 3 | 0.25 | 8.9 | 60.8 |
| 20 | 4 | 0.25 | 9.4 | 66.5 |
| 20 | 5 | 0.25 | 10 | 81.6 |
| 20 | 7 | 0.25 | 10.5 | 92.2 |
| 20 | 10 | 0.25 | 13.1 | 124 |
| 20 | 12 | 0.25 | 13.4 | 134.4 |
| 20 | 16 | 0.25 | 14.6 | 170.2 |
| 20 | 18 | 0.25 | 15.1 | 181 |
| 20 | 25 | 0.25 | 19.4 | 230.1 |
| 18 | 2 | 0.75 | 9.2 | 61.4 |
| 18 | 3 | 0.75 | 9.5 | 69.1 |
| 18 | 4 | 0.75 | 10.1 | 86.7 |
| 18 | 5 | 0.75 | 10.8 | 95.2 |
| 18 | 7 | 0.75 | 11.6 | 113.3 |
| 18 | 10 | 0.75 | 14.4 | 165.2 |
| 18 | 12 | 0.75 | 14.7 | 180.3 |
| 18 | 16 | 0.75 | 16.5 | 212.2 |
| 18 | 18 | 0.75 | 17.3 | 282.1 |
| 18 | 25 | 0.75 | 22.1 | 297.4 |
| 17 | 2 | 1 | 9.5 | 66.7 |
| 17 | 3 | 1 | 9.7 | 86.2 |
| 17 | 4 | 1 | 10.4 | 96.8 |
| 17 | 5 | 1 | 11.3 | 108.3 |
| 17 | 7 | 1 | 12 | 141.2 |
| 17 | 10 | 1 | 14.9 | 190 |
| 17 | 12 | 1 | 15.2 | 209.8 |
| 17 | 16 | 1 | 17 | 251.8 |
| 17 | 18 | 1 | 17.8 | 297.4 |
| 17 | 25 | 1 | 23 | 329 |
| 16 | 2 | 1.5 | 10.7 | 87.7 |
| 16 | 3 | 1.5 | 11.2 | 103.5 |
| 16 | 4 | 1.5 | 11.8 | 131.7 |
| 16 | 5 | 1.5 | 13.3 | 148.5 |
| 16 | 7 | 1.5 | 14.3 | 193.4 |
| 16 | 10 | 1.5 | 17.7 | 268.5 |
| 16 | 12 | 1.5 | 18 | 298.4 |
| 16 | 16 | 1.5 | 20.1 | 362.3 |
| 16 | 18 | 1.5 | 20.9 | 394 |
| 16 | 25 | 1.5 | 24.1 | 488.2 |
| 14 | 2 | 2.5 | 12.1 | 122.3 |
| 14 | 3 | 2.5 | 12.9 | 147.7 |
| 14 | 4 | 2.5 | 14.2 | 188.6 |
| 14 | 5 | 2.5 | 15.3 | 214.9 |
| 14 | 7 | 2.5 | 16.9 | 265.7 |
| 12 | 4 | 4 | 17.1 | 294 |
| 12 | 5 | 4 | 19.4 | 374 |
| 10 | 4 | 6 | 18.8 | 449 |
| 10 | 5 | 6 | 21.2 | 563 |
| 8 | 4 | 10 | 25.7 | 759 |
| 6 | 4 | 16 | 28.4 | 1180 |
| 4 | 4 | 25 | 35 | 1810 |

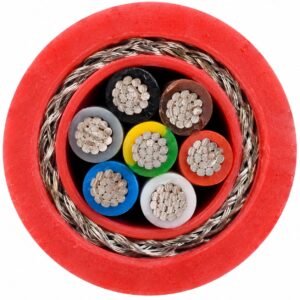

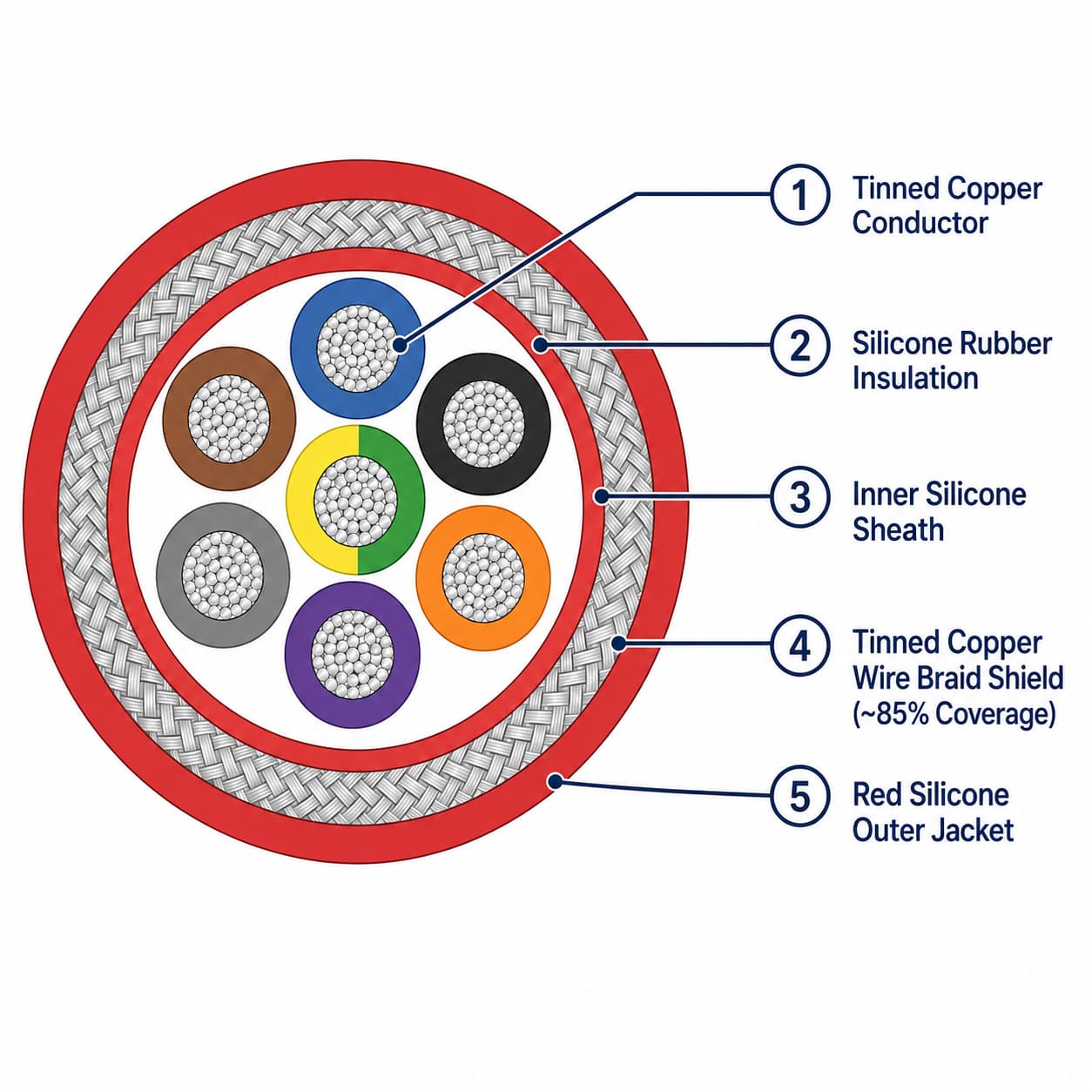

Construction & Configuration
A double-sheathed, tinned-copper-shielded silicone rubber construction built for clean signal transmission in extreme temperature environments.
Conductor
Tinned copper conductor per DIN VDE 0295 cl.5, BS 6360 cl.5, IEC 60228 cl.5.
Insulation
Silicone rubber insulation for high dielectric and thermal performance.
Inner Silicone Sheath
Silicone inner sheath bundles the cores before the shielding layer is applied.

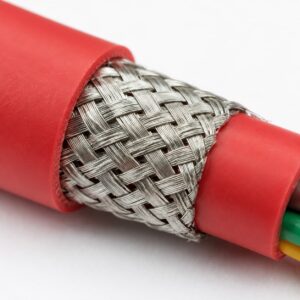

Tinned Copper Braid Shield
Tinned copper wire braid at approximately 85% coverage delivers reliable EMI shielding.
Silicone Outer Jacket
Red or brown silicone outer jacket resists heat, chemicals, and oil exposure.
Standards & Test Documentation
Manufactured and tested to recognized international halogen-free and flame-resistance standards.
DIN VDE / EN / IEC Compliance
Halogen-free per DIN VDE 0482 part 267 / EN 50267-2-1 / IEC 60754-1 (equivalent to DIN VDE 0472 part 815).
Non-Flame-Propagating Test
Tested per DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1 (equivalent to DIN VDE 0472 part 804, method B).
Dual CE & UL Certification
Certified to both EU (CE) and North American (UL) requirements, supporting global project deployment.
