EWKF Halogen-Free Tear-Resistant Flexible Silicone Rubber Cable

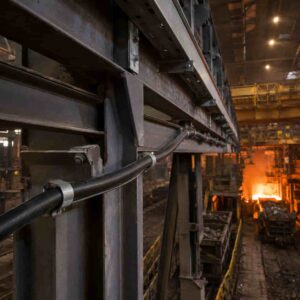

EWKF is a halogen-free, flexible silicone rubber cable engineered for exceptional tear, cut and mechanical stress resistance, with a high ignition point for demanding industrial environments. Widely used across metallurgy, steel, coking plants, foundries, cement engineering, glass manufacturing, shipyards, airports, air conditioning systems and lighting installations, it resists high-molecular oils, animal and vegetable fats, ethanol, plasticizers, PCBs, weak acids, alkaline and salt solutions, oxidants, ozone and harsh weather exposure. Built on a tinned copper conductor per VDE 0295 / IEC 60228 Class 5 with special silicone rubber core insulation and a black (RAL 9005) silicone rubber sheath, EWKF operates reliably from -50°C to +180°C, with a short-circuit rating up to 220°C. CE and UL dual certified, halogen-free and low-smoke, EWKF is available with OEM/ODM support and standard lead times as fast as 7 days.
Key Features
EWKF combines industrial-grade mechanical toughness with halogen-free fire safety for the harshest plant environments.
Exceptional Tear & Cut Resistance
Withstands mechanical stress, cutting and abrasion in heavy industrial environments.
Halogen-Free & Low-Smoke
Complies with IEC 60754-1/2 for reduced toxic gas and smoke emission risk.
High Ignition Point
Elevated ignition threshold with flame retardance per IEC 60332-1.
Wide Temperature Range
Rated -50°C to +180°C continuous, with a short-circuit rating up to 220°C.
Broad Chemical Resistance
Resists oils, fats, ethanol, plasticizers, acids, alkalis, salts and ozone exposure.

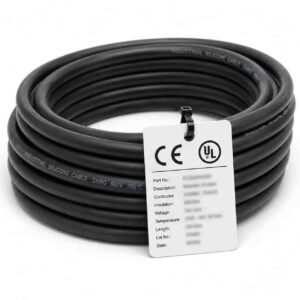

CE & UL Dual Certified
Certified for both European and North American industrial markets.
OEM & ODM Capabilities
KXY works with distributors and heavy industry project buyers to deliver EWKF cable configured to exact technical and branding requirements.
Custom Core Count & Cross-Section
Full range from 2×0.75mm² up to 5G6.0mm² and beyond, built to project specification.
Custom Sheath Color
Core and sheath colors configurable to meet project or safety-coding requirements.
Custom Length & Reeling
Custom-cut lengths, drum or reel packaging to match your logistics needs.
Custom Branding & Labeling
Private-label printing, reel tags and packaging branded to your specification.
Quality Control & Testing
Electrical and dimensional testing performed prior to shipment.
Bulk & Project Order Support
Volume pricing and scheduled deliveries for distributor and heavy industry project buyers.
Technical Specifications
Core electrical and mechanical parameters for EWKF, per the manufacturer’s technical data sheet.
| Product Code | EWKF |
|---|---|
| Conductor | Multi-strand tinned copper, VDE 0295 Class 5 / IEC 60228 Class 5 |
| Insulation | Special silicone rubber core insulation |
| Core Color | Configurable |
| Sheath | Silicone rubber, black (RAL 9005) |
| Rated Voltage | 300/300V |
| Test Voltage | 2000V |
| Operating Temperature | -50°C to +180°C |
| Parameter | Value | Notes |
|---|---|---|
| Bending Radius (Mobile) | 15 × OD | — |
| Bending Radius (Fixed) | 4 × OD | — |
| Insulation Resistance | ≥ 200 MΩ × km | — |
| Flame Retardance | IEC 60332-1 | Halogen-free per IEC 60754-1/2 |
| Cores × Nominal Cross-Section (mm²) | Copper Weight (~kg/km) | Cable OD (~mm) | Cable Weight (~kg/km) |
|---|---|---|---|
| 2×0.75 | 14.4 | 6.4 | 59 |
| 3G0.75 | 21.6 | 6.9 | 72 |
| 4G0.75 | 28.8 | 7.6 | 89 |
| 5G0.75 | 36 | 8.5 | 112 |
| 2×1.0 | 19.2 | 6.8 | 69 |
| 3G1.0 | 28.8 | 7.1 | 81 |
| 4G1.0 | 38.4 | 7.9 | 102 |
| 5G1.0 | 48 | 8.8 | 128 |
| 7G1.0 | 67.2 | 9.5 | 156 |
| 2×1.5 | 28.8 | 8 | 97 |
| 3G1.5 | 43.2 | 8.4 | 115 |
| 4G1.5 | 57.6 | 9.5 | 149 |
| 5G1.5 | 72 | 10.4 | 182 |
| 7G1.5 | 100.8 | 11 | 208 |
| 12G1.5 | 172.8 | 14.9 | 371 |
| 16G1.5 | 230.4 | 17.1 | 493 |
| 20G1.5 | 288 | 18.5 | 592 |
| 24G1.5 | 345.6 | 21 | 741 |
| 2×2.5 | 48 | 9.4 | 141 |
| 3G2.5 | 72 | 9.8 | 170 |
| 4G2.5 | 96 | 11.1 | 221 |
| 5G2.5 | 120 | 12.4 | 275 |
| 3G4.0 | 115.2 | 11.5 | 241 |
| 4G4.0 | 153.6 | 12.5 | 300 |
| 5G4.0 | 192 | 13.9 | 374 |
| 3G6.0 | 172.8 | 13.2 | 333 |
| 4G6.0 | 230.4 | 14.7 | 425 |
| 5G6.0 | 288 | 16.5 | 538 |

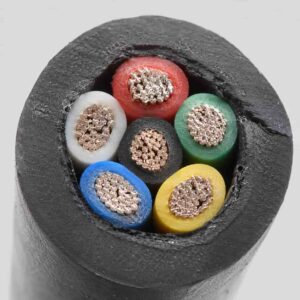

Construction & Configuration

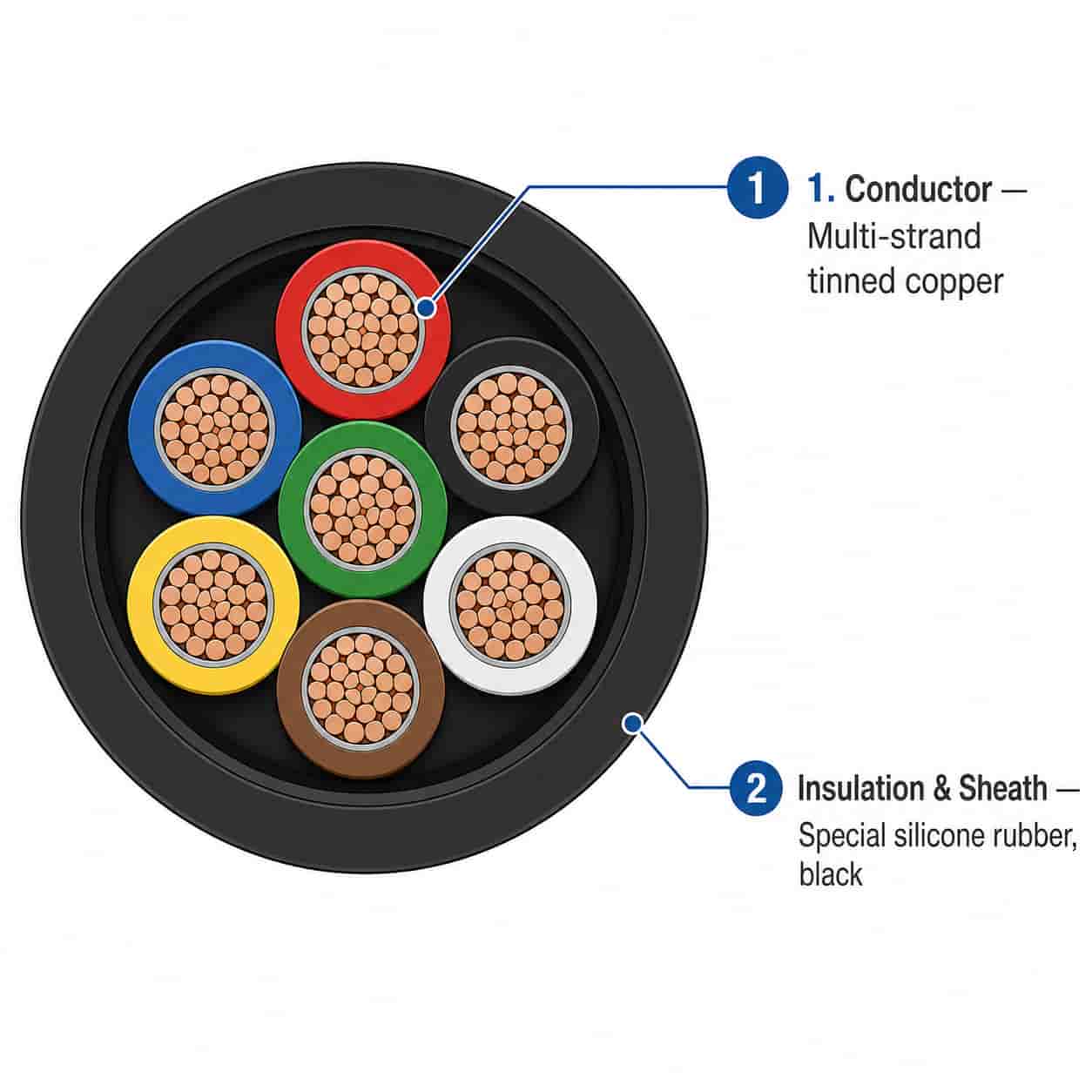

A two-layer industrial silicone rubber construction built for tear, cut and chemical resistance across extreme temperatures. See the structure diagram below.
Conductor
Multi-strand tinned copper wire, per VDE 0295 Class 5 / IEC 60228 Class 5.
Insulation
Special silicone rubber core insulation, color configurable per project.
Sheath
Silicone rubber, black (RAL 9005), engineered for tear and cut resistance.
Rated & Test Voltage
Rated at 300/300V, factory tested at 2000V to confirm insulation integrity.
Bending Radius
15 × outer diameter for mobile installation; 4 × outer diameter for fixed installation.
Temperature Performance
Continuous operation -50°C to +180°C; short-circuit rating up to 220°C.
Standards & Test Documentation
EWKF is manufactured, tested and dual-certified against recognized international conductor and fire-safety standards.
VDE 0295 / IEC 60228 Class 5
Multi-strand tinned copper conductor manufactured to Class 5 flexible stranding requirements.
IEC 60754-1/2, IEC 60332-1
Tested for halogen-free, low-smoke composition and flame retardant, non-propagating performance.
CE & UL Dual Certified
Certified to both European CE marking and North American UL requirements.
