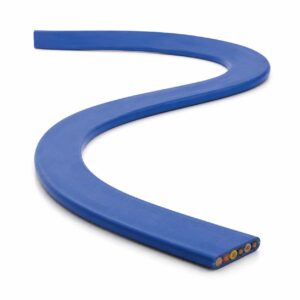

SPCFLAT-RUBBER Submersible Pump Cable
Submersible pump cable quality is critical — a single failed cable a hundred meters or more underwater is costly and difficult to retrieve, so material and construction directly determine service life and total cost of ownership. The SPCFLAT-RUBBER series addresses this with a multi-strand fine-stranded conductor, configurable rubber-blend insulation and sheath (NBR blend, TPE blend, or PUR available per customer specification), and excellent oil resistance. Available in four core-configuration variants (JZ-SN, JB-SN, OZ-SN, OB-SN) with or without a green/yellow ground pair, and in any sheath color per customer request. CE certified, and open to OEM/ODM production in custom core counts, lengths, and reel packaging.
Key Features
Engineered for submersible pump reliability, where cable quality directly determines service life and total cost of ownership.
4 Core Configurations
JZ-SN, JB-SN, OZ-SN, and OB-SN variants offer black or color-coded cores, with or without a ground pair.
Configurable Material
Insulation and sheath available in NBR blend, TPE blend, or PUR per customer specification.
Custom Sheath Color
Sheath available in any color to match project or distributor requirements.
Excellent Oil Resistance

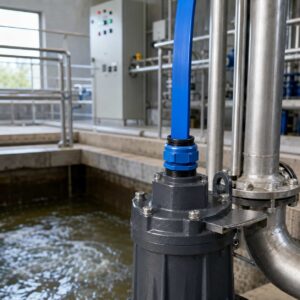

Rated excellent for oil resistance, suited to demanding pump station environments.
UV Resistant
Weathering-resistant construction suitable for indoor pump station installation.
CE Certified
Certified to EU standards for confident sourcing and distribution.
OEM & ODM Capabilities
Sourced directly from a certified manufacturing partner, with material, color, and configuration options built for distributor and project-specific requirements.
Material Selection
Insulation and sheath configurable in NBR blend, TPE blend, or PUR per customer requirement.
Any Sheath Color
Sheath color fully customizable to match distributor or project branding.
Core Configuration Variants
Choose from JZ-SN, JB-SN, OZ-SN, or OB-SN core color and ground-wire configurations.

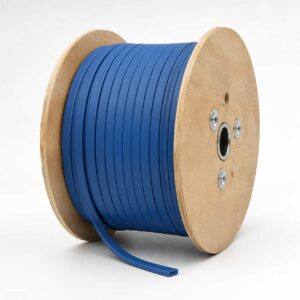

Custom Length & Reel Packing
Cut lengths, coils, or reel packaging configured for pump installation projects.

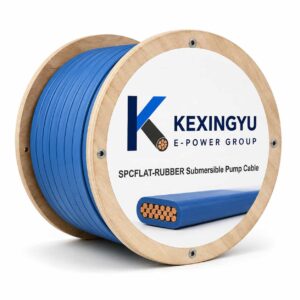

Private Labeling
Branded packaging and reel labeling available for distributor and OEM programs.
Bulk & Container Orders
Production scaled for container-load orders with consistent quality control.
Technical Specifications
Core electrical and construction parameters for the SPCFLAT-RUBBER Submersible Pump Cable, based on manufacturer test data.
| Conductor | Multi-strand fine stranded wire conductor, VDE 0295 / IEC 60228 Class 5 |
|---|---|
| Insulation | Special rubber compound blend (NBR blend, TPE blend, or PUR per customer specification) |
| Core Variants | SPCFLAT-RUBBER-JZ-SN / JB-SN / OZ-SN / OB-SN — black or color-coded cores, with/without green-yellow ground pair |

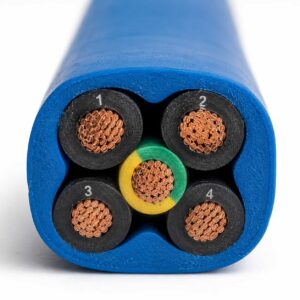

| Core Arrangement | In-line or quincunx (cluster) layout |
| Sheath | Special rubber compound blend |
| Sheath Color | Customer-selectable, any color available |
| Rated Voltage | <0.5mm²: 300/300V; ≥0.5mm²: 300/500V |
| Test Voltage | 2000V |
| Parameter | Value | Reference |
|---|---|---|
| Bend Radius (Fixed) | 6 × D | Fixed installation |
| Bend Radius (Mobile) | 20 × D | Mobile use |
| Use Temp. (Fixed) | -25°C to +70°C | Fixed installation |
| Use Temp. (Mobile) | 0°C to +70°C | Mobile installation |
| Layer | Material | Standard | Function | Notes |
|---|---|---|---|---|
| Conductor | Multi-strand fine stranded wire | VDE 0295 / IEC 60228 Cl 5 | Current-carrying core | Configurable per project (core count/cross-section) |
| Insulation | Special rubber blend (NBR/TPE/PUR options) | — | Electrical insulation | Material selectable per customer specification |
| Core Assembly | — | — | In-line or quincunx core arrangement | 4 SKU variants (JZ/JB/OZ/OB) for color coding & ground wire options |
| Sheath | Special rubber compound blend | — | Mechanical & environmental protection | Color fully customizable per customer |
| Certification | — | CE | Compliance | — |
Construction & Configuration

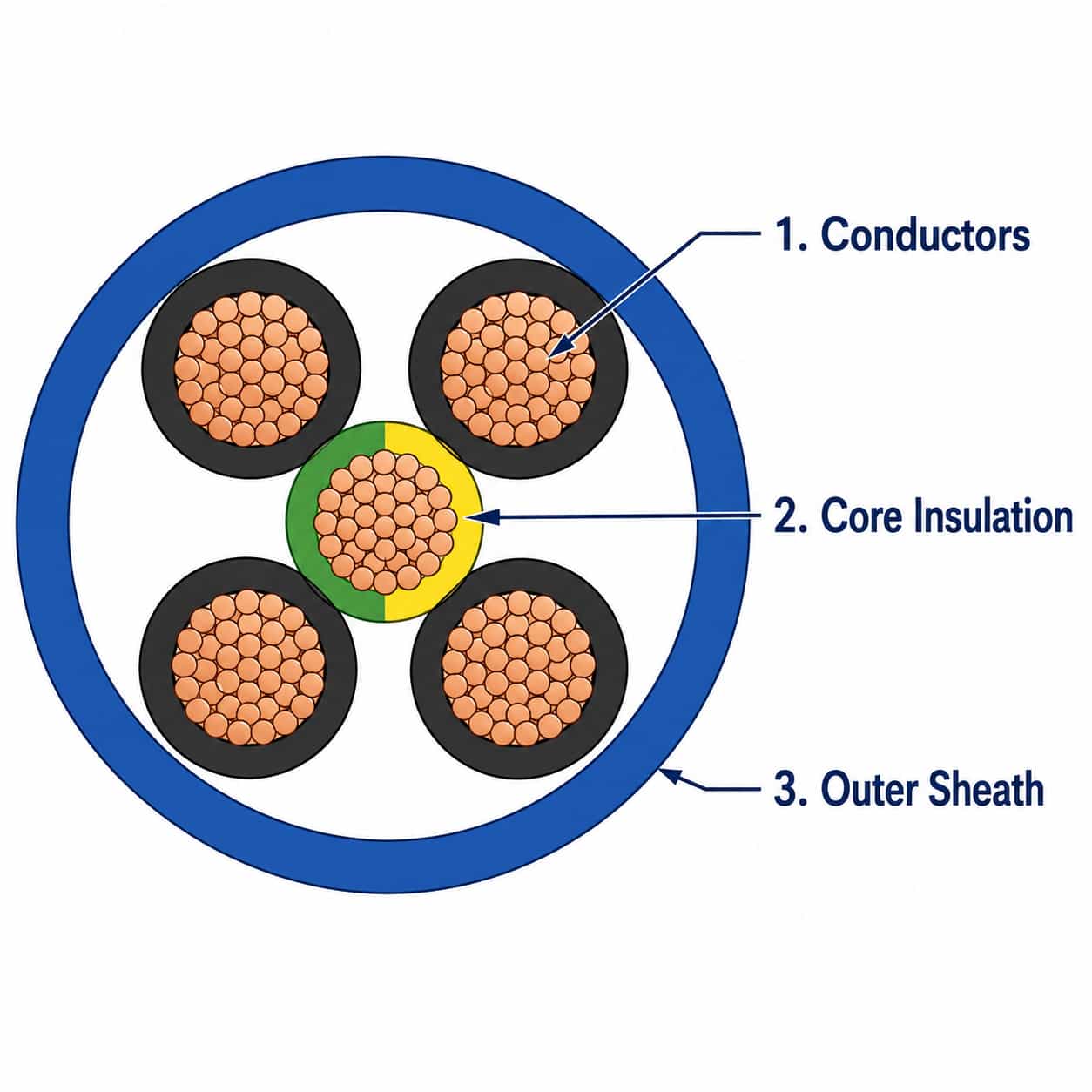

Layer-by-layer construction of the SPCFLAT-RUBBER Submersible Pump Cable, from conductor to outer sheath.
Conductor
Multi-strand fine stranded wire conductor complying with VDE 0295 / IEC 60228 Class 5.
Core Insulation
Special rubber compound blend applied to each conductor, with NBR, TPE, or PUR options available.
Core Assembly
Cores arranged in-line or in a quincunx layout, with black/white numbering or full color coding across four SKU variants.
Outer Sheath
Special rubber compound blend outer sheath, available in any customer-specified color.
Certification & Compliance
Rated 300/300V or 300/500V depending on cross-section, CE certified.
Standards & Test Documentation
Manufactured to recognized European conductor standards, with EU compliance certification.
VDE 0295 / IEC 60228 Class 5
Defines the multi-strand fine stranded wire conductor class used throughout the cable construction.
4 SKU Variants
JZ-SN, JB-SN, OZ-SN, and OB-SN variants offer flexible core color coding and ground-wire configurations.
CE Certification
Certified to EU standards, supporting distribution across European markets.
