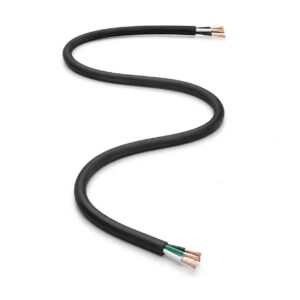

H07RN-F Splash-Resistant Rubber Cable
The H07RN-F is a 450/750V flexible rubber cable with a neoprene (polychloroprene) outer sheath, engineered for damp and splash-exposed environments. Its EI4 rubber-insulated, multi-strand bare copper cores deliver reliable flexibility and oil/ozone resistance for household appliances, hand tools, outdoor lighting, and fixed installation projects. Dual CE and UL certified for global sourcing, and available for OEM/ODM production in custom core counts, lengths, and reel packaging.
Key Features
Built for damp environments and everyday electrical connections, the H07RN-F combines flexible rubber construction with proven oil and ozone resistance.
Splash & Damp-Rated

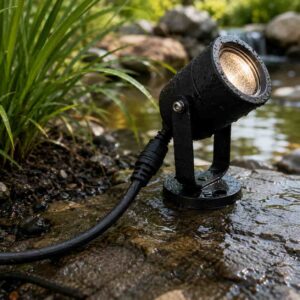

Neoprene sheath resists moisture ingress in humid environments and outdoor lighting connections.
Neoprene Rubber Sheath
Oil- and ozone-resistant EM3 polychloroprene sheath withstands weathering and mechanical wear.

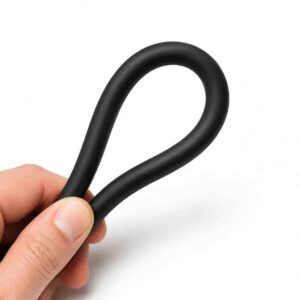

High Flexibility
Multi-strand bare copper conductors allow repeated bending for tools and portable appliances.
450/750V Rated
Standard voltage rating suited to household appliances, hand tools, and office equipment.
-20°C to +60°C Range
Stable performance across seasonal temperature swings in indoor and outdoor use.
Dual Certified
CE and UL certification supports distribution across both EU and North American markets.
OEM & ODM Capabilities
Sourced directly from a certified manufacturing partner, the H07RN-F is available for bulk and private-label programs tailored to distributor and project requirements.
Custom Core Count & Section
Configurable conductor count and cross-sectional area per project specification.
Custom Sheath Color & Print
Sheath color and surface printing available to match distributor or project branding.

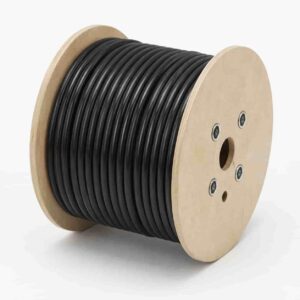

Custom Length & Reel Packing
Cut lengths, coils, or reel packaging configured for retail or project delivery.
Standards Compliance
Production aligned to VDE, CE, and UL requirements for target export markets.
Private Labeling
Branded packaging and reel labeling available for distributor and OEM programs.
Bulk & Container Orders
Production scaled for container-load orders with consistent quality control.
Technical Specifications
Core electrical and construction parameters for the H07RN-F, based on manufacturer test data.
| Conductor | Multi-strand flexible bare copper, VDE-0295 Cl 5 / IEC 60228 Cl-5 |
|---|---|
| Core Insulation | Rubber insulation EI4, VDE-0282 Part 1 |
| Core Color Coding | VDE-0293-308 & HD 186; green/yellow ground (3-core and above) |
| Sheath | Neoprene (polychloroprene) rubber, EM3 |
| Sheath Color | Black |
| Rated Voltage | 450/750 V |
| Test Voltage | 2000 V |
| Flame Retardant | IEC 60332-1 |
| Parameter | Value | Reference |
|---|---|---|
| Operating Temp. | -20°C to +60°C | Ambient |
| Dynamic Bend Radius | 8 × φ | Cable OD |
| Fixed Install Radius | 6 × φ | Cable OD |
| Insulation Resistance | 20 MΩ × km | — |
| Layer | Material | Standard | Function | Notes |
|---|---|---|---|---|
| Conductor | Bare copper, multi-strand flexible | VDE-0295 Cl 5 / IEC 60228 Cl-5 | Current-carrying core | Configurable per project (core count/cross-section) |
| Core Insulation | Rubber (EI4) | VDE-0282 Part 1 | Electrical insulation | Color-coded per VDE-0293-308 & HD 186 |
| Assembly | No wrapping / shielding | — | Core lay-up | Unshielded construction |
| Outer Sheath | Neoprene (polychloroprene) rubber, EM3 | — | Mechanical, oil & ozone protection | Black; splash/damp-environment rated |
| Certification | — | CE, UL, IEC 60332-1 | Compliance & flame retardance | Dual EU/US certified |

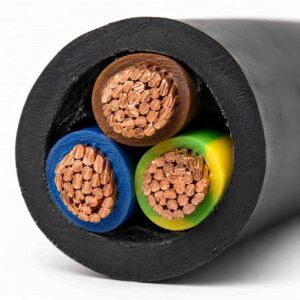

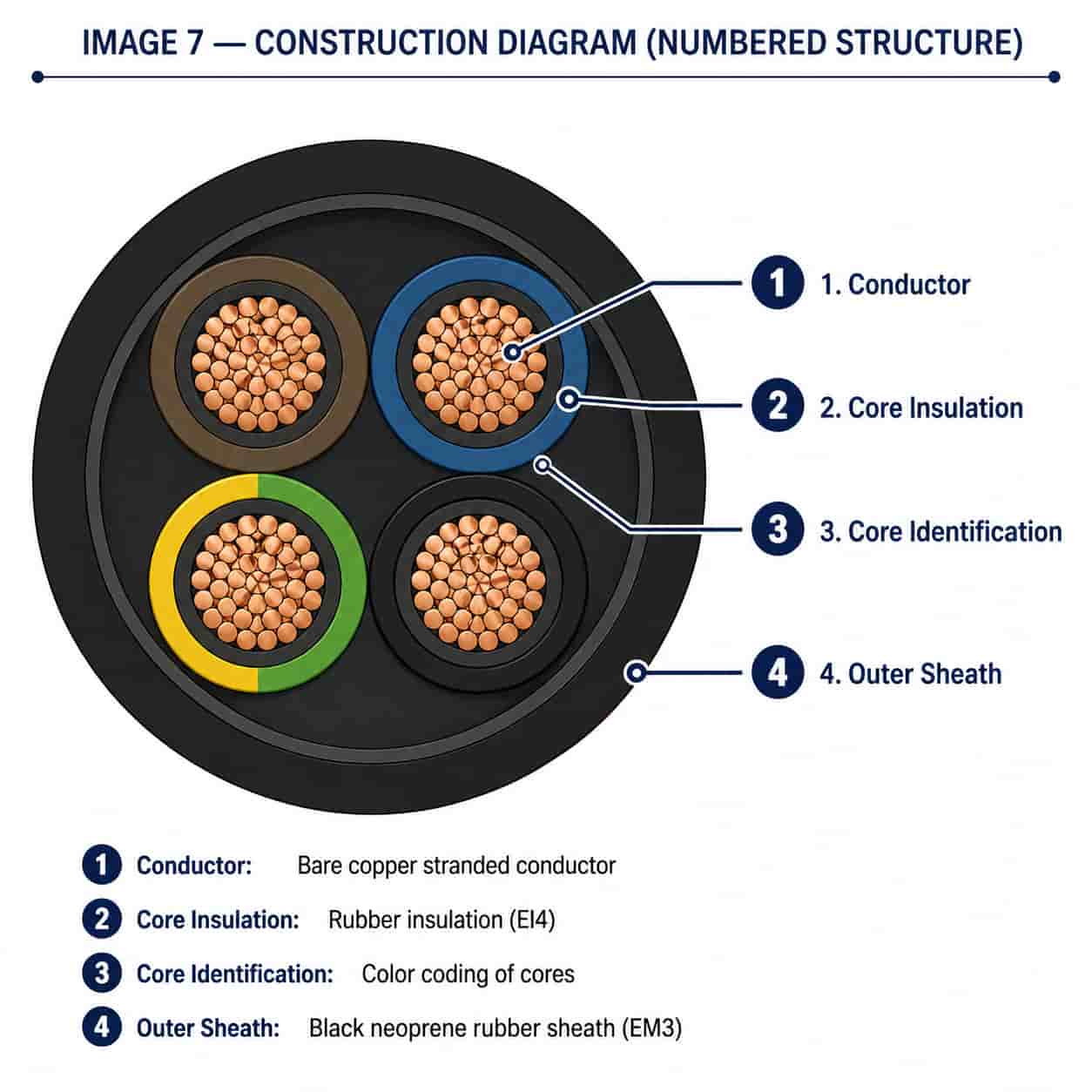

Construction & Configuration
Layer-by-layer construction of the H07RN-F, from conductor to outer sheath.
Conductor
Multi-strand flexible bare copper conductor complying with IEC 60228 Class 5 / VDE-0295 Cl 5.
Core Insulation
EI4 rubber insulation layer applied per VDE-0282 Part 1.
Core Identification
Cores color-coded per VDE-0293-308 / HD 186, with green-yellow ground wire on 3-core and above.
Cable Assembly
Cores laid up without wrapping or shielding for a compact, flexible profile.
Outer Sheath
Black neoprene (polychloroprene) rubber sheath (EM3), oil- and ozone-resistant.
Certification & Compliance
Rated 450/750V, dual CE/UL certified, IEC 60332-1 flame-retardant performance.
Standards & Test Documentation
The H07RN-F is manufactured to recognized European conductor and cable standards, with dual-market compliance certification.
IEC 60228 / VDE-0295 Cl 5
Defines the flexible bare copper conductor class used throughout the H07RN-F construction.
VDE-0282 / HD 186 Family
Governs rubber insulation and core color coding for harmonized H07RN-F type rubber flexible cables.
CE & UL Dual Certification
Certified for both EU and North American markets, supporting cross-border distribution and OEM programs.
