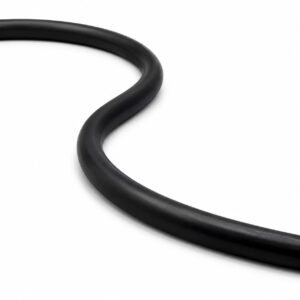

JHS Longitudinal Water-Blocking Cable (500V)
Designed to VG 95218 Part 29, the JHS Longitudinal Water-Blocking Cable blocks water radially through the sheath and completely along its length, with a dedicated water-blocking center unit adding an extra layer of protection at the cable core. A tinned copper braid overall shield and cross-linked halogen-free flame-retardant black sheath support vessel outboard installation and protected motor rotor connections up to 1000V. Available in 8 pre-configured core/cross-section options at 500V. Dual CE and UL certified, available for OEM/ODM production in custom core counts, lengths, and reel packaging.
Key Features
Engineered to VG 95218 Part 29 for naval and marine power/control applications, with a dedicated water-blocking center unit for added protection.
VG 95218 Part 29 Compliant

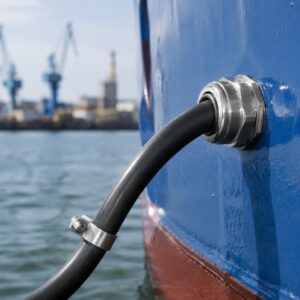

Designed to the German military naval cable standard for vessel outboard installation.
Water-Blocking Center Unit
A dedicated water-blocking element at the cable core adds an extra layer of longitudinal protection.
Radial & Longitudinal Water-Blocking
Blocks water radially through the sheath and completely along the full cable length.
Halogen-Free Flame-Retardant
Cross-linked halogen-free compound sheath improves fire safety in enclosed vessel spaces.
Full Submersion Rated
Maintains stable insulation and mechanical performance even when fully submerged.
Dual Certified
CE and UL certification supports distribution across both EU and North American markets.
OEM & ODM Capabilities
Sourced directly from a certified manufacturing partner, available for bulk and private-label programs tailored to marine and defense-related distributors.
Custom Core Count & Section
Configurable conductor count and cross-sectional area beyond the 8 standard configurations.
Ground Wire Option (G/X)
Available with (G) or without (X) integrated green/yellow ground conductor.

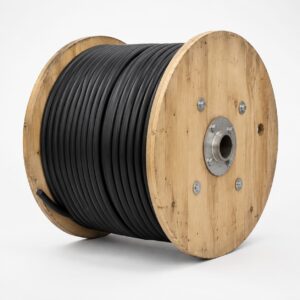

Custom Length & Reel Packing
Cut lengths, coils, or reel packaging configured for marine and project delivery.
Standards Compliance
Production aligned to VG 95218, DIN VDE, BS, IEC, CE, and UL requirements for target export markets.

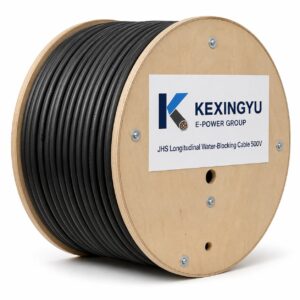

Private Labeling
Branded packaging and reel labeling available for distributor and OEM programs.
Bulk & Container Orders
Production scaled for container-load orders with consistent quality control.
Technical Specifications
Core electrical and construction parameters, plus the full 500V dimension chart, based on manufacturer test data.
| Conductor | Fine stranded bare copper, DIN VDE 0295 Cl 5 / BS 6360 Cl 5 / IEC 60228 Cl 5 |
|---|---|
| Center Unit | Water-blocking center unit |
| Separator | Water-blocking tape |
| Insulation | Special elastomer compound |
| Filler | Water-blocking filler compound |
| Separator | Water-blocking tape |
| Shield | Tinned copper braid |
| Sheath | Cross-linked halogen-free flame-retardant material, black |
| Parameter | Value | Reference |
|---|---|---|
| Underwater Temp. Limit | +40°C recommended / +60°C max | Submerged |
| Fixed Install Temp. | -40°C to +80°C | Ambient |
| Static Load | Total cross-section × 200 N/mm² | — |
| Min. Insulation Resistance | 20 MΩ × km | — |
| Core Count × Cross-Section (No. × mm²) | Max. Transfer Impedance (mΩ/m) | Max. Single Core Diameter (mm) | Min. Sheath Thickness (mm) | Min. Outer Diameter (mm) | Max. Outer Diameter (mm) | Max. Weight (kg/km) |
|---|---|---|---|---|---|---|
| 2×1.5 | 30 | 3.4 | 2.0 | 12.6 | 13.2 | 200 |
| 3×1.5 | 30 | 3.4 | 2.0 | 13.4 | 13.8 | 250 |
| 3G1.5 | 30 | 3.4 | 2.0 | 13.4 | 13.8 | 250 |
| 7×1.5 | 30 | 3.4 | 1.5 | 15.7 | 16.2 | 430 |
| 4×2×0.75 | 30 | 2.5 | 2.0 | 20.6 | 21.2 | 560 |
| 12×0.75 | 30 | 2.5 | 2.0 | 18.5 | 19.1 | 540 |
| 12×1.5 | 30 | 3.4 | 2.0 | 20.9 | 21.5 | 700 |
| 24×1.5 | 30 | 3.4 | 2.0 | 28.1 | 28.7 | 1230 |

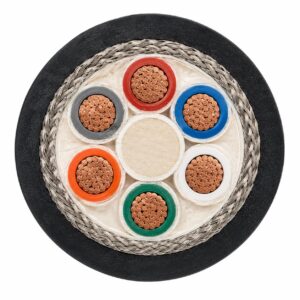

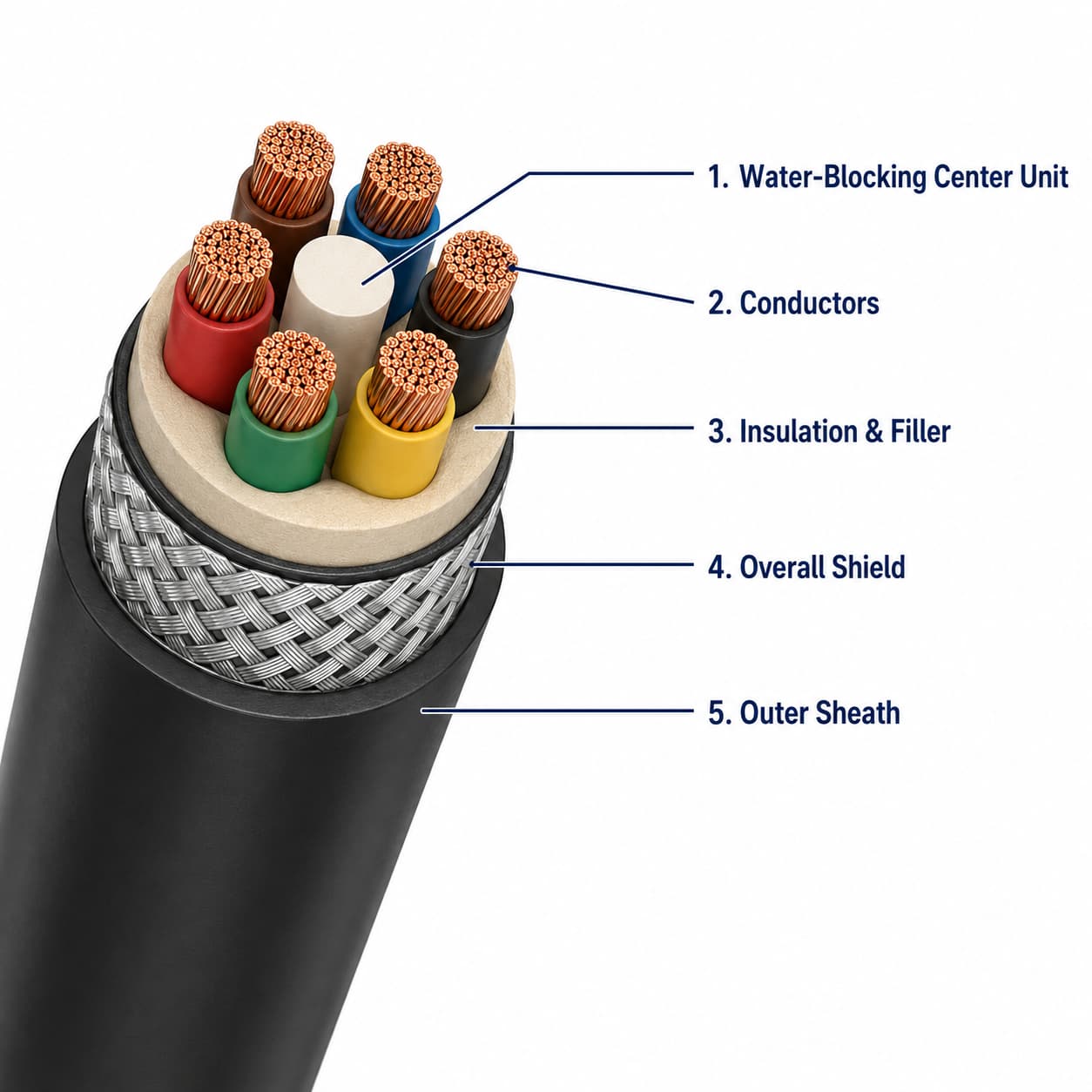

Construction & Configuration
Layer-by-layer construction of the cable, from conductor to outer sheath.
Conductor
Fine stranded bare copper conductor complying with DIN VDE 0295 Cl 5, BS 6360 Cl 5, IEC 60228 Cl 5.
Water-Blocking Center Unit
Dedicated water-blocking element at the cable core, wrapped with water-blocking tape.
Core Insulation & Filler
Special elastomer insulation combined with water-blocking filler and a second layer of water-blocking tape.
Overall Shield
Tinned copper braid overall shield for corrosion resistance in marine environments.
Outer Sheath
Black cross-linked halogen-free flame-retardant outer sheath.
Certification & Compliance
Rated 450/750V (413/825V AC three-phase, 0.6/1kV DC), designed to VG 95218 Part 29, dual CE/UL certified.
Standards & Test Documentation
Manufactured to recognized European conductor standards and the VG 95218 Part 29 naval cable specification, with dual-market compliance certification.
DIN VDE 0295 / BS 6360 / IEC 60228 Cl 5
Defines the fine stranded bare copper conductor class used throughout the cable construction.
VG 95218 Part 29
German military naval cable standard governing radial and longitudinal water-blocking design for vessel outboard installation.
CE & UL Dual Certification
Certified for both EU and North American markets, supporting cross-border distribution and OEM programs.
Need VG 95218 Water-Blocking Cable?
Send your voltage, core count, and length requirements — our team will confirm OEM/ODM options and lead time.
