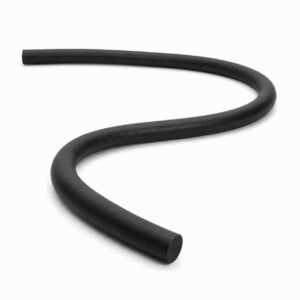

Water-Blocking Cable (500V)

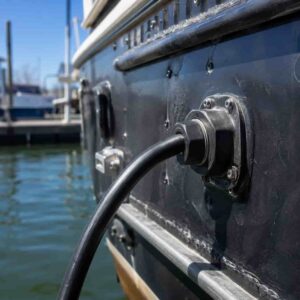

This 500V water-blocking cable is engineered for continuous submersion, with multiple internal water-blocking tape and filler layers that stop water from migrating along the conductor even when fully immersed. A tinned copper braid overall shield and special elastomer insulation keep mechanical stability intact underwater, making it suitable for vessel outboard installation and protected motor rotor connections up to 1000V. Dual CE and UL certified, available for OEM/ODM production in custom core counts, lengths, and reel packaging.
Key Features
Engineered for full submersion, the water-blocking cable maintains stable insulation and mechanical performance even in continuous underwater and marine service.
Full Submersion Rated
Maintains stable insulation performance and mechanical stability even when fully submerged in water.
Water-Blocking Construction
Multiple internal water-blocking tape and filler layers stop water from migrating along the cable core.
Minimal Water Weight Gain
Engineered to minimize weight increase when submerged, easing handling and installation.
Tinned Copper Braid Shield
Overall tinned copper braid adds corrosion resistance and shielding for marine environments.
Protected High-Voltage Install
Suitable for motor rotor connection cables up to 1000V, protected fixed installation in conduit.
Dual Certified
CE and UL certification supports distribution across both EU and North American markets.
OEM & ODM Capabilities
Sourced directly from a certified manufacturing partner, the water-blocking cable is available for bulk and private-label programs tailored to marine and industrial distributors.
Custom Core Count & Section
Configurable conductor count and cross-sectional area per project specification.
Custom Voltage Rating
AC, three-phase, and DC voltage configurations available to match installation requirements.

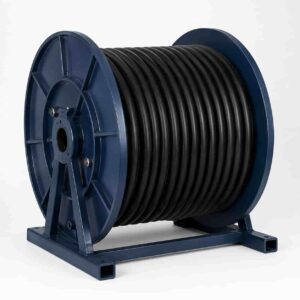

Custom Length & Reel Packing
Cut lengths, coils, or reel packaging configured for marine and project delivery.
Standards Compliance
Production aligned to DIN VDE, BS, IEC, CE, and UL requirements for target export markets.

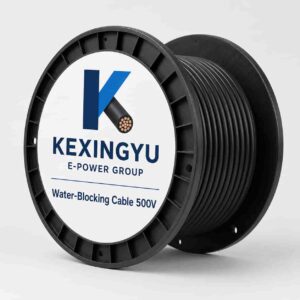

Private Labeling
Branded packaging and reel labeling available for distributor and OEM programs.
Bulk & Container Orders
Production scaled for container-load orders with consistent quality control.
Technical Specifications
Core electrical and construction parameters for the water-blocking cable, based on manufacturer test data.
| Conductor | Fine stranded bare copper, DIN VDE 0295 Cl 5 / BS 6360 Cl 5 / IEC 60228 Cl 5 |
|---|---|
| Water-Blocking Unit | Integrated water-blocking core unit construction |
| Separator | Water-blocking tape (multiple layers) |
| Insulation | Special elastomer compound |
| Filler | Water-blocking filler compound |
| Overall Shield | Tinned copper braid |
| Rated Voltage | 450/750 V; AC & 3-phase: 413/825 V; DC: 0.6/1 kV |
| Test Voltage | 2500 V / 15 min |
| Parameter | Value | Reference |
|---|---|---|
| Underwater Temp. Limit | +40°C recommended / +60°C max | Submerged |
| Mobile Install Temp. | -25°C to +80°C | Ambient |
| Fixed Install Temp. | -40°C to +80°C | Ambient |
| Min. Insulation Resistance | 20 MΩ × km | — |
| Layer | Material | Standard | Function | Notes |
|---|---|---|---|---|
| Conductor | Fine stranded bare copper | DIN VDE 0295 Cl 5 / BS 6360 Cl 5 / IEC 60228 Cl 5 | Current-carrying core | Configurable per project (core count/cross-section) |
| Water-Blocking Unit & Separator | Water-blocking tape / element | — | Prevents longitudinal water migration | Multiple internal water-blocking layers |
| Insulation | Special elastomer compound | — | Electrical insulation, submersion-stable | Maintains mechanical stability when submerged |
| Filler | Water-blocking filler compound | — | Fills interstices, blocks water ingress | Applied between separator layers |
| Overall Shield | Tinned copper braid | — | Shielding & corrosion resistance | — |
| Outer Sheath | Black rubber-based elastomer compound | — | Mechanical & water barrier protection | Industry-standard construction for marine water-blocking cables |

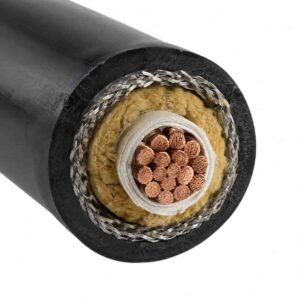

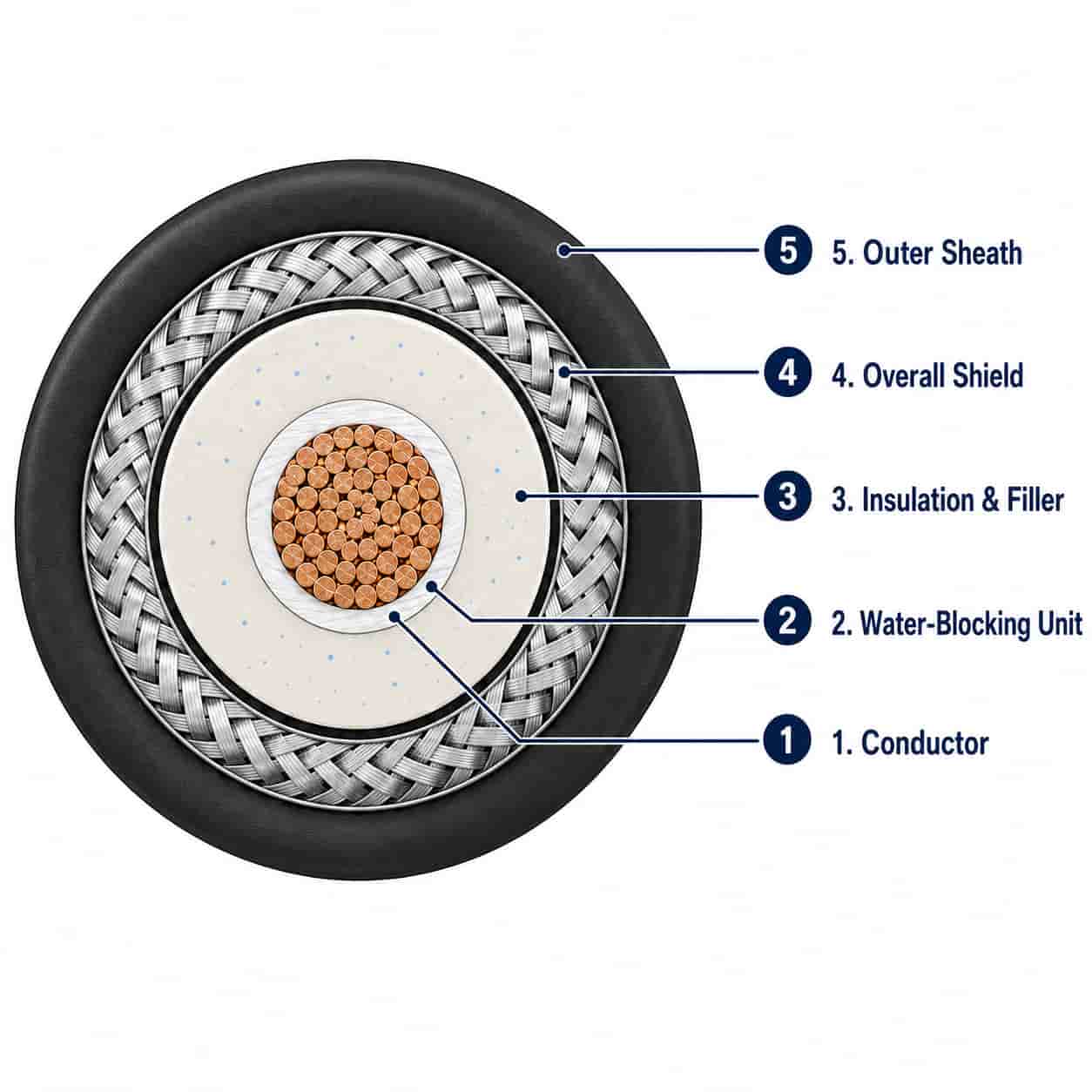

Construction & Configuration
Layer-by-layer construction of the water-blocking cable, from conductor to outer sheath.
Conductor
Fine stranded bare copper conductor complying with DIN VDE 0295 Cl 5, BS 6360 Cl 5, IEC 60228 Cl 5.
Water-Blocking Unit & Separator
Integrated water-blocking core unit wrapped with multiple layers of water-blocking tape.
Insulation & Filler
Special elastomer insulation combined with water-blocking filler compound to stop moisture ingress.
Overall Shield
Tinned copper braid overall shield for corrosion resistance in marine environments.
Outer Sheath
Black rubber-based elastomer outer sheath for mechanical and water barrier protection.
Certification & Compliance
Rated 450/750V (413/825V AC three-phase, 0.6/1kV DC), dual CE/UL certified.
Standards & Test Documentation
The water-blocking cable is manufactured to recognized European and international conductor standards, with dual-market compliance certification.
DIN VDE 0295 / BS 6360 / IEC 60228 Cl 5
Defines the fine stranded bare copper conductor class used throughout the water-blocking cable construction.
Multi-Layer Water-Blocking Design
Water-blocking tape and filler layers combined with tinned copper braid shielding for full-submersion, marine-grade service.
CE & UL Dual Certification
Certified for both EU and North American markets, supporting cross-border distribution and OEM programs.
Need Water-Blocking Cable for Marine Use?
Send your voltage, core count, and length requirements — our team will confirm OEM/ODM options and lead time.
