Corrosion-Resistant Cable (Chemical/Sewage Area)

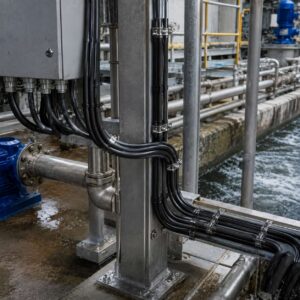

Engineered for signal transmission in the most demanding corrosive environments, this corrosion-resistant cable serves chemical plants, sewage treatment facilities, marine and offshore installations, and high-humidity industrial zones. Its rugged TPU jacket resists mineral oil lubricants, dilute acids, alkaline solutions, and other chemical media across a -45°C to +90°C operating range.
Key Features
Engineered for the Harshest Corrosive Environments
From high-salinity coastal zones to chemical processing plants, this cable is built to resist corrosion, abrasion, and electromagnetic interference in continuous signal transmission applications.
Superior Abrasion & Tensile Resistance
Withstands repeated flexing, tension, and mechanical wear in demanding control and signal transmission use.
Strong EMI Shielding
High-coverage tinned copper braid shielding (≥80%) resists strong electromagnetic interference.
Rugged TPU Chemical Resistance
Resists mineral-oil-based lubricants, dilute acids, alkaline solutions, and other chemical media.
Wide Operating Range
Rated from -45°C to +90°C, suitable for severe climate conditions.

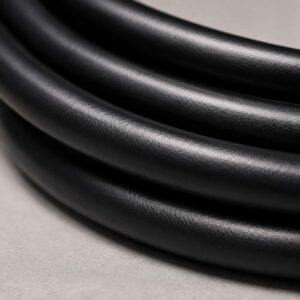

Low-Friction, Non-Sticking Surface
The jacket surface does not adhere to other objects within the rated temperature range.
Compact Outer Diameter
A small cable outer diameter saves installation space while maintaining flame-retardant, UV-resistant performance.
OEM & ODM Capabilities
Custom-Engineered Corrosion-Resistant Cable Solutions
This cable can be matched to specific corrosivity categories — from very high marine/industrial environments to lower-corrosion urban settings — with custom core and jacket configurations.
Custom Core Count & Cross-Section
Core count and conductor cross-section configured to match signal and control requirements.
Optional Ground Core
One core can be configured as a yellow/green ground protection core on request.
Custom Jacket Color
Standard black or gray jacket, with additional colors available on request.
Corrosivity Category Matching
Construction tailored to match the specific corrosivity level of the installation environment.
Test Report Documentation Support
GB/T test report documentation available to support customer qualification needs.
Project-Specific Engineering Support
Small-batch prototyping and volume production supported for chemical, marine, and industrial projects.
Technical Specifications
Electrical, Mechanical & Environmental Specifications
Core electrical and mechanical ratings are supported by an extensive set of GB/T environmental and chemical resistance test protocols.
| Product Type | Corrosion-Resistant Cable (Chemical/Sewage Area) |
|---|---|
| Conductor | Multi-strand extra-fine tinned copper wire, per GB/T 3956-2008 Class 6 |
| Insulation | High-density compound |
| Inner Sheath | TPU, high-density extrusion molded |
| Shielding | High-conductivity tinned copper braid, coverage ≥80% |
| Outer Sheath | High-mechanical-performance TPU compound (drag-chain grade) |
| Jacket Color | Black or gray (customizable) |
| Operating Temperature Range | -45°C to +90°C |
| Attribute | Rating | Notes |
|---|---|---|
| Corrosivity Suitability | Very High to Low | Marine, industrial, and urban environment categories |
| Acid/Alkali Resistance | GB/T 2951.21-2008 tested | Oxalic acid & NaOH immersion, 168h @ 23°C |
| Flame Retardance | GB/T 18380.12-2008 | Vertical burning test |
| UV & Ozone Resistance | Dedicated test protocols passed | No visible cracking after exposure |
| Layer | Material | Standard | Function | Notes |
|---|---|---|---|---|
| Conductor | Multi-strand extra-fine tinned copper wire | GB/T 3956-2008, Class 6 | Carries electrical current | — |
| Core Insulation | High-density compound | — | Electrical insulation | — |
| Core Identification | Color/dot marked (<0.5mm²) or black with white numbering (≥0.5mm²) | — | Circuit identification | Optional yellow/green ground core |
| Core Stranding | Layered or grouped stranding, gap-filled | — | Structural optimization | — |
| Inner Sheath | TPU, high-density extrusion | — | Mechanical protection layer | — |
| Shielding | Tinned copper braid | Coverage ≥80% | EMI shielding | High conductivity |
| Outer Sheath | High-mechanical-performance TPU compound | Drag-chain grade | Chemical, abrasion & mechanical resistance | Black or gray, customizable |

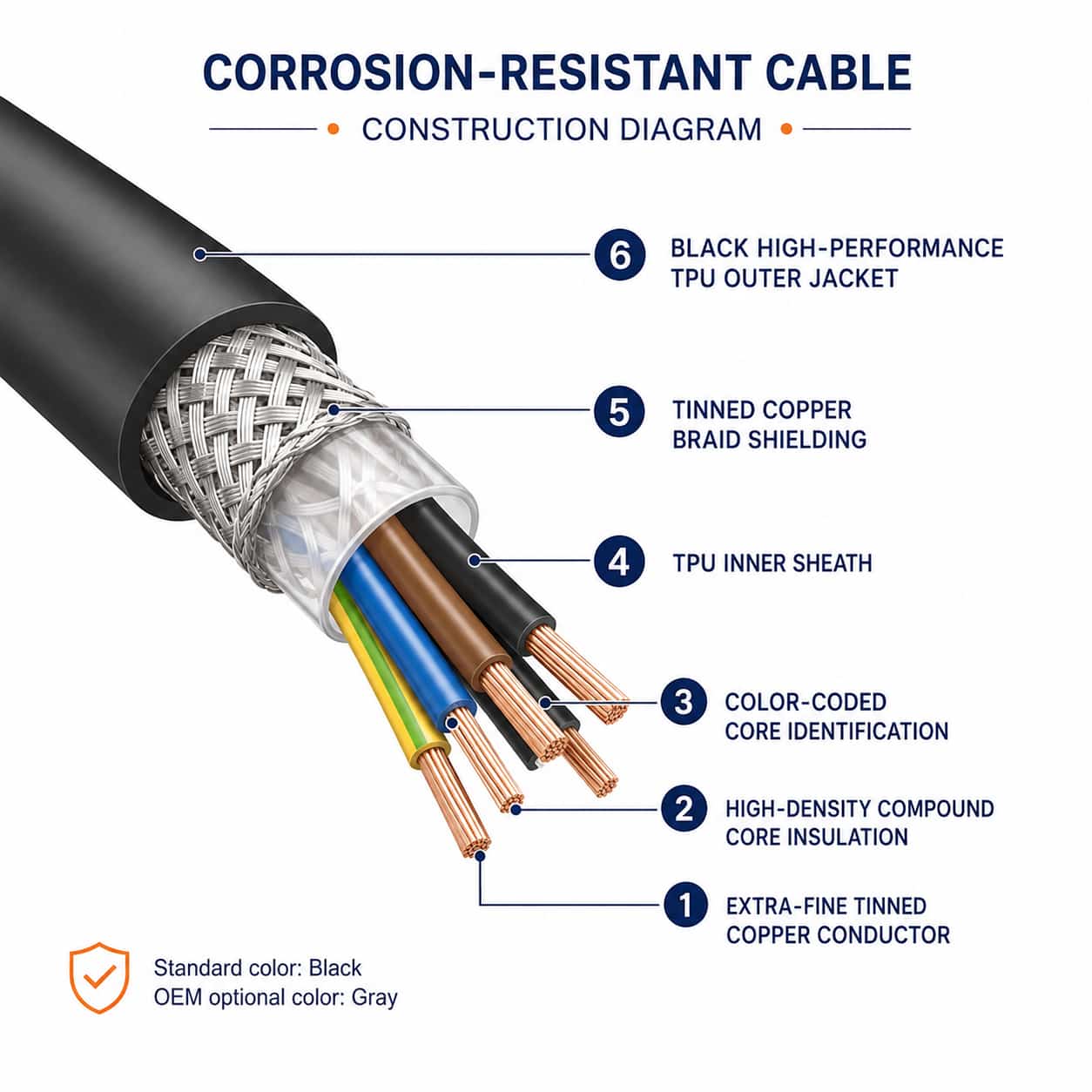

Construction & Configuration

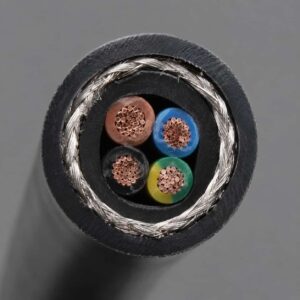

Multi-Layer Shielded Cable Structure
The cable pairs an extra-fine tinned copper conductor with a high-density insulation, TPU inner sheath, high-coverage shielding braid, and a rugged TPU outer jacket.
Extra-Fine Tinned Copper Conductor
Multi-strand extra-fine tinned copper wire per GB/T 3956-2008 Class 6 provides flexibility and current-carrying capacity.
High-Density Compound Insulation
A high-density insulation compound surrounds each conductor for reliable electrical performance.
Color/Number Core Identification
Cores below 0.5mm² use color or dot marking; larger cores use black with white numbering.

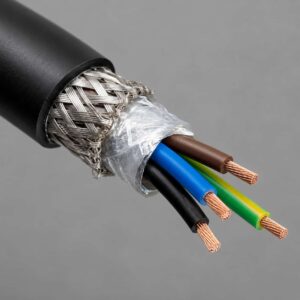

Tinned Copper Braid Shielding (≥80% Coverage)
A high-conductivity tinned copper braid with ≥80% coverage provides strong EMI shielding.
TPU Inner Sheath (High-Density Extrusion)
A high-density extruded TPU inner sheath adds a further layer of mechanical protection.
High-Performance TPU Outer Jacket
A high-mechanical-performance TPU compound outer jacket resists chemicals, abrasion, and mechanical stress.
Standards & Test Documentation
Test Standards & Environmental Compliance
This cable is verified through an extensive series of GB/T national standard tests covering thermal, chemical, and environmental resistance.
GB/T Compliance Testing
Tested per GB/T 2951 series (high-temperature pressure, humid heat, low-temperature impact & bending) and GB/T 18380.12-2008 vertical flame testing.
Acid & Alkali Immersion Testing
Tested per GB/T 2951.21-2008 in oxalic acid (45g/L) and sodium hydroxide (40g/L) solutions for 168 hours at 23°C.
Low-Temperature, Ozone & Aging Resistance
Passed low-temperature impact and bending tests at -40°C, ozone exposure testing, and 135°C compatibility aging testing.
Ready to Discuss Your Corrosion-Resistant Cable Project?
Share your corrosivity environment, core count, and length requirements and our team will propose a tailored cable configuration.
