LIFT Elevator & Hoist Control Cable
Designed as a control and power cable for elevators and hoists, the LIFT cable installs into conveyance systems and manual control units. Its external support wire can be removed without damaging the cable’s insulation, and construction options include a central hemp support cord (Trago type) or two external steel support wires (Lift-2S type).
Key Features
Flexible, Durable Control Cable for Elevators & Hoists
The LIFT cable combines high flexibility with strong chemical and mechanical resistance, and is available with either a central hemp support cord or external steel support wires.
Highly Flexible Construction
Extra-fine stranded conductors and layer-stranded cores deliver a highly flexible cable for control and conveyance systems.
Acid & Oil Resistant
Maintains performance in environments with acid and oil exposure common to elevator machine rooms.
Weather, Impact & Thermal Resistant
Withstands harsh weather, oil and grease exposure, mechanical impact, and thermal stress.
Removable External Support Wire
The Lift-2S variant's external steel support wires can be removed without damaging the cable's insulation.
High Short-Circuit Temperature Rating
Rated to withstand short-circuit temperatures up to +150°C, with flame retardance per IEC 60332.1.
Dual CE + UL Certification
Certified to both European CE and North American UL standards for global project compatibility.
OEM & ODM Capabilities
Custom-Engineered Elevator & Hoist Cable Solutions
LIFT control cables are available in Trago (central hemp support) or Lift-2S (external steel support wire) construction, and can be further tailored to project requirements.
Trago or Lift-2S Construction
Choose a central hemp support cord (Trago) or two external steel support wires (Lift-2S) based on installation needs.
Custom Core Count & Cross-Section
Core count and conductor cross-section configured to match control and power requirements.
Optional Ground Core (G/X)
Available with (G) or without (X) a yellow/green dual-color ground protection core.
Custom Length for Elevator/Hoist Systems
Cable length engineered to match specific elevator or hoist travel height.
Certification Documentation Support
CE and UL project documentation and test reports available to support customer certification needs.
Project-Specific Engineering Support
Small-batch prototyping and volume production supported for elevator and hoist system manufacturers.
Technical Specifications
Electrical & Mechanical Specifications
Electrical ratings are fixed by conductor size and insulation type, while support structure (Trago hemp cord or Lift-2S external steel wire) is selected per project.
| Product Type | LIFT Elevator & Hoist Control Cable |
|---|---|
| Conductor | Extra-fine copper wire, Class 6 per BS 6360 / IEC 60228 |
| Core Insulation | Special PVC TI2, per DIN VDE 0207-363-3 / DIN EN 50363-3 |
| Core Identification | Per DIN VDE 0293, including yellow/green ground core |
| Support Structure | Trago type: central hemp support cord; Lift-2S type: 2 external steel support wires (removable without insulation damage) |
| Outer Sheath | Chloroprene rubber EM3, black (RAL 9005) |
| Rated Voltage | 300/500V |
| Test Voltage | 3000V |
| Attribute | Rating | Notes |
|---|---|---|
| Bend Radius | Dynamic: 10×Ø; Fixed: 15×Ø | Ø = cable diameter |
| Short-Circuit Temperature | +150°C | — |
| Insulation Resistance | 20 MΩ×km | — |
| Certification | CE + UL | Dual certified |
| Layer | Material | Standard | Function | Notes |
|---|---|---|---|---|
| Conductor | Extra-fine copper wire | BS 6360 / IEC 60228, Class 6 | Carries electrical current | — |
| Core Insulation | Special PVC TI2 | DIN VDE 0207-363-3 / DIN EN 50363-3 | Electrical insulation | — |
| Core Identification | Color/number coded, including ground core | DIN VDE 0293 | Circuit identification | Yellow/green ground core included |
| Stranding | Layer-stranded cores at optimum lay length | — | Flexibility | — |
| Support Reinforcement | Hemp cord (Trago, central) or 2 steel wires (Lift-2S, external) | — | Mechanical load-bearing support | Lift-2S external steel wire removable without insulation damage |
| Support Wrap | Multi-layer wrap (support braid) | — | Structural support layer | — |
| Outer Sheath | Chloroprene rubber EM3 | — | Weather, oil & mechanical resistance | Black (RAL 9005) |

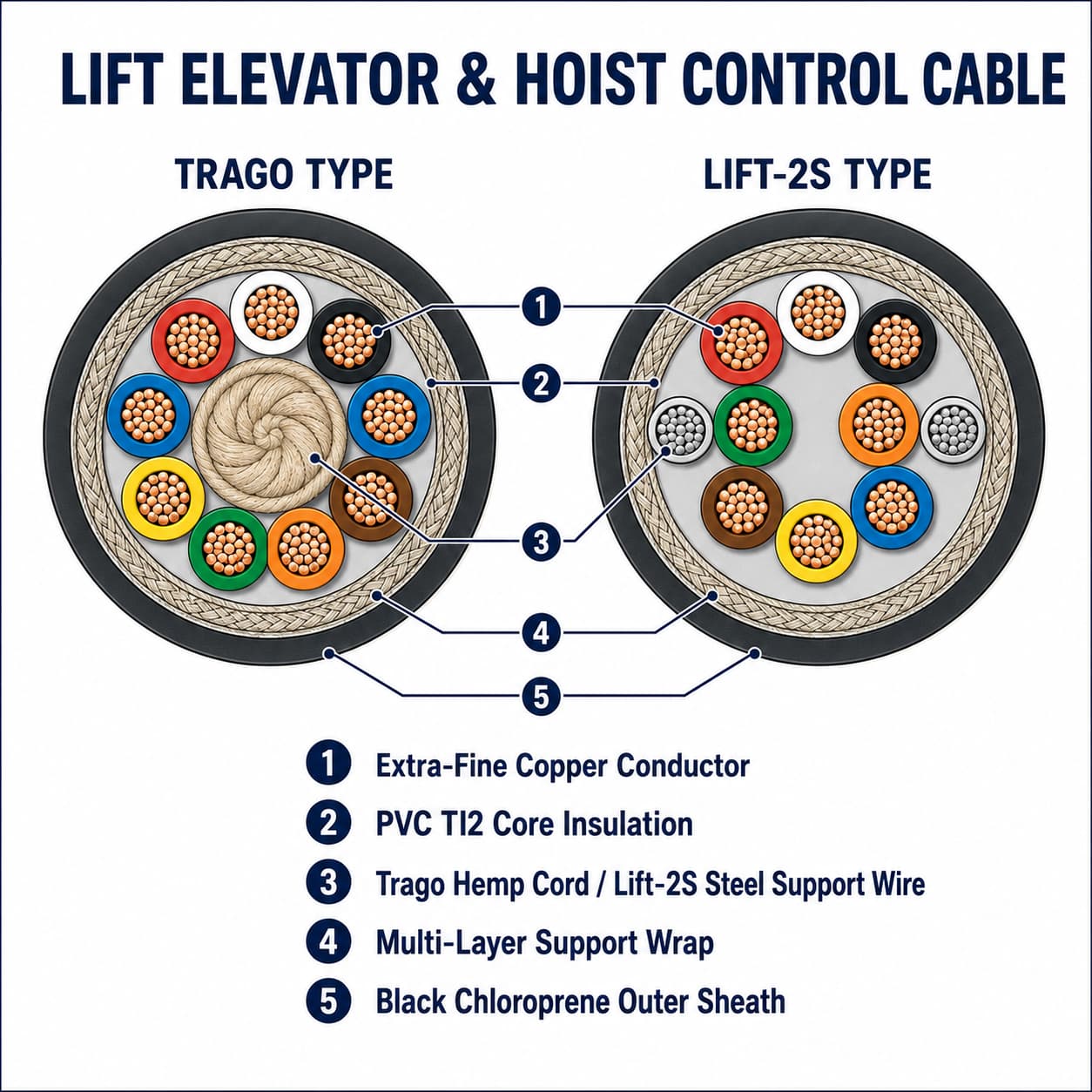

Construction & Configuration
Trago & Lift-2S Cable Construction
The LIFT control cable pairs a PVC-insulated, extra-fine copper core with a choice of support structure — a central hemp cord (Trago) or two removable external steel support wires (Lift-2S).
Extra-Fine Copper Conductor (Class 6)
Extra-fine stranded copper conductor per BS 6360 and IEC 60228 Class 6 provides high flexibility.
Special PVC TI2 Core Insulation
PVC TI2 insulation per DIN VDE 0207-363-3 / DIN EN 50363-3 provides reliable dielectric performance.
DIN VDE 0293 Core Identification
Cores are identified per DIN VDE 0293, including a dedicated yellow/green ground core.

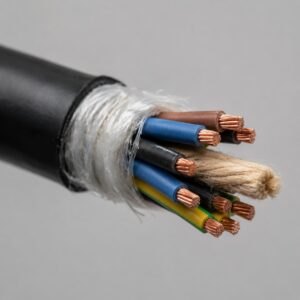

Trago Type: Central Hemp Support Cord
A central support hemp cord provides internal mechanical reinforcement in the Trago construction.

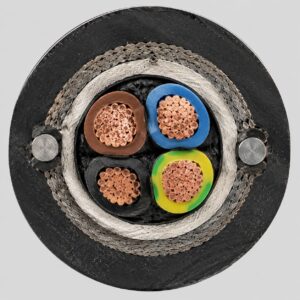

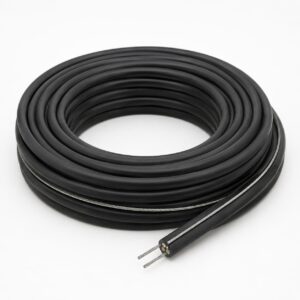

Lift-2S Type: External Steel Support Wires
Two external steel support wires provide load-bearing strength and can be removed without damaging cable insulation.

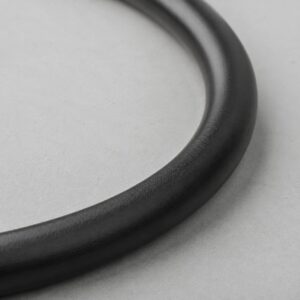

Chloroprene Rubber EM3 Outer Sheath
A chloroprene rubber EM3 outer sheath, standard black (RAL 9005), resists weather, oil, and mechanical stress.
Standards & Test Documentation
Certifications & Compliance
The LIFT control cable holds dual CE and UL certification, is flame-retardant tested per IEC 60332.1, and complies with DIN VDE core insulation and identification standards.
Dual CE & UL Certification
Certified to both European CE and North American UL standards for elevator and hoist control cable applications.
IEC 60332.1 Compliance
Flame retardancy tested per IEC 60332.1, with a short-circuit temperature rating of up to +150°C.
DIN VDE Insulation & Identification Standard
Core insulation complies with DIN VDE 0207-363-3 / DIN EN 50363-3; core identification complies with DIN VDE 0293.
Ready to Discuss Your Elevator Cable Project?
Share your support structure preference (Trago or Lift-2S), core count, and length requirements and our team will propose a LIFT-series control cable configuration.
