NSHTÖU Reeling Cable
Engineered for continuous reeling and drum operation under high mechanical stress, the NSHTÖU reeling cable serves mining, open-pit excavation, construction, cranes, and other continuously moving machinery. Its EPR-insulated cores and neoprene outer jacket deliver long service life across dry, humid, and wet environments, backed by dual CE and UL certification.
Key Features
Built for Continuous Reeling & Harsh Environments
The NSHTÖU reeling cable is purpose-designed for horizontal drum operation, combining a rugged neoprene jacket with high dielectric strength for demanding mining, construction, and machinery applications.

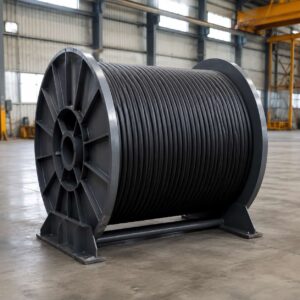

Continuous Reeling Operation
Designed for horizontal drum/reel operation with a maximum allowable travel speed of 120 m/min.
Neoprene Outer Jacket
Extremely cold-resistant chloroprene (neoprene) jacket resists ozone, radiation, oil, acid, gasoline, solvents, and chemicals.
Dual CE + UL Certification
Certified to both European CE and North American UL standards for global project compatibility.
Wide Operating Range
Rated -40°C to +80°C for fixed installation and -35°C to +80°C for mobile/reeling operation.
High Dielectric Strength
Tested at 30,000V, with minimum insulation resistance of 10 MOhm×km, rising to 20 MOhm×km after radiation exposure testing.
Configurable Grounding
Available with (G) or without (x) a yellow/green ground protection core to match project requirements.
OEM & ODM Capabilities
Custom-Engineered Reeling Cable Solutions
NSHTÖU reeling cables can be tailored in core count, grounding configuration, and length to fit mining, crane, and continuous-motion machinery projects.
Custom Core Count & Cross-Section
Core count and conductor cross-section configured to match power and control requirements.
Optional Ground Core (G/X)
Available with (G) or without (X) a yellow/green dual-color ground protection core.
Custom Length for Drum/Reel Systems
Cable length engineered to match specific drum and reel system dimensions.
Certification Documentation Support
CE and UL project documentation and test reports available to support customer certification needs.
Custom Voltage Configuration
AC and DC voltage ratings configured to match the electrical requirements of the driven equipment.
Project-Specific Engineering Support
Small-batch prototyping and volume production supported for mining, crane, and machinery projects.
Technical Specifications
Electrical & Mechanical Specifications
Electrical ratings, bend radius, and installation limits are fixed by the cable’s rubber-insulated, drum-reeling construction.
| Product Type | NSHTÖU Reeling Cable |
|---|---|
| Conductor | Tinned copper, Class 5 per DIN VDE 0295 / BS 6360 / IEC 60228 |
| Core Insulation | EPR rubber (3GI3), per DIN VDE 0207 Part 20 |
| Inner Sheath | Rubber GM1b, per DIN VDE 0207 Part 21 |
| Outer Sheath | Chloroprene rubber (5GM2), per DIN VDE 0207 Part 21, black |
| Operating Voltage | AC three-phase/single-phase 700/1200V; DC 900/1800V |
| Test Voltage | 30,000V |
| Operating Temperature Range | -15°C to +80°C (mobile: -35°C to +80°C; fixed: -40°C to +80°C) |
| Attribute | Rating | Notes |
|---|---|---|
| Bend Radius | Dynamic: 10×Ø; Fixed: 4×Ø | Ø = cable diameter |
| Max Travel Speed | 120 m/min | Horizontal reeling design |
| Tensile Stress Limit | ≤15 N/mm² (total cross-section) | During installation & operation |
| Certification | CE + UL | Dual certified |
| Layer | Material | Standard | Function | Notes |
|---|---|---|---|---|
| Conductor | Tinned copper | DIN VDE 0295 / BS 6360 / IEC 60228, Class 5 | Carries electrical current | — |
| Core Insulation | EPR rubber (3GI3) | DIN VDE 0207 Part 20 | Electrical insulation | — |
| Core Identification | Color-coded (≤5 cores) / black with white numbering (≥6 cores) | Manufacturer convention | Circuit identification | — |
| Stranding | Stranded cores, no elongated central member | Max lay length 8×Ø | Cable flexibility during reeling | — |
| Reinforcement | Woven fabric anti-twist braid | Embedded in inner filling sheath | Anti-twist reinforcement | — |
| Inner Sheath | Rubber GM1b | DIN VDE 0207 Part 21 | Mechanical protection layer | — |
| Outer Sheath | Chloroprene rubber (5GM2) | DIN VDE 0207 Part 21 | Weather, chemical & cold resistance | Black; optional yellow/green ground core (G/X) |
Construction & Configuration

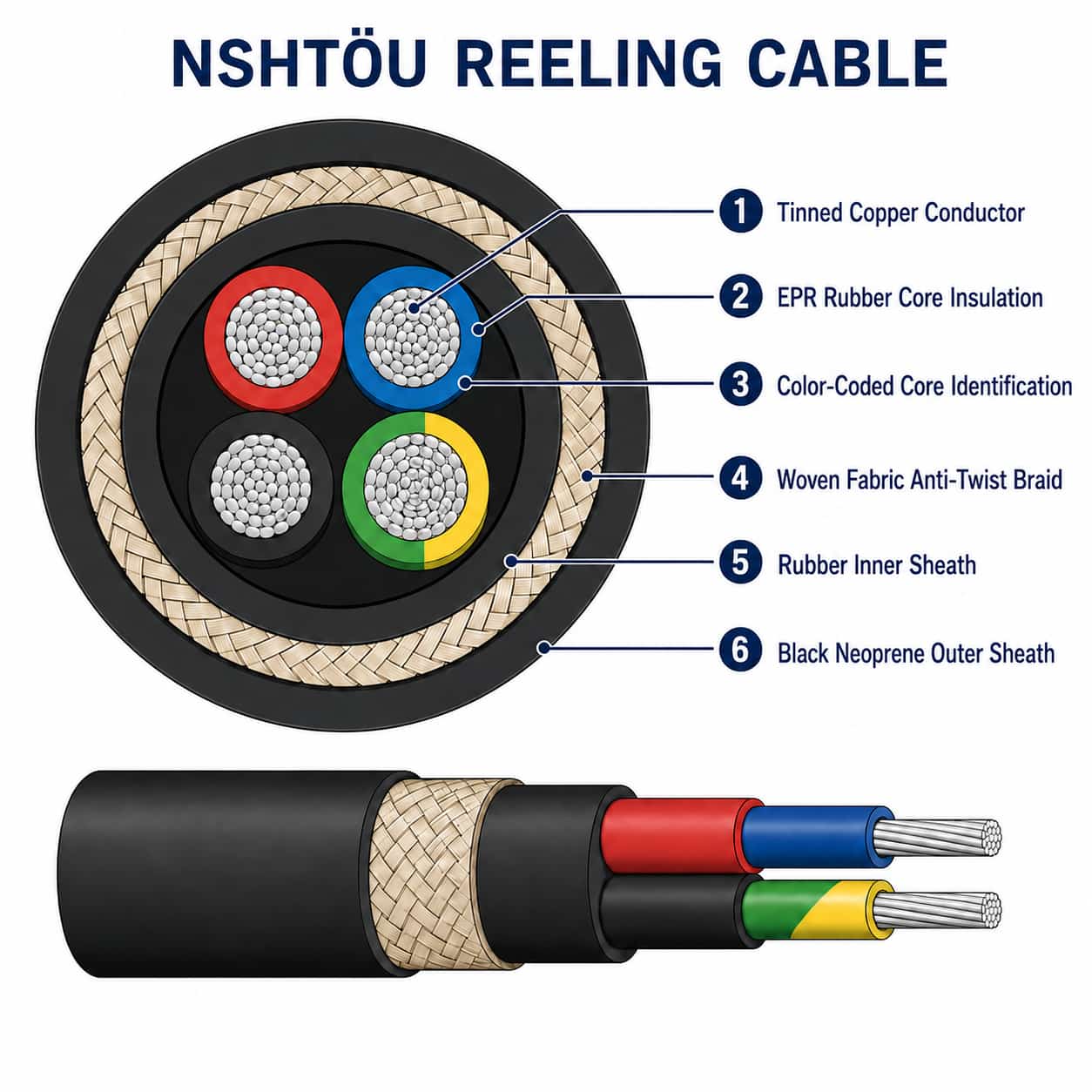

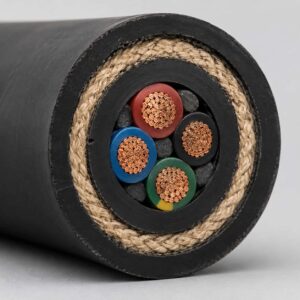

Rubber-Insulated Reeling Cable Structure
The NSHTÖU reeling cable layers a tinned copper, EPR-insulated core with anti-twist reinforcement and a dual rubber sheath system built for repeated drum operation.
Tinned Copper Conductor (Class 5)
Class 5 tinned copper conductor per DIN VDE 0295, BS 6360, and IEC 60228 provides flexibility for repeated reeling.
EPR Rubber Core Insulation
EPR rubber (3GI3) insulation per DIN VDE 0207 Part 20 provides reliable dielectric performance.

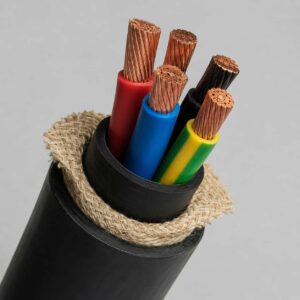

Core Color Identification
Cores of 5 or fewer use distinct color coding; 6 or more cores use black with continuous white numbering.
Anti-Twist Fabric Braid Reinforcement
A woven fabric braid embedded in the inner filling sheath prevents cable twist during repeated reeling.
Rubber GM1b Inner Sheath
An inner rubber sheath per DIN VDE 0207 Part 21 adds a further layer of mechanical protection.
Neoprene Outer Sheath (5GM2)
A chloroprene rubber outer sheath per DIN VDE 0207 Part 21 provides cold resistance and protection against ozone, oil, and chemicals.
Standards & Test Documentation
Certifications & Installation Guidelines
The NSHTÖU reeling cable holds dual CE and UL certification and complies with DIN VDE 0207/0295 rubber cable standards, with defined installation limits for reeling applications.
Dual CE & UL Certification
Certified to both European CE and North American UL standards for reeling cable applications.
DIN VDE Compliance
Complies with DIN VDE 0207 Parts 20 & 21 for core insulation and sheathing, and DIN VDE 0295 / BS 6360 / IEC 60228 Class 5 for conductors.
Reeling Operation Limits
Recommended limits include a maximum tensile stress of 15 N/mm² on total cross-section, acceleration not exceeding 0.4 m/s², and retaining 1–2 wraps on the drum during operation.
