YH / YHF Welding Cable / Welding Machine Cable (H01N2-D/E)
Designed for use between welding generators, hand-held electrodes, and workpieces, the YH/YHF welding cable series serves automotive, shipbuilding, transportation, machine tool, and welding robot applications. CE and UL certified, it retains high flexibility under ozone, UV light, oxidation, oil, and petroleum exposure, and performs reliably in both dry and humid environments.
Key Features
Certified Performance for Demanding Welding Environments
Available in standard flexible (H01N2-D) and ultra-flexible (H01N2-E) constructions, the YH/YHF welding cable is built for durability across chemical, thermal, and mechanical stress.
Dual Flexibility Grades
Choose H01N2-D standard flexible or H01N2-E ultra-flexible construction to match handling requirements.
CE + UL Dual Certification
Certified to both European CE and North American UL standards for global project compatibility.
Excellent Chemical Resistance
Resists oil, strong acids, strong alkalis, and strong oxidizers without loss of performance.
Flame Retardant Performance
Tested to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1 flame propagation standards.
Wide Operating Temperature
Rated -25°C to +80°C for flexible installation and -40°C to +80°C for fixed installation.
Robust, Durable Construction
Maintains high flexibility under ozone, UV light, and oxidizing conditions in open or humid environments.
OEM & ODM Capabilities
Custom-Engineered Welding Cable Solutions
YH/YHF welding cables can be tailored in cross-section, flexibility grade, and packaging to fit welding equipment manufacturers and industrial project requirements.
Custom Cross-Section Selection
Available across a wide cross-section range from 10mm² to 240mm² to match current-carrying requirements.
Standard or Ultra-Flexible Grade
Choose between H01N2-D standard flexible and H01N2-E ultra-flexible constructions.

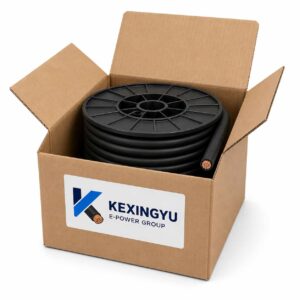

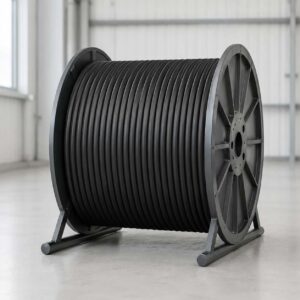

Custom Length & Reel Packaging
Cable length and reel/coil packaging configured to match customer logistics and usage requirements.
Certification Documentation Support
CE and UL project documentation and test reports available to support customer certification needs.
Custom Color Marking / Printing
Surface printing and marking can be customized for brand identification or project tracking.
Project-Specific Engineering Support
Small-batch prototyping and volume production supported for welding equipment manufacturers.
Technical Specifications
Electrical, Mechanical & Dimensional Specifications
Full dimensional data is provided for both H01N2-D (standard flexible) and H01N2-E (ultra-flexible) constructions across the full cross-section range.
| Product Type | YH / YHF Welding Cable / Welding Machine Cable |
|---|---|
| Conductor | Bare copper, extra-fine strands, per DIN VDE 0295 / BS 6360 / IEC 60228 |
| Conductor Separator | Separator layer over conductor |
| Insulation / Sheath | Chloroprene rubber (CR), chlorinated rubber EM5 type |
| Jacket Color | Black |
| Rated Voltage | 100/100V |
| Test Voltage | 1000V |
| Operating Temperature | Flexible installation: -25°C to +80°C; Fixed installation: -40°C to +80°C |
| Attribute | Rating | Notes |
|---|---|---|
| Bend Radius | D: 12×OD; E: 10×OD | E-type allows tighter bending |
| Certification | CE + UL | Dual certified |
| Cable Standard | DIN VDE 0285-525-2-81 / DIN EN 50525-2-81 | Harmonized European welding cable standard |
| Chemical Resistance | Oil, acid, alkali, oxidizer resistant | Maintains flexibility under ozone/UV/oil exposure |
| AWG / Wire Gauge | Model | Conductor Size (# × mm²) | Nominal Insulation Thickness (mm) | Nominal OD (mm) | Nominal Copper Weight (g/km) | Nominal Cable Weight (g/km) |
|---|---|---|---|---|---|---|
| 8(320/32) | H01N2-D | 1×10 | 2 | 7.7-9.7 | 96 | 135 |
| 6(512/32) | H01N2-D | 1×16 | 2 | 8.8-11.0 | 154 | 205 |
| 4(800/32) | H01N2-D | 1×25 | 2 | 10.1-12.7 | 240 | 302 |
| 2(1120/32) | H01N2-D | 1×35 | 2 | 11.4-14.2 | 336 | 420 |
| 1(1600/32) | H01N2-D | 1×50 | 2.2 | 13.2-16.5 | 480 | 586 |
| 2/0(2240/32) | H01N2-D | 1×70 | 2.4 | 15.3-19.2 | 672 | 798 |
| 3/0(3024/32) | H01N2-D | 1×95 | 2.6 | 17.1-21.4 | 912 | 1015 |
| 4/0(614/24) | H01N2-D | 1×120 | 2.8 | 19.2-24.0 | 1152 | 1310 |
| 300MCM(765/24) | H01N2-D | 1×150 | 3 | 21.2-26.4 | 1440 | 1620 |
| 350MCM(944/24) | H01N2-D | 1×185 | 3.2 | 23.1-28.9 | 1776 | 1916 |
| 500MCM(1225/24) | H01N2-D | 1×240 | 3.4 | 25.0-29.5 | 2304 | 2540 |
| 8(566/35) | H01N2-E | 1×10 | 1.2 | 6.2-7.8 | 96 | 119 |
| 6(903/35) | H01N2-E | 1×16 | 1.2 | 7.3-9.1 | 154 | 181 |
| 4(1407/35) | H01N2-E | 1×25 | 1.2 | 8.6-10.8 | 240 | 270 |
| 2(1974/35) | H01N2-E | 1×35 | 1.2 | 9.8-12.3 | 336 | 363 |
| 1(2830/35) | H01N2-E | 1×50 | 1.5 | 11.9-14.8 | 480 | 528 |
| 2/0(3952/35) | H01N2-E | 1×70 | 1.8 | 13.6-17.0 | 672 | 716 |
| 3/0(5370/35) | H01N2-E | 1×95 | 1.8 | 15.6-19.5 | 912 | 1012 |
| 4/0(3819/32) | H01N2-E | 1×120 | 1.8 | 17.2-21.6 | 1152 | 1190 |
| 300MCM(4788/32) | H01N2-E | 1×150 | 1.8 | 18.8-23.5 | 1440 | 1305 |
| 500MCM(5852/32) | H01N2-E | 1×185 | 1.8 | 20.4-25.5 | 1776 | 1511 |

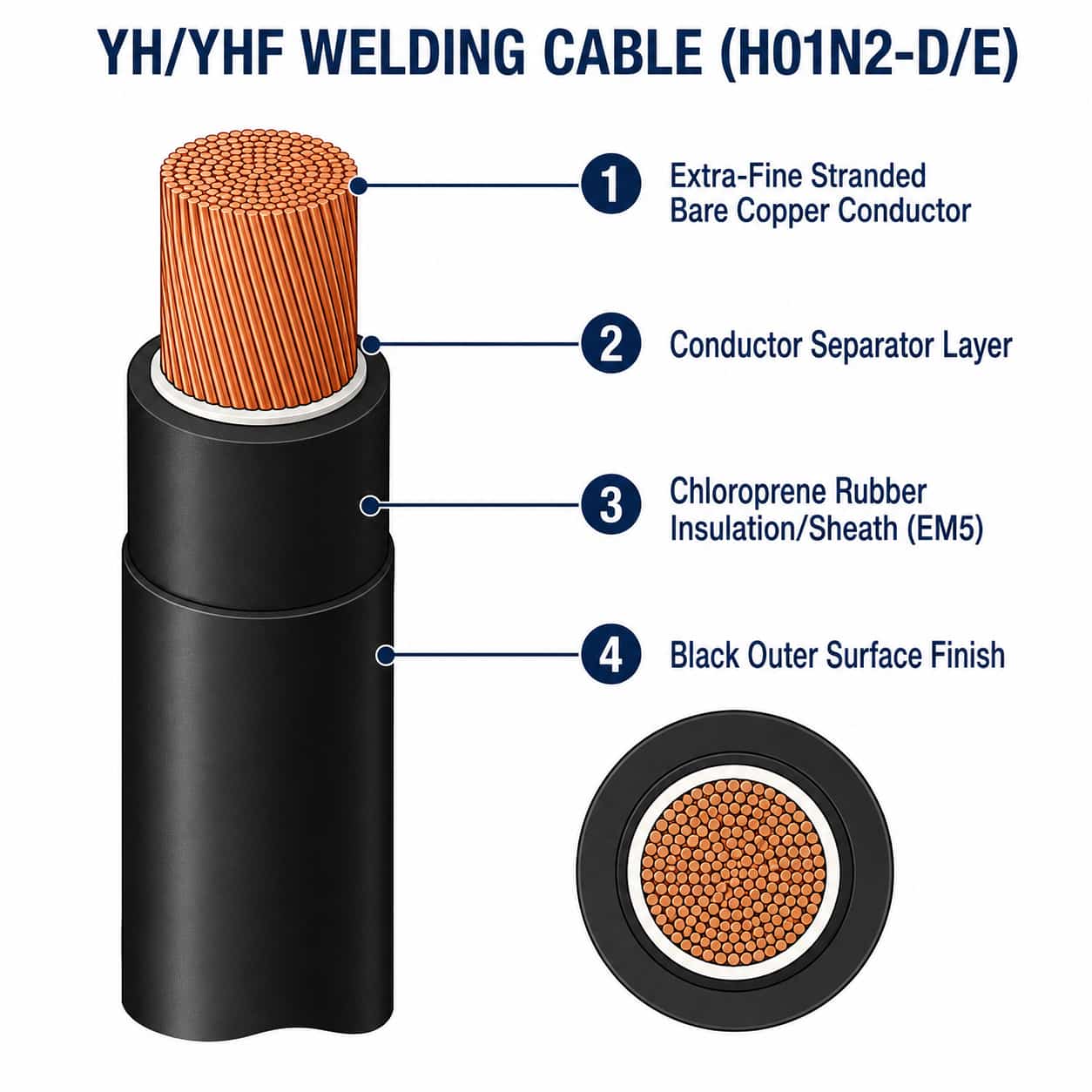

Construction & Configuration
Rubber-Sheathed Flexible Construction

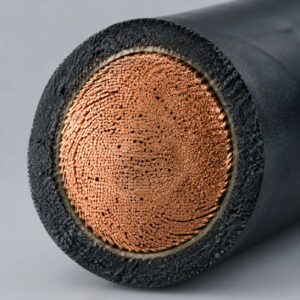

The YH/YHF welding cable uses an extra-fine stranded bare copper conductor beneath a single chloroprene rubber layer that serves as both insulation and outer sheath.

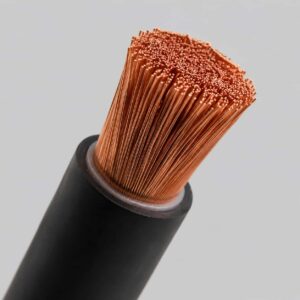

Bare Copper Conductor (Extra-Fine Strand)
Extra-fine stranded bare copper conductor per DIN VDE 0295, BS 6360, and IEC 60228 provides high flexibility and current-carrying capacity.
Conductor Separator Layer
A separator layer over the conductor eases stripping and protects the conductor during processing.

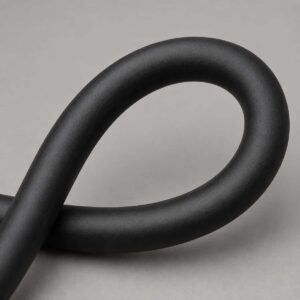

Chloroprene Rubber Sheath (EM5 Type)
A single chloroprene (CR) rubber layer, chlorinated rubber EM5 type, functions as both insulation and outer sheath.
Black Jacket Finish
Standard black rubber jacket color across both H01N2-D and H01N2-E constructions.
Dual Flexibility Grades (D / E)
Available as H01N2-D standard flexible or H01N2-E ultra-flexible construction to match handling needs.
Chemical & Weather Resistance
Maintains flexibility and performance under ozone, UV light, oxidation, oil, and petroleum exposure.
Standards & Test Documentation
Certifications & Compliance
The YH/YHF welding cable holds dual CE and UL certification and complies with harmonized European cable, flame-retardance, and oil-resistance standards.
Dual CE & UL Certification
Certified to both European CE and North American UL standards for welding cable applications.
Harmonized European Cable Standard
Complies with DIN VDE 0285-525-2-81 / DIN EN 50525-2-81 for rubber-sheathed welding cables.
Flame & Oil Resistance Testing
Flame retardancy tested to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1; oil resistance per DIN VDE 0473-811-404 / DIN EN 60811-404.
Ready to Discuss Your Welding Cable Project?
Share your cross-section, flexibility grade, and certification requirements and our team will propose a YH/YHF-series welding cable configuration.
