High-Voltage Backup Lithium-ion Battery System (EUB Series)
Modular high-voltage lithium-ion battery system for high-voltage UPS backup power, covering 192V to 614.4V platforms with 50Ah to 314Ah LFP cells.
Key Features
Modular architecture, cell platform range and communication capabilities of our EUB series.
Modular High-Voltage Architecture
Battery modules, a high-voltage box and a cabinet system combine to deliver 192V to 614.4V backup platforms for high-voltage UPS.
50Ah to 314Ah Cell Options
Small-rate (2C), high-rate (6C), 102Ah and 314Ah cell platforms cover short-burst to extended-duration backup needs.
Long Cycle Life
LFP cells rated for ≥3000 cycles (0.5CC/1CD) on most platforms, and up to ≥8000 cycles on the 314Ah system.
RS485/CAN Communication
Every module, box and system communicates over RS485/CAN for integration with centralized monitoring platforms.
Broad UPS Compatibility
Configurations are matched to specific high-voltage UPS series so systems integrate with your existing UPS lineup.
Unattended, Integrated Operation
Intelligent centralized monitoring and battery management support unattended, energy-saving operation.
OEM & ODM Capabilities
Custom voltage platform, capacity, cabinet configuration and communication protocol tailored to your project.
Custom Voltage Platform
192V to 614.4V voltage platforms configured to match your specific UPS model.
Custom Capacity & Backup Time
50Ah, 102Ah, 314Ah or custom capacity cells selected to meet your required backup duration.
Custom Cabinet Configuration
Cabinet dimensions and standard box count produced to fit your installation footprint.
Communication Protocol Integration
RS485/CAN protocol and data mapping configured for your monitoring or building management system.

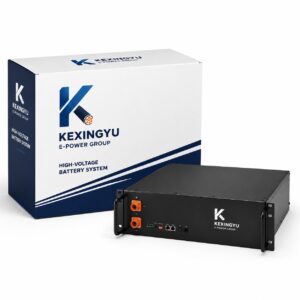

Custom Branding & Marking
Customer logo and product marking printed to your brand specification.
Sampling & Volume Production
Small-batch sampling for qualification followed by scalable volume production once specifications are confirmed.
Technical Specifications
General specifications, platform snapshot, and full data by module, high-voltage box and system across all 4 capacity/rate platforms.
| Battery Type | LFP (Lithium Iron Phosphate) |
|---|---|
| Voltage Platforms | 192V, 204.8V, 358.4V, 384V, 409.6V, 460.8V, 512V, 537.6V, 614.4V |
| Cell Capacity Options | 50Ah (2C), 50Ah (6C), 102Ah, 314Ah |
| Communication | RS485/CAN |
| IP Rating | IP20 |
| Cycle Life | ≥3000 (0.5CC/1CD) or ≥8000 (0.5CC/0.5CD) on the 314Ah system |
| Operating Temperature (Discharge) | -20℃ to 60℃ |
| Application | Backup power for EAST high-voltage UPS and modular power supply systems |
| Platform | Voltage Range | Backup Time |
|---|---|---|
| 50Ah (2C) | 192V / 384V | 30min |
| 50Ah (6C) | 384V–614.4V | 10min |
| 314Ah | 204.8V–614.4V | 60min |
| Custom | On Request | On Request |
| Parameter | 50Ah (2C) | 50Ah (6C) | 102Ah | 314Ah |
|---|---|---|---|---|
| Rated Voltage/V | 96 | 76.8 | 51.2 | 51.2 |
| Operating Voltage Range/V | 75~109.5 | 60~87.6 | 40~58.4 | 40~58.4 |
| Energy/kWh | 4.8 | 3.84 | 5.22 | 16.08 |
| Rated Capacity/Ah | 50 | 50 | 102 | 314 |
| Standard Charge Current/A | 25 | 25 | 50 | 157 |
| Max. Charge Current/A | 50 | 100 | 100 | 157 |
| Standard Discharge Current/A | 50 | 50 | 100 | 314 |
| Max. Discharge Current/A | 100 | 300 | 200 | 314 |
| Weight/kg | 45 | 45 | 48 | 114 |
| Dimension (W×D×H)(mm) | 465×173×750 | 441×171×600 | 441×129×650 | 440×770×222 |
| Operating Temperature/℃ (Discharge) | -20~60 | -20~60 | -20~60 | -20~60 |
| Communication | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN |
| IP Rating | IP20 | IP20 | IP20 | IP20 |
| Battery Type | LFP | LFP | LFP | LFP |
| Parameter | Standard Box (250A) | High-Current Box (400A) |
|---|---|---|
| Voltage Range/V | 0~800 | 0~800 |
| Current (MAX)/A | 250 | 400 |
| Weight/kg | 21.8 | 37.10 |
| Dimension (W×D×H)(mm) | 441×217×545 | 441×217×646 |
| Operating Temperature/℃ (Discharge) | -20~60 | -20~60 |
| Auxiliary Power Supply, Input Voltage Range/VAC | 85~264/100~240 | 85~264/100~240 |
| Auxiliary Power Supply, Power/W | 100 | 100 |
| Storage Humidity/%RH | ≤95 | ≤95 |
| Storage Temperature/℃ | -40~60 | -40~60 |
| Altitude/m | ≤2000 | ≤2000 |
| IP Rating | IP20 | IP20 |
| Communication | RS485/CAN | RS485/CAN |
| Model | EUB19250R60S1PX-3 | EUB38450R120S1P2-Z | EUB38450R120S1P2 | EUB19227R60S1P-Y |
|---|---|---|---|---|
| Rated Capacity/Ah | 50 | 50 | 50 | 27 |
| Energy/kWh | 9.6 | 19.2 | 19.2 | 4.8 |
| Rated Voltage/V | 192 | 384 | 384 | 192 |
| Operating Voltage Range/V | 156~219 | 312~438 | 312~438 | 156~219 |
| Standard Charge Current/A | 25 | 25 | 25 | 13.5 |
| Max. Charge Current/A | 50 | 50 | 50 | 27 |
| Standard Discharge Current/A | 50 | 50 | 50 | 81 |
| Number of Standard Box/pc | 2 | 4 | 4 | 1 |
| Weight (with cabinet)/kg | 90 | 202 | 190 | 55 |
| Battery Cabinet Dimension (W×D×H)(mm) | 600×900×1400 | 600×900×1400 | 600×900×1400 | 442×700×155 |
| Operating Temperature/℃ (Discharge) | -20~60 | -20~60 | -20~60 | -20~60 |
| Cycle Life/Times | ≥3000(0.5CC/1CD) | ≥3000(0.5CC/1CD) | ≥3000(0.5CC/1CD) | ≥3000(0.5CC/1CD) |
| Communication | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN |
| IP Rating | IP20 | IP20 | IP20 | IP20 |
| Battery Type | LFP | LFP | LFP | LFP |
| Backup Time/min | 30 | 30 | 30 | 30 |
| Maximum Power/kW | 20 | 40 | 40 | 10 |
| Compatible UPS Model | EA906-EA9020 | EA9910-EA9940 | EA89 Series | EA906-EA9010 |
| Model | EUB38450R120S1P | EUB46050R144S1P | EUB46050R144S1P-Z | EUB53750R168S1P | EUB53750R168S1P-Z | EUB61450R192S1P |
|---|---|---|---|---|---|---|
| Rated Capacity/Ah | 50 | |||||
| Energy/kWh | 19.2 | 23.04 | 23.04 | 26.88 | 26.88 | 30.72 |
| Rated Voltage/V | 384 | 460.8 | 460.8 | 537.6 | 537.6 | 614.4 |
| Operating Voltage Range/V | 312~438 | 374.4~525.6 | 374.4~525.6 | 436.8~613.2 | 436.8~613.2 | 499.2~700.8 |
| Standard Charge Current/A | 25 | |||||
| Max. Charge Current/A | 100 | |||||
| Standard Discharge Current/A | 50 | |||||
| Max. Discharge Current/A | 300 | |||||
| Number of Standard Box/pc | 5 | 6 | 6 | 7 | 7 | 8 |
| Weight (with cabinet)/kg | 422 | 455 | 470 | 500 | 515 | 545 |
| Battery Cabinet Dimension (W×D×H)(mm) | 600×900×2000 | |||||
| Operating Temperature/℃ (Discharge) | -20~60 | |||||
| Cycle Life/Times | ≥3000(0.5CC/1CD) | |||||
| Communication | RS485/CAN | |||||
| IP Rating | IP20 | |||||
| Battery Type | LFP | |||||
| Backup Time/min | 10 | |||||
| Maximum Power/kW | 115.2 | 138 | 138 | 161.1 | 161.1 | 184.2 |
| Compatible UPS Model | EA89 Series | EA66 Series | EA66/EA99 Series | EA66-100K, EA99pro | EA66/EA99 Series | EA89 Series |
| Model | EUB204102R64S1P | EUB358102R112S1P | EUB409102R128S1P | EUB409102R128S1P-Z | EUB512102R160S1P | EUB512102R160S1P-Z | EUB614102R192S1P |
|---|---|---|---|---|---|---|---|
| Rated Capacity/Ah | 102 | ||||||
| Energy/kWh | 20.89 | 36.56 | 41.78 | 41.78 | 52.22 | 52.22 | 62.67 |
| Rated Voltage/V | 204.8 | 358.4 | 409.6 | 409.6 | 512 | 512 | 614.4 |
| Operating Voltage Range/V | 166.4~233.6 | 291.2~408.8 | 832.8~467.2 | 832.8~467.2 | 416~584 | 416~584 | 499.2~700.8 |
| Standard Charge Current/A | 50 | ||||||
| Max. Charge Current/A | 100 | ||||||
| Max. Discharge Current/A | 200 | ||||||
| Number of Standard Box/pc | 4 | 7 | 8 | 8 | 10 | 10 | 12 |
| Weight (with cabinet)/kg | 375 | 520 | 570 | 585 | 665 | 680 | 765 |
| Battery Cabinet Dimension (W×D×H)(mm) | 600×900×2000 | 600×900×2200 | |||||
| Operating Temperature/℃ (Discharge) | -20~60 | ||||||
| Cycle Life/Times | ≥3000(0.5CC/1CD) | ||||||
| Communication | RS485/CAN | ||||||
| IP Rating | IP20 | ||||||
| Battery Type | LFP | ||||||
| Backup Time/min | 10 | ||||||
| Maximum Power/kW | 40.96 | 138 | 81.92 | 81.92 | 102.4 | 102.4 | 184.2 |
| Compatible UPS Model | EA906-EA9020 Series | EA89 Series | EA89 Series | EA66/EA99 Series | EA66-100K, EA99pro | EA66/EA99 Series | EA89 Series |
| Model | EUB204314R64S1P | EUB358314R112S1P | EUB409314R128S1P-Z | EUB512314R160S1P | EUB512314R160S1P-Z | EUB614314R192S1P |
|---|---|---|---|---|---|---|
| Rated Capacity/Ah | 314 | |||||
| Energy/kWh | 64.31 | 112.54 | 128.6 | 160.77 | 160.77 | 192.92 |
| Rated Voltage/V | 204.8 | 358.4 | 409.6 | 512 | 512 | 614.4 |
| Operating Voltage Range/V | 166.4~233.6 | 291.2~408.8 | 332.8~467.2 | 416~584 | 416~584 | 499.2~700.8 |
| Standard Charge Current/A | 157 | |||||
| Max. Charge Current/A | 157 | |||||
| Max. Discharge Current/A | 314 | |||||
| Number of Standard Box/pc | 4 | 7 | 8 | 10 | 10 | 12 |
| Weight (with cabinet)/kg | 640 | 985 | 937 | 1150 | 1165 | 1695 |
| Battery Cabinet Dimension (W×D×H)(mm) | 600×850×2200 | 1200×1000×1866 | ||||
| Operating Temperature/℃ (Discharge) | -20~60 | |||||
| Cycle Life/Times | ≥8000(0.5CC/0.5CD) | |||||
| Communication | RS485/CAN | |||||
| IP Rating | IP20 | |||||
| Battery Type | LFP | |||||
| Backup Time/min | 60 | |||||
| Maximum Power/kW | 64.31 | 112.54 | 128.60 | 160.77 | 160.77 | 192.92 |
| Compatible UPS Model | EA906-EA9020 Series | EA89 Series | EA66-100K, EA99pro Series | EA66/EA99 Series | EA89 Series | EA89 Series |

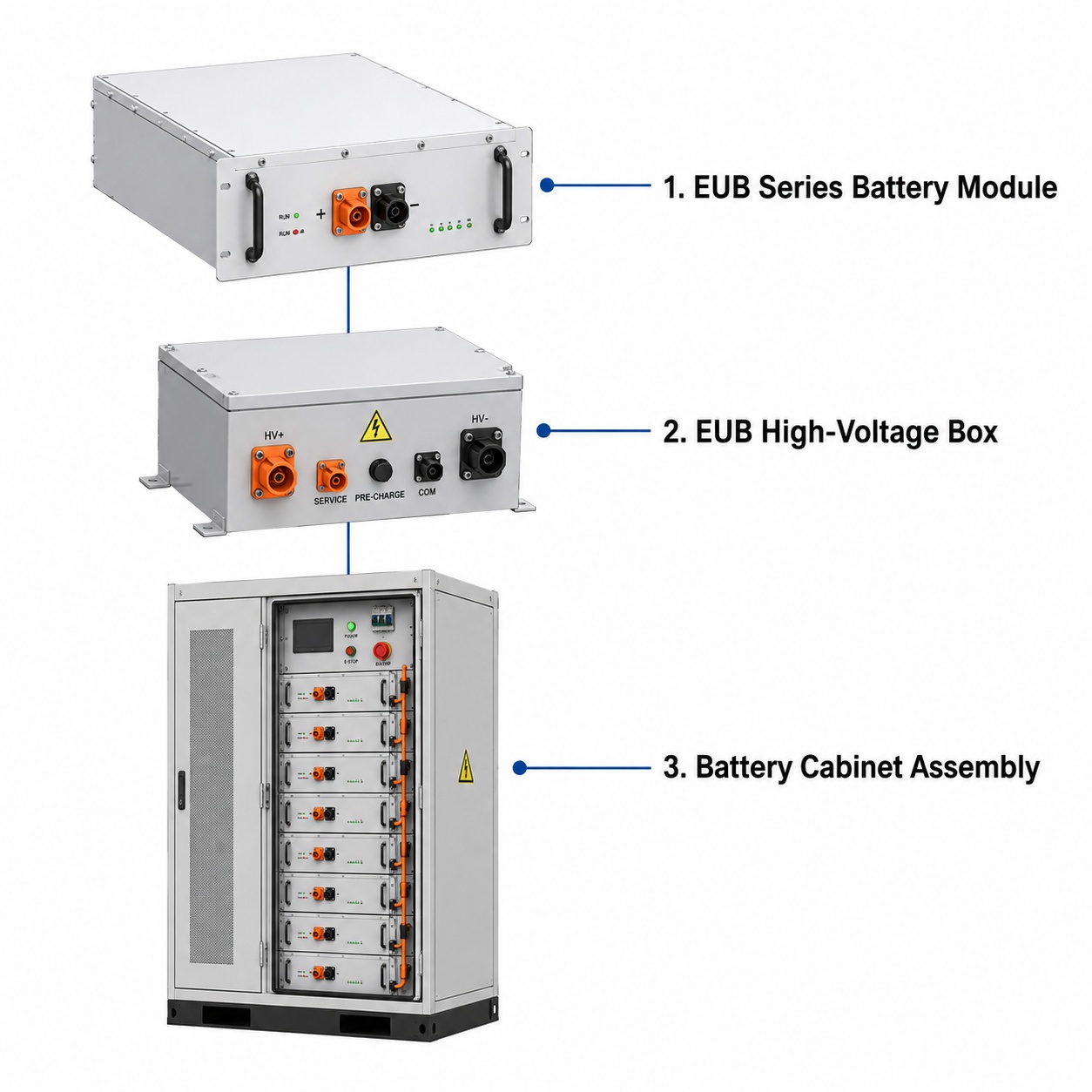

Construction & Configuration
How the cell, module, high-voltage box and cabinet come together across the EUB platform.
Cell — LFP Chemistry
Lithium iron phosphate cells, in small-rate (2C), high-rate (6C), 102Ah or 314Ah variants, form the energy storage core.

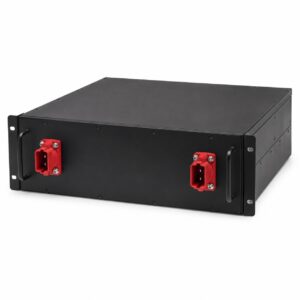

EUB Series Battery Module
Cells are assembled into a standard EUB battery module with its own BMS, terminals and communication interface.

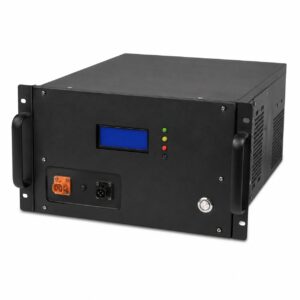

EUB High-Voltage Box
A high-voltage box (0–800VDC) manages string-level voltage, current and auxiliary power for the connected modules.

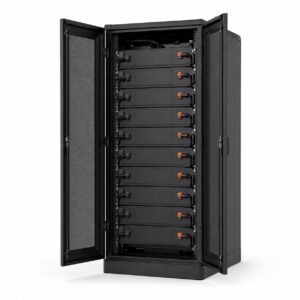

Battery Cabinet Assembly
Standard boxes are assembled into a rack cabinet sized to the target voltage platform and backup capacity.
Communication & Monitoring
RS485/CAN communication links the module, box and system levels to centralized monitoring software.
UPS Integration
Each configuration is matched to compatible EAST-format UPS series for straightforward system integration.
Standards & Test Documentation
Verified test records, production drawings and project-specific documentation for technical review and approval.
IP20, Multi-Layer Protection
IP20-rated enclosures with integrated BMS protection against overcharge, over-discharge and over-temperature conditions.
≥3000 to ≥8000 Cycles
Cycle life ranges from ≥3000 cycles (0.5CC/1CD) on most platforms up to ≥8000 cycles (0.5CC/0.5CD) on the 314Ah system.
-20℃ to 60℃ (Discharge)
Operating temperature -20℃ to 60℃ on discharge; storage temperature and altitude ratings available in the full datasheet.
Request a Quote for High-Voltage Backup Battery Systems
Send us your required voltage platform, capacity, backup time and compatible UPS model. Our team will review the specification and prepare a quotation for your project.
