PVC Flexible Cord (BVV / RVV)

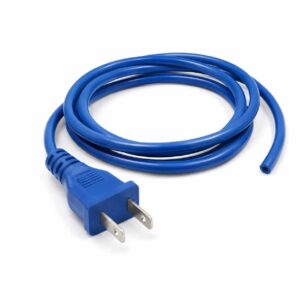

Flexible PVC-insulated power cord for household appliances, small electrical instruments and portable equipment, rated 300/300V.
Key Features
Core construction, ratings and certification of our PVC Flexible Cord product line.
PVC Flexible Cord Construction
Bare stranded copper conductor with color-coded PVC insulation and a PVC outer jacket, built for flexible, portable wiring applications.

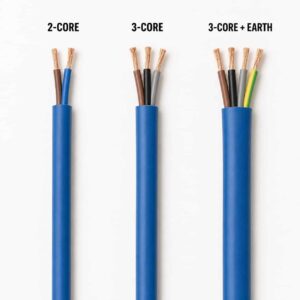

Multiple Core Configurations
Available in 2-core and 3-core configurations to match household appliance, small instrument and portable equipment wiring needs.
300/300V Rated Voltage
Rated for light-duty 300/300V service per GB 5023, suitable for small electrical instruments and household appliances.
70℃ Rated Temperature
PVC insulation and jacket rated for continuous operation at 70℃, maintaining flexibility across normal indoor conditions.
Harmonized Core Color Coding
Conductor colors follow international harmonized coding for Live, Neutral and Earth, simplifying installation and inspection.
CCC Certified
Manufactured and tested to meet CCC certification requirements for the Chinese domestic market.
OEM & ODM Capabilities
Custom conductor gauge, core count, jacket color and packaging tailored to your project.
Custom Conductor Gauge
Cross-sectional area produced to your specified conductor size to match load current and appliance requirements.
Custom Core Count
2-core, 3-core or multi-core configurations built to project-specific wiring diagrams.
Custom Jacket Color
Outer jacket color produced to your specification, with blue offered as the standard option where no code restriction applies.

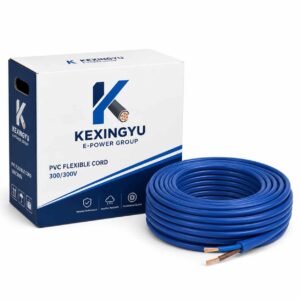

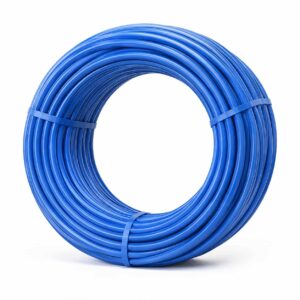

Custom Length & Packaging
Coil length, reel packaging and private-label carton design available for project or retail distribution.
Custom Branding & Marking
Customer logo and cable surface marking printed to your brand specification.
Sampling & Volume Production
Small-batch sampling for qualification followed by scalable volume production once specifications are confirmed.
Technical Specifications
General specifications, product snapshot and detailed parameters for each type code.
| Standard | GB 5023 |
|---|---|
| Conductor | Bare stranded copper |
| Insulation | Color-coded PVC |
| Jacket | PVC |
| Rated Voltage | 300/300V |
| Rated Temperature | 70℃ |
| Approval | CCC |
| Application | Power supply wiring for small electrical instruments and household appliances |
| Type Code | Designation | Rated Voltage |
|---|---|---|
| 227IEC10 (BVV) | Light PVC Jacket Cable | 300/300V |
| 227IEC52 (RVV) | Light PVC Jacket Wire | 300/300V |
| 227IEC53 (RVV) | Ordinary PVC Jacket Soft Wire | 300/300V |
| Custom | OEM Core Count / Color | On Request |
| Type Code | Designation | Conductor | Insulation | Jacket | Rated Voltage | Typical Application |
|---|---|---|---|---|---|---|
| 227IEC10 (BVV) | Light PVC Jacket Cable | Bare stranded copper | Color-coded PVC | PVC (light duty) | 300/300V | Household appliance internal wiring |
| 227IEC52 (RVV) | Light PVC Jacket Wire | Bare stranded copper | Color-coded PVC | PVC (light duty) | 300/300V | Small electrical instrument power supply |
| 227IEC53 (RVV) | Ordinary PVC Jacket Soft Wire | Bare stranded copper | Color-coded PVC | PVC (ordinary duty) | 300/300V | Portable equipment, extension cords |

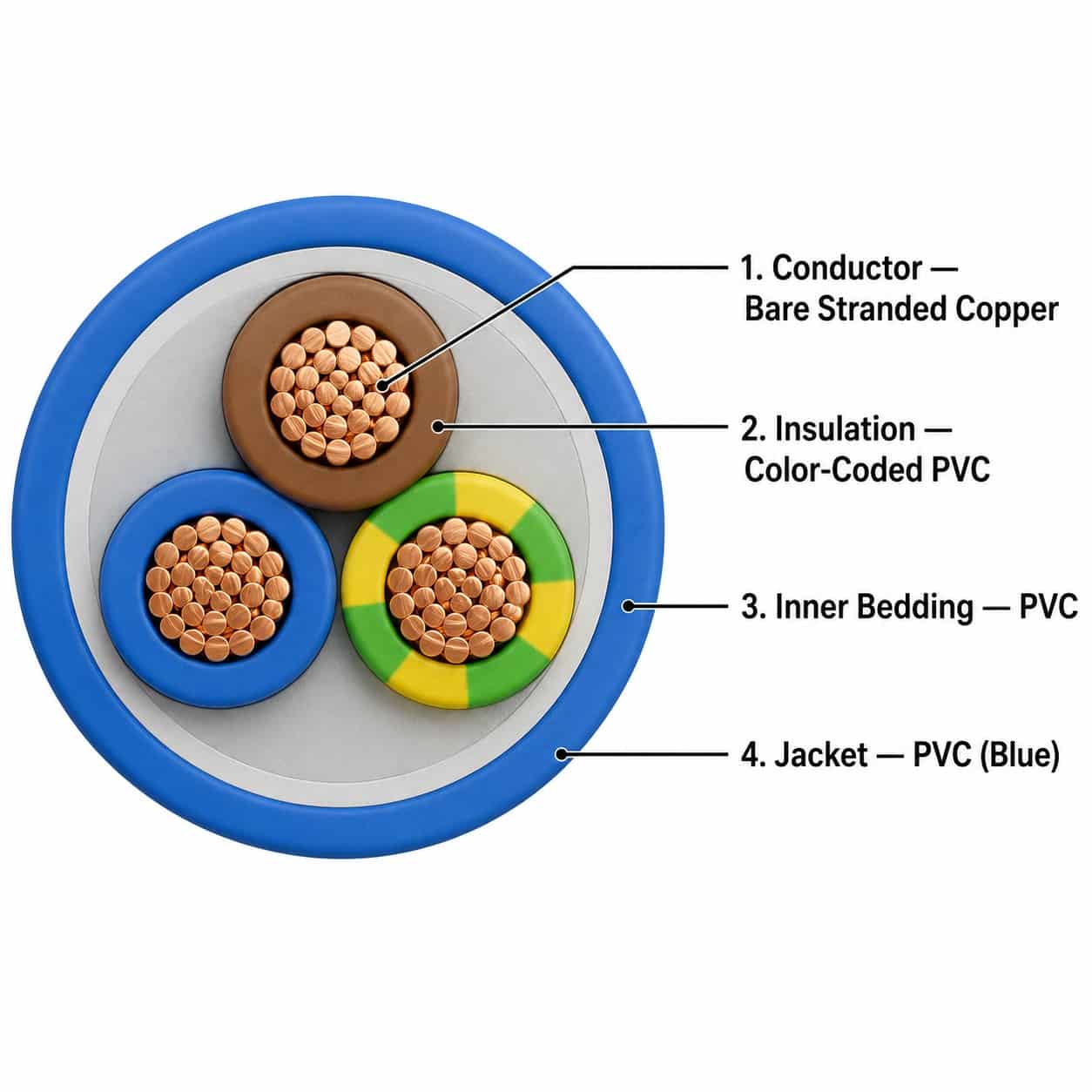

Construction & Configuration
Layer-by-layer breakdown of conductor, insulation, core assembly and jacket.

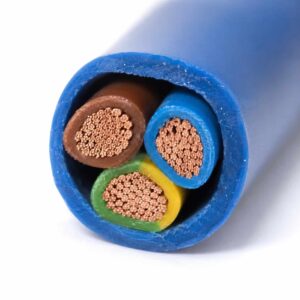

Conductor — Bare Stranded Copper
Fine-strand bare copper conductor provides flexibility for repeated bending and portable use.
Primary Insulation — Color-Coded PVC
Each core is insulated with PVC compound colored according to harmonized Live/Neutral/Earth coding.
Core Assembly
Insulated cores are twisted together (2-core or 3-core) to form a stable, round or flat cable body.
Inner Bedding
A thin PVC bedding layer fills the gaps between cores, keeping the cable round and supporting the outer jacket.
Outer Jacket — PVC
A light or ordinary-duty PVC jacket protects the cable from abrasion and general indoor handling.
Surface Marking
Standard, rated voltage and manufacturer marking are printed on the jacket surface for traceability.
Standards & Test Documentation
Design standards, certification and voltage/temperature rating information.
GB 5023
Produced in accordance with GB 5023, the Chinese national standard for PVC insulated cables and their cores.
CCC Certified
Independently tested and certified under the China Compulsory Certification (CCC) scheme for the domestic market.
300/300V · 70℃
Rated for light-duty 300/300V, 70℃ service; intended for indoor wiring of small appliances and instruments, not for use where subject to mechanical stress.
Request a Quote for PVC Flexible Cord
Send us your required core count, conductor size, jacket color, length and quantity. Our team will review the specification and prepare a quotation for your project.
