Busbar Trunking Tap-Off / Plug-In Box

Engineered to tap power directly from a busbar trunking (busway) run, this fully sealed plug-in box houses an integrated molded-case circuit breaker behind color-coded copper busbar connections. The IP65-rated carbon steel enclosure, finished in RAL 7035 grey, is built to order — current rating, breaker selection, and connection interface configured to match your busway system as a B2B, OEM/ODM-ready platform.

Front view of KEXINGYU grey busbar tap-off box with locking door and warning label

Open interior view of busbar tap-off box showing color-coded busbar connections and integrated circuit breaker

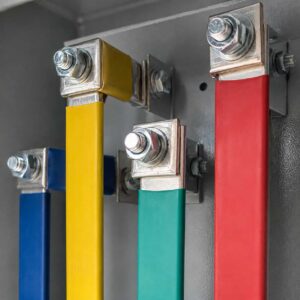

Close-up of color-coded copper busbar tap connections inside the plug-in box

Close-up of integrated molded-case circuit breaker inside busbar tap-off box

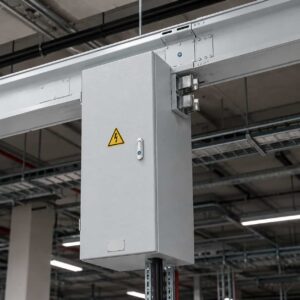

KEXINGYU busbar tap-off box installed inline with an overhead busway trunking system

Key Features

Built to tap power reliably from your busbar trunking system, with current rating and breaker configuration engineered to order.

IP65

IP65 Sealed Protection

A fully sealed structure resists dust and moisture, supporting stable long-term operation in industrial environments.

FRT

Fire-Retardant Construction

Flame-retardant materials and a sealed design help contain fire risk and extend service life.

TAP

Direct Busbar Tap-Off Connection

Color-coded copper busbar tabs connect directly to compatible busway trunking systems for quick installation.

MCB

Integrated Circuit Breaker Protection

Houses an industrial-grade MCCB to protect the downstream circuit tapped from the busway.

STL

Carbon Steel Enclosure

RAL 7035 grey powder-coated carbon steel construction delivers durable industrial service.

OEM

OEM/ODM Ready

Current rating, breaker brand, and enclosure size configured to your busway system and project specification.

OEM & ODM Capabilities

Built as a B2B platform product for panel builders, electrical contractors, and busway system integrators.

AMP

Custom Current Rating

Breaker size and busbar connection rated to match your busway trunking system's current capacity.

BRK

Breaker Brand Options

Choice of industrial-grade MCCB brands and models to align with your project's component standard.

SIZ

Custom Enclosure Dimensions

Enclosure size configured to your busway system's tap-off point spacing and connection requirements.

CON

Connection Type Matching

Busbar tap-off connectors engineered to match your specific busway trunking system's plug-in interface.

FIN

Finish & Color Options

Standard RAL 7035 grey shown; custom RAL color matching available for B2B partners.

MOQ

Factory-Direct OEM/ODM Production

Direct manufacturer production supports both project prototypes and larger contractor/system-integrator volume orders.

Technical Specifications

Reference values below reflect typical specifications for this product class. As a build-to-order product, exact ratings are configured to your busway system.

General Specifications

Product Type	Busbar Trunking Tap-Off / Plug-In Box
Enclosure Protection Rating	IP65
Enclosure Material	Carbon steel, RAL 7035 grey powder-coated finish
Rated Current	Configurable (built to your busway system rating)
Short-Circuit Making Current	Up to 50 kA (breaker-dependent)
Circuit Breaker	Industrial-grade MCCB, brand options available
Certification	CQC available on request
Installation	Direct tap-off connection to compatible busbar trunking systems

Reference values reflect typical specifications for this product class. As a build-to-order product, exact current rating, breaker brand, and certification are configured to match your busway/busbar trunking system.

Performance Snapshot

Parameter	Standard Configuration	Notes
Protection Rating	IP65	Sealed, fire-retardant enclosure
Connection Type	Direct busbar tap-off	Color-coded phase connection tabs
Circuit Protection	Integrated MCCB	Brand/rating configurable
Enclosure Finish	RAL 7035 grey	Carbon steel construction

IP65 Rated Fully Sealed Structure OEM/ODM Ready Built-to-Order

Configuration	Rated Current	Protection Rating	Breaker Type	Connection	Mounting	Typical Application
Standard Tap-Off Box	Configurable	IP65	Industrial MCCB	Busbar trunking tap-off	Surface / inline with busway	Tapping power from busway trunking to downstream circuits
Compact Tap-Off Box	Lower current range	IP65	Industrial MCCB	Busbar trunking tap-off	Surface / inline	Smaller branch circuits off a busway run
High-Current Tap-Off Box	Higher current range	IP65	Industrial MCCB	Busbar trunking tap-off	Surface / inline	Main feed taps for larger downstream loads
OEM Custom Build	To spec	To spec	To specification	To specification	To specification	Project-specific busway tap-off requirements

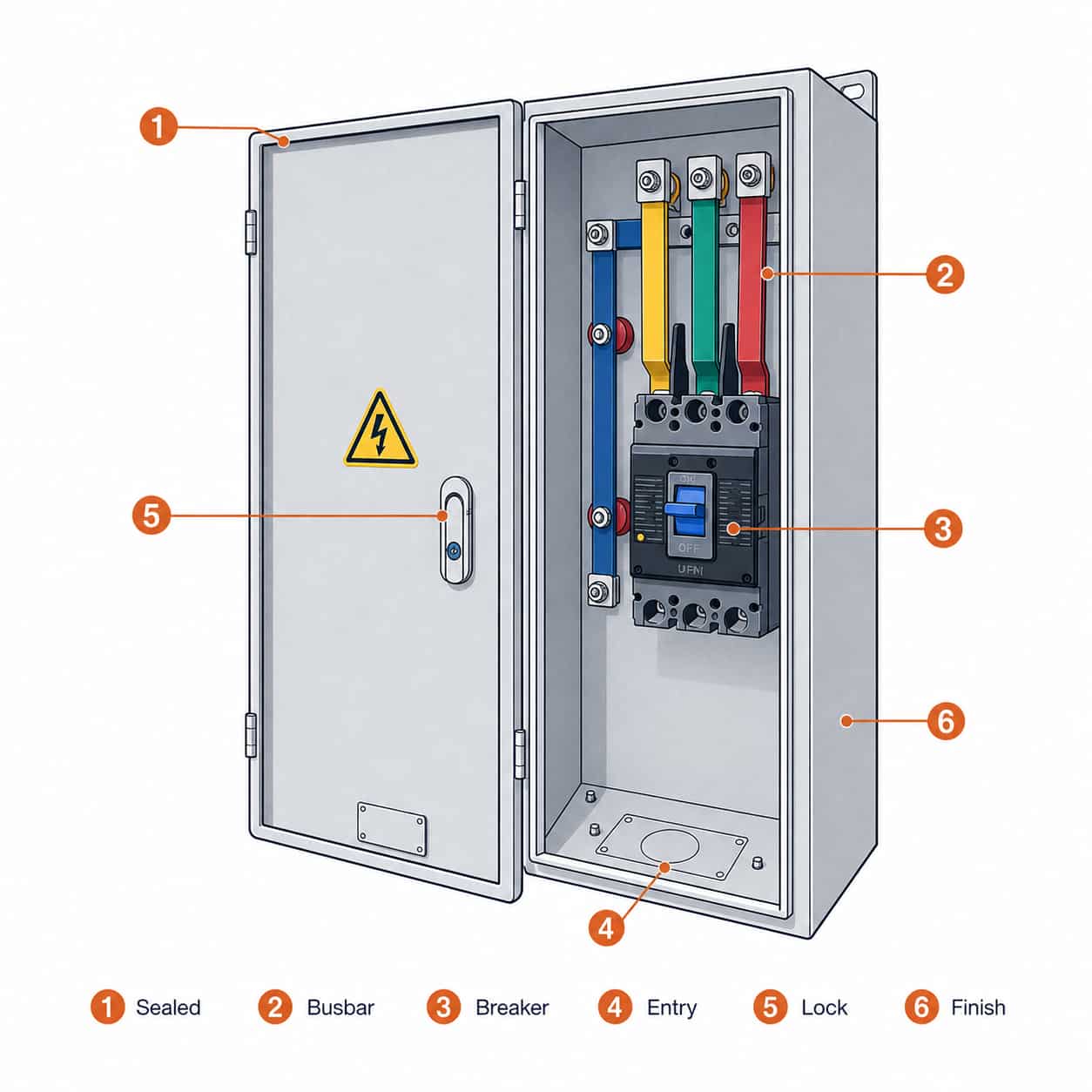

Construction & Configuration

Every tap-off box is built around a sealed enclosure, color-coded busbar connections, and integrated circuit protection.

SEA

Fully Sealed Enclosure Structure

A sealed carbon steel enclosure keeps dust and moisture away from internal busbar connections and the circuit breaker.

TAP

Color-Coded Busbar Tap Connections

Yellow, green, and red copper busbar tabs provide clear three-phase connection points, with a blue tab for neutral/earth.

MCB

Integrated Molded-Case Circuit Breaker

A panel-mounted MCCB protects the downstream circuit fed from the tap-off connection.

OUT

Bottom Cable Entry

A bottom knockout/entry point routes outgoing cable to downstream distribution or equipment.

LCK

Locking Door with Warning Label

A latch-secured door with an electrical hazard warning label restricts access to qualified personnel.

FIN

Powder-Coated Carbon Steel Finish

RAL 7035 grey powder-coated carbon steel enclosure resists corrosion in industrial environments.

Standards & Test Documentation

Manufacturing and enclosure performance align with recognized certification and IP protection practices, with full OEM/ODM documentation support.

PRODUCT CERTIFICATION

CQC Certification Available

CQC certification can be provided for qualifying configurations, giving your project a verified quality and safety baseline.

ENCLOSURE STANDARD

IP65 Ingress Protection

Rated to IP65 under IEC 60529 for this product class, providing protection against dust ingress and low-pressure water jets — suitable for industrial indoor installation.

CUSTOM ENGINEERING

Build-to-System OEM/ODM Production

Current rating, breaker brand, and connection interface are engineered to match your busway trunking system, with OEM/ODM documentation support for contractors and system integrators.

PROJECT INQUIRY

Get a Custom OEM Quote for Your Tap-Off Box

Share your busway system type, current rating, or breaker requirements and our engineering team will configure a tap-off box to match your project.

Request a Quote Send Your Specifications
