ISO 10218 and the Robot Safety Standard Update: What Changed for Integrators
Quick Answer: The ISO 10218 update pulled collaborative safety out of its technical specification, sharpened functional safety requirements and added cybersecurity, and integrators now work to a single, harder standard that reaches further into wiring, verification and documentation than the old pair did.
ISO 10218 is the safety backbone of industrial robotics: Part 1 governs the robot itself as delivered by the manufacturer, and Part 2 governs what an integrator builds around it. For fifteen years integrators worked with the 2011 pair, plus a technical specification for collaborative operation that sat beside them. The 2025 revision changed that arrangement, and the change matters beyond the standards shelf, because the new requirements land on the same hardware integrators commission every week: control architectures, protective stop functions, sensing systems, and the cabling that ties them together. This guide walks through what actually changed, what it means for an integration project in practice, and where the requirements touch the wiring layer that KXYE supplies into.
Introduction
Standards revisions are easy to shrug off, because most of the physics does not change. A robot that can crush a worker was dangerous in 2011 and is dangerous now. What changes is how the standard expects that danger to be identified, reduced and proven, and who carries the burden of evidence. The 2025 revision of ISO 10218 tightened several of those expectations at once, and integrators who treat the update as a re-papering exercise will find their next project assessment slower and their next audit more expensive than the last one.
This guide is written from the integrator’s side of the line. Robot manufacturers have their own obligations under Part 1; the integrator’s obligations live in Part 2, and they are the ones that arrive with a customer’s cell specification, a floor plan and a delivery deadline. The safety frameworks that sit around machinery wiring in general are laid out in the EN 60204-1 wiring guide, and ISO 10218 adds the robot-specific layer on top of that foundation.
What the 2011 Standards Left Open
To see what changed, it helps to remember what the 2011 pair did not settle. Collaborative operation was the biggest gap: the technical specification ISO/TS 15066 covered power and force limiting and biomechanical thresholds, but as a technical specification it carried less contractual weight than a full standard, and its integration into the main documents was left for a future revision everyone knew was coming. Functional safety references in the 2011 text were sometimes loose, pointing at concepts rather than hard performance levels, which let different integrators reach different conclusions from the same clause. And cybersecurity did not appear at all, because in 2011 robots mostly stood alone; by the 2020s they sat on factory networks with remote access, fleet management and update channels.
None of those gaps made the 2011 standards unusable, and thousands of cells were safely built under them. But they left room for judgment calls, and judgment calls are where integration projects lose time. The revision’s central move is closing that room.

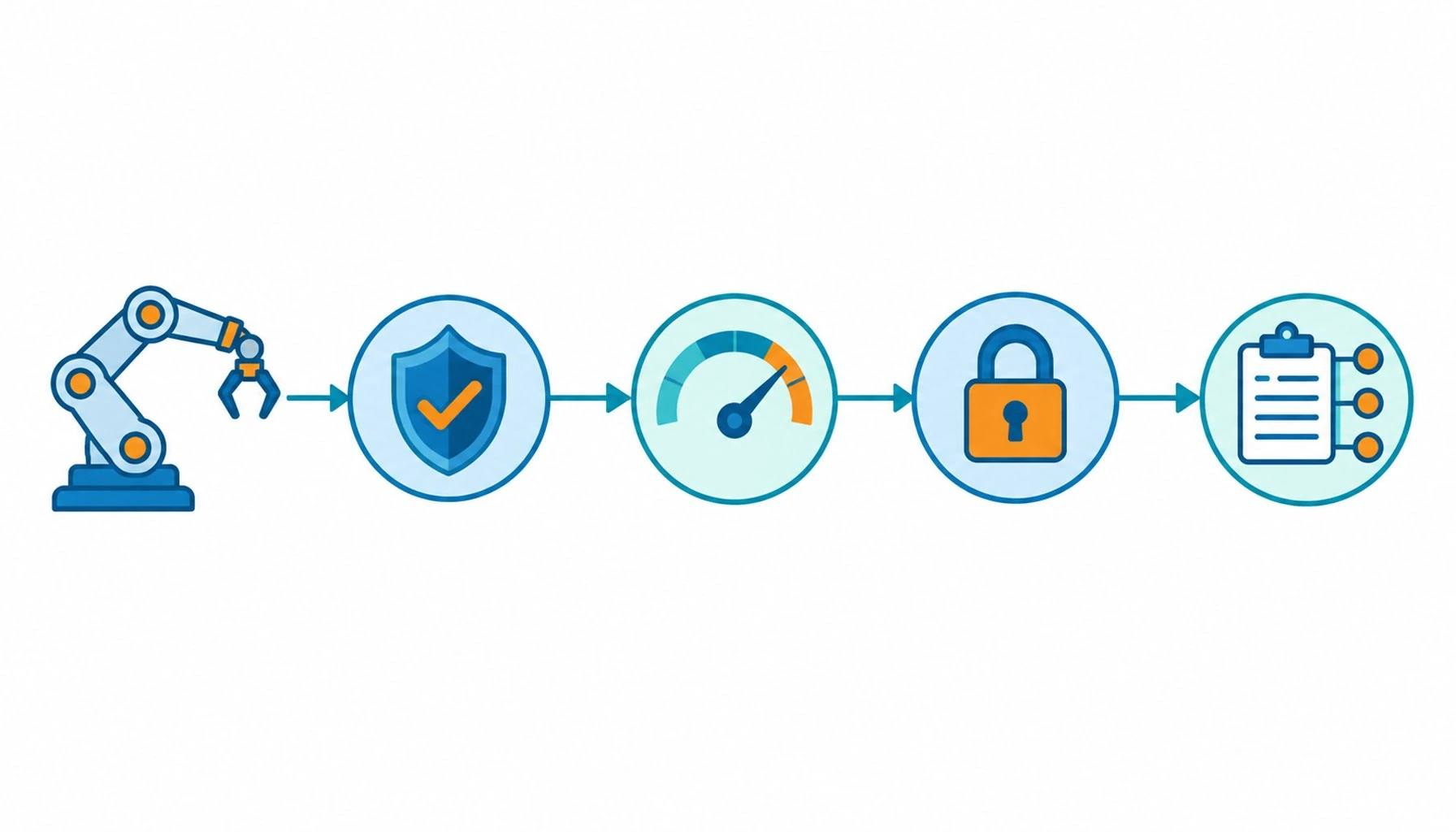

The 2025 Revision: Four Changes That Matter
The first change is consolidation. Collaborative operation requirements from ISO/TS 15066 are now inside the main standards, so the separate specification no longer stands alone. Applications previously designed to the technical specification are now designed to the standard itself, with the same weight in contracts, risk assessments and audits. Integrators who learned the collaborative content years ago will find the substance familiar; what changed is that it is no longer optional reading.
The second change is sharper functional safety language. Safety functions, protective stops, speed monitoring and safety-rated sensing are expected to be specified and verified with defined performance levels rather than described qualitatively. For integrators this pushes the safety function list earlier in the project: you cannot commission your way to a performance level you never specified.
The third change is cybersecurity. The revised standards expect the robot system’s safety-related functions to be protected against unauthorized change, which connects the safety case to network architecture, access control and update management. This is the requirement most integrators had nothing about in 2011 and cannot ignore now.
The fourth change is a tighter link between risk assessment and the specific measures chosen. The revision expects the assessment to drive the design decisions visibly, and expects the evidence, records, verification results and rationale, to survive the project as documentation rather than living in the integrator’s institutional memory.
The changes compress into the comparison below.
| Area | 2011 baseline | 2025 revision | What it means for integrators |
|---|---|---|---|
| Collaborative operation | Covered by a separate technical specification, ISO/TS 15066 | Absorbed into the main standards with full standard status | Collaborative cells designed to the TS need re-verification against the standard's wording |
| Functional safety | Partly qualitative references to safety functions | Defined performance expectations for safety functions and sensing | Safety function lists with performance levels specified at design time, verified at commissioning |
| Cybersecurity | Absent; robots were islands | Safety functions must be protected against unauthorized change | Network design, access control and update policy enter the safety file |
| Risk assessment linkage | Required but loosely tied to specific measures | Measures must trace visibly to the assessment | Documentation discipline through the project, not a report at the end |
| Verification evidence | Expected, format flexible | Expectations tightened across sensing, stops and validation | Per-function test records become standard deliverables |
Where the Revision Touches Wiring and Cabling
None of the revision’s headlines mention cable, but the wiring layer sits under three of them. Safety functions depend on signal integrity: protective stop circuits, safety-rated sensing and speed monitoring all run on cables whose failure modes, interference behavior and mechanical endurance decide whether the function is available when it matters. An integrator specifying safety functions to defined performance levels inherits the question of what the connecting cables must survive, and a cable chosen for price alone becomes the weakest link in a function the project just paid to harden. The failure patterns that end cable lives in moving machinery are cataloged in the guide to common cable failure causes, and they apply double to safety-related circuits.
The cybersecurity requirement touches wiring more quietly. Physical access to the cell is part of its security posture: cabinet layouts, connector choices and cable routing that make tampering visible and difficult support the requirement that safety functions resist unauthorized change. And the verification regime touches wiring most directly of all, because every safety function the integrator specifies ends in a test, and the test result depends on conductors, terminations and shields that were specified months earlier in a bill of materials.
Integrators working through a cell build also carry the machinery-level electrical obligations, cabinet construction and bonding among them, which are treated in the guide to control cabinet construction. ISO 10218 does not replace that layer; it stacks on it.
What Integrators Should Change on the Next Project
The practical adjustments are mostly sequencing and documentation. Specify the safety functions with their performance expectations before the layout freezes, because sensing and architecture decisions flow downstream from that list. Include the collaborative-operation content in the assessment whether or not the cell is collaborative, because the revised standard’s wording now reaches applications where humans and robots share space intermittently. Bring IT or OT security into the kick-off rather than the acceptance phase, since the cybersecurity requirement touches network design that is expensive to retrofit. And build the evidence file as the project runs: assessment rationale, safety function tests, stop function measurements, access control configuration. Cells integrated this way pass acceptance once; cells integrated the old way negotiate with the assessor instead.
The integration touchpoints, with the wiring-relevant requirement at each step and the evidence that satisfies it, are laid out below.
| Integration step | Wiring-relevant requirement | Evidence to keep |
|---|---|---|
| Risk assessment | Motion zones, cable routing and maintenance access identified as hazards | Assessment record with cabling explicitly considered |
| Safety function specification | Stops, sensing and speed functions defined with performance expectations | Safety function list with the circuits and cables serving each |
| Architecture design | Separation of power and signal, shield planning, bonding design | Electrical design documents showing EMC and bonding arrangements |
| Build and install | Cables rated for the duty, protected along their route, terminations sound | Component records and installation checks |
| Commissioning and verification | Every safety function tested through its wiring, not just at the logic level | Per-function test results and measurement records |
| Security hardening | Physical and network access to safety functions controlled | Access configuration and cabinet security notes |
When ISO 10218 Is Not the Answer
Honest limits: ISO 10218 covers the robot and the integrated system, not the whole factory, and it does not certify individual components. A cable with a compliant datasheet does not make a cell compliant, and a compliant cell does not make every cable adequate. The standard’s performance expectations are floors expressed at system level; whether a given motion cable meets the duty behind a safety function is a component engineering question that the standard delegates to the integrator’s specification. Integrators specifying components for export markets also carry the certification layers per the equipment certification checklist, which is a separate gate from safety conformity. And the standard is not a substitute for the machinery-level wiring code: EN 60204-1 still governs the electrical equipment details, and the two are read together, not instead of each other.
RFQ Checklist: Briefing a Cable Supplier Into an ISO 10218 Project
Attach these items to the cable portion of the RFQ:
- Duty statement: which axes and services the cables serve, with cycle rates and motion profiles
- Safety function mapping: which circuits serve safety-rated functions, so construction and documentation match the claim
- EMC context: drive environment, separation distances, shield landing points
- Environmental envelope: temperature, coolant and oil exposure, swarf and abrasion conditions
- Documentation package: test data, material declarations and traceability feeding the integration file
- Verification support: test reports and records that slot into the per-function evidence the cell must produce
The reading discipline that keeps supplier datasheets honest in this process is covered in the guide to reading equipment datasheets, and it applies with extra force to cables carrying safety functions.
Conclusion
The ISO 10218 update is not a rewrite of robot physics; it is a tightening of proof. Collaborative safety moved inside the standard, functional safety gained defined performance expectations, cybersecurity entered the safety file, and the risk assessment now has to trace visibly into the design. For integrators the practical consequence is earlier specification and continuous documentation, and the wiring layer sits inside that shift, because safety functions are only as available as the cables that serve them.
