Building Wire (BV / RV)

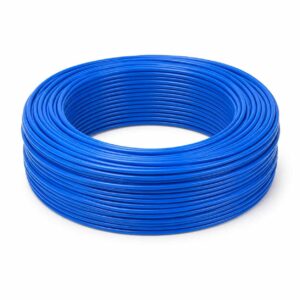

PVC-insulated single-core building wire for panel, conduit and equipment internal wiring, rated 450/750V in 70℃ and 90℃ grades.
Key Features
Core construction, ratings and certification of our Building Wire product line.
Single-Core Construction
Bare copper conductor with a single layer of PVC insulation and no outer jacket, built for internal wiring inside panels, conduit and equipment.
Solid or Stranded Conductor
BV solid conductor for fixed installation, or RV stranded conductor where extra flexibility is needed during routing.
70℃ / 90℃ Heat-Resistant Grades
Standard 70℃ PVC insulation, or upgraded 90℃ heat-resistant PVC for higher ambient or enclosed wiring temperatures.
450/750V Rated Voltage
Rated for general-purpose building and equipment wiring up to 450/750V, in line with GB 5023.
Harmonized Insulation Color Coding
Supplied in brown, blue or green/yellow insulation to match international Live / Neutral / Earth color identification.
CCC Certified
Manufactured and tested to meet CCC certification requirements for the Chinese domestic market.
OEM & ODM Capabilities
Custom conductor gauge, temperature grade, insulation color and packaging tailored to your project.
Custom Conductor Gauge
Cross-sectional area produced to your specified conductor size to match circuit load requirements.
Custom Temperature Grade
70℃ standard or 90℃ heat-resistant PVC compound selectable per project requirement.
Insulation Color Selection
Full run production in brown, blue, green/yellow or other insulation colors per your wiring schedule.

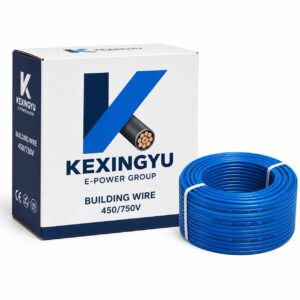

Custom Length & Packaging
Coil length, reel packaging and private-label carton design available for project or retail distribution.
Custom Branding & Marking
Customer logo and cable surface marking printed to your brand specification.
Sampling & Volume Production
Small-batch sampling for qualification followed by scalable volume production once specifications are confirmed.
Technical Specifications
General specifications, product snapshot and detailed parameters for each type code.
| Standard | GB 5023 |
|---|---|
| Conductor | Bare copper, solid (BV) or stranded (RV) |
| Insulation | PVC, color-coded |
| Jacket | None — single-insulated construction |
| Rated Voltage | 450/750V |
| Rated Temperature | 70℃ or 90℃ (grade dependent) |
| Approval | CCC |
| Application | Internal wiring for panels, conduit, switchgear and equipment |
| Type Code | Designation | Rated Temp. |
|---|---|---|
| 227IEC01 (BV) | Generic Solid Conductor, No-Jacket | 70℃ |
| 227IEC02 (RV) | Generic Stranded Conductor, No-Jacket | 70℃ |
| 227IEC07 (BV-90) | Heat-Resistant Solid Conductor | 90℃ |
| 227IEC08 (RV-90) | Heat-Resistant Stranded Conductor | 90℃ |
| Type Code | Designation | Conductor | Rated Temperature | Insulation | Rated Voltage | Typical Application |
|---|---|---|---|---|---|---|
| 227IEC01 (BV) | Generic Application Single-Core Solid Conductor, No-Jacket | Solid | 70℃ | PVC | 450/750V | General purpose panel and equipment wiring |
| 227IEC02 (RV) | Generic Application Single-Core Stranded Conductor, No-Jacket | Stranded | 70℃ | PVC | 450/750V | General purpose wiring where flexibility is required |
| 227IEC05 (BV) | Heat-Resistant Single-Core Solid Conductor, Inner Wiring, No-Jacket | Solid | 70℃ | PVC | 450/750V | Internal wiring inside panels and equipment |
| 227IEC06 (RV) | Heat-Resistant Single-Core Stranded Conductor, Inner Wiring, No-Jacket | Stranded | 70℃ | PVC | 450/750V | Internal wiring inside panels and equipment |
| 227IEC07 (BV-90) | Heat-Resistant Single-Core Solid Conductor, Inner Wiring, No-Jacket | Solid | 90℃ | PVC | 450/750V | Internal wiring in higher-temperature enclosures |
| 227IEC08 (RV-90) | Heat-Resistant Single-Core Stranded Conductor, Inner Wiring, No-Jacket | Stranded | 90℃ | PVC | 450/750V | Internal wiring in higher-temperature enclosures |

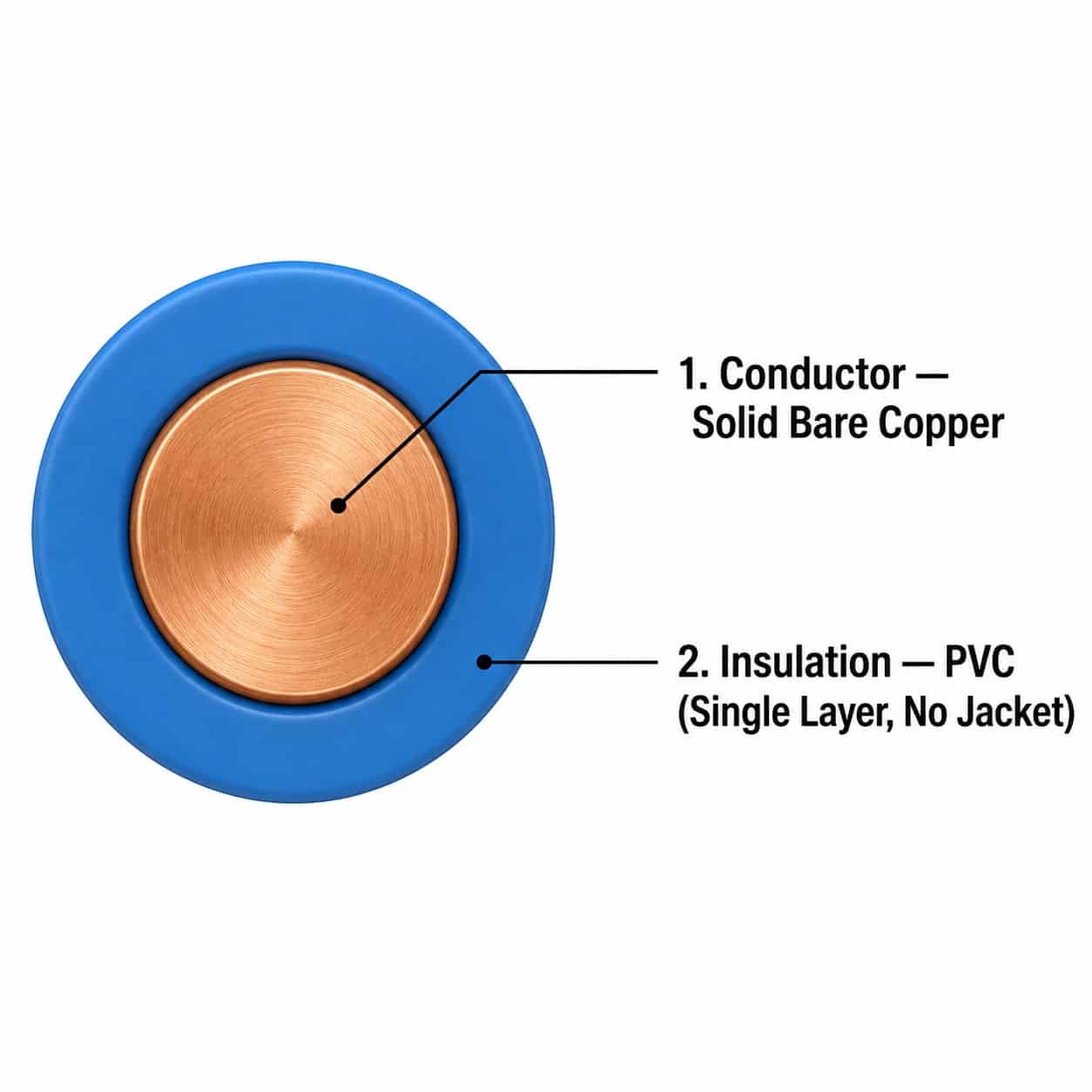

Construction & Configuration
Layer-by-layer breakdown of conductor, insulation and color coding.
Conductor — Bare Copper
Solid (BV) or fine-strand (RV) bare copper conductor sized to the specified cross-section.
Single Insulation Layer — PVC
A single extruded PVC layer is the only covering on the conductor — there is no separate outer jacket.
Insulation Color Coding
Insulation color (brown / blue / green-yellow) identifies Live, Neutral or Earth per harmonized standard.
Conductor Temperature Grade
PVC compound formulated for continuous 70℃ service, or upgraded to a 90℃ heat-resistant grade for internal wiring.
No Outer Jacket
Intended for use inside conduit, trunking or equipment enclosures that provide the mechanical and environmental protection.
Surface Marking
Standard, rated voltage and manufacturer marking are printed along the insulation surface for traceability.
Standards & Test Documentation
Design standards, certification and voltage/temperature rating information.
GB 5023
Produced in accordance with GB 5023, the Chinese national standard for PVC insulated cables and their cores.
CCC Certified
Independently tested and certified under the China Compulsory Certification (CCC) scheme for the domestic market.
450/750V · 70℃/90℃
Single-insulated design for internal wiring inside conduit, trunking or equipment enclosures; not intended for direct burial or exposed outdoor use.
Request a Quote for Building Wire
Send us your required conductor type, gauge, temperature grade, insulation color, length and quantity. Our team will review the specification and prepare a quotation for your project.
