Flat Cord (RVB)
Slim, flat non-sheathed cord for lamp cords, light fixtures and small indoor appliance leads, rated 300/300V.
Key Features
Core construction, ratings and certification of our Flat Cord product line.
Flat Parallel-Core Construction
Two PVC-insulated cores bonded side-by-side in a slim, flat oblate profile, with no outer jacket.
Stranded Copper Conductor
Bare, finely stranded copper conductors give the cord flexibility for repeated bending and light handling.
300/300V Rated Voltage
Rated for light-duty 300/300V service per GB 5023, suitable for lamps and small indoor appliances.
70℃ Rated Temperature
PVC insulation rated for continuous operation at 70℃ under normal indoor conditions.
Slim, Space-Saving Profile
The flat cross-section sits close against walls and skirting, suited to lamp cords and light-duty appliance leads.
CCC Certified
Manufactured and tested to meet CCC certification requirements for the Chinese domestic market.
OEM & ODM Capabilities
Custom conductor gauge, insulation color and packaging tailored to your project.
Custom Conductor Gauge
Cross-sectional area produced to your specified conductor size, from fine lamp-cord gauges to heavier duty sizes.
Custom Insulation Color
Insulation color produced to your specification, with blue offered as the standard option.

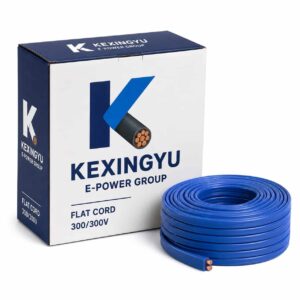

Custom Length & Packaging
Coil length, reel packaging and private-label carton design available for project or retail distribution.
Custom Branding & Marking
Customer logo and cord surface marking printed to your brand specification.
Sampling & Volume Production
Small-batch sampling for qualification followed by scalable volume production once specifications are confirmed.
Quality & Compliance Support
Test reports and compliance documentation provided to support your import and certification requirements.
Technical Specifications
General specifications, conductor size snapshot and detailed parameters by gauge.
| Standard | GB 5023 |
|---|---|
| Conductor | Bare stranded copper |
| Insulation | PVC |
| Jacket | None — flat bonded twin-core construction |
| Rated Voltage | 300/300V |
| Rated Temperature | 70℃ |
| Approval | CCC |
| Application | Lamp cords, small appliance leads and light-duty indoor wiring |
| Conductor Size | Designation | Rated Voltage |
|---|---|---|
| 2 × 0.3mm² | Fine Lamp Cord | 300/300V |
| 2 × 0.5mm² | Standard Flat Cord | 300/300V |
| 2 × 0.75mm² | Heavy-Duty Flat Cord | 300/300V |
| Custom | OEM Conductor Size | On Request |
| Conductor Size | Designation | Conductor | Insulation | Jacket | Rated Voltage | Typical Application |
|---|---|---|---|---|---|---|
| 2 × 0.3mm² | Fine Lamp Cord | Bare stranded copper | PVC | None (flat bonded) | 300/300V | Small lamps, indicator lights |
| 2 × 0.5mm² | Standard Flat Cord | Bare stranded copper | PVC | None (flat bonded) | 300/300V | Table lamps, small appliances |
| 2 × 0.75mm² | Heavy-Duty Flat Cord | Bare stranded copper | PVC | None (flat bonded) | 300/300V | Larger lamps, light-duty extension leads |

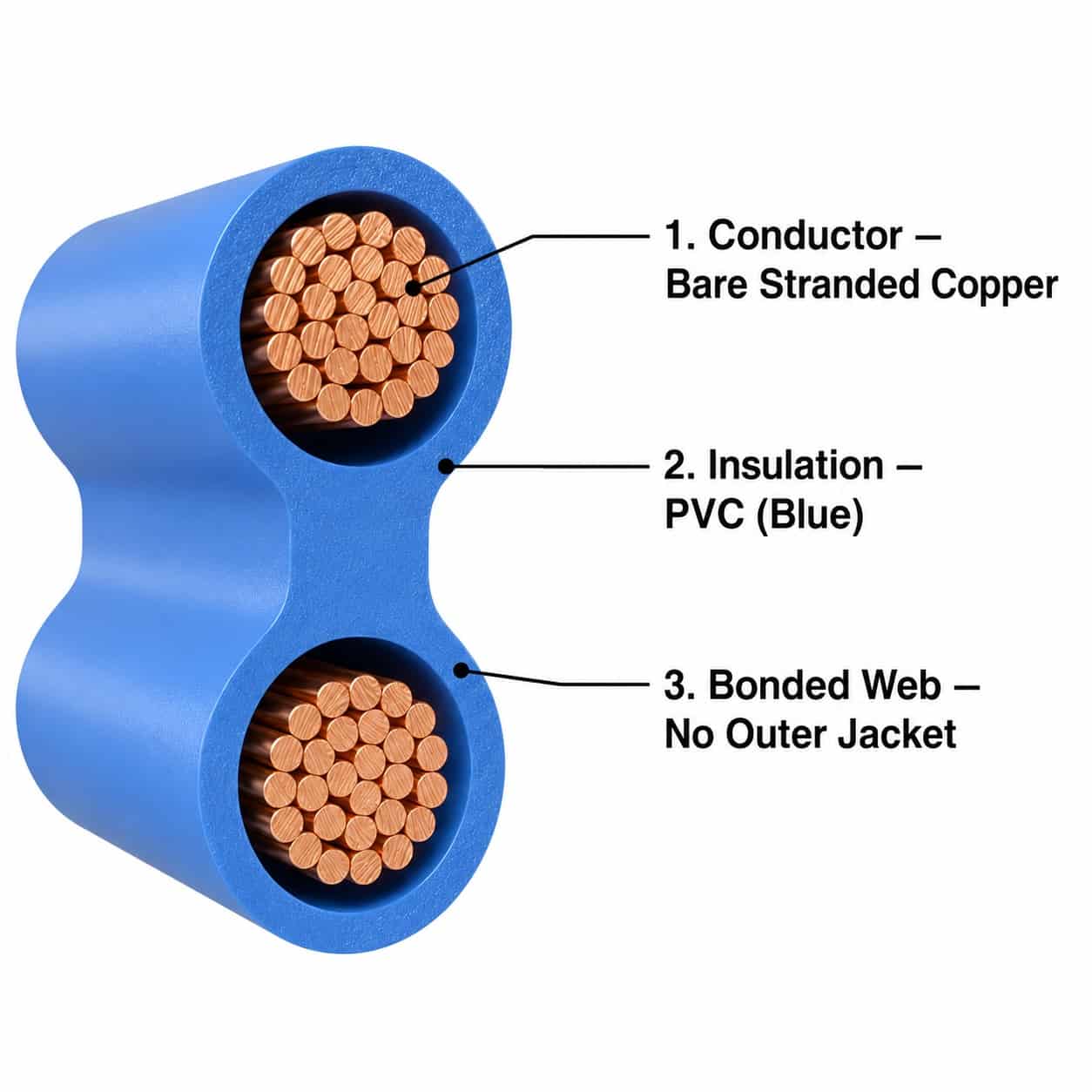

Construction & Configuration
Construction details including conductor, twisted pairs, insulation, separator, jacket and model-specific dimensions.
Conductor — Bare Stranded Copper
Fine-strand bare copper conductor in each core provides flexibility for repeated bending.
Primary Insulation — PVC
Each conductor is individually insulated with a PVC compound layer.
Core Bonding
The two insulated cores are bonded side-by-side along a thin web to form the flat, oblate cord profile.
No Outer Jacket
The bonded insulation is the only covering — there is no separate outer sheath, keeping the cord slim.
Flat Profile Advantage
The low-profile shape sits flush against surfaces, suited to lamp cords and light fixtures.
Surface Marking
Standard, rated voltage and manufacturer marking are printed along the cord surface for traceability.
Standards & Test Documentation
Design standards, certification and voltage/temperature rating information.
GB 5023
Produced in accordance with GB 5023, the Chinese national standard for PVC insulated cables and their cores.
CCC Certified
Independently tested and certified under the China Compulsory Certification (CCC) scheme for the domestic market.
300/300V · 70℃
Rated for light-duty 300/300V, 70℃ service; intended for lamp cords and light indoor appliance leads, not for fixed wiring or damp locations.
Request a Quote for Flat Cord
Send us your required conductor size, insulation color, length and quantity. Our team will review the specification and prepare a quotation for your project.
