Fiber Optic Cables
FTTH Indoor Cable
Flat figure-8 profile FTTH indoor drop cable with dual FRP strength members and an LSZH sheath, for 1 to 4 fiber counts.
Key Features
Core construction, strength members and fiber design of our FTTH indoor cable.
Figure-8 Flat Drop Profile
A novel notched flute design allows easy stripping and fast field splicing for FTTH and indoor drop installation.
Low-Bend-Sensitivity Fiber
Special low-bend-sensitivity fiber provides high bandwidth and excellent transmission even around tight corners.
Dual FRP Strength Members
Two parallel Fiber Reinforced Plastic (FRP) rods flank the fiber unit for strong, all-dielectric crush resistance.
LSZH Sheath
Low smoke, zero halogen, flame-retardant sheath in black or color for safer indoor installation.
Lightweight & Simple Structure
A simple three-part construction keeps the cable light, practical and easy to handle on site.
1 to 4 Fiber Counts
Four standard configurations to match FTTH drop and indoor riser fiber requirements.
OEM & ODM Capabilities
Custom fiber count, sheath color and packaging tailored to your project.
Custom Fiber Count
Fiber count produced to your specified drop cable plan, beyond the standard 1 to 4 fiber range.
Custom Sheath Color
Black or color LSZH sheath produced to your specification for project identification.
Fiber Type Selection
Low-bend-sensitivity single-mode fiber selectable to match your network's performance requirements.

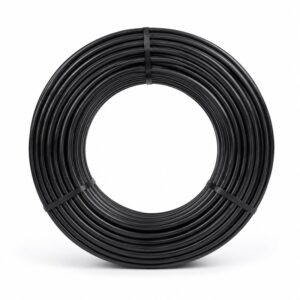

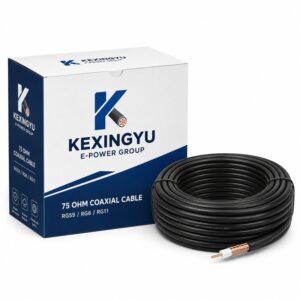

Custom Length & Packaging
Reel length and spool packaging tailored to your installation and logistics requirements.
Custom Branding & Marking
Customer logo and cable surface marking printed to your brand specification.
Sampling & Volume Production
Small-batch sampling for qualification followed by scalable volume production once specifications are confirmed.
Technical Specifications
General specifications, fiber count snapshot and full mechanical parameters by fiber count.
| Cable Type | FTTH Indoor Drop Cable (Figure-8 Profile) |
|---|---|
| Fiber Position | Center, single optical fiber unit |
| Strength Member | 2× parallel FRP rods |
| Sheath | LSZH (low smoke, zero halogen), black or color |
| Fiber Design | Low-bend-sensitivity fiber |
| Bending Radius | 15mm static / 30mm dynamic |
| Storage / Operating Temperature | -20℃ to +60℃ |
| Application | FTTH indoor and drop wiring |
| Fiber Count | Cable Diameter | Cable Weight |
|---|---|---|
| 1 | (2.0±0.2)×(3.0±0.2)mm | 8kg/km |
| 2 | (2.0±0.2)×(3.8±0.2)mm | 8.5kg/km |
| 4 | (2.0±0.2)×(4.0±0.2)mm | 10kg/km |
| Custom | On Request | On Request |
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|
| 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)×(3.8±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| 1 | (2.0±0.2)×(3.8±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)×(4.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
Construction & Configuration
Layer-by-layer breakdown of the fiber unit, FRP strength members and outer sheath.
Optical Fiber Unit — Center Position
The optical fiber unit sits at the center of the cable, protected by the surrounding sheath and strength members.
FRP Strength Members (×2) — Parallel Sides
Two parallel Fiber Reinforced Plastic rods run alongside the fiber unit, giving crush resistance without metal.
Low-Bend-Sensitivity Fiber
The fiber itself is designed for minimal signal loss even under tight installation bends.
Flute (Notched) Profile Design
A novel notched groove along the sheath makes the cable easy to strip by hand for fast termination.
Outer Sheath — LSZH
A low smoke, zero halogen sheath in black or color completes the flat figure-8 cable profile.
Surface Marking
Fiber count and specification marking are printed on the sheath surface for traceability.
Standards & Test Documentation
Sheath fire safety, strength member design and environmental temperature ratings.
LSZH Sheath
Low smoke, zero halogen, flame-retardant sheath suited for indoor installations where fire safety is a priority.
Dual Parallel FRP Members
Two parallel FRP strength members give crush resistance without steel, keeping the cable lightweight and fully dielectric.
-20℃ to +60℃
Storage and operating temperature -20℃ to +60℃; bending radius 15mm static / 30mm dynamic.
Request a Quote for FTTH Indoor Cable
Send us your required fiber count, sheath color, length and quantity. Our team will review the specification and prepare a quotation for your project.
