Solar Cable

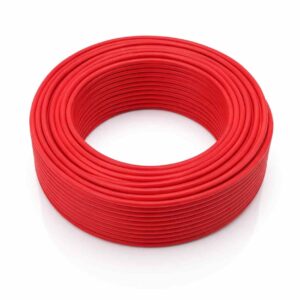

Single-core photovoltaic (PV) cable for connecting solar system components inside and outside buildings, built for extreme weather, UV exposure and over 25 years of service life.
Key Features
Core construction, conductor and weather-resistance characteristics of the Solar Cable.
Solar / PV Cable Construction
Single-core solar cable construction is designed for connecting photovoltaic system components inside and outside buildings.
Tinned Copper Conductor
Tinned copper conductor construction is specified in the supplier product information.
XLPO Insulation & Jacket
XLPO insulation and jacket layers are specified for high mechanical and weather resistance.
UV & Weather Resistant
UV resistance, wear resistance and aging resistance are listed, with a service life of more than 25 years.
Dual Regional Standards
Both European (IEC 62930 / EN 50618:2014) and American (UL 4703) standard specifications are listed.
High Voltage Rating
Voltage ratings up to DC 1500V / AC 1000V (Europe) or 2000V (America) are listed.
OEM & ODM Capabilities
Flexible manufacturing support for Solar Cable conductor size, voltage rating, marking, branding and project packaging requirements.
OEM Production to Specification
Production can follow approved customer specifications, drawings and project requirements.
ODM Configuration Support
Product configurations can be developed around application, installation and target-market requirements.
Voltage & Conductor Options
Conductor size and voltage rating can be selected across the European and American standard specifications.
Custom Printing & Marking
Cable identification and customer-required marking can be defined for approved production.
Private Label & Branding
Customer labeling and branding can be incorporated into the approved production specification.

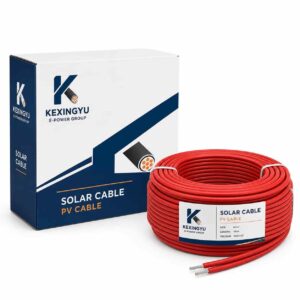

Project Packaging
Reel, labeling and shipment packaging can be coordinated according to order and delivery requirements.
Technical Specifications
Review the supplier-listed European and American standard electrical properties for the Solar Cable.
| Application | Connecting photovoltaic system components inside and outside buildings, with high mechanical and extreme weather requirements |
|---|---|
| Construction | Single-core: tinned copper conductor / XLPO insulation / XLPO jacket |
| Resistance Characteristics | UV resistance, wear resistance, aging resistance |
| Service Life | More than 25 years |
| Standard | IEC 62930 / EN 50618:2014 |
|---|---|
| Voltage | DC 1500V / AC 1000V |
| Conductor | Tinned Copper |
| Insulation | XLPO |
| Sheath | XLPO |
| Ambient Temperature | -40°C to +90°C |
| Standard | UL 4703 |
|---|---|
| Voltage | 600V / 1000V / 2000V |
| Conductor | Tinned Copper / Bare Copper |
| Insulation | XLPE |
| Sheath | XLPO |
| Ambient Temperature | 90°C |
Construction & Configuration
Single-core Solar Cable construction including tinned copper conductor, XLPO insulation and XLPO jacket components.

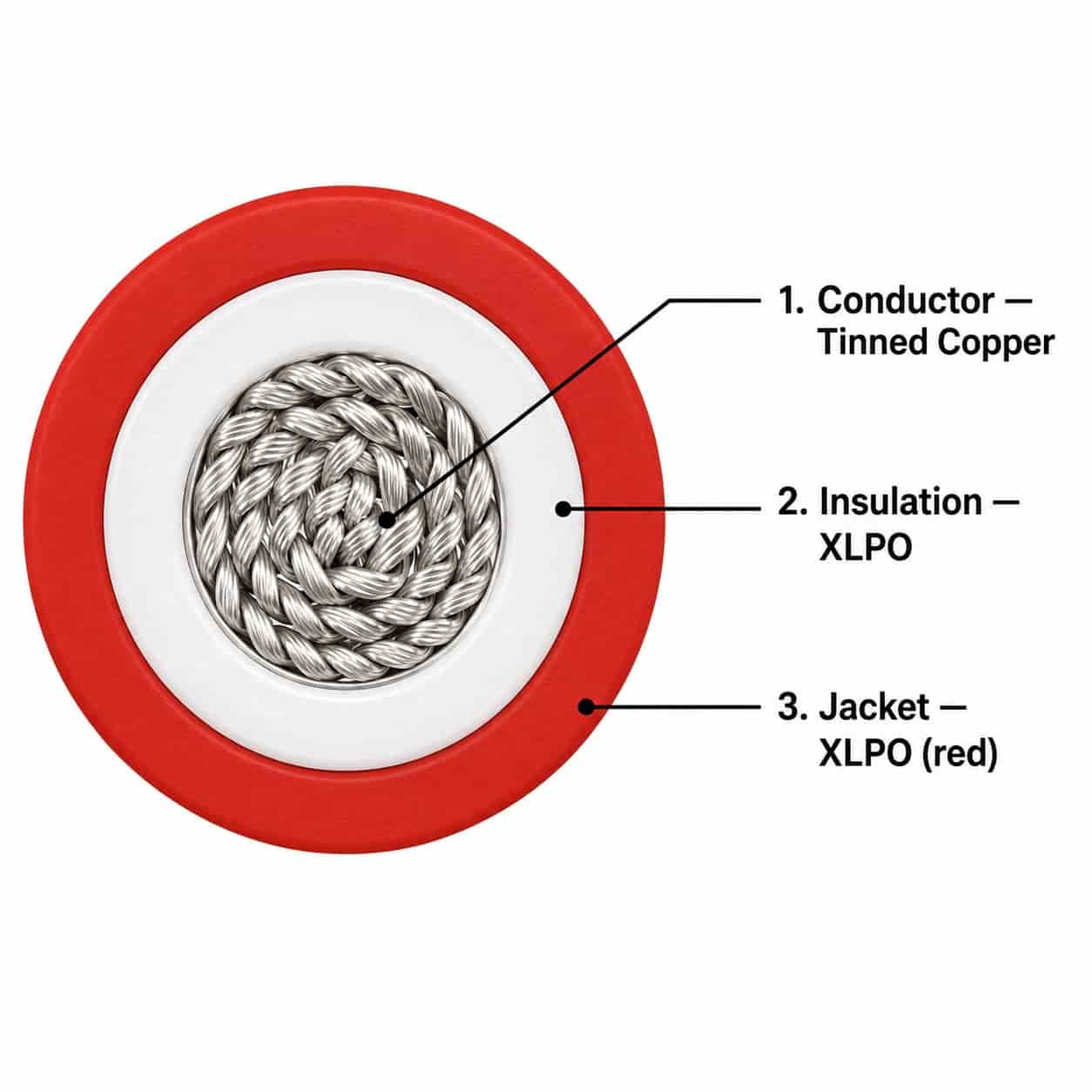

Single-Core Solar Cable Design
A simple three-layer single-core construction is shown in the supplier diagram: conductor, insulation and jacket.
Tinned Copper Conductor
Tinned copper conductor forms the center of the cable core, as shown in the supplier construction diagram.
XLPO Insulation
XLPO insulation surrounds the conductor, providing heat and chemical resistance.
XLPO Jacket
An XLPO outer jacket completes the construction, providing UV, weather and abrasion resistance.
Standards & Test Documentation
Supplier-listed European and American reference standards and application information for project review and order confirmation.
IEC 62930 / EN 50618:2014
European solar cable standard listed with DC 1500V / AC 1000V voltage rating and -40°C to +90°C ambient temperature range.
UL 4703
American solar cable standard listed with 600V / 1000V / 2000V voltage ratings and a 90°C ambient temperature rating.
Photovoltaic System Wiring
Designed for connecting photovoltaic system components inside and outside buildings, with UV, wear and aging resistance and a service life of more than 25 years.
Need a Custom Solar Cable Specification or Project Quote?
Send us your required voltage rating, conductor size, regional standard (European or American), length, quantity, certification requirements and destination. Our team will review the specification and prepare a quotation for your project.
