Unitube Light-Armored Cable (GYXTW)
Outdoor unitube fiber optic cable with PSP tape and dual steel wire reinforcement in a PE sheath, for 2 to 48 fiber counts.
Key Features
Core construction, reinforcement and fiber compatibility of our outdoor unitube armored cable.
Unitube Loose Tube Design
250μm fibers sit in a high-modulus plastic loose tube filled with water-resistant compound for critical fiber protection.
PSP Armor Tape
A double-sided plastic-coated steel tape (PSP) is wrapped longitudinally for crush resistance and a continuous moisture barrier.
Dual Parallel Steel Wires
Two parallel steel wires reinforce tensile strength alongside the PE sheath, without a full armor layer.
PE Outer Sheath
A polyethylene outer sheath provides weather and UV resistance for long-term outdoor installation.
G.652 / G.655 & Multimode Options
Compatible with G.652/G.655 single-mode fiber or 50/125μm and 62.5/125μm multimode fiber.
2 to 48 Fiber Counts
Five standard configurations to match outdoor network scale, from small drops to trunk routes.
OEM & ODM Capabilities
Custom fiber count, fiber type, sheath color and packaging tailored to your project.
Custom Fiber Count
Fiber count produced to your specified network plan, beyond the standard 2 to 48 fiber range.
Fiber Type Selection
G.652/G.655 single-mode or 50/125μm & 62.5/125μm multimode fiber selectable to match your network.
Custom Sheath Color
PE sheath color produced to your specification for project identification, beyond standard black.
Custom Length & Packaging

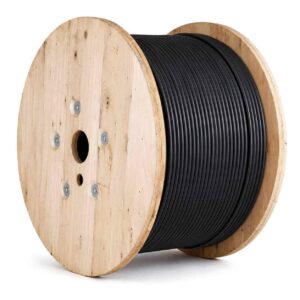

Long delivery lengths on wooden or steel drums, tailored to your installation and logistics requirements.
Custom Branding & Marking
Customer logo and cable surface marking printed to your brand specification.
Sampling & Volume Production
Small-batch sampling for qualification followed by scalable volume production once specifications are confirmed.
Technical Specifications
General specifications, fiber count snapshot, mechanical parameters and full optical characteristics by fiber type.
| Standard | YD/T 769-2003 |
|---|---|
| Loose Tube | High-modulus plastic, water-resistant filling compound |
| Armor | PSP (double-sided plastic-coated steel tape) |
| Strength Member | 2× parallel steel wires |
| Sheath | PE (polyethylene) |
| Fiber Type | G.652 / G.655, or 50/125μm & 62.5/125μm multimode |
| Storage / Operating Temperature | -40℃ to +70℃ |
| Application | Outdoor aerial, duct and direct-connection fiber networks |
| Cable Type | Fiber Count | Cable Diameter |
|---|---|---|
| GYXTW-2~12 | 2~12 | 10.0mm |
| GYXTW-14~24 | 14~24 | 12.5mm |
| GYXTW-38~48 | 38~48 | 15.0mm |
| Custom | On Request | On Request |
| Cable Type | Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic |
|---|---|---|---|---|---|---|
| GYXS/GYXTW-2~12 | 2~12 | 10.0 | 105 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GYXTW-2~12 | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-14~24 | 14~24 | 12.5 | 149 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-26~36 | 26~36 | 14.0 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GYXTW-38~48 | 38~48 | 15.0 | 216 | 1000/3000 | 1000/3000 | 10D/20D |
| Parameter | G.652 | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|
| Attenuation @850nm | — | — | ≤3.0dB/km | ≤3.0dB/km |
| Attenuation @1300nm | — | — | ≤1.0dB/km | ≤1.0dB/km |
| Attenuation @1310nm | ≤0.36dB/km | ≤0.40dB/km | — | — |
| Attenuation @1550nm | ≤0.22dB/km | ≤0.23dB/km | — | — |
| Bandwidth @850nm (Class A) | — | — | ≥500MHz·km | ≥200MHz·km |
| Bandwidth @1300nm (Class A) | — | — | ≥1000MHz·km | ≥600MHz·km |
| Numerical Aperture | — | — | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | — | — |
Construction & Configuration

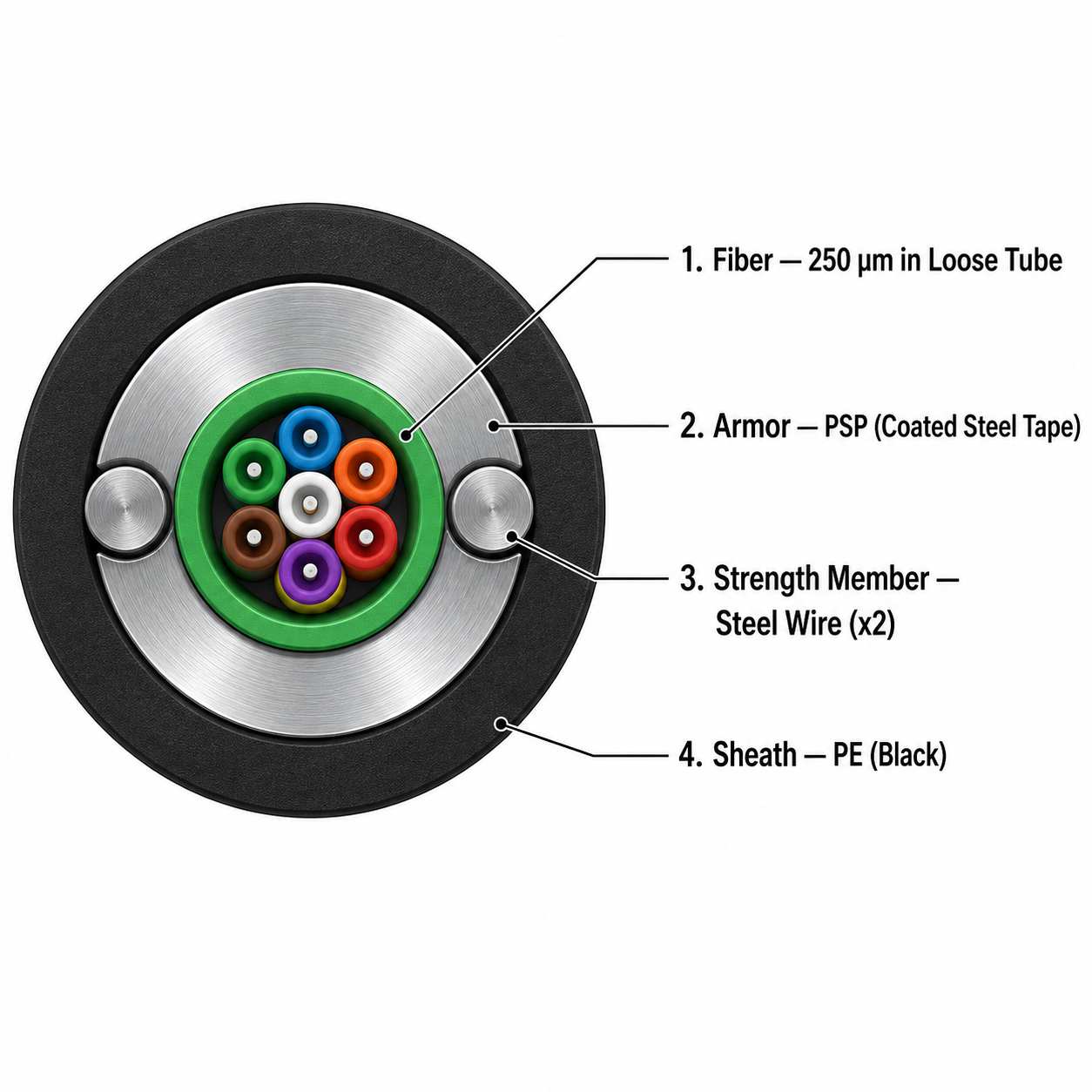

Layer-by-layer breakdown matching the fiber, tube, steel wire and sheath structure.

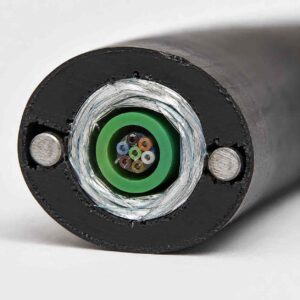

Fiber — 250μm in Loose Tube
250μm fibers are positioned in a loose tube made of high-modulus plastic.
Tube Filling Compound
The loose tube is filled with a water-resistant compound for critical fiber protection.

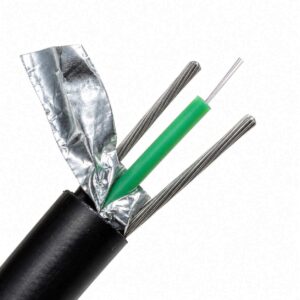

Steel Wire (×2) — Parallel Strength Members
Two parallel steel wires are placed on either side of the steel tape to reinforce tensile strength.
Water-Blocking Material
Water-blocking material between the PSP and the loose tube keeps the cable compact and watertight.
PSP — Plastic-Coated Steel Tape
A double-sided plastic-coated steel tape is wrapped longitudinally around the tube for crush resistance.
PE Sheath
A polyethylene sheath completes the cable, sized for small diameter and light weight.
Standards & Test Documentation
Design standard, fiber compatibility and environmental temperature ratings.
YD/T 769-2003
GYXTW complies with the YD/T 769-2003 standard for outdoor unitube light-armored optical cables.
G.652 / G.655 & Multimode
Available with G.652/G.655 single-mode fiber or 50/125μm and 62.5/125μm multimode fiber; full optical data below.
-40℃ to +70℃
Storage and operating temperature -40℃ to +70℃, suited for outdoor aerial, duct and direct-connection installation.
