Cables & Wiring Systems
Combination Cable
Multi-function combination cable integrating coaxial, network and power conductors in a single jacket for smart home, CCTV, CATV and elevator monitoring systems.
Key Features
Multi-function integration and application scope of our Combination Cable line.
Multi-Function Integration
Combines coaxial, twisted-pair network and/or power conductors within one cable assembly, simplifying installation.
Smart Home Ready
Purpose-built for modern residential multimedia network wiring delivered in a single run.
CCTV & CATV Compatible
An integrated coaxial element supports closed-circuit television and cable television signal transmission.
Elevator Monitoring Support
Suited for elevator monitoring and control system wiring where multiple signal types share a shaft.
Simplified Installation
One combined cable reduces the number of separate runs, conduit space and labor versus routing cables individually.
Multiple Combination Configurations
Available in coax+power, coax+network, network+power and other layouts to match your project wiring diagram.
OEM & ODM Capabilities
Flexible OEM and ODM support covering product configuration, specifications, labeling, branding, packaging and project-specific customization requirements.
Custom Element Combination
Choose which cable types are bundled together (coaxial, network, power) to match your wiring plan.
Custom Core Count
Element counts and gauges produced to your specified project requirement.
Custom Jacket Color
Outer jacket color produced to your specification for project identification.
Custom Length & Packaging
Reel length and spool packaging tailored to your installation and logistics requirements.
Custom Branding & Marking
Customer logo and cable surface marking printed to your brand specification.
Sampling & Volume Production
Small-batch sampling for qualification followed by scalable volume production once specifications are confirmed.
Technical Specifications
General specifications, typical combinations and available element configurations.
| Cable Type | Combination Cable (multi-function integrated cable) |
|---|---|
| Included Elements | Coaxial, twisted-pair network and/or power conductors (combination varies by configuration) |
| Application | Smart home multimedia network, CCTV, CATV, elevator monitoring and other electronic equipment |
| Packaging | Reel / spool packaging |
| Documentation | Dimensional and electrical parameters vary by combination configuration — full datasheet available on request |
| Configuration | Included Elements | Typical Use |
|---|---|---|
| Coax + Power | 1× coaxial, 1× power pair | CCTV camera signal + power |
| Coax + Network | 1× coaxial, 1× twisted-pair network | Combined AV + data distribution |
| Network + Power | Twisted-pair network, power pair | Structured cabling with local power feed |
| Custom | Per project specification | On Request |
| Configuration | Included Cable Types | Typical Application |
|---|---|---|
| Coax + Power | 1× coaxial core, 1× power conductor pair | CCTV camera signal transmission with local power feed in one run |
| Coax + Network | 1× coaxial core, 1× twisted-pair network cable | Combined AV distribution and structured data in one run |
| Network + Power | Twisted-pair network cable, power conductor pair | Structured cabling with local power feed for network devices |
| Custom Combination | Per project specification | Elevator monitoring, smart home multimedia panels, other integrated wiring |

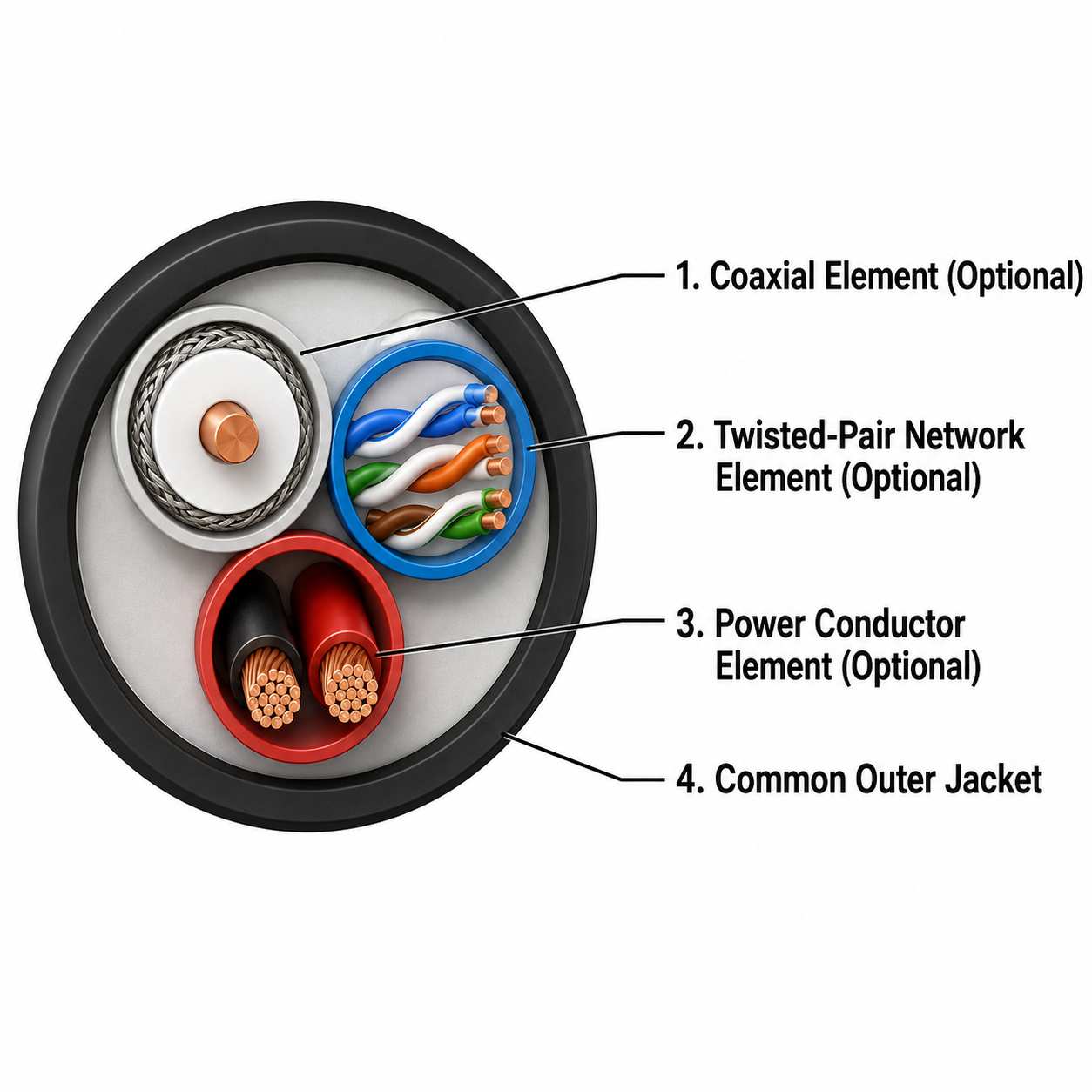

Construction & Configuration
How the coaxial, network and power elements are individually built and combined under one jacket.
Coaxial Element (Optional)
A complete coaxial element — center conductor, dielectric, shield and jacket — included where video/RF signal transmission is required.
Twisted-Pair Network Element (Optional)
HDPE-insulated copper pairs, included where structured data cabling is part of the combination.
Power Conductor Element (Optional)
Bare or tinned copper power conductors, included where local power feed is required alongside signal wiring.
Individual Element Jacketing
Each included element is individually jacketed or insulated before being bundled together.
Common Outer Jacket
All elements are bundled and wrapped under one common outer jacket to form the finished combination cable.
Ripcord & Surface Marking
A ripcord for easy jacket removal and specification marking are included on the outer surface.
Standards & Test Documentation
Application scope, project-specific configuration and where to get full datasheets.
Smart Home, CCTV, CATV & Elevator Monitoring
Designed for modern residential multimedia networks, closed-circuit television, cable television, elevator monitoring and other electronic equipment.
Project-Specific Combination
The exact combination of coaxial, network and power elements is configured per project — there is no single fixed catalog specification.
Datasheet on Request
Detailed dimensional, electrical and certification data for your specific element combination is available on request.
Request a Quote for Combination Cable
Send us which cable types you want combined (coaxial, network, power), core count, jacket color, length and quantity. Our team will review the specification and prepare a quotation for your project.
