Procuring Against Data Center Power Standards: A Map for Cable and Equipment Specifiers
Quick Answer: A power standard does not tell you what to buy. It tells you what evidence you will be asked for, by whom, and at which point in the programme. Treat standards as a document obligation attached to each line of the order and the specification becomes checkable; treat them as background reading and they will be discovered during inspection, when the cable is already made. This note is a map of the layers that actually bind a data center power purchase, and of the questions that belong in the RFQ rather than in a later argument.
Introduction
Ask five people on a data center project which standard governs the cable and you will get five answers, all of them correct and none of them complete. The electrical engineer quotes a conductor standard. The fire consultant quotes a flame propagation test. The commissioning agent quotes a certification scheme. The client quotes a tier document that is not a standard at all. The purchasing department quotes the last inspection certificate they were handed, from a different market.
They are describing different layers of the same stack, and purchasing goes wrong when the layers are treated as interchangeable: when a cable certified to a conductor standard is accepted as though it satisfied a circuit integrity requirement, or when a European fire test result is offered against a North American listing requirement. This map sets out the layers in the order in which they bind a purchase and where a conflict between two applicable documents has to be resolved. Our notes on individual instruments, including medium voltage cable standards and the IEC 60502 construction standard, cover the detail of each; this note covers where they sit relative to each other.
Which Documents Actually Bind a Purchase

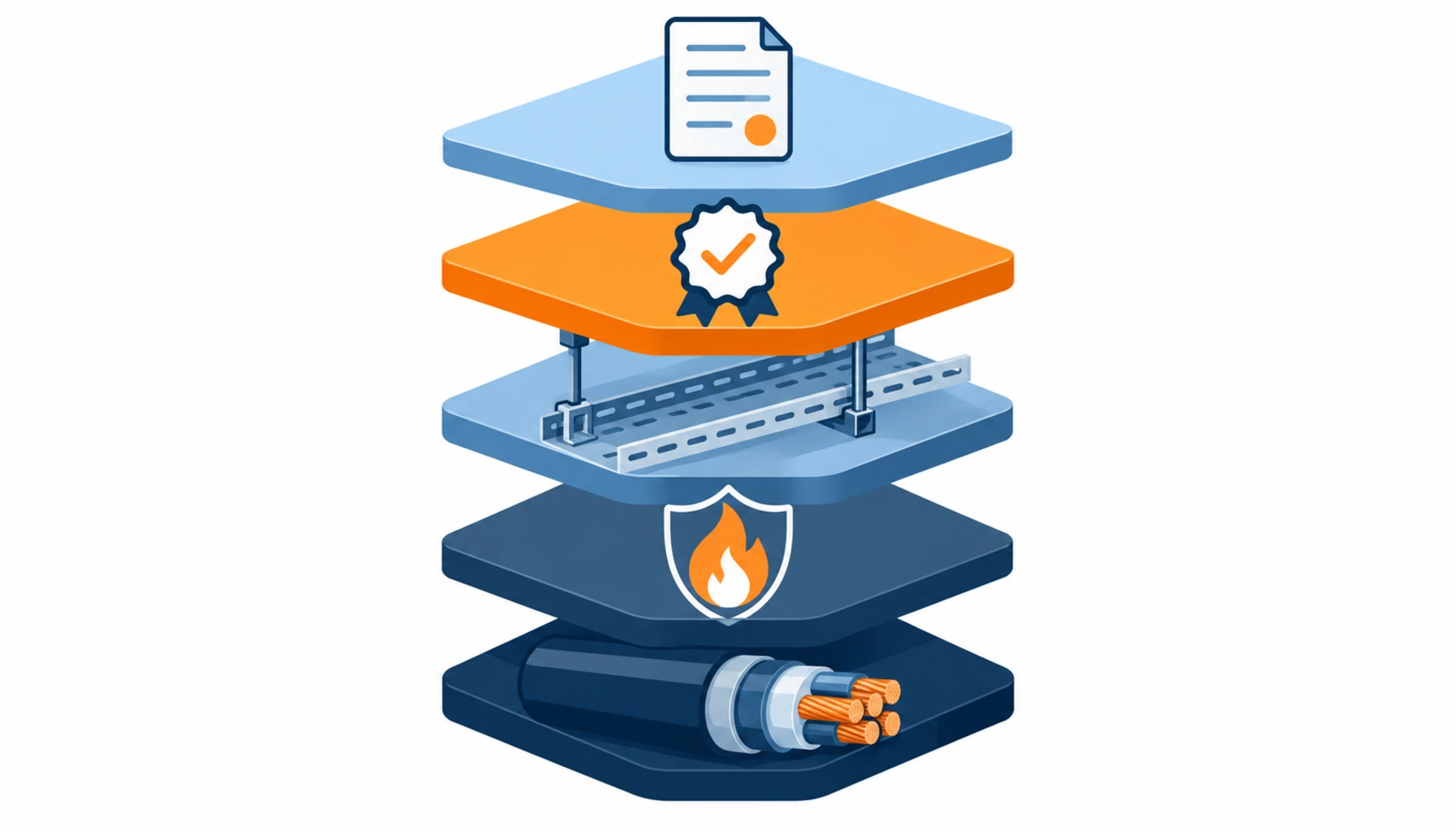

Five layers bind, and they bind at different moments. Confusing the order is what produces late changes.
The construction layer. Conductor class, insulation thickness, sheath, armour and the tests applied to the finished length. This is the layer that decides whether the cable is the thing you asked for. It is settled by the cable standard and its test methods, and it is verifiable from a type test report and routine test data before shipment.
The fire performance layer. Flame propagation, heat release, smoke density, acid gas evolution, and for some circuits the ability to keep working while burning. These are separate tests with separate certificates and they are not interchangeable. A cable that passes a flame propagation test has not thereby demonstrated circuit integrity, and a construction standard says very little about fire behaviour.
The installation and system layer. How the cable is installed, supported, derated, fire protected and separated from other services. This is where the building code, the wiring rules and the data center design document live, and it is the layer that most often overrides a decision made on routing convenience.
The market access layer. The certification a product must hold before it can be legally installed in a given country. A product can be constructionally correct and still unusable on a site because it lacks the mark a local authority accepts.
The owner and authority layer. The tier scheme, the client standard, the insurer’s condition and the inspector with jurisdiction. Not standards in the formal sense, but enforced with the same force on a site.
The Decision Table: Five Layers, and What Each One Changes in the Order
The table below maps the layers to the purchasing consequences. Read the last column first if you are under time pressure: it lists the point at which a mistake in that layer becomes expensive.
| Layer | What It Governs | What It Changes in the Order | Evidence to Demand | Where It Bites Late |
|---|---|---|---|---|
| Construction | Conductor class, insulation, sheath and armour, and the routine tests on each length | The cable designation and the test schedule; drives factory inspection and routine test records | Type test report against the named standard, routine test data per drum, material declarations | At receiving inspection, when the drum cannot be matched to the schedule |
| Fire performance | Flame propagation, heat release, smoke, acid gas and circuit integrity where required | Which cable family is permitted on which route, and whether a separate fire rated product is needed | Test certificates naming the test, the class and the sample construction, with the report date | At the fire inspection, or after a design change moves a circuit into a higher fire category |
| Installation and system | Support, spacing, derating, fire stopping, separation and earthing of the installation | Ratings you may claim, tray and support quantities, and firestop scope | Derating calculation, support design, firestop system approval and installation records | At load commissioning, when the installed rating is lower than the calculated one |
| Market access | Which certification mark the product must hold to be accepted on that site | Which factory can supply, and whether an additional retest or licence is on the critical path | Certificate with scope, issuing body, validity and the standard it was granted against | At customs or at site gate, when a certificate turns out to cover a different construction |
| Owner and authority | Tier scheme, client standard, insurer conditions and the requirements of the authority having jurisdiction | Documentation scope, witness points and sometimes equipment duplication | Approved submittals, witness records and the acceptance letter from the authority | At handover, when the tenant's standard is applied for the first time to what was built |
Where Each Layer Lands in the Purchase
Each layer converts into a specific clause or deliverable. A specification that ignores a layer does not remove it; it moves the discovery of that layer later in the programme.
Construction layer into the datasheet. The order should name the standard and the construction, not the marketing family, and a cable offered by trade name should come with the designation the standard uses. A mismatch found in the factory is a rework; the same mismatch found on site is a stopped delivery.
Fire layer into the route schedule. Fire requirements are applied to routes, not to cables in the abstract. The specification should carry a route schedule that states, for each route, the fire class required and the test that demonstrates it. Without that schedule the requirement migrates into a general note, and a general note cannot be priced. Our note on IEC 60332 categories sets out how the flame propagation classes differ, and the note on IEC 60754 and 61034 testing covers smoke and acid gas, which are separate obligations with separate certificates.
Installation layer into the rating basis. Every current rating in the order is conditional on installation assumptions. The specification has to declare them, because the installed rating is what the hall can carry, not the catalogue figure. Where a route runs through a hot plant room, shares a tray with other circuits or passes through a fire compartment, those conditions belong in the specification and in the calculation that follows it.
Market access layer into the supplier qualification. The certificate should be checked against the construction being bought, not against the supplier. A certificate covering a different conductor size, insulation compound or sheath is not evidence for the product on the order. Where a project spans two markets, the certification route is a schedule item, and it should be asked about at tender rather than at shipping. The certificate checklist in our note on power cable certifications is a reasonable starting point, and cable import certification by country sets out the position by market.
Owner layer into the submittal register. The client standard and the tier document usually arrive as a schedule of submittals and witness points. Those belong in the purchase order as deliverables with owners and dates, not as a general obligation to comply. The difference between an approved submittal and a repeated inspection is whether the clause named the document.
When Two Documents Conflict
Conflicts are normal on international projects, and the contract has to say which document wins before the conflict matters.
Test method conflicts. Two markets may require different tests for the same hazard, with different pass criteria and different sample constructions. Where a project needs both, the order has to state both and accept that the cable will be built to the more onerous one. Discovering this at tender is a cost; discovering it at the factory is a schedule problem.
Rating basis conflicts. A cable rated under one installation method may be unusable under another. Where the system standard and the manufacturer’s data disagree, the installed basis governs, and the difference belongs in a written derating calculation rather than a convenient number.
Fire requirement conflicts. A route may be subject to a building code category and a client category that are not equivalent. The higher requirement applies, and any equivalency has to be established by test evidence rather than by assertion.
Certification conflicts. A product may hold a mark the authority does not accept and lack the one they do. That is a scheduling problem rather than a technical one, resolved by asking the authority early, in writing, and keeping the answer in the submittal file. Our note on TIA-942 certification testing covers the equivalent position where the requirement comes from a scheme the client chose rather than from law.
What to Freeze Before the Order Goes Out
| Item | What to State | Evidence to Attach | Cost of Leaving It Open |
|---|---|---|---|
| Construction standard | The exact standard and construction designation for each cable type on the order | A schedule mapping each cable to its standard and designation | A cable that is close enough to argue about, at a point in the programme when arguing is expensive |
| Fire class per route | The fire class required on each route and the test that demonstrates it | A route schedule with fire categories marked | Upgrading a cable family after the design change, or a fire inspection that fails on a technicality |
| Circuit integrity requirement | Which circuits must keep working during a fire, and for how long | A list of circuits with the required duration and the test standard | Fire rated product bought for the whole installation, or bought for none of it and needed for some |
| Rating basis | Ambient, grouping, installation method and any burial or duct condition | A derating calculation referenced in the specification | Installed capacity below the design figure and a capacity plan built on the wrong number |
| Certification route | Which marks are required, for which market, against which standard | Certificates checked against the construction on the order | Product that cannot be released from customs or accepted at the site gate |
| Test witness points | Which tests are witnessed, by whom and at which stage | A test schedule with witnesses named and dates requested | A factory test that has to be repeated because the wrong party attended |
| Documentation set | The submittals, type test reports, routine data and declarations required at handover | A submittal register with owners and dates | A handover delayed by documents that exist but were never collected |
| Conflict rule | Which document governs when two applicable requirements differ | A written order of precedence in the specification | A dispute resolved after delivery, by whoever holds the strongest position rather than the best argument |
When a Standards Map Is Not the Answer
Where a standards list is doing the work of a specification. A specification that appends twenty standard numbers and no route schedule, rating basis or fire class per route is not compliant, it is incomplete. Standards tell a supplier what tests to run; they do not tell anyone which cable goes where.
Where certification is bought instead of verified. A certificate on a letterhead is not evidence that the delivered construction is covered by it. The scope paragraph is the part that matters and the part most often left unread, and checking it against the order before manufacture is the only point at which a discrepancy is cheap to fix.
Where the project has inherited a standard from the wrong market. Applying a European fire scheme to a North American installation, or the reverse, produces a document set that satisfies nobody. Where a campus is built to a client standard drawn from another region, the equivalency needs to be established by test evidence at the specification stage, not by negotiation at handover.
Where the only question asked was price. Standards compliance costs a modest premium in the cable and a larger amount in documentation, testing and witnessing. A comparison that ignores the second part rewards the supplier who intends to provide less of it, and documentation scope left vague is scope left unpriced and therefore cut.
Where the buyer assumes the authority will accept what the designer specified. For cables the assumption usually holds; for fire rated circuits, busway and DC equipment in newer architectures it does not. A short written question before the order has prevented more rework than any amount of post-award correspondence. Our note on data center cable selection describes how these layers land on the routes inside a hall.
RFQ Checklist
- Construction standard named per cable type, with the designation a supplier can quote against
- Fire class stated per route, with the test that demonstrates it
- Circuit integrity requirement listed by circuit, with duration
- Rating basis declared: ambient, grouping, installation method, burial or duct condition
- Derating calculation attached and referenced in the specification
- Certification marks required, mapped to market and to the standard they are granted against
- Certificate scope checked against the construction on the order, before manufacture
- Test witness points named, with the witnessing party and stage
- Submittal register issued with owners and dates, not as a general obligation
- Documentation set listed: type tests, routine data, declarations, installation instructions
- Order of precedence written for conflicts between system, client and authority requirements
- Authority question asked in writing where a requirement is new or unfamiliar, with the answer filed
Conclusion
Standards are the part of a power purchase that buyers most often treat as settled before they start. In practice they are the part that determines whether the rest of the order can be verified, because every claim a supplier makes is ultimately a claim about a document. A map of the layers turns that into a checklist: construction, fire, installation, market access and owner requirements, each with a deliverable attached.
