LSZH Cable Requirements for Data Centers: What Specifiers Miss

Quick Answer: LSZH cable in a data center must pass three separate tests — IEC 60332 flame spread, IEC 60754 halogen content and IEC 61034 smoke density — and getting only one of them right still leaves the specification exposed.

Introduction

The case for halogen-free cable in an enclosed computing space is physical, not fashionable. A power cable fault releases enormous energy in seconds; if the jacket burns, the combustion products decide what happens to the rest of the hall. PVC releases dense black smoke and hydrogen chloride gas, which combines with moisture to form hydrochloric acid — corrosive to server contacts, connectors and steel structures far beyond the room where the fire started. LSZH compounds are formulated to burn with light smoke and to release essentially no halogen acid gas, protecting both evacuation routes and the equipment that survives the event.

That logic is now written into most consultant specifications for data centers, and the market context reinforces it: as the growth in data center power demand pushes new halls into dense urban and tropical sites, authorities increasingly apply the same life-safety expectations used in tunnels, airports and high-rise buildings. Reputable manufacturers such as Kexingyu Cable Group (KXYE) have responded by making WDZ-YJY — the Chinese-designated LSZH power cable — a standard catalogue item rather than a special order.

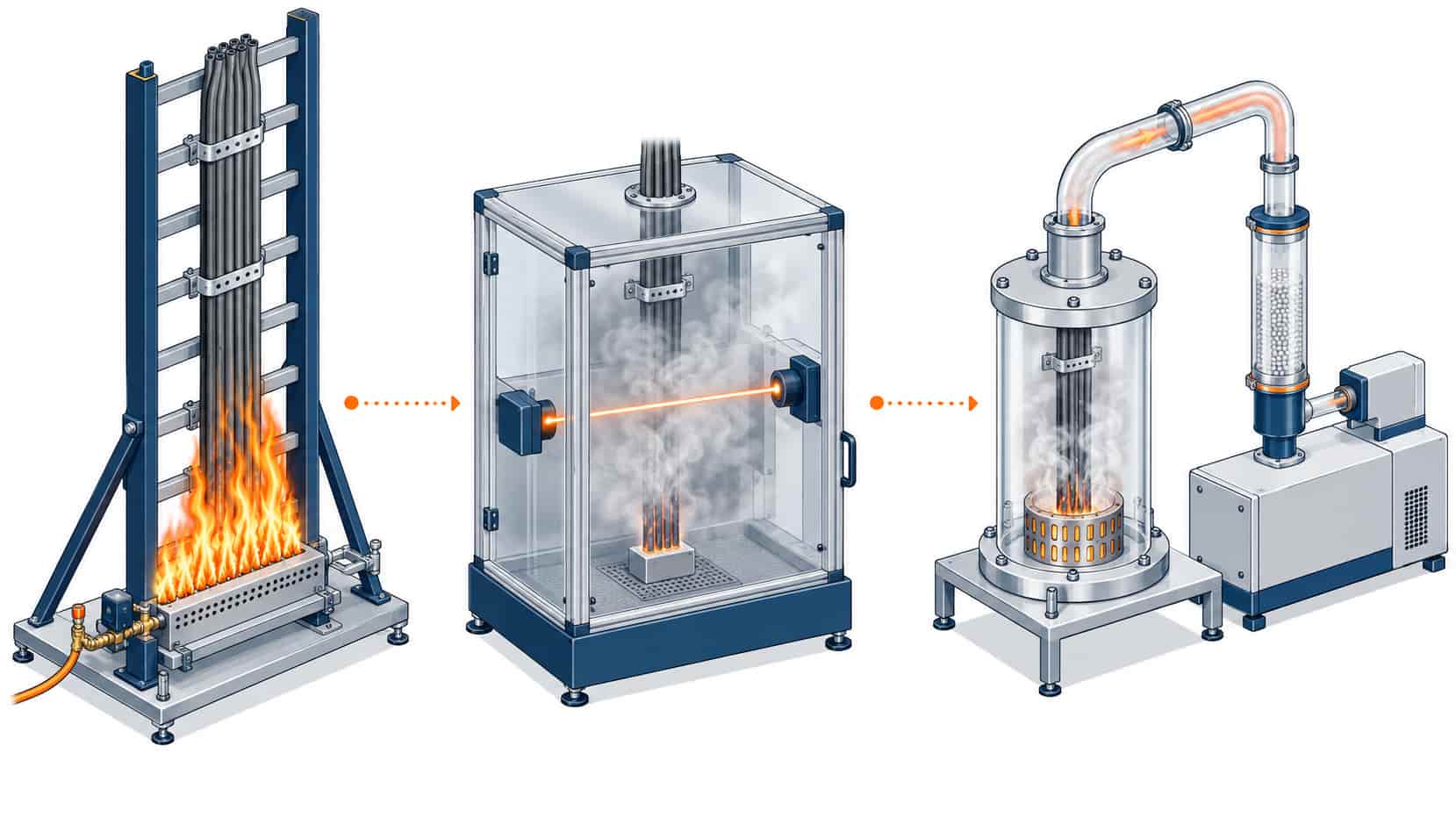

The Three Tests Behind Every Genuine LSZH Claim

The term LSZH is not a single certificate. It compresses three independent test regimes, each with its own apparatus, sample conditioning and pass criteria, and a cable is only as strong as the weakest of the three. The first is flame spread under IEC 60332, which for data centers almost always means the bundled vertical category IEC 60332-3: a ladder of cables is burned under a controlled flame and the spread of char along the bundle must stay within limits. The category letter matters — Category A uses 7 litres of propane per minute on a denser bundle, Category B 5 litres, Category C 1.5 litres — and specifying “IEC 60332-3 compliant” without the letter invites the supplier to quote the cheapest category they hold.

The second regime is halogen content under IEC 60754. Part 1 measures the total hydrochloric acid evolved during combustion; the halogen-free threshold most specifications use is below 0.5 percent by weight, and many consultants now tighten this with IEC 60754-2, which additionally caps corrosivity by measuring pH and conductivity of the gas evolved. The third regime is smoke density under IEC 61034: cables burn in a closed three-metre chamber while a photometer measures light transmission through the smoke, and the transmittance must stay above 60 percent. A cable can pass flame spread beautifully and still fill a corridor with opaque smoke; only the full trio defines LSZH performance.

The Specification Gaps That Cost Projects

The most common gap is the one we see on nearly every troubled order: the buyer wrote “LSZH cable” in the general clause but never named the flame spread category, so the offer came back against Category C while the design assumed Category B. The second is confusing flame retardant with fire resistant — a topic we treat at length in the difference between LSZH and fire retardant cable. A flame retardant LSZH cable will not feed a fire; a fire resistant cable will keep conducting during one, and the life-safety circuits need the latter on top of the former.

The third gap is insulation versus sheath. LSZH appears on the outer jacket, but the insulation compound inside the cable matters just as much for the fire case, and cross-linked polyethylene — the workhorse insulation explained in our guide to XLPE insulation — is not halogen-free by itself. On WDZ-YJY both layers are halogen-free compounds; on some imported or mixed offers, a low-smoke sheath is wrapped around ordinary XLPE and the whole assembly is sold as LSZH. The remedy is contractual: the purchase order should name both the insulation and the sheath compound as halogen-free, with test reports for each.

The fourth gap is mechanical reality. Early halogen-free compounds were stiffer and less abrasion-resistant than PVC, which produced job-site failures during pulling — and some buyers reacted by quietly accepting PVC substitutes. Modern LSZH compounds have closed most of that gap, but it remains fair engineering to review pulling tensions, bend radii and tray friction for large feeders, and to match the compound to the installation method rather than assuming one size fits all.

Reading the Categories: ZA, ZB, ZC and GB 31247

Chinese designations add a second layer of naming that international buyers should learn to read, because most export projects source from Chinese factories. The letters ZR traditionally mean flame retardant, and the refined classes ZA, ZB and ZC correspond to progressively stricter bundled burning performance — ZA aligning with the most demanding IEC 60332-3 Category A conditions. WDZ therefore reads as low smoke plus halogen-free, and WDZ-YJY means exactly that construction over a XLPE-insulated, XLPE-or-LSZH-sheathed cable. The national standard GB 31247 goes further and grades burning behavior of cables as B1 or B2 classes with additional smoke, toxicity and droplet sub-indices; a B1(d0,s1,t0) rating is the closest thing the Chinese system offers to a holistic fire grade, and it is increasingly cited in Chinese-funded data center projects overseas.

For buyers who must satisfy both an IEC-based consultant specification and a Chinese-funded EPC, the practical answer is to ask the factory to declare both frameworks explicitly. A capable manufacturer will hold type test reports covering IEC 60332-3 Category B or A, IEC 60754-1 and -2, IEC 61034-2, and GB 31247 where relevant — four separate regimes, four separate reports. Where verification needs go deeper than paper, third-party inspection and witness testing fit naturally into the quality plan, and our checklist on auditing a Chinese power cable manufacturer lists the documents to request.

LSZH Test Standard Matrix: What to Write Into the Specification
Test Regime	What It Measures	Typical Benchmark for Data Centers	Specification Wording to Demand
IEC 60332-3	Flame spread on a bundled vertical cable ladder	Category B on power feeders; Category C acceptable on small wiring where the consultant agrees	Name the category letter explicitly, with the test report number on file
IEC 60754-1 / -2	Halogen acid gas evolved during combustion; corrosivity by pH and conductivity	Below 0.5 percent HCl equivalent; pH above 4.3, conductivity under 10 microsiemens per IEC 60754-2	Both parts cited; halogen-free claimed for insulation and sheath compounds separately
IEC 61034-1 / -2	Smoke density in a closed three-metre chamber	Minimum light transmittance above 60 percent	Part 2 procedure cited for cables; report per construction, not per compound family
GB 31247	Overall burning behavior grade used in Chinese projects	B1 class with d0, s1, t0 sub-indices where the EPC demands it	Grade and sub-indices named; certificate issued by an accredited body
Fire resistance (separate regime)	Ability to keep conducting during fire, per BS 6387 or GB/T 19216	Required only on life-safety circuits, in addition to LSZH	State circuit-by-circuit; do not fold into the general LSZH clause

Where LSZH Belongs — and What Each Zone Needs

Paper first: a genuine LSZH offer arrives with type test reports from an accredited laboratory, one per construction, each naming the exact standard edition and category. Batch-level routine tests then confirm conductor resistance and voltage withstand on the drums you actually receive, and the mill test trail ties each drum to a production date and compound batch. Buyers who accept a single glossy “LSZH certificate” covering an entire product family are accepting the weakest construction in that family as the guarantee for every drum on site.

Physical spot checks close the loop. Flame and smoke behavior cannot be judged by eye, but compound substitution often can: a suspiciously light drum weight on a copper-quoted order suggests conductor substitution, and jacket markings can be cross-checked against the purchase order — genuine factory cable carries the manufacturer name, standard, voltage class and year printed or embossed along the sheath at regular intervals. Where the project scale justifies it, witnessed testing at the factory before shipment converts trust into evidence, and the framework for that evidence chain mirrors what we recommend for factory acceptance versus site acceptance testing on the equipment side.

LSZH Requirement by Data Center Zone
Zone	LSZH Requirement	Engineering Notes
Data halls and rack aisles	Full LSZH, IEC 60332-3 Cat B minimum	Power feeders and structured cabling jackets both halogen-free; highest density of combustible jacket material
Technical corridors and risers	Full LSZH, Category B	Evacuation routes; smoke transmittance matters as much as flame spread here
UPS and battery rooms	Full LSZH on AC and DC cabling	Fine-stranded battery cables in halogen-free construction; grouping derating reviewed separately
Fire pump and life-safety circuits	Fire resistant plus LSZH where sheathed runs pass through occupied areas	Mineral insulated products carry the fire survival duty; LSZH covers the general wiring around them
Outdoor routes and campus ducts	PVC or PE sheath generally acceptable and more robust	UV, moisture and rodent resistance dominate; smoke behavior irrelevant in open air
Generator yard and plant rooms with open ventilation	Compromise allowed by most codes	Mechanical robustness and oil resistance may justify non-LSZH sheaths; confirm with the AHJ

Verifying the Claim: From Certificates to Drums

When Full LSZH Specification Is Not the Answer

The first honest exception is the outdoor and buried plant. A cable tray crossing a campus between buildings gains nothing from halogen-free chemistry and loses rodent, moisture and abrasion resistance that polyethylene delivers better and cheaper. Writing LSZH into those routes wastes budget that the indoor specification actually needs.

The second exception is mechanical duty in plant rooms. Oil-resistant, tough-sheathed cables around generators and fuel systems may reasonably stay on elastomer compounds with better chemical performance; codes in most jurisdictions accept this where ventilation dilutes any smoke event. The third is retrofit economics: replacing serviceable PVC cable in an existing hall purely to modernize the compound creates downtime without a life-safety gain the authority can enforce. The discipline is the same as everywhere else in cable engineering — apply the requirement where the failure scenario exists, and spend the remainder of the budget on verification.

RFQ Checklist: Ordering LSZH Cable for a Data Center

Send the supplier these items and the quote you receive will be comparable line by line:

Cable schedule listing each construction, voltage class and cross-section
Flame spread category per route: IEC 60332-3 Category A, B or C, stated explicitly
Halogen requirements: IEC 60754-1 below 0.5 percent, IEC 60754-2 pH and conductivity limits, applied to insulation and sheath separately
Smoke requirement: IEC 61034-2 with 60 percent minimum transmittance
GB 31247 grade where a Chinese EPC or Chinese-funded project requires it
Sheath color, printing text and drum lengths per route
Type test report copies per construction, with laboratory accreditation named
Batch routine test certificates accompanying each drum at shipment
Destination market, applicable code edition and any third-party inspection scope
Pricing basis: copper price linkage or fixed metal basis, with validity across the delivery window

That last line is not decoration. Compound-grade LSZH production lines run at different speeds than PVC lines, and project-scale LSZH orders lock factory capacity for weeks; a quote that goes stale while the metal market moves serves nobody. Kexingyu Cable Group (KXYE) quotes WDZ-YJY and the full fire-performance range against a copper price linkage, so the commercial basis survives the schedule.

Conclusion

LSZH in a data center is a trio of tests, not a label: flame spread category, halogen content and smoke density, each named in the specification and each evidenced by a report. The specifier’s job is to close the gaps this guide lists — category letters unnamed, insulation confused with sheath, fire resistance folded into the wrong clause — before they become site findings.

Work with a manufacturer that treats these as separate, documented regimes. Kexingyu Cable Group (KXYE) produces WDZ-YJY, WDZN-YJY, BTTZ, BBTRZ and NG-A (BTLY) under one quality system, with type test reports per construction and copper price linkage on project-scale orders. Send the cable schedule and the applicable code edition, and we will return an offer with every requirement mapped to a test report.

01What does LSZH stand for in data center cabling?+

Low smoke zero halogen. It describes compound chemistry â the insulation and sheath burn with limited smoke and release little or no halogen acid gas â and it is verified by three separate test regimes: IEC 60332 for flame spread, IEC 60754 for halogen content and IEC 61034 for smoke density. A cable must pass all three to carry the claim credibly.

02Which IEC standards should a data center LSZH specification cite?+

Cite IEC 60332-3 with an explicit category letter â Category B is the usual floor for power feeders in halls â plus IEC 60754-1 below 0.5 percent halogen content, IEC 60754-2 for corrosivity, and IEC 61034-2 with a minimum 60 percent light transmittance. Where a Chinese EPC governs, add GB 31247 with the B1 grade and its sub-indices.

03Is WDZ-YJY cable the same as LSZH?+

Yes â WDZ-YJY is the Chinese designation for a low smoke halogen-free cable with XLPE insulation and a halogen-free sheath. The W stands for low smoke, DZ for halogen-free, YJ for cross-linked polyethylene insulation and Y for the outer sheath. Buyers should still confirm which ZR class and test reports apply, since the designation alone does not fix a flame spread category.

04Does LSZH cable also provide fire resistance?+

No. Flame retardant and fire resistant are different duties. An LSZH cable limits how much a fire spreads and how much smoke and acid gas it produces; a fire resistant cable keeps conducting while exposed to flame, which life-safety circuits require. Those circuits need mineral insulated or mica-taped fire resistant constructions tested to BS 6387 or GB/T 19216, on top of any LSZH sheath requirement.

05Why is LSZH cable more expensive, and is the premium worth it?+

The compounds cost more and run slower on the production line, and each construction carries separate type test costs. The premium buys protection for exactly the scenario a data center fears: a cable fault in an enclosed, densely populated hall. Corrosive halogen gas damages electronics far beyond the fault point, so a single avoided incident repays the compound premium across the room many times over.

06How do I verify LSZH claims before the drums ship?+

Request type test reports per construction from an accredited laboratory, each naming the exact standard edition and category â flame spread, halogen content and smoke density as separate reports. Confirm batch routine test certificates will accompany every drum, check sheath printing against the purchase order on delivery, and consider witnessed testing at the factory for project-scale orders.
