800V DC Adoption: When It Is Not the Answer, and What to Buy Instead
Quick Answer: The case for moving data center distribution to 800V DC is real, and it applies to a smaller share of buildings than the coverage suggests. Industry tracking through MIR puts AC UPS at more than 80 percent of installed data center power well into the second half of this decade. If your racks run under about 100 kW, if the site energizes before DC protective devices can actually be delivered, or if nobody on the project can run a protection coordination study, AC is still the better purchase. The skill is in buying AC in a way that does not have to be undone later.
Every technology shift produces two kinds of bad purchase. One is buying too late and discovering that the platform you standardized on cannot be extended. The other is buying the destination architecture years before it can be delivered, and paying for capability that sits idle while the equipment it needs does not exist. The 800V question is unusual because both mistakes are on the table at the same time.
Introduction
The architectural argument is well established. Higher rack density pushed 54V current past what copper can carry in the space available, the conversion chain from AC to 12V to the chip wastes energy at every stage, and a single DC distribution voltage removes several of those stages. NVIDIA’s published roadmap puts rack-level DC at 660 kW in 2026, cluster-level at 2 MW in 2027, and room-level solid state transformation around 2029, and the first commercial DC halls are already running. The direction of travel is not in dispute. What is in dispute is the timing, and timing is a purchasing question rather than an engineering one: a designer can specify a destination architecture in an afternoon, while a buyer has to answer which equipment exists today at a quotable price, what the lead time is on the parts that do not, and what happens to the money already spent on AC equipment in the room. That is the half of the decision this article covers, and the full roadmap is set out in our pillar piece on procuring 800V DC data center power.
Why the AC Installed Base Is Not Moving On Schedule
The transition is not blocked by reluctance. It is blocked by arithmetic. Three constraints keep an individual building on alternating current long after the industry has agreed on where it is going.
The density trigger has not been reached. DC distribution pays for itself through current reduction, and current reduction only matters when current has become the binding constraint. Below roughly 100 kW per rack, a 415V AC feed with conventional rack power supplies is a mature, multi-source, short-lead-time purchase. Moving to DC at that density buys a harder protection problem in exchange for a copper saving that the project does not need. The AC architecture and where it runs out of room is covered in our note on 415V data center distribution.
The protective devices are the long pole, not the cable. Busway, cable and enclosures for a DC hall can be manufactured on normal cycles. DC-rated branch devices at 800V are a narrower supply base and a longer lead time, and the switchgear feeding them is already constrained in 2026 for reasons that have nothing to do with DC. A facility that must energize in nine months is not really choosing between two architectures. It is choosing between one it can buy and one it cannot. The supply position is tracked in our note on the data center switchgear and transformer shortage.
Most sites cannot yet buy the engineering. A DC hall needs a protection coordination study, an insulation monitoring scheme with defined alarm response, and staff who can work safely on an unearthed DC system. Those are capability purchases, not equipment purchases, and they often lag the hardware by a full project cycle. A facility that buys DC distribution without that capability has bought a system it cannot operate.
The counterweight is on the demand side: power demand is climbing fast enough that the constraint arrives on its own, as our note on data center power demand growth sets out. The question is not whether a hall will eventually need DC distribution, but whether it needs it in this procurement cycle.

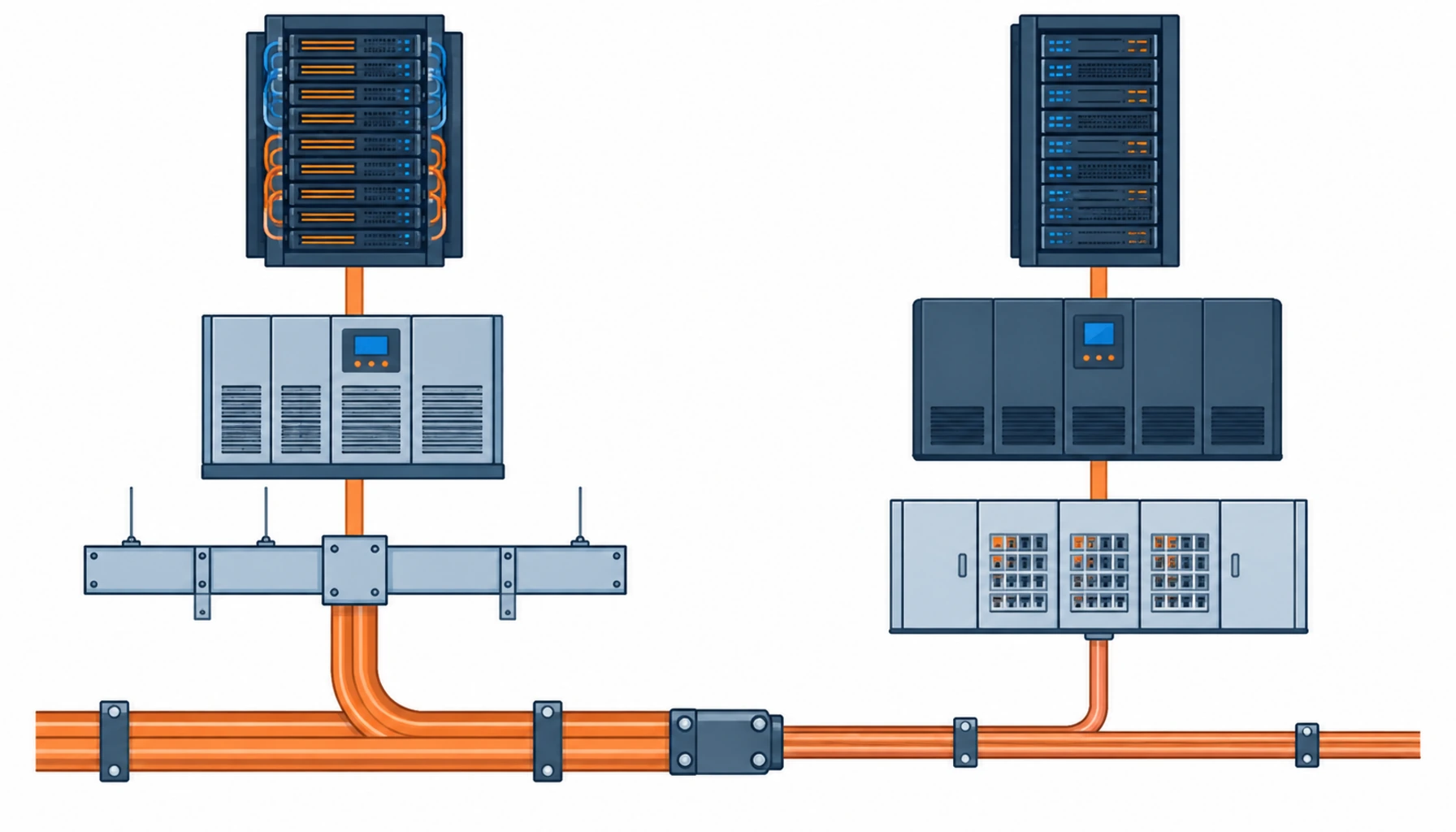

The Decision Table: Matching the Architecture to the Build
The table below is organized by the situation a buyer is actually in rather than by technology generation. The last two columns are the ones that decide the budget: what is worth specifying today, and what it costs to have specified it.
| Build Situation | Density and Timing | What to Buy Today | What to Specify Ahead | Why DC Is Premature Here |
|---|---|---|---|---|
| Enterprise or colocation hall | Under 20 kW per rack, in service or energizing this year | Conventional AC UPS and AC distribution, standard catalogue items | Conduit, tray and riser capacity sized for a later DC run | Current levels never reach the point where DC protection earns its cost |
| AI hall at moderate density | 40 to 100 kW per rack, energizing within twelve months | AC UPS on a modular platform, plus DC-rated cable and busway at the AC voltage class | Busway and cable rated at 800V while energized at the AC design voltage | DC branch devices cannot be delivered inside the programme, and AC is still multi-source |
| New AI hall at high density | 130 kW per rack and above, breaking ground now | Rectifiers and DC busway for the first phase, with AC UPS kept for non-AI loads | Protection coordination study commissioned with the equipment, not after it | Not premature at all — this is the case the roadmap was written for |
| Mixed rack population | Legacy racks alongside new dense racks, phased over several years | Two distribution paths: AC for the legacy rows, DC for the new ones | The fault level and discrimination target at the boundary between the two paths | A single wholesale move strands the legacy equipment and forces an early retrofit |
| Site with no DC supply route | Any density, energizing before DC devices can be quoted | AC distribution, rated at the DC voltage class, with the DC migration deferred | Insulation level, conductor size and joint design chosen for the DC voltage now | Buying hardware that cannot be delivered converts a phase into a delay |
What Waiting Actually Costs, and What It Does Not
The common justification for buying DC early is that the retrofit will be expensive. That is partly true, and it is worth separating the parts that are genuinely expensive from the parts that are not.
What is expensive is changing the distribution voltage after the fact. Insulation thickness, joint design, protective device selection and support spacing all follow from the voltage class, and once busway has been extruded or cable has been cut to length, none of them can be revised cheaply. This is why the recommendation in every row of the table above is to rate the distribution layer ahead even when it is energized at a lower voltage. Rating ahead costs a modest premium on the conductor and the enclosure. Replacing the layer costs the whole installation a second time, plus the downtime and the recommissioning.
What is not expensive is deferring the equipment that depends on the destination architecture. Rack-level conversion, DC branch devices and solid state transformation are evolving categories with narrow supply bases and prices that reflect it. Buying them early means buying a first generation at first-generation prices and holding the warranty risk while the product line changes. The solid state transformer market is the clearest case: about USD 169 million worldwide in 2024 against a forecast near USD 936 million by 2030, a size that supports very few qualified suppliers today.
So the split is straightforward. Pay early for the passive parts, which are cheap to oversize and impossible to change later. Pay late for the active parts, which are expensive now and easy to swap once the market matures.
Three Rules That Hold Whichever Architecture You Choose
Name the destination voltage in the specification, not in a meeting note. If the enquiry does not state that the distribution layer must be rated for 800V while being energized at the present voltage, you will receive offers built on two incompatible assumptions, and the cheaper one will win the comparison. The requirement has to be visible to whoever prices the job.
Buy the study with the equipment. Protection coordination and insulation monitoring schemes are engineering deliverables, and they have to be contracted at the same time as the hardware rather than commissioned afterwards. A coordination study run after the equipment is fixed in place is a report explaining why the installation cannot achieve selectivity, which is a worse outcome than paying for the study upfront.
Separate the converter purchase from the distribution purchase. These two have completely different maturity curves. Distribution hardware is conventional work for a cable and switchgear supplier, and it should be bought on normal commercial terms with normal lead times. Rectifiers, DC-DC converters and solid state transformers are a different supply market, and combining them into one enquiry hides that difference and usually delays the whole package.
A site that stays on AC can still cut the copper it buys by sizing the distribution properly, grouping loads realistically rather than on nameplate, and using aluminium where the application allows. Those savings do not depend on a roadmap.
What to Specify Anyway, Even If You Buy AC Today
Every item below is a place where an enquiry that says nothing will receive a standard AC product, and where the same enquiry with one extra sentence keeps the later DC change at rack level instead of distribution level.
| Specification Item | What to State Today | Evidence to Demand | Cost of Leaving It Open |
|---|---|---|---|
| Insulation voltage class | The destination DC voltage the layer must be rated for, alongside the voltage in use now | Type test report at the stated voltage class | The whole distribution layer replaced rather than extended |
| Conductor cross section | Section sized for the destination current, not only the present load | Sizing calculation stating both current cases | Re-pulling cable or adding a parallel run during the migration |
| Joint and termination design | The termination and joint type, and whether it is rated for the DC voltage class | Termination qualification data, not a general certificate | Joints that cannot be reused, cut back and remade on every affected circuit |
| Neutral and earthing arrangement | How the system is earthed today, and the arrangement the DC phase will use | Scheme drawing for both states | An earthing design redone at the worst possible time, with the hall live |
| Fault level and time constant | The prospective fault current, and the circuit time constant the future DC devices must break at | Study covering both the AC and the future DC case | Devices ordered later that cannot be verified against the installation |
| Conduit, tray and riser capacity | Spare fill and routes reserved for the DC feeders, in the structural design | Layout drawing showing reserved capacity | Civil and structural works repeated inside an operating hall |
| Space allocation | Footprint and clearances reserved for rectifiers and DC distribution equipment | Outline drawing and access statement | Equipment that fits the electrical room on paper and not in practice |
| Documentation set | As-built drawings, settings schedules and test records handed over in editable form | Deliverable list written into the purchase order | The next phase designed from a PDF set that nobody can revise |
When 800V DC Is the Answer
The filter runs in both directions. DC distribution is the right purchase when three conditions hold at once.
Density has to be high enough that the current reduction changes what you can physically install: at 130 kW per rack and above, the difference between a conductor sized for 54V and one sized for 800V is the difference between a buildable hall and one that runs out of cable path. Our note on ±400V against 800V DC architecture works through which voltage class suits which stage of that build-out.
The supply chain has to be able to deliver inside the programme. That is a lead-time question with a specific answer for each item, and the answer today is that switchgear and transformers are the constraint, not the cable. Our 2026 switchgear lead time guide covers the position, and it is the reason the second row of the decision table above keeps a moderate-density hall on AC.
And the operating capability has to exist. DC distribution fails silently on a single ground fault by design, which means the installation only performs as intended if someone is watching the insulation monitoring and knows what to do when it alarms. A site without that role filled is not ready for the architecture, regardless of how dense its racks are.
Conclusion
800V DC adoption is a timetable question dressed up as a technology question. The architecture is settled, the first halls are running, and the roadmap has dates attached. What is not settled is which buildings should act on it this year, and the answer is fewer than the coverage implies. Under about 100 kW per rack the current levels do not justify the harder protection problem, and a site that must energize before DC branch devices can be delivered is not choosing between architectures at all.
The purchase that works in both cases is the same one. Rate the passive layer ahead — insulation class, conductor section, terminations, earthing arrangement, reserved capacity in the structure — and defer the active layer until the market can supply it on normal commercial terms. Kexingyu Cable Group (KXYE) supplies the distribution side of that scope: low voltage distribution cabinets including the GGD power distribution cabinet and the KYN28 medium voltage switchgear, along with the cable ranges used across these halls — WDZ-YJY, WDZN-YJY, BTTZ, BBTRZ, NG-A (BTLY), KVV and YJV — from a single factory group, with copper price linkage available on project-scale orders. Send your rack power target, the voltage you intend to energize at and the voltage you want the layer rated for, and we will return a schedule that works for both; the fastest route is a request for quotation.
