EMC on Moving Machines: Grounding Shields That Never Stop Moving
Quick Answer: A shield that is perfectly grounded on installation can be electrically invisible after a million flex cycles; EMC on moving cable means low-impedance both-end grounding that survives motion, not just a clamp that was tight on day one.
Static EMC practice is well documented: bond shields at both ends, keep the impedance low, separate the noisy from the quiet. Moving machines break every assumption behind that advice. The shield is not a fixed conductor; it bends, twists and rubs its way through millions of cycles. Its contact resistance at every clamp and gland is a moving target, and the interference sources, servo drives switching hundreds of amperes at nanosecond edges, sit inside the very loops the shield is asked to contain. Machines where the cable was compliant on commissioning day and noisy six months later are not mysterious; they are the predictable result of grounding designed for a static world. This guide covers what motion does to shield integrity, how to terminate moving shields so the low impedance survives, and how the EMC architecture of a moving machine differs from a cabinet.
Introduction
The drives on a modern machine are the most aggressive interference sources in the factory: pulse-width modulation at kilohertz rates with rise times measured in nanoseconds, dv/dt that turns every cable into a transmission line problem, and common-mode currents looking for any path back to the drive. The shield is the designed path. When the shield impedance stays low, the interference returns to its source instead of radiating into encoders, sensors and the rest of the plant. When the shield impedance rises, through a loose gland, a cracked braid or a corroded clamp, the same machine produces faults that look like software problems: encoder glitches at speed, position errors near full torque, communication dropouts that no firmware update fixes.
The motion adds a failure mechanism the static world never sees: the shield itself fatigues. A braid flexed a million times work-hardens and breaks strand by strand; a clamp that gripped cleanly on installation slowly loosens as the cable’s flexing works the connection; a gland whose strain relief carries shield current in the bend zone sees its contact degrade. EMC on moving cable is therefore a maintenance subject as much as a design subject, and the design part has rules of its own.

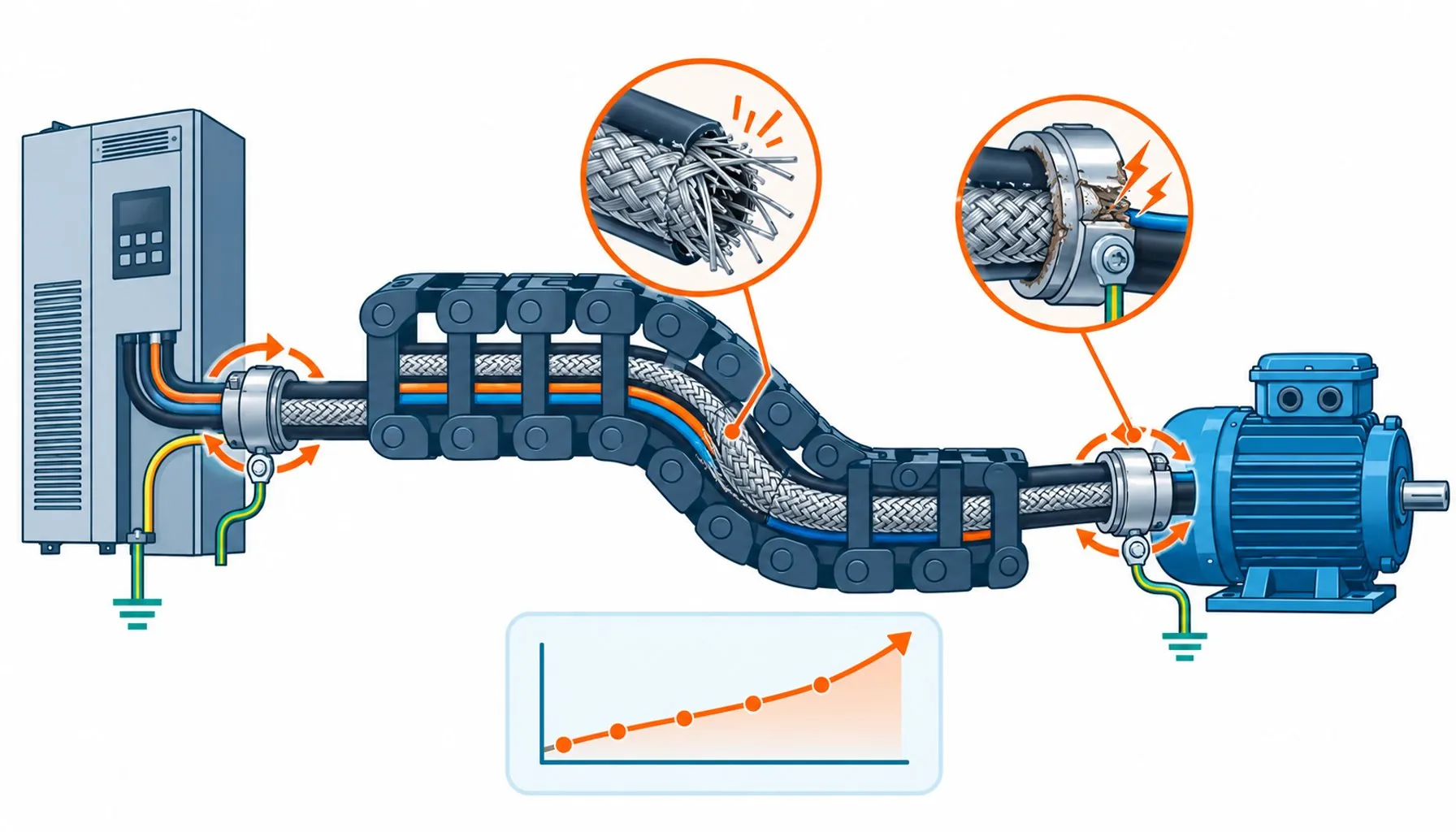

What Motion Does to Shield Integrity
Three degradations run in parallel. Braid fatigue is the slow one: flex cycling breaks individual braid wires, and the shield’s coverage and conductivity fall gradually; a cable can look perfect while its screen has lost a third of its metallic cross-section. Contact degradation is the sneakier one: at each end, the shield-to-termination path is a mechanical joint, and mechanical joints under vibration and flexing loosen, oxidize and drift upward in resistance. A shield end that measured milliohms on installation can measure ohms within a year, and ohms at a shield end is an antenna, not a ground. Geometry change is the third: bending and twisting alter the shield’s coverage over the cores, opening and closing gaps that leak at high frequency even when the metal is intact.
The consequence for machine EMC is that the shield system needs its own lifecycle plan: termination methods that tolerate motion, materials that flex without fatigue, and verification that is repeated, because day-one measurements say nothing about month-twelve reality.
Terminating Moving Shields: The Methods That Survive
The termination is where most moving-machine EMC is won or lost, and the hierarchy is clear. Integral shield terminations, where the cable enters a gland or connector that clamps the braid 360 degrees around its circumference, preserve the coaxial geometry that keeps high-frequency impedance low; they are the standard for servo and encoder cable. Pigtail terminations, where the braid is gathered into a wire and screwed to a terminal, work electrically at low frequency but turn the pigtail into an impedance spike at switching frequencies; on moving cable they add the further sin of concentrating all the flex stress at the pigtail joint. Backshell connectors with proper shield clamps bring the 360-degree principle to the connector end. Compression glands with EMC inserts do the same at cabinet entries.
Whichever method is used, the mechanical principle is the same: the shield’s electrical connection must not be the cable’s flex point. Strain relief takes the bending; the clamp takes the current; the two functions meet but do not overlap. Terminations that ask one joint to carry both load and current fail predictably, and the failure is electrical long before it is mechanical. The comparison below ranks the methods a machine builder chooses among, with the honest scope of each.
| Measurement | Method | What good looks like | What drift indicates |
|---|---|---|---|
| Shield end-to-end resistance | Four-wire measurement, machine at multiple positions | Low and stable across positions and over time | Braid fatigue or a loosening termination; trend the number per axis |
| Shield-to-termination contact | Measure from braid clamp to ground bar at each end | Milliohm class, unchanged at service intervals | Oxidation or loosening at the clamp; the classic silent EMC failure |
| Encoder signal noise floor | Drive diagnostics or oscilloscope at speed | Stable across the motion range | Noise rising near specific positions; look for a bend zone or a rubbed section |
| Position error correlation | Map faults against machine position and cycle count | No correlation | Position-correlated faults point at the harness segment at that position |
| Gland and clamp inspection | Visual and torque check at service intervals | Tight, clean, no braid protrusion damage | Flexing working the joint; re-terminate before it becomes a fault |
| Separator and routing check | Open the carrier at inspection; verify separations held | Power and signal still separated, no rubbing marks | Bundle migration; restore dividers before shields are the least of the problems |
Both Ends, Low Impedance, Always Moving
Static practice sometimes allows single-end grounding to break ground loops; moving machine drives rarely earn that luxury, because the common-mode currents from the drive need the return path the shield provides at the motor end. The disciplined rule for servo and encoder cabling is both ends bonded with low impedance, with the drive-side and motor-side geometry handled by the grounding system rather than by floating the shield. Where genuine ground loops appear, they are solved in the power system, not by weakening the shield path that protects the feedback signal the machine depends on.
The cabinet-side context matters here, and the grounding architecture inside drives and control panels, including the single-point and mesh debates, is treated in depth in the guide to control cabinet construction, of which the moving cable rules are the extension into the flexible part of the machine. The drive-side interference sources themselves, and why variable speed equipment dominates the EMC conversation, are backgrounded in the comparison of drives and soft starters.
Design and Verification: Making EMC Survive the Lifecycle
The design rules for moving-machine EMC fit in one paragraph. Choose cable whose shield is engineered for flexing: dense braid, often with a foil companion for coverage, on a construction tested in chains with shield continuity monitored through the test. Terminate 360 degrees at both ends with strain relief separated from the current path. Separate power and signal runs inside the carrier, cross at right angles where crossing is unavoidable. Keep the shield continuous across the whole path, including through connectors that carry shield between segments. And plan verification as a repeating event, not a commissioning milestone.
Verification on a moving machine has specifics worth naming, and the table below condenses them into a maintenance-grade procedure. The theme is trending: absolute values matter less than whether shield resistance and noise floors drift, because drift is what motion produces and what a single commissioning measurement cannot see.
| Method | High-frequency performance | Survival under flexing | Honest scope |
|---|---|---|---|
| 360-degree EMC gland at cabinet entry | Excellent, preserves coaxial geometry | Good when strain relief is separate | The default for drive-side cable entries |
| Connector backshell with shield clamp | Excellent through the connector | Good with matched strain relief | Motor and sensor ends where the harness plugs in |
| Compression gland gripping the jacket, braid folded back | Moderate, depends on contact area | Moderate | Acceptable for lower-frequency signals only; verify contact, not hope |
| Pigtail to terminal | Poor at switching frequencies | Poor, concentrates flex stress | Static cable and low-frequency instrument runs; not motion servo duty |
| Shield continued through connector to next segment | Excellent when clamped 360 degrees both sides | Good | Multi-segment harnesses; a broken shield path here is invisible from either end alone |
When the EMC Rules Need Help From Elsewhere
Some interference problems on moving machines are not shield problems at all, and the disciplined engineer checks the boundaries before rebuilding terminations. Noise that follows the mains follows the power distribution, where the filtering and separation disciplines of standard industrial power distribution apply. Signal cabling that runs through both static and dynamic segments inherits requirements from both worlds, and the division of responsibilities between control and instrumentation cabling is mapped in the guide to control versus instrumentation cable. Recurring faults that survive every EMC check usually trace to the failure modes catalogued in the review of why cables fail, of which shield degradation is one entry among many.
When EMC Measures Are Not the Answer
Honest limits: shielding manages interference; it does not create signal integrity where the design lacks it. An encoder cable whose pairs are not properly twisted and balanced cannot be rescued by a better shield, because the pair geometry is the first line of common-mode rejection. Ferrites and filters bolted onto a machine with broken shield terminations treat symptoms while the root cause quietly continues. And some noise problems live in the grounding of the building or the supply, beyond any cable’s reach, where the fix belongs to the installation rather than the machine. The EMC discipline on moving cable is real and specific, but it is one layer of a stack, and the layer below it, the signal design and the power quality, has to hold before the shield above it can be judged.
RFQ Checklist: Specifying EMC Performance for Motion Cable
Bring the EMC duty to the supplier in specifics:
- Interference sources: drive power, switching frequency, cable lengths from drive to motor
- Signals carried: encoder, resolver, communication buses, and their noise sensitivity
- Motion duty the shield must survive: radius, cycles, twist if any
- Evidence required: chain test data with shield continuity monitored through the cycle count
- Termination system: 360-degree gland or connector options rated for the flexing
- Verification support: shield resistance baseline values per construction for maintenance trending
Conclusion
EMC on moving machines is static EMC plus one hostile extra: the shield itself must survive the motion it is grounded through. The failure pattern is well understood, braid fatigue, degrading terminations, geometry change, and so is the defense: cable whose shield is engineered for flexing, 360-degree terminations that separate current path from flex stress, both-end bonding with low impedance, and verification that trends over time instead of trusting day one. Machines that follow these rules keep their encoder signals clean for the life of the harness; machines that treat the shield as a static afterthought spend years chasing faults that were electrical from the start.
