Motion Cable Checklist for Machine Builders and System Integrators
Quick Answer: A machine-builder cable specification covers duty, geometry, shielding, jacket chemistry, terminations, testing and documentation, and this checklist gives you every line ready to adapt.
Machine builders and integrators live with a asymmetry that cable suppliers rarely see from their side of the quote: the builder specifies hundreds of components per machine, cable among them, and cable is the one most likely to come back as a warranty claim two years later. The reason is rarely the cable itself. It is the specification gap, the line item that said flexible cable and left everything else to chance. This guide exists to close that gap. It is a complete checklist for specifying motion cable on built machinery, organized the way a project actually unfolds: duty first, then geometry, then electrical, then materials, then terminations, then testing and paperwork. Copy it into your RFQ template, delete what does not apply, and every cable quote you receive becomes comparable line by line. The guide assumes moving cable in chains, on robots, on gantries and on rotating axes; for the reasoning behind individual choices, the deeper dives are linked throughout.

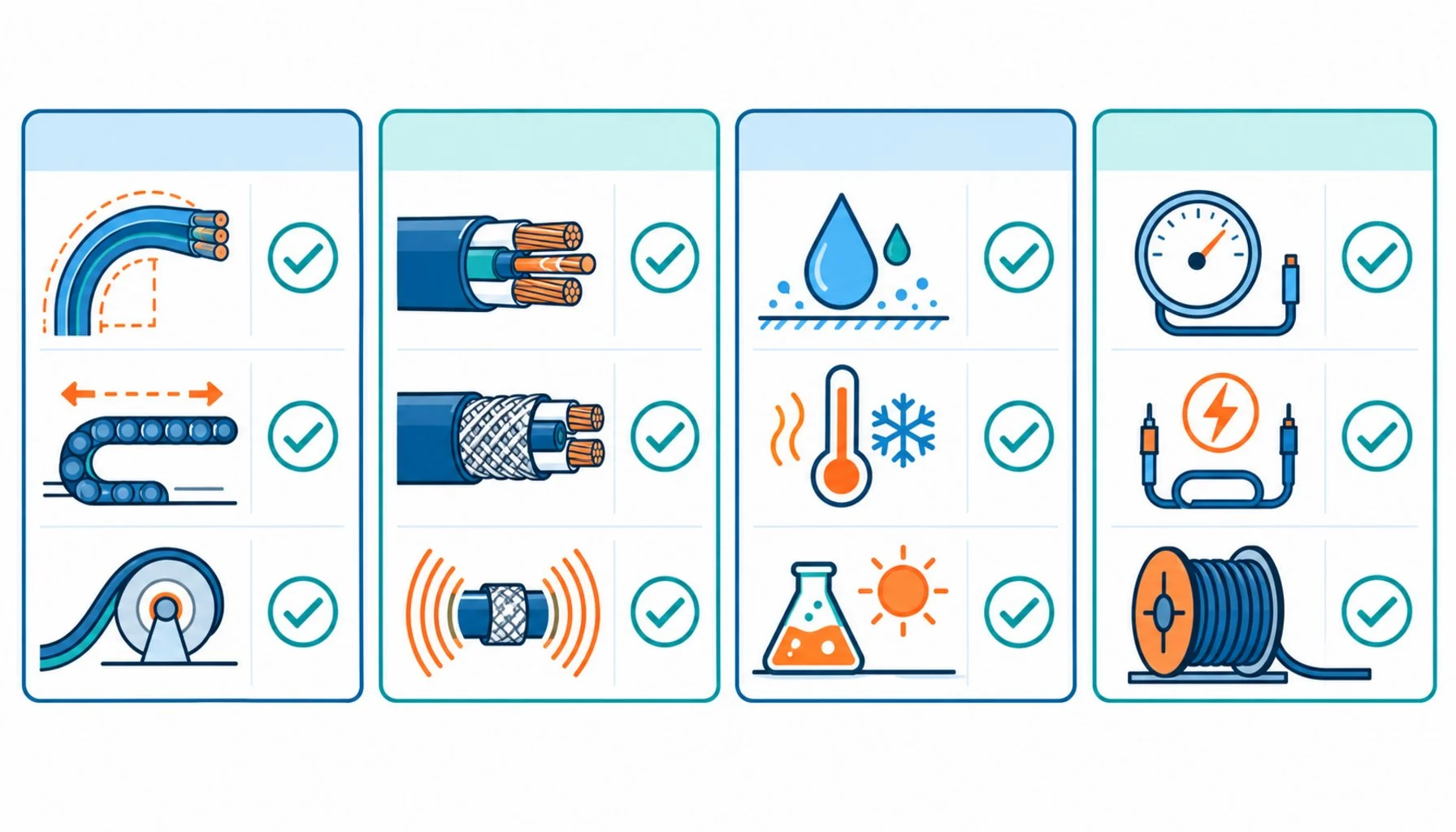

Introduction
Two habits separate builders whose machines run for a decade from builders who chase cable faults through warranty season. The first is specifying duty in numbers rather than adjectives: not high flex but cycles per hour at a stated radius, not harsh environment but named agents at named concentrations. The second is demanding evidence rather than assurance: test data at the stated duty, not a datasheet adjective. Both habits cost minutes and save machines. The checklist below enforces both, and each section ends with the evidence to require, because a specification line without an evidence requirement is a suggestion. Builders who want the background behind any line will find it in the linked deep dives, from the general catalog of cable failure causes to the specific geometry of bend radius and stranding class.
Section 1: Duty and Geometry
Start with what the cable will physically do. State the motion type per route: rolling in a chain, gliding, torsion on a rotating axis, continuous flex on a robot wrist, or a combination, because combined duty is the hardest and must be named. State the numbers: travel length, bend radius at the tightest installed point, cycles per hour from the machine cycle, and service life in years or cycles. Convert speed and acceleration into what they mean for the cable: top speed in meters per second and the acceleration profile that loads the cable mass. Then commit the geometry decisions that follow from the numbers: minimum radius the installation will actually provide, including at glands and transitions where it is usually violated, and the routing plan that keeps the cable away from pinch points, heat and contact edges. The single most cited number in motion cable, the minimum bend radius, deserves the same insistence here: the installed radius is measured, not assumed, because the tightest point in the routing sets the requirement whether or not anyone wrote it down.
| Checklist Line | What to State | Evidence to Require |
|---|---|---|
| Motion type per route | Chain rolling, gliding, torsion, continuous flex, or combined | Construction and test data matching the stated type |
| Bend radius, installed | Measured tightest radius including glands and transitions | Flex test at that radius, cycle count stated |
| Cycle duty | Cycles per hour from the machine cycle, target years of life | Total cycle test data with pass criteria |
| Speed and acceleration | Top speed and acceleration profile per axis | Rating at speed, not just at static test bench conditions |
| Routing plan | Separation, standoff at contact points, fill ratio target | Installation drawing review or sample photos |
Section 2: Electrical and Shielding
Next, the electrical reality of the machine. List the circuits: power to drives and motors, feedback from encoders and resolvers, control and I/O, data buses, and any hybrid runs, each with conductor counts, sizes and the voltage class. For signal circuits, state the noise environment honestly, because a machine full of VFDs and servo drives is a different place for a signal wire than a manual line; the drive-side reasoning is in the comparison of VFD and soft starter behavior, and the shielding construction that survives motion is judged by the same logic that separates control from instrumentation cable: construction follows signal duty, not habit. Specify the separation rules: minimum distance from power runs, cross at right angles where crossing is unavoidable, never share a bundle. And specify shield termination, because a shield that is correct in the cable and wrong at the gland protects nothing. The evidence to require here is shield construction data plus continuity-after-flex testing, since a braid that cracks at cycle 200,000 is a time bomb with a clean datasheet.
Section 3: Materials and Environment
The jacket is the cable’s working skin, so the environment list goes here: every agent the cable touches, from coolants and cutting oils to cleaning chemicals and washdown, with concentrations and temperatures. Temperature gets two entries, ambient and local hot spots, because machine cable often passes near motors and heaters that no ambient rating describes. From that list follows the jacket compound choice, PUR for oil and abrasion, TPE for cold flex and certain chemistries, PVC only where the environment is genuinely benign, and the insulation-versus-jacket distinction behind that choice follows the same logic as XLPE versus PVC in static cable, applied here to dynamic duty. Abrasion and chip resistance matter where the routing has contact points even with good standoff hardware. UV and outdoor exposure, if any part of the machine lives outside, rules out several compounds buyers otherwise default to. The evidence to require is chemical resistance documentation against your named agents and low-temperature flex data if cold applies, each tied to the actual compound, not the family name.
| Checklist Line | What to State | Evidence to Require |
|---|---|---|
| Circuit schedule | Each circuit's conductors, sizes, voltage class, purpose | Build sheet matching the schedule exactly |
| Noise environment | Drives present, bus types, known EMI sources | Shield construction and transfer impedance data |
| Separation rules | Distances, crossing rules, bundle policy | Compliance statement and routing drawing |
| Agent exposure list | Every chemical with concentration and temperature | Resistance documentation against the named list |
| Temperature map | Ambient range plus local hot spots near motors and heaters | Ratings for both, flex data at the cold end if applicable |
| Termination plan | Connector schedule, strain relief type, gland specification | Termination instructions and torque or crimp data |
Section 4: Testing, Documentation and Supply
The last section turns a good specification into a repeatable supply. Require factory testing per batch: continuity, insulation resistance, shield continuity, and high-potential where the voltage class demands it, with certificates traceable to the shipment. Require marking that survives the machine’s lifetime, because an unlabeled cable in a full chain is a diagnostic nightmare. Require revision control and change notification, since a silent jacket change can undo a qualification. And require supply continuity planning for OEM volumes: lead times, stock arrangements, and a named contact for engineering questions, because the builder who can call the cable engineer at the factory closes design issues in days rather than quotation cycles. Builders sourcing from China or building export machinery should also fix the certification question early, and the practical framework for that lives in the guide to China equipment certification, with the buyer-side verification logic in the manufacturer verification checklist. Documentation sounds bureaucratic until the first field failure, when the batch certificate and the revision history are the difference between a targeted fix and a fleet-wide recall.
When a Checklist Is Not the Answer
Honesty about scope: a checklist standardizes what is known, and some projects start with what is not. A truly novel machine, a duty no one has run before, or an environment with no comparable installation may need prototype testing before any checklist line can be filled in responsibly. In those cases, use the checklist as the frame for the test plan rather than as a purchase specification: state the unknowns, build the trial, and let the results fill the lines. The checklist also does not substitute for the installation discipline on the floor; a perfect specification installed with kinked pulls and overtightened clamps produces the week-two failures covered in the failure-mode guide. Specification and installation are two halves of one discipline, and this document is only the first half.
RFQ Checklist: Using This Guide in Your Next Quote
Assemble the request so suppliers can price it accurately the first time:
- Part 1 output: motion types, measured radii, cycle duty, speed and routing plan per route
- Part 2 output: full circuit schedule, noise environment, separation and shield termination rules
- Part 3 output: agent list, temperature map and the jacket conclusions drawn from them
- Part 4 output: test certificates, marking, revision control and supply terms required
- Evidence column attached: every line with the proof you will accept, stated before quoting
- One contact for engineering questions on both sides, named in the RFQ
Conclusion
Machine builders do not need to become cable engineers to stop paying the cable tax on their warranty ledger; they need a specification that says what the cable must survive and demands proof that it will. The checklist above is that document, distilled from the failure patterns that actually stop machines: duty stated in numbers, geometry measured rather than assumed, chemistry named rather than implied, terminations planned rather than improvised, and evidence required rather than promised. Fill it in per project and it becomes the machine’s cable conscience.
