The Real Cost of Robot Downtime: What a Cable Failure Actually Costs Your Line
Quick Answer: The cable on a failed robot axis lists at a few hundred dollars. The hour it costs runs from hundreds to thousands in lost output, and the full event, recovery labour, expedited freight, scrap and the second failure the improvised repair invites, lands at ten to fifty times the cable’s price. This guide builds the number honestly, and shows what prevention spend buys it down.
Introduction
Nobody needs convincing that downtime costs money; the argument in most plants is about how much, and that argument decides budgets. When the cable failure is costed at the part’s price, prevention loses every time. When it is costed properly, the stopped line, the people diverted, the freight, the scrap and the follow-on failures, the same prevention spend pays back in one or two avoided events, and the argument ends. This guide builds the proper number step by step, so the next budget conversation starts from arithmetic instead of anecdote.
The scale of the exposed fleet makes the stakes concrete. IFR’s World Robotics programme counts roughly four to five million industrial robots operating worldwide, and Siemens’ Senseye unit, in its True Cost of Downtime research, has put unplanned downtime at large automotive plants in the region of two million US dollars per hour. Cable is not the only thing that stops such lines, but it is one of the few whose failure rate the buyer directly controls through specification, and that control is the subject of the rest of this guide.

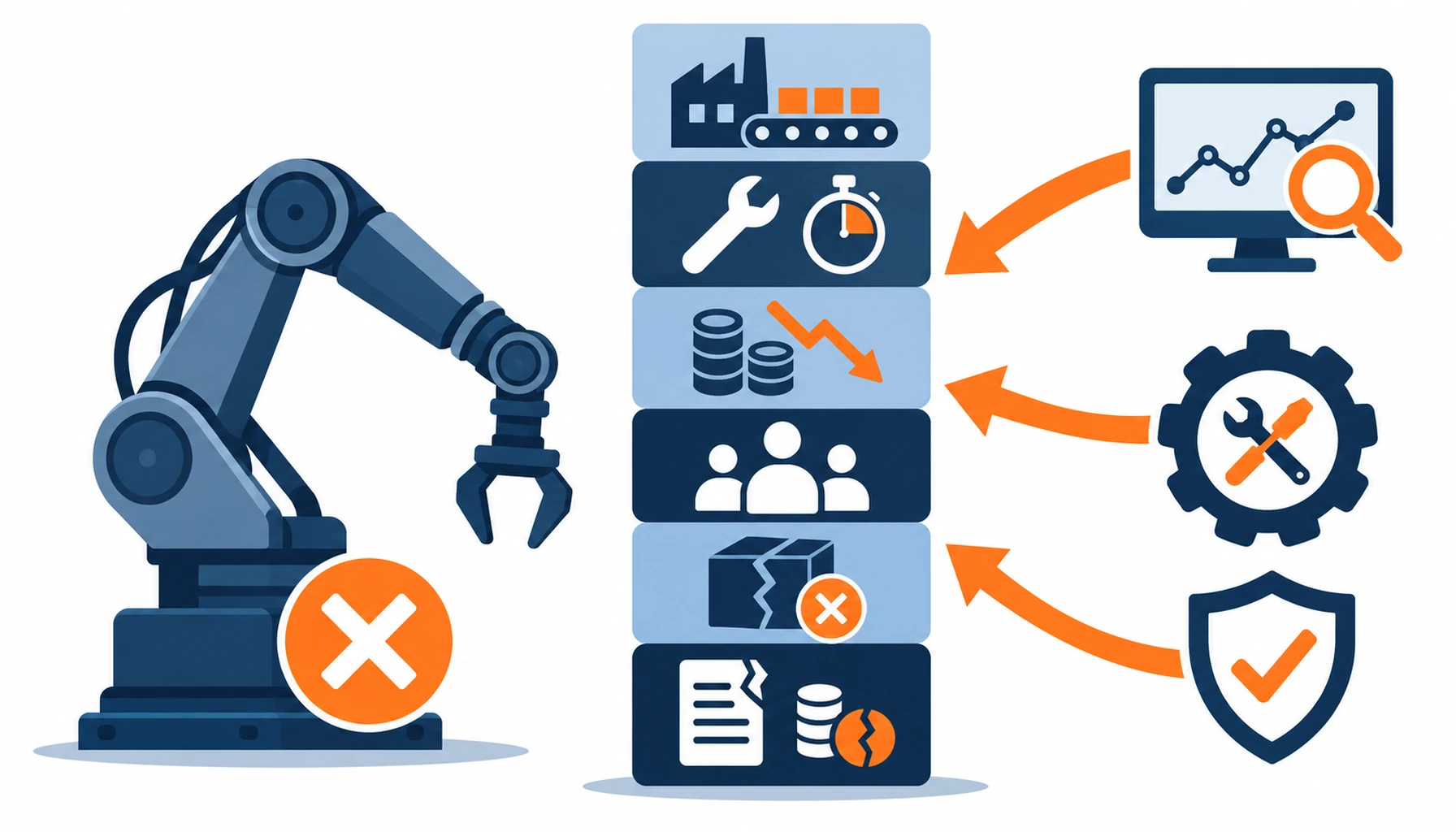

Building the Number: The Cost Stack of One Cable Event
The visible cost is the part, and it is the smallest line. The first invisible layer is lost output: the cell’s rate times the stopped time, which for a cell feeding a larger line includes everything downstream of it. The second layer is people: the technician hours on diagnosis and recovery, at overtime rates if the failure chose its moment honestly, and the supervision pulled off other work. The third layer is logistics: expedited freight on the replacement harness, and the premium the nearest supplier charges a buyer with no alternative.
The fourth layer is material: scrap from the interrupted run, particularly in processes with start-up waste, and requalification if the process window drifted while the cell was down. The fifth layer is the one budgets never see coming: the cost of the improvised repair. A harness re-terminated at midnight with whatever the kit holds is a new failure scheduled for the next quarter, and its event repeats the whole stack, as the failure mechanics in our note on robot cable failure explain.
The Decision Table: What Each Cost Layer Runs, and What Reduces It
| Cost layer | Typical weight | What drives it | Prevention or mitigation spend | Cost of doing nothing |
|---|---|---|---|---|
| Lost output | Largest, scales with cell criticality | Cell rate and position in the line | Reliability specification at the next order | Repeated at every event |
| Recovery labour | Medium, hours per event | Diagnostic quality and kit readiness | Field kit, drawings, training hour | Overtime rates at the worst hour |
| Expedited logistics | Medium, event-driven | Lead time versus panic | Stocked repair harness, standing arrangement | Premium freight every time |
| Scrap and requalification | Process-dependent | Start-up waste of the process | Fewer events by specification | Unbudgeted and recurring |
| Follow-on failure | Deferred but real | Improvised repairs | Repair policy and proper spares | A second event per bad repair |
| Claim leakage | Small but cumulative | Evidence quality at claim time | Recording habit and file discipline | Claimable failures paid out of pocket |
Frequency Turns a Cost Into a Rate
Total the right-hand column against the left and the ratio that emerges, an event costing ten to fifty times the harness that failed, is the number to carry into the budget meeting. It is deliberately conservative: it counts only what the plant’s own records can support, and plants that add the softer costs, missed shipments, quality reputation, find the ratio rises.
What Prevention Buys, Line by Line
One event is an anecdote; the budget cares about the rate. Multiply the per-event stack by the fleet’s cable failure frequency, from the maintenance records, and the annual exposure appears. A fleet with three cable events a year at a conservative stack is burning a reliability budget that never appears under any single line item, spread across overtime codes, freight accounts and scrap adjustments. Consolidating it into one number is the whole exercise, and the trend sheets from our note on in-service cable testing supply the frequency side honestly.
The rate also concentrates. Cable failures cluster on the highest-duty axes, which means the exposure is not spread evenly across the fleet but sits on the two or three cells whose downtime cost is also the highest. That concentration is good news twice: it makes the prevention target obvious, and it makes the monitored pilot small, as our note on robot cabling serviceability describes.
Where the Number Gets Disputed, and How to Settle It
Prevention spend maps directly onto the stack. A specification matched to measured duty, ordered through the standing robot cable RFQ, attacks the frequency itself, and frequency is the only input that multiplies everything else. A stocked repair harness and field kit, as set out in our note on repair harnesses and field kits, attacks the recovery hours and the expedited freight, and usually returns its cost the first night it is used. A recording habit attacks the claim leakage line, turning failures the plant paid for into failures the warranty covers, per the terms in our note on the robot cable warranty.
None of this requires a programme with a name and a steering committee. It requires the event costed once, the frequency counted once, and the three cheapest interventions funded against the number that results. Plants that do the arithmetic buy better cable without any change in procurement philosophy; the arithmetic does the persuading.
Sequence the interventions by payback, and fund them in that order. The recording habit costs nothing and pays at the next warranty claim. The field kit costs a tooling budget and pays at the next recovery. The specification change costs the delta on the next order and pays at the event that does not happen. Three fundings, three paybacks, each independently defensible, and the case that asks for them one at a time succeeds more often than the case that asks for everything at once.
Before the Budget Case: What to Freeze
Every costing meets the same three objections, and each has a short answer. The first objection is that the lost output was not really lost, the line would have caught up. Answer it with the schedule: if the cell runs at capacity, catch-up is fiction; if it does not, say so and reduce the layer honestly, because a costing that concedes what it should concede wins the rest. The second objection is that the labour was absorbed. Absorbed by whom, and at what overtime rate, is a work-order question, and the answer lives in the record you already pulled.
The third objection is the strongest one, that the frequency is too small to matter. That is not an objection to the costing, it is the costing working: if the arithmetic says exposure is small, the right decision is smaller prevention spend, and the case says so. A framework that can argue against its own spending is the version finance trusts with a larger number later.
One presentational habit settles most disputes before they start: keep the soft costs out of the headline. Missed shipments, quality reputation and customer confidence are real, but they are arguable, and one arguable line contaminates five defensible ones. State the defensible stack as the case, note the soft costs exist below the line, and let the opposition discover the case is already conservative.
When a Bigger Prevention Budget Is Not the Answer
| Item | What to state | Evidence to attach | Cost of leaving it open |
|---|---|---|---|
| Cell rate | Output per hour per critical cell | Production records | Lost output argued as opinion |
| Event history | Cable events per year, per axis type | Maintenance records | Frequency guessed, exposure wrong |
| Recovery hours | Actual hours per past event | Work orders | Labour line invisible |
| Freight record | Premium paid per emergency order | Purchasing records | Logistics line invisible |
| Scrap profile | Start-up waste of each process | Quality records | Material line omitted |
| Claim recovery | Value recovered versus failures claimable | Warranty file | Leakage never counted |
| Per-event stack | The total, layers named | A one-page costing | Debates by anecdote |
| Annual exposure | Stack times frequency | The same page | No budget line to attack |
| Prevention list | Each spend mapped to a layer | A funding proposal | Generic reliability spending |
| Review date | When the number is recalculated | A calendar owner | A one-year case for a standing problem |
RFQ Checklist
When the frequency is already near zero. A fleet with one cable event in five years does not have a cable problem, and the honest costing shows it. Hold the kit, keep the records, and spend the reliability budget where the arithmetic actually points, which is our note on spare cable programmes in the context of what stocking is worth.
When the events are installation damage. If the failure history is cuts, crushes and impacts rather than flex fatigue, the exposure belongs to guarding and routing, not to better cable. Buying a heavier construction against a fixture that bites every harness is the misallocation our note on cable wear patterns warns about.
When the premium buys nothing measurable. Prevention spend without a mapped layer is sentiment. Every proposal should name the layer it shrinks and the size of the shrink; proposals that cannot, wait until they can.
When the real fix is upstream. A cell whose duty doubled since commissioning will eat any cable within its old specification, and the costing will show a frequency that spec changes cannot reach. The exposure there belongs to the process change, and the cable conversation starts after the duty is restated.
Conclusion
- Cycle and torsion ratings specified against the measured duty of each critical axis
- Failure rate expectations and duty profiles shared with the supplier in the RFQ
- Pre-terminated repair harnesses for critical axes priced with the production order
- Lead times for repeat spares stated, so the stocking arithmetic closes
- Commissioning test readings required as a delivery deliverable, for the trend baseline
- Warranty terms, evidence requirements and response times written for claim recovery
- Termination drawing packs supplied with every harness, for the field kit
- Construction change commitments tied to agreed failure evidence
- Shelf-life and storage guidance supplied for stocked harnesses
- Annual price and lead-time review scheduled against the downtime number
