Buying Surgical Robot Cable for Regulated Environments: What the Specification Has to Prove

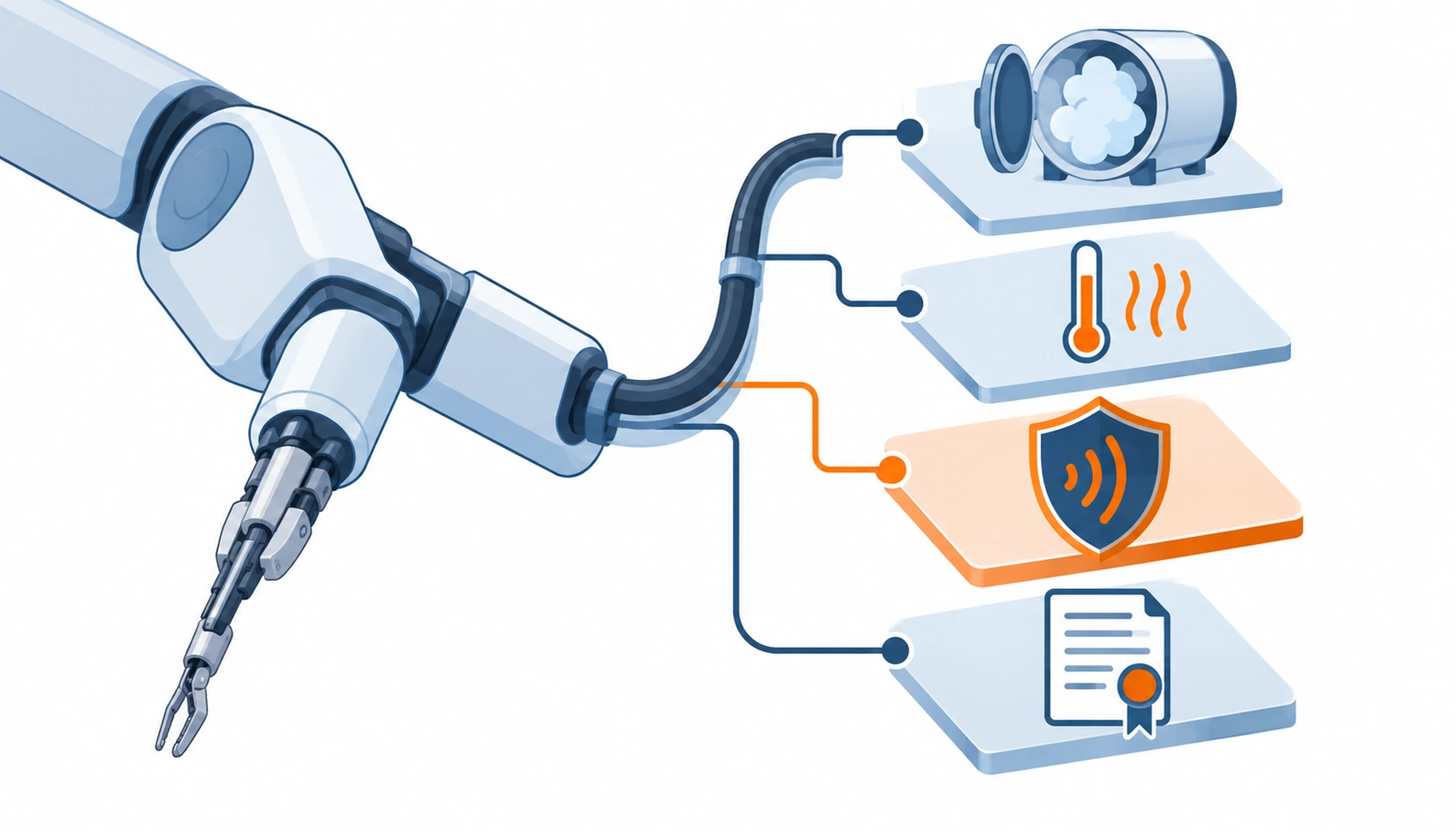

Quick Answer: A surgical robot cable is not bought on flex life alone. It is bought on what it survives, what it carries and what it can prove. Reprocessing chemicals, sterilisation heat, dense electromagnetic surroundings and a patient in the circuit all shape the construction, and every one of them has to be backed by paperwork the device builder can put in front of a regulator.
Introduction
Medical robotics procurement looks like industrial procurement with one difference that changes everything: the buyer is rarely the end user, and the person who approves the machine is a regulator rather than a plant manager. That shifts the cable question from what it does to what it can document.
The moving-cable fundamentals still apply, and the flex rules in our note on cable minimum bend radius are unchanged. What follows is the part that is specific to regulated environments: sterilisation, shielding, documentation and change control.
What Sterilisation Does to a Cable
Reusable instruments are reprocessed, and reprocessing is the hardest thing a cable in this field has to survive. Steam autoclave cycles combine heat, pressure and moisture in a way that attacks polymer compounds from the outside in. Vapourised hydrogen peroxide is gentler on temperature and harsher on some elastomers. Gamma and electron-beam sterilisation reach the whole assembly at once and can embrittle compounds that would otherwise last for years.
The specification should name the method, the cycle conditions and the number of cycles the assembly must survive, because a cable that passes one autoclave cycle and one that passes five hundred are different products. Silicone and halogen-free elastomer constructions are the usual answer for heat and repeated reprocessing, and the family that covers it includes products such as the halogen-free tear-resistant silicone rubber cable.
Reprocessing also decides whether the cable is reusable at all. A disposable drape or a single-use instrument interface moves the problem to a different business case, and a cable assembly designed to be discarded does not need a five-hundred-cycle rating. Deciding which parts are single use and which are reprocessed is a procurement decision with a large effect on unit cost, and it belongs in the first conversation rather than the last.
Signals, Shielding and a Crowded Electromagnetic Room
An operating theatre is a hostile place for a small signal. Electrosurgical units switch hard currents on and off within a metre of the robot, imaging equipment radiates in bursts, and camera and instrument data travel along the same arm as motor power. Screened constructions exist for exactly this, and the termination method matters as much as the screen itself, as set out in our note on shielded connectors for EMC.
The second noise source is internal. Motor phase conductors switch at high frequency and couple into anything running parallel to them, so power and feedback should not share a route where the space allows. Where the arm is too slim to separate them, a screened control construction carries both, and our note on the silicone rubber shielded control cable describes what that construction buys.
Position feedback is the channel that suffers most, because a corrupted encoder signal shows up as a motion fault rather than as a communication error. The construction rules for that channel are set out in our note on encoder cable, and in a surgical arm the same rules apply with less room to apply them.
The Decision Table: Four Construction Strategies and What Each One Costs
| Strategy | What to specify | Evidence to demand | Cost and lead time | Where it fails |
|---|---|---|---|---|
| Medical-grade flexible, reusable | Compound, reprocessing method and cycle count | Reprocessing test at your cycle count and method | Moderate unit cost, qualified supplier required | A jacket that hardens after a fraction of the declared cycles |
| Silicone or halogen-free for heat | Temperature window, tear resistance and bondability | Thermal ageing data at the sterilisation temperature | Higher unit cost, longer lead time | Paying for autoclave grade where the part is single use |
| Screened construction for EMI | Screen coverage, transfer impedance and termination method | A termination first article with a 360 degree bond | Higher cost, tighter assembly tolerance | A pigtail drain that undoes the screen it paid for |
| High-density micro pair and coax | Gauge, pair count, crosstalk limit and bend radius | A continuity and crosstalk record on the assembly | Highest unit cost, specialist lead time | A bend radius the arm cannot physically respect |
| Single-use instrument assembly | Element list, tail lengths and packaging constraints | A first-article record plus release paperwork | Low unit cost, high annual volume | Reusable-grade pricing charged on a disposable part |
Where the Cable Meets the Sterile Boundary
Most of the procurement argument in this field happens at one interface: the point where the arm, which stays outside the sterile field, connects to the instrument, which does not. Everything on the patient side has to be either sterilised or disposable, and everything on the machine side has to survive being cleaned between cases without being taken apart.
Draw that boundary on paper before choosing a cable. If the interface sits at the instrument, the arm-side harness can be a conventional medical-grade flexible construction with a defined cleaning regime. If it sits further up the arm, a longer section has to be reprocessed, and every metre of it inherits the cycle requirement and the documentation. Moving the boundary by a few centimetres can change the harness cost and the validation effort more than any material choice.
Draping is the second half of the same problem. A drape over the harness changes how heat leaves the cable and how far the arm can move before the cable is pulled. Both effects belong in the first-article check rather than in a field complaint, and both are cheap to fix while the interface boundary is still a drawing.
The Documentation Package Is Part of the Product
In this field the paperwork is not an accessory. What the device builder needs from a cable supplier is evidence that survives an audit: material declarations for every compound in the assembly, lot traceability from the conductor back to the batch, records for the termination process, and a stated position on material change. The last one matters most. An unannounced change from one sheath compound to a chemically similar one can invalidate a reprocessing validation the buyer has already paid for, and it is the single most common way a good supplier relationship goes wrong.
Assembly environment belongs in the same conversation. A harness built on a general shop floor and one built in a controlled area with documented handling are different products with different prices. Where the device is used in a sterile field, ask where the assembly is built, how it is cleaned before packing, and how that is recorded.
The termination side carries its own risk. A crimp or solder joint inside a device that goes through hundreds of thermal cycles is a long-term reliability item, and the process data behind it is what makes it acceptable. The methods and the evidence behind them are set out in our note on terminating robot harnesses. Cleanroom assembly constraints are covered in our note on cleanroom motion cable.
What to Freeze Before the Order
| Item | What to state | Evidence to attach | Cost of leaving it open |
|---|---|---|---|
| Reprocessing method | Steam, peroxide, gamma or a mixture, with conditions | A test report at those exact conditions | A validation that has to be repeated at your cost |
| Cycle count | How many reprocessing cycles the part must survive | Ageing data at that count, not at one cycle | Replacing assemblies four times more often than planned |
| Reusable or single use | Which parts are reprocessed and which are discarded | A parts list marked by service model | Reusable-grade pricing charged on disposable parts |
| Screen and termination | Coverage, transfer impedance and the bonding method | A 360 degree termination on the first article | Noise picked up during the most critical second of use |
| Signal separation | Which pairs share a route and which stay apart | A construction drawing with the separations marked | Encoder faults that present as motion faults |
| Bend radius | The figure for the assembled harness in the arm | A flex figure at the tightest point of travel | Screen and core damage hidden inside the harness |
| Material declarations | Every compound in the assembly, by name | Declarations plus a change notification clause | A validation invalidated by a silent compound change |
| Lot traceability | What is traceable, to what level, for how long | A sample lot record from a production batch | A field issue that cannot be contained to one batch |
| Build environment | Where the harness is assembled and how it is handled | A documented handling and cleaning procedure | An assembly that cannot be released into the sterile field |
| Change control | Notice period and approval route for any change | Written terms, not a verbal assurance | An approved device quietly becoming an unapproved one |
When a Surgical Robot Cable Specification Is Not the Answer
When the assembly is genuinely disposable. If the part is discarded after one procedure, a five-hundred-cycle reprocessing claim is money spent on a property nobody will test. Buy to the single-use duty, spend the difference on release paperwork and packaging, and keep the qualification effort for the parts that are actually reused.
When the problem is the device, not the cable. Leakage current, isolation and patient safety responsibilities sit with the device builder and its quality system, and no cable supplier can take them over. If a specification is being written to push a compliance obligation down the supply chain, it will not work, and the honest answer is to keep that scope with the organisation that can certify it.
When the arm is too slim for the separation you want. Where power and feedback cannot be routed apart, a screened construction is the compromise, and it should be bought with a 360 degree termination rather than a drain wire. Our note on robot cable certification sets out what documentation is realistically available and what has to be generated for your own file.
When the buyer expects a certified cable rather than a documented one. Cable is a component, not a licensed product, and the certification that matters belongs to the machine. What a supplier can provide is evidence, traceability and consistency; where the machine is a wearable or a body-contact device, the same logic is set out in our note on exoskeleton cable. Standards such as ISO 10218 for robot safety shape the machine, not the reel.
RFQ Checklist
- Reprocessing method named with cycle conditions and the number of cycles required
- Parts list marked reusable or single use, with the pricing model matched to each
- Screen coverage, transfer impedance target and the termination method stated
- A 360 degree termination demonstrated on the first article, not on a drawing
- Signal separation shown on a construction drawing, with pair-by-pair routing
- Bend radius given as a harness figure at the tightest point of travel in the arm
- Material declarations for every compound, with a written change notification clause
- Lot traceability level and retention period agreed in writing
- Build environment and pre-pack cleaning documented, with a handling procedure
- Notice period and approval route for any material or process change
Conclusion
Surgical robot cable is bought on three things at once: what the construction survives, what the termination achieves, and what the paperwork can prove. Get all three into the RFQ and the technical arguments get shorter, because the questions a regulator will ask have already been answered in advance.
