48V100AH Rack-Mounted LiFePO4 Battery System
A 51.2V rack-mounted LiFePO4 battery system built for standard rack cabinet installation. Scales from 5.22kWh up to 20.89kWh across four parallel-unit configurations, with a 6000+ cycle lifespan and Bluetooth+APP monitoring.
Key Features
Designed to fit standard rack cabinets, this LiFePO4 battery system scales from a single unit to a four-unit parallel stack without changing footprint or voltage.
Standard Rack-Mount Form Factor

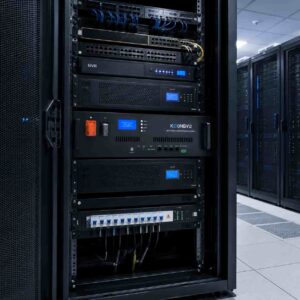

Sized for installation in standard server/telecom rack cabinets alongside other rack equipment.
Scalable from 1P to 4P
Four parallel-unit configurations scale energy capacity from 5.22kWh up to 20.89kWh.
Long Cycle Life
Rated for 6000+ cycles at 0.5C/90% DOD/70% EOL, supporting long-term daily cycling.
Bluetooth & App Monitoring
CAN/RS485 communication plus Bluetooth and mobile app connectivity for easy monitoring.
Natural Cooling, IP21 Rated
Natural cooling design with IP21 protection suited to indoor rack cabinet installation.
Flexible Display Options
ON/OFF button with SOC indicator light as standard, with an optional button LCD display.
OEM & ODM Capabilities
The rack-mounted battery platform supports flexible customization across parallel-unit configuration, communication protocol, and branding — suitable for distributors and system integrators.
Custom Parallel Unit Configuration
Choose from 1P to 4P parallel-unit configurations to match the target energy capacity.
Branded Enclosure & Labeling
Chassis branding, front-panel labeling, and packaging can be customized to OEM/ODM specifications.
Communication Protocol Options
CAN/RS485, Bluetooth, and mobile app connectivity available for integration with third-party monitoring platforms.
Display Configuration Options
Choose between standard SOC indicator lights or an optional button LCD display.
Certification Support
UN38.3 transport safety and CE-EMC certifications support export to multiple international markets.
Small-to-Large MOQ Support
Flexible order quantities supported for both trial orders and large-scale project deployments.
Technical Specifications
Full electrical and physical parameters across all four parallel-unit configurations — EHB48100R16S1P through S4P — are broken out in the table below.
| Cathode Material | LiFePO4 |
|---|---|
| Rated Voltage | 51.2V |
| Charge Voltage | 58.4V |
| Operating Voltage Range | 41.6–58.4V |
| IP Rating | IP21 |
| Cooling Method | Natural cooling |
| Communication | CAN/RS485, Bluetooth+APP |
| Cycle Life | ≥6000 cycles @0.5C/90%DOD/70%EOL, 25±2°C |
| Model | Parallel Unit | Rated Energy |
|---|---|---|
| EHB48100R16S1P | 1P | 5.22kWh |
| EHB48100R16S2P | 2P | 10.44kWh |
| EHB48100R16S3P | 3P | 15.67kWh |
| EHB48100R16S4P | 4P | 20.89kWh |
| Parameter | EHB48100R16S1P | EHB48100R16S2P | EHB48100R16S3P | EHB48100R16S4P |
|---|---|---|---|---|
| Rated capacity | 102Ah | 204Ah | 306Ah | 408Ah |
| Rated energy | 5.22kWh | 10.44kWh | 15.67kWh | 20.89kWh |
| Standard parallel unit | 1P | 2P | 3P | 4P |
| Output power | 5kW | 10kW | 10kW | 10kW |
| Max. charge current | 50A | 100A | 150A | 200A |
| Max. discharge current | 100A | 200A | 200A | 200A |
| Weight | 46kg | 92kg | 138kg | 184kg |
| Dimensions (W×D×H, mm) | 483×450×153 | 483×450×306 | 483×450×459 | 483×450×612 |
| Charge temperature | 0–55°C | 0–55°C | 0–55°C | 0–55°C |
| Discharge temperature | -20–55°C | -20–55°C | -20–55°C | -20–55°C |
| IP rating | IP21 | IP21 | IP21 | IP21 |
| Certification | UN38.3, CE-EMC | UN38.3, CE-EMC | UN38.3, CE-EMC | UN38.3, CE-EMC |
Construction & Configuration

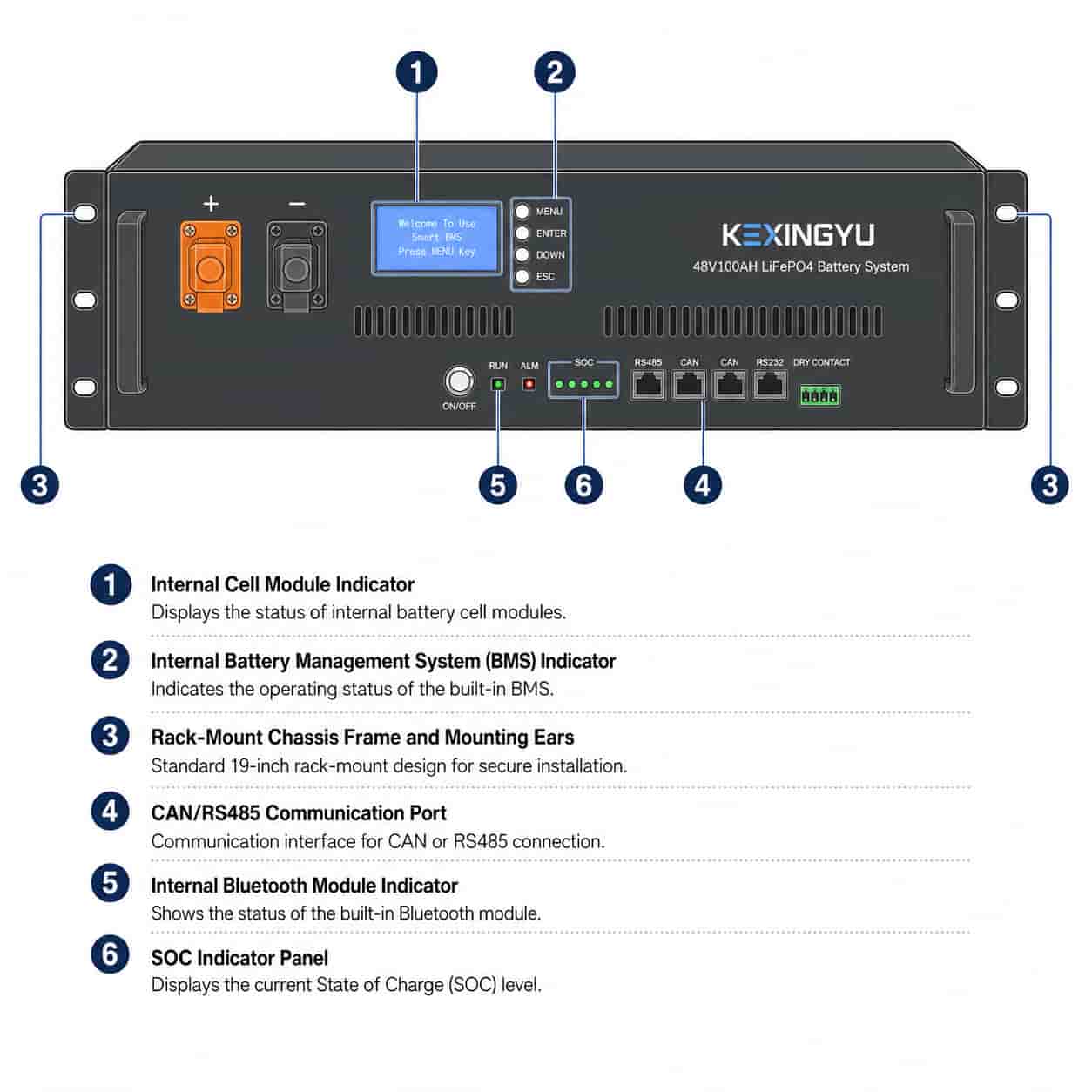

The numbered diagram below highlights the key functional zones of the rack-mounted LiFePO4 battery system, from the internal cell modules to the front-panel indicators.
LiFePO4 Cell Modules
Lithium iron phosphate cell modules arranged for stable, long-cycle-life energy storage within the rack chassis.
Battery Management System (BMS)
Monitors cell voltage, temperature, and current to protect against over-charge, over-discharge, and thermal issues.
Rack-Mount Chassis Frame
Standard rack-width chassis with mounting ears for installation in server or telecom rack cabinets.
CAN/RS485 Communication Port
Wired communication interface enables integration with compatible inverters and monitoring systems.
Bluetooth Module
Wireless connectivity supports mobile app monitoring without additional wiring.
SOC Indicator Panel
Front-panel SOC indicator lights (or optional button LCD) show state of charge at a glance.
Standards & Test Documentation
The rack-mounted LiFePO4 battery system is certified for transport safety and electromagnetic compatibility, with a validated long-cycle lifespan across all parallel-unit configurations.
UN38.3 Transport Safety
Certified to UN38.3 requirements for the safe transport of lithium batteries.
CE-EMC Certified
Meets CE electromagnetic compatibility requirements for stable operation alongside other rack-mounted equipment.
Long-Term Performance Testing
Validated for ≥6000 cycles at 0.5C charge/discharge rate, 90% depth of discharge, 70% end-of-life capacity, tested at 25±2°C.
