Energy Storage Systems
Vertical LiFePO4 Battery System
A freestanding vertical LiFePO4 battery system on integrated wheels for easy positioning. Available across four voltage and capacity configurations from 5.22kWh to 16.07kWh, with LCD touchscreen monitoring and Bluetooth+APP connectivity.
Key Features
Designed to stand freely rather than mount to a wall, the vertical LiFePO4 battery system offers a choice of four voltage and capacity configurations with the same touchscreen monitoring experience across the range.
Freestanding Wheeled Tower Design
Vertical tower design with integrated wheels for easy repositioning without wall mounting.
Four Capacity Configurations
Choose from 5.22kWh, 5.22kWh, 10.44kWh, or 16.07kWh capacity to match project needs.
Dual Voltage Platform
Available in 25.6V and 51.2V configurations for compatibility with different inverter voltage classes.
LCD Touchscreen Display
Front-panel LCD touchscreen shows state of charge, voltage, and system status.
Bluetooth & App Monitoring
CAN/RS485 communication plus Bluetooth and mobile app connectivity for easy monitoring.
Long Cycle Life
Rated for 6000+ cycles standard, with the highest-capacity 314Ah configuration rated for 8000+ cycles.
OEM & ODM Capabilities
The vertical battery platform supports flexible customization across voltage, capacity, and branding — suitable for distributors offering a range of residential storage sizes.
Custom Voltage & Capacity Selection
Choose 25.6V or 51.2V, and a capacity from 5.22kWh up to 16.07kWh, to match the connected inverter and target storage size.
Branded Enclosure & Labeling
Housing branding, front-panel labeling, and packaging can be customized to OEM/ODM specifications.
Communication Protocol Options
CAN/RS485, Bluetooth, and mobile app connectivity available for integration with third-party monitoring platforms.
Display Configuration Options
Standard LCD touchscreen display, with alternative display options available on request.
Certification Support
UN38.3 transport safety and CE-EMC certifications support export to multiple international markets.
Small-to-Large MOQ Support
Flexible order quantities supported for both trial orders and large-scale residential project deployments.
Technical Specifications
Full electrical and physical parameters across all four configurations — EHB24200Y8S2P, EHB48100Y16S1P, EHB48200Y16S2P, and EHB48314Y16S1P — are broken out in the table below.
| Cathode Material | LiFePO4 |
|---|---|
| IP Rating | IP21 |
| Cooling Method | Natural cooling |
| Communication | CAN/RS485, Bluetooth+APP |
| Display Configuration | ON/OFF button, LCD touchscreen |
| Certification | UN38.3, CE-EMC |
| Charge Temperature | 0–55°C |
| Discharge Temperature | -20–55°C |
| Model | Rated Voltage | Rated Energy |
|---|---|---|
| EHB24200Y8S2P | 25.6V | 5.22kWh |
| EHB48100Y16S1P | 51.2V | 5.22kWh |
| EHB48200Y16S2P | 51.2V | 10.44kWh |
| EHB48314Y16S1P | 51.2V | 16.07kWh |
| Parameter | EHB24200Y8S2P | EHB48100Y16S1P | EHB48200Y16S2P | EHB48314Y16S1P |
|---|---|---|---|---|
| Rated voltage | 25.6V | 51.2V | 51.2V | 51.2V |
| Rated capacity | 204Ah | 102Ah | 204Ah | 314Ah |
| Rated energy | 5.22kWh | 5.22kWh | 10.44kWh | 16.07kWh |
| Standard parallel unit | 1P | 1P | 1P | 1P |
| Output power | 3kW | 5kW | 5kW/10kW | 5kW/8kW |
| Charge voltage | 29.2V | 58.4V | 58.4V | 58.4V |
| Operating voltage range | 20.8–29.2V | 41.6–58.4V | 41.6–58.4V | 41.6–58.4V |
| Max. charge current | 100A | 100A | 100A | 100A/160A |
| Max. discharge current | 100A | 100A | 100A/200A | 100A/200A |
| Weight | 53kg | 53kg | 98kg | 122kg |
| Dimensions (W×D×H, mm) | 440×170×690 (750 with wheels) | 440×170×690 (750 with wheels) | 820×170×660 (710 with wheels) | 460×230×850 (900 with wheels) |
| Cycle life | ≥6000 cycles @70%EOL | ≥6000 cycles @70%EOL | ≥6000 cycles @70%EOL | ≥8000 cycles @80%EOL |
Construction & Configuration

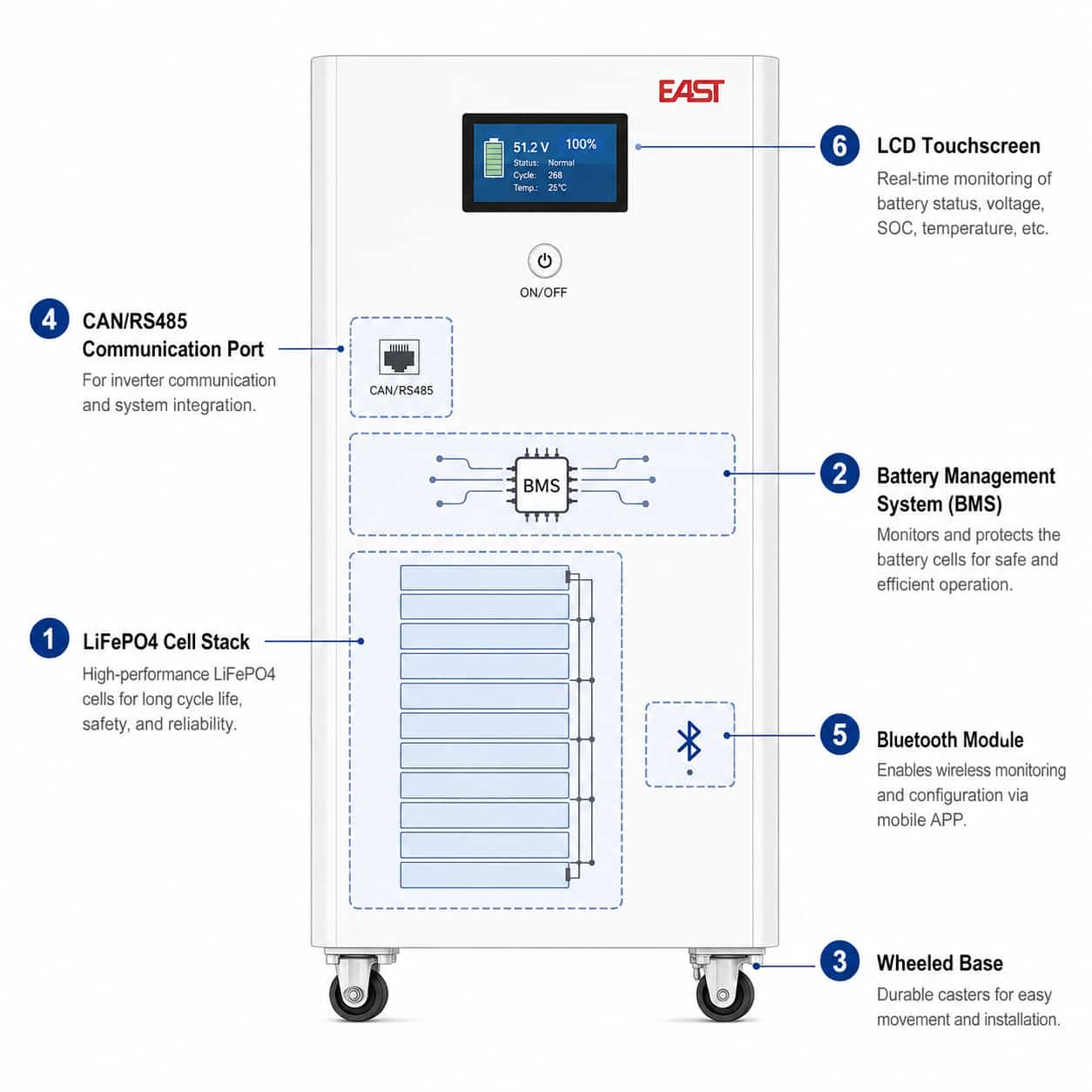

The numbered diagram below highlights the key functional zones of the vertical LiFePO4 battery system, from the internal cell stack to the front-panel touchscreen and wheeled base.
LiFePO4 Cell Stack
Lithium iron phosphate cells arranged for stable, long-cycle-life energy storage within the vertical enclosure.
Battery Management System (BMS)
Monitors cell voltage, temperature, and current to protect against over-charge, over-discharge, and thermal issues.
Freestanding Wheeled Base
Integrated caster wheels allow the unit to be repositioned without wall mounting or fixed installation.
CAN/RS485 Communication Port
Wired communication interface enables integration with compatible inverters and monitoring systems.
Bluetooth Module
Wireless connectivity supports mobile app monitoring without additional wiring.
LCD Touchscreen Display
Front-panel touchscreen shows state of charge, voltage, and system status at a glance.
Standards & Test Documentation
The vertical LiFePO4 battery system is certified for transport safety and electromagnetic compatibility, with a validated cycle lifespan across the configuration range.
UN38.3 Transport Safety
Certified to UN38.3 requirements for the safe transport of lithium batteries.
CE-EMC Certified
Meets CE electromagnetic compatibility requirements for stable operation alongside other residential electronics.
Long-Term Performance Testing
The 204Ah/102Ah configurations are validated for ≥6000 cycles at 0.5C/90% DOD/70% EOL; the 314Ah configuration is validated for ≥8000 cycles at 0.5C/90% DOD/80% EOL, all tested at 25±2°C.
Ready to size your vertical battery system?
Send us your inverter model and target capacity — our team will help you choose the right voltage and capacity configuration or discuss OEM/ODM customization.
