TKR Single-Phase Electronic Voltage Regulator
Every regulator covered so far has something that moves — a carbon brush riding a coil, a geared motor, an induction mechanism turning under load. The TKR doesn’t. It’s a fully electronic, chip-controlled design: a digital control program monitors voltage and switches regulation electronically, with no mechanical wear parts and low standby power draw that supports continuous, long-duration operation. Over-voltage, under-voltage, overload, over-temperature, and startup-delay protection are all handled by the same control chip rather than separate relays, giving the TKR a more compact, lower-maintenance footprint than a servo-driven unit of similar capacity. It’s built for the equipment where any downtime for brush replacement or motor service isn’t an option — smart home electronics, industrial control panels, and electronic instrumentation — available from 1.5KVA to 5KVA.
Key Features
No brush, no motor, no wear-and-tear maintenance schedule — just a chip watching the voltage.
Digital Chip Control
A programmable control chip governs regulation electronically, replacing the analog circuitry and moving parts found in earlier-generation stabilizers.
No Mechanical Wear Parts
Fully electronic regulation means no carbon brush or drive motor to wear out or service over the unit's operating life.
Low Standby Power Draw
Minimal self-power consumption supports continuous, long-duration operation without excessive energy overhead.
Five-Function Protection Suite
Over-voltage, under-voltage, overload, over-temperature, and startup-delay protection are integrated into a single control system.
Multi-Function LED Display
Clear LED readout for real-time voltage monitoring in a compact panel.
Startup Delay Protection
A 5-second delay after power-on before voltage output begins, protecting connected equipment from startup transients.
OEM & ODM Capabilities
Built-to-order electronic regulation for distributors, system integrators, and B2B partners across home and industrial applications.
Configurable Power Rating
Available from 1500VA to 5000VA, sized to your equipment load.
Custom Input Voltage Window
Standard 140-260V or wide-range 105-270V input windows available by capacity tier.
Enclosure & Branding Customization
Custom enclosure finish, nameplate, and packaging available for private-label and distributor programs.
Application-Specific Configuration
Configured for smart home electronics, industrial control equipment, and electronic instrumentation.
Adjustable Protection Thresholds
Under-voltage protection available as an optional add-on; other protection thresholds adjustable to project specification.
Small-Batch & Bulk Production
Configurable order quantities from small-batch trial runs to full container bulk production.
Technical Specifications
Full electrical, protection, and dimensional data across the complete TKR model range.
| Regulator Type | Single-Phase Electronic Voltage Regulator (Digital Chip-Controlled, PC Series) |
|---|---|
| Series | TKR (1.5-5KVA) |
| Rated Input Voltage | 105-270V (1.5-2KVA models) / 140-260V (3-5KVA models) |
| Rated Output Voltage | 220V, single-phase |
| Regulation Precision | ±3% |
| Frequency | 50/60Hz |
| Applicable Load | Any load type, no additional waveform distortion |
| Installation Conditions | Indoor use, altitude ≤1500m, -15°C to 40°C |
| Metric | Value | Notes |
|---|---|---|
| Capacity Range | 1.5-5KVA | TKR platform |
| Response Speed | ≤1s | >10% voltage change |
| Protection Rating | IP20 | Indoor installation |
| Cooling Method | Self-cooling | No fan required |
| Model | Capacity | Input Voltage | Rated Current | Product Dimensions (L×W×H mm) | Net Weight | Packing Dimensions (mm) | Packing Weight |
|---|---|---|---|---|---|---|---|
| TKR-1500VA | 1500VA | 105-270V | 4.5A | 230×200×115 | ~2.7kg | 270×265×160 | ~3kg |
| TKR-2000VA | 2000VA | 105-270V | 4.5A | 230×200×115 | ~3.8kg | 270×265×160 | ~4.1kg |
| TKR-3000VA | 3000VA | 140-260V | 4.5A | 280×210×150 | ~7.7kg | 345×270×205 | ~8.2kg |
| TKR-5000VA | 5000VA | 140-260V | 4.5A | 280×210×150 | ~10.7kg | 345×270×205 | ~11.2kg |
Construction & Configuration

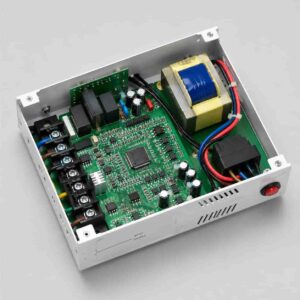

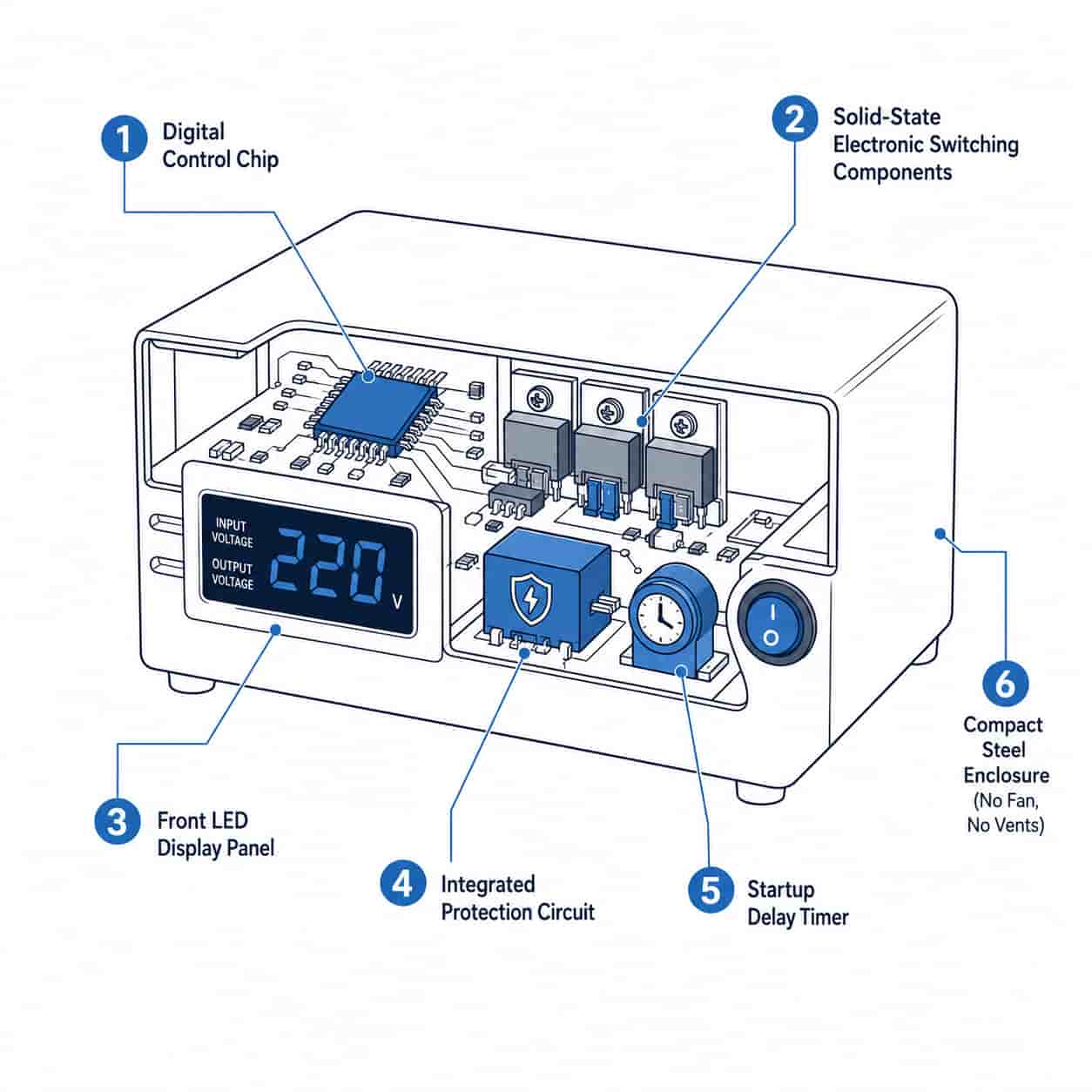

Inside the TKR regulator: how a digital control chip and solid-state switching replace the mechanical parts found in servo-driven stabilizers.
Digital Control Chip
A programmable chip continuously monitors input/output voltage and governs electronic regulation switching, replacing mechanical adjustment.
Electronic Regulation Circuit
Solid-state switching elements adjust output voltage without a moving carbon brush or drive motor.
Multi-Function LED Display
Front-panel LED readout for real-time voltage monitoring.
Integrated Protection Circuitry
Over-voltage, under-voltage, overload, and over-temperature protection functions are built into the same control system.
Startup Delay Circuit
Holds output disconnected for approximately 5 seconds after power-on before energizing connected equipment.
Compact Steel Enclosure
Self-cooled steel housing sized for desktop or equipment-adjacent installation without a fan.
Standards & Test Documentation
Performance, safety, and documentation support behind every TKR regulator.
Voltage Regulation Performance
Maintains ±3% output precision with ≤1-second response for external voltage swings greater than 10%, with all protection functions integrated into a single digital control chip.
Dielectric Withstand & Protection
Rated to withstand a 1500V power-frequency sine wave for 1 minute without puncture or flashover; IP20 enclosure protection for indoor installation.
OEM/ODM Technical Support
Full technical datasheets, dimensional drawings, and test reports available on request to support OEM/ODM integration and procurement evaluation.
Need Electronic Regulation With No Moving Parts?
Share your load profile, input voltage range, and enclosure preferences — our engineering team will configure the right TKR regulator for your project, from single units to bulk OEM/ODM orders.
